IECEx vs ATEX: Key Differences and How to Choose Safe Explosion-Proof Radios for Hazardous Environments

IECEx vs ATEX: Key Differences and How to Choose Safe Explosion-Proof Radios for Hazardous Environments

IECEx vs ATEX: Key Differences and How to Choose Safe Explosion-Proof Radios for Hazardous Environments

In the industrial world of today, making sure people are safe in hazardous environments is very important. IECEx and ATEX certifications are two of the main ways to make sure that equipment is safe. Both of these certification standards are necessary for industries that work with dangerous materials like flammable dust, explosive gases, and other hazardous materials. In this blog, we will explore the key differences and similarities between IECEx and ATEX certifications, and their role in providing safe communication in environments prone to explosions.

What is IECEx Certification?

The International Electrotechnical Commission for Explosive Atmospheres (IECEx) certifies electrical and electronic equipment that is safe to use in explosive environments around the world. It makes sure that equipment meets strict safety standards around the world and can be used safely in hazardous environments.

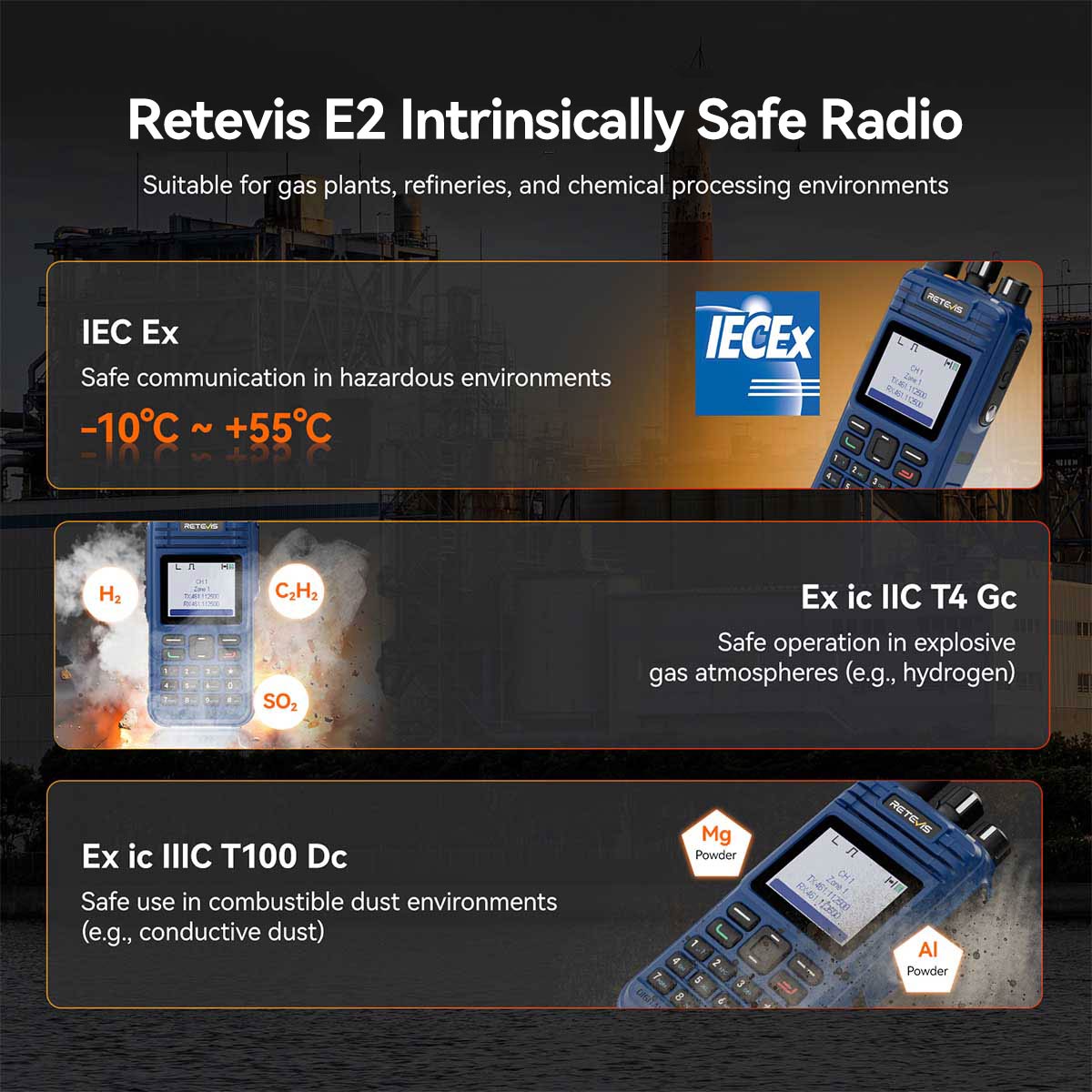

Retevis E2 intrinsically safe radioRetevis E2 IECEx Certicified Intrinsically Safe Radio

Key Features of IECEx Certification:

  • International Use: IECEx certification is recognized all over the world, which makes it easier for companies to sell their goods in other countries.

    Safe Communication in Dangerous Areas: IECEx-certified equipment makes sure that people can talk to each other safely in dangerous areas like refinery plant, chemical plants, and oil rigs.

    Temperature Classification: Equipment is rated with specific temperature classes (T1 to T6) to prevent overheating, such as T4 (maximum surface temperature of 135°C).

  • Temperature Class (T) Maximum Surface Temperature Typical Applications
    T1 450°C Suitable for environments with lower risk gases such as hydrocarbons (e.g., natural gas, methane)
    T2 300°C Used for propane, butane, ethylene, ethane, acetylene — often in industrial gas facilities
    T3 200°C Common for environments with methane, ethylene, alcohol vapors
    T4 135°C Typically used in environments with acetylene, hydrogen, ethanol, and other flammable gases
    T5 100°C Typically for less hazardous gases such as methane, alcohols, or hydrocarbons in lower risk environments
    T6 85°C Used in highly explosive environments like hydrogen, acetylene, silane, and other highly sensitive gases
  • Group Classification for Gases and Dust: Equipment is classified into groups based on the type of explosive gases (IIC, IIB, IIA) and combustible dusts (DC, etc.).

Group I: Equipment for use in mining environments, especially those containing gases like methane.

Group II: Equipment for use in non-mining environments, suitable for industrial environments where gases (e.g., ethylene, propylene) or vapors are present.

Gas Group II Description Examples of Gases Risk Level Applications
IIC Suitable for the most hazardous gases Hydrogen (H₂), Acetylene (C₂H₂) High risk Used in industries with highly explosive gases, e.g., hydrogen production, acetylene use in welding.
IIB Suitable for gases of moderate hazard Ethylene (C₂H₄), Propylene (C₃H₆), Butylene (C₄H₈) Medium risk Common in petrochemical plants, natural gas facilities, and refineries.
IIA Suitable for low-risk gases Methane (CH₄), Alcohol vapors Low risk Typically found in natural gas processing, and less hazardous environments.
  • For instance, Ex ic IIC T4 Gc means that the equipment is safe to use in environments with hazardous gases (like hydrogen) and combustible dust.

What is ATEX Approval?

ATEX (Atmosphères Explosibles) certification is the European Union's standard for equipment used in explosive atmospheres. It applies to all electrical equipment and protective systems that are designed for use in explosive gas or dust environments.

Key Features of ATEX Certification:

  • European Applicability: ATEX is mostly needed for equipment used in Europe to make sure it follows EU rules.
  • Safe Communication in Hazardous Areas: ATEX-certified equipment also lets you talk to people safely and reliably in dangerous areas, like those with dust or gases that could explode.
  • Types of Categories: ATEX uses categories like Category 1, Category 2, and Category 3 to describe the level of safety needed in various environments, ranging from very dangerous to low-risk settings.

ATEX Equipment Category

Classification of explosion protection groups according to Directive 1999/92/EC

Category Description Risk Level Typical Environment Protection Level
Category 1 Highest protection. Equipment for use in explosive atmospheres where explosive gases or dust are present continuously or for long periods. High risk Zone 0: Explosive atmosphere is present continuously or for long periods. Equipment must be intrinsically safe (Ex i) or explosion-proof (Ex d).
Category 2 Moderate protection. Equipment for use in explosive atmospheres where explosive gases or dust are likely to occur during normal operation. Moderate risk Zone 1: Explosive atmosphere is likely to occur under normal operation or in foreseeable faults. Equipment must be explosion-proof (Ex d) or increased safety (Ex e).
Category 3 Basic protection. Equipment for use in explosive atmospheres where explosive gases or dust are unlikely to occur during normal operation but may occur during faults. Low risk Zone 2: Explosive atmosphere is unlikely to occur under normal operation but may occur during fault conditions. Equipment can be non-sparking (Ex n) or increased safety (Ex e).

For example, Category 1 devices are suitable for environments where explosive gases or dust are always present, ensuring continuous safety.

IECEx vs ATEX: Key Differences and Similarities

Feature IECEx Certification ATEX Certification
Applicable Region Global European Union
Scope of Application Applies to explosive gas and dust environments globally Primarily applies to explosive environments in Europe
Temperature Classes T1 to T6 T1 to T6
Gas Group Classification IIC, IIB, IIA IIC, IIB, IIA
Dust Group Classification Dust groups such as Dc for combustible dust Similar dust classification as IECEx

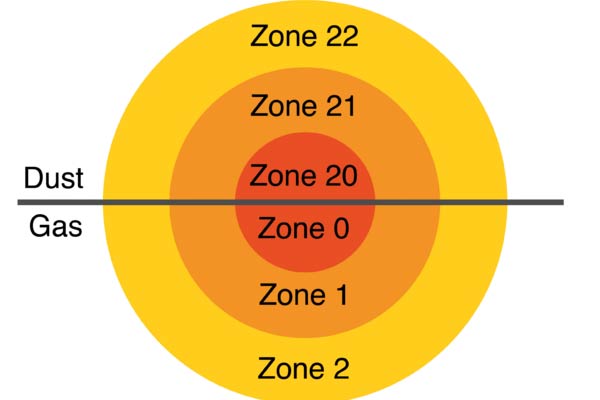

Zones/Category Classification Zone 0, Zone 1, Zone 2 Category 1, Category 2, Category 3 for varying risks
Device Types Ex d (Explosion-Proof Enclosures)
Ex e (Increased Safety)
Ex i (Intrinsic Safety)
Ex n (Non-Sparking)
Ex m (Oil Immersion)
Ex d (Explosion-Proof Enclosures)
Ex e (Increased Safety)
Ex i (Intrinsic Safety)
Ex n (Non-Sparking)
Ex m (Oil Immersion)
Protection Level Ex ic (Intrinsic Safety) - Low-energy, safe even in fault conditions Category 1 - Used in areas where explosive atmospheres are present continuously
Safe Operation Temperature -10°C to +55°C operational range -10°C to +55°C operational range
Certification Labels Requires IECEx label with all relevant certification information Requires ATEX label with all relevant certification information

How IECEx and ATEX Certifications Impact Hazardous Environment Communication

IECEx and ATEX certifications are both very important for making sure that communication devices work and are safe in hazardous environments. It is very important to have reliable and certified communication equipment in fields like oil and gas, chemical processing, mining, and pharmaceuticals, where volatile gases or flammable dust are present. These are the ways that both certifications help:

  • Safe Communication in Explosive Atmospheres: Both certifications make sure that communication devices like handheld radios don't cause sparks or too much heat, which could cause explosions.
  • Equipment that Can Handle Extreme Conditions: IECEx or ATEX-certified devices can work in temperatures ranging from -10°C to +55°C, so they can last in different environments.
  • Global and Regional Compliance: While IECEx is an international standard, allowing equipment to be used worldwide, ATEX ensures that devices comply with stringent EU safety regulations, which are essential for businesses operating in Europe.

Key Equipment Types in IECEx and ATEX Certified Devices

  1. Ex d (Explosion-Proof Enclosures): Designed to contain any explosion within the device, preventing it from spreading into the surrounding atmosphere.

  2. Ex e (Increased Safety): These devices are designed to prevent sparks and other sources of ignition within the equipment.

  3. Ex i (Intrinsic Safety): Devices that operate with very low energy levels to ensure that they cannot create an ignition source even in the event of a fault.

  4. Ex n (Non-Sparking): Devices that are designed to minimize the potential for sparks and heat generation.

  5. Ex m (Oil Immersion): For equipment submerged in oil to prevent contact with explosive gases or dust.

  • Conclusion

Both IECEx and ATEX certifications are indispensable when it comes to ensuring safe communication in hazardous environments. By understanding the differences and similarities between these certifications, industries can make informed decisions when selecting intrinsically safe radios for use in explosive gas or dust atmospheres.
