Everything You Need to Know About the Retevis RT97L GMRS Repeater

Recently, Retevis launched the all-new 25W RT97L Radio Repeater, which has quickly garnered widespread attention and enthusiastic feedback from our customers. Many customers have raised various questions about the product, so we've written this blog to address these concerns and help everyone better understand the performance and features of the RT97L.

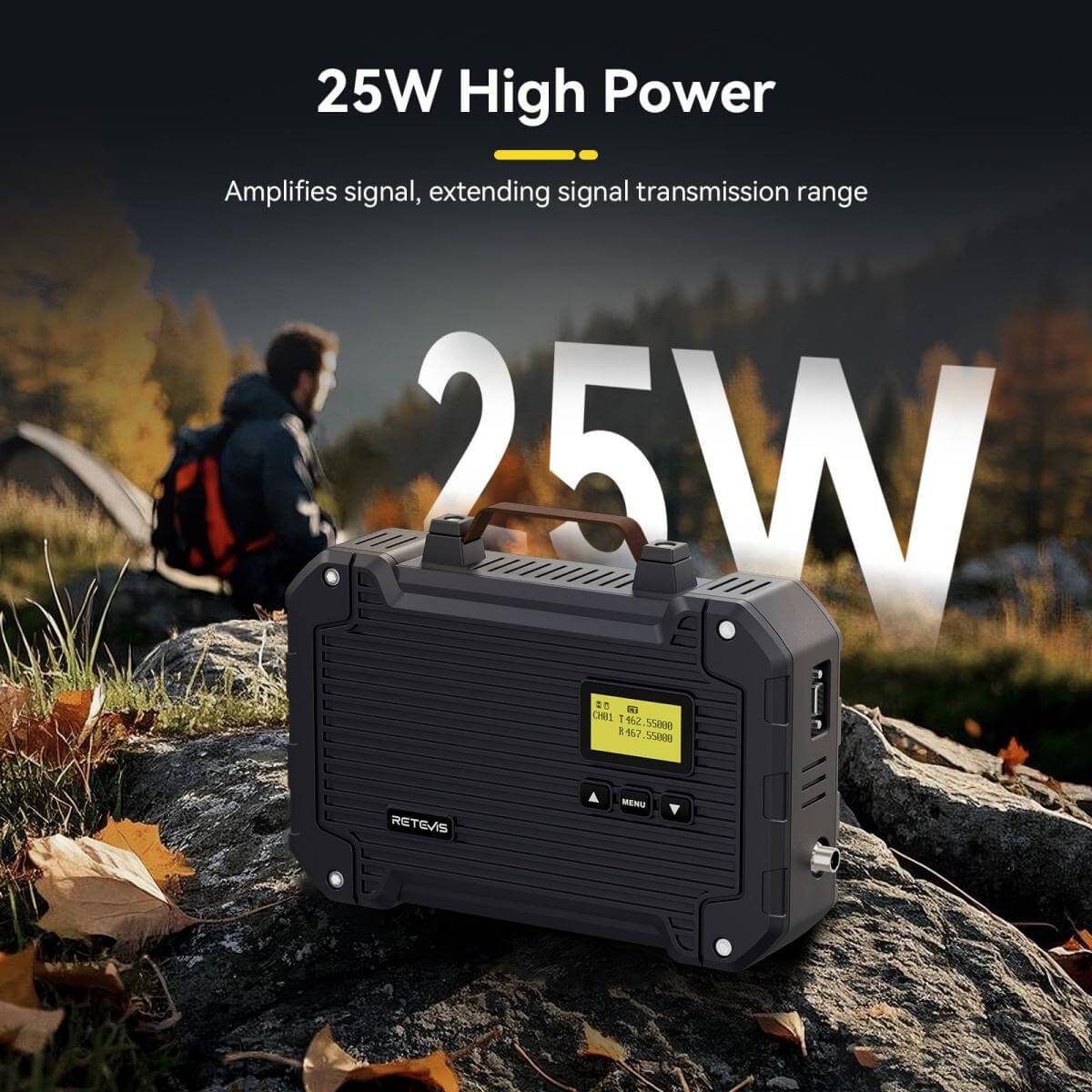

1. What’s the Difference Between 5W and 25W Power?

The difference in power between 5W and 25W is significant, especially when it comes to communication range. With 5W, communication over long distances may result in weak signals or no reception at all. In contrast, 25W power can significantly improve the signal range, allowing for clearer and more reliable communication over much longer distances. While power plays a crucial role, factors such as antenna height also impact range. In areas where elevation isn’t favorable, increasing the power to 25W helps extend the communication range and overcome obstacles.

2. Is the Actual Output Power Really 25W?

The factory output of the RT97L repeater is between 22W and 25W. However, when the repeater operates with an internal duplexer, some power loss may occur. As a result, the actual output power may range from 15W to 22W depending on the quality, thickness, and length of the feeder cable. While the power might fluctuate a bit, it still ensures solid, reliable performance in most conditions.

3. What’s the GMRS Repeater Frequency Range (TX and RX)?

For users operating with GMRS, the frequency range of the RT97L is:

• TX (Transmit): 462.550 - 462.725 MHz
• RX (Receive): 467.550 - 467.725 MHz

This range allows for effective communication and operation in the designated GMRS frequencies, which are crucial for users who need clear, uninterrupted signals.

4. How Does Using a Raspberry Pi Enhance RT97L’s Functionality?

The RT97L portable gmrs repeater is designed with flexibility in mind. By connecting the repeater to a Raspberry Pi via its DB-9 interface, users can expand the repeater's functions. This allows for easy programming and the ability to customize the repeater to fit specific needs, whether you’re operating in a particular area, enhancing security, or fine-tuning performance.

5. What Is Amp Absorption in TX and RX?

• Receive Mode Absorption: 180mA
• Transmit Mode Absorption: 5.5A

6. How is the RT97L Waterproof Even if the Doors Are Uncovered?

The RT97L gmrs mobile repeater is rated IP66 waterproof, meaning it can withstand powerful jets of water from all directions. This rating ensures that it performs well even in harsh weather or environments with heavy water flow. Even if the doors are uncovered, the repeater is designed to continue working reliably. However, to ensure optimal performance and longevity, it's always a good idea to install the repeater in a protected location, especially in areas with extreme weather conditions.

7. Does the RT97L Have an Internal Duplexer?

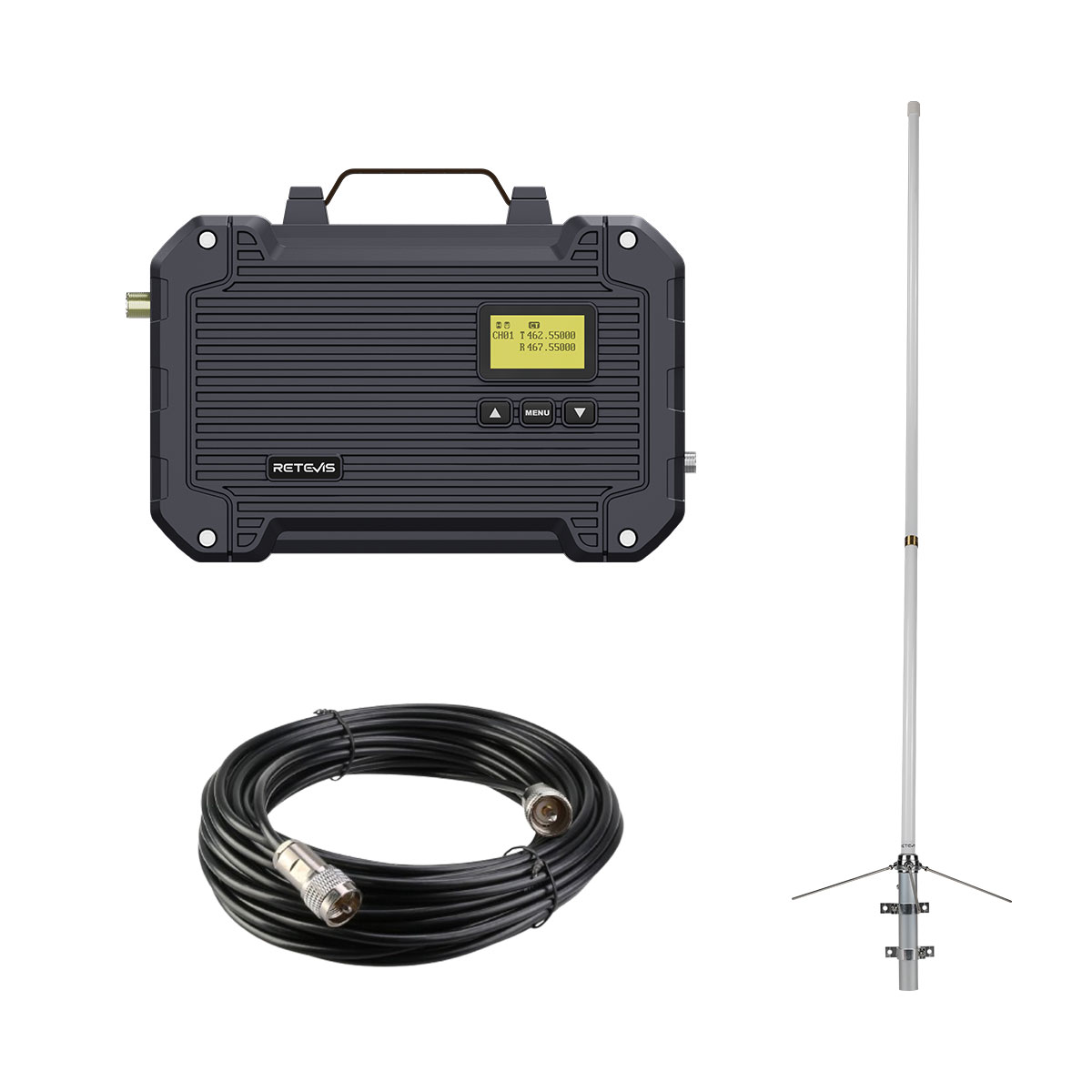

Yes, the RT97L portable repeater comes equipped with an internal duplexer, which is essential for enabling the repeater to work efficiently with an antenna. The duplexer allows the device to handle both transmit and receive signals simultaneously without interference. For enhanced performance, we also offer GMRS repeater kit that includes the RT97L, an FRP antenna, and a 15-meter feeder cable.

8. How Many Channels Does the RT97L Have? And What Does It Mean?

The RT97L is capable of storing 16 different channels, which means it can quickly switch between up to 16 communication frequencies. This feature provides users with flexibility in adapting to various environments and communication needs, ensuring efficient and reliable operation at all times.

Conclusion

The RT97L GMRS repeater is a feature-packed portable radio repeater designed to deliver high performance, reliability, and versatility. Whether you're concerned about its power output, waterproof capabilities, or how to expand its functionality with a Raspberry Pi, this repeater is ready to meet your needs. With its 25W output, 16-channel capacity, internal duplexer, and IP66 waterproof rating, the RT97L mobile repeater is a solid choice for anyone needing dependable, long-range communication.
