Function Settings of Retevis RB65

Retevis RB65 is a newly launched walkie-talkie. If you want to know the basic information, you can check out "Quickly Learn About Retevis RB65". This article will introduce the basic function settings of Retevis RB65.

Function Operations

Turn on the Radio

1)After inserting the 12V/1A power adapter into the DC port, long press the Power button for 2 seconds to turn on the radio, or install 61.5V (9V) dry batteries into the battery slot to turn on the radio. (Warning: don't support recharging the dry batteries directly)

2)In emergency situations, the external Type-C interface can be used for boosting and tuning on the radio.

Squelch Level

The squelch level is an analog reference level used to set the internal squelch value in the radio CPU. You can preset the squelch level. When in user mode, the squelch level can be adjusted. 0-9 levels with each set step of 1. Default: Level 3

Battery Save Function

Turn on battery save: if no operation for 10 seconds, the radio will automatically enter a battery save state.

Turn off battery save: the radio does not save power.

Communication

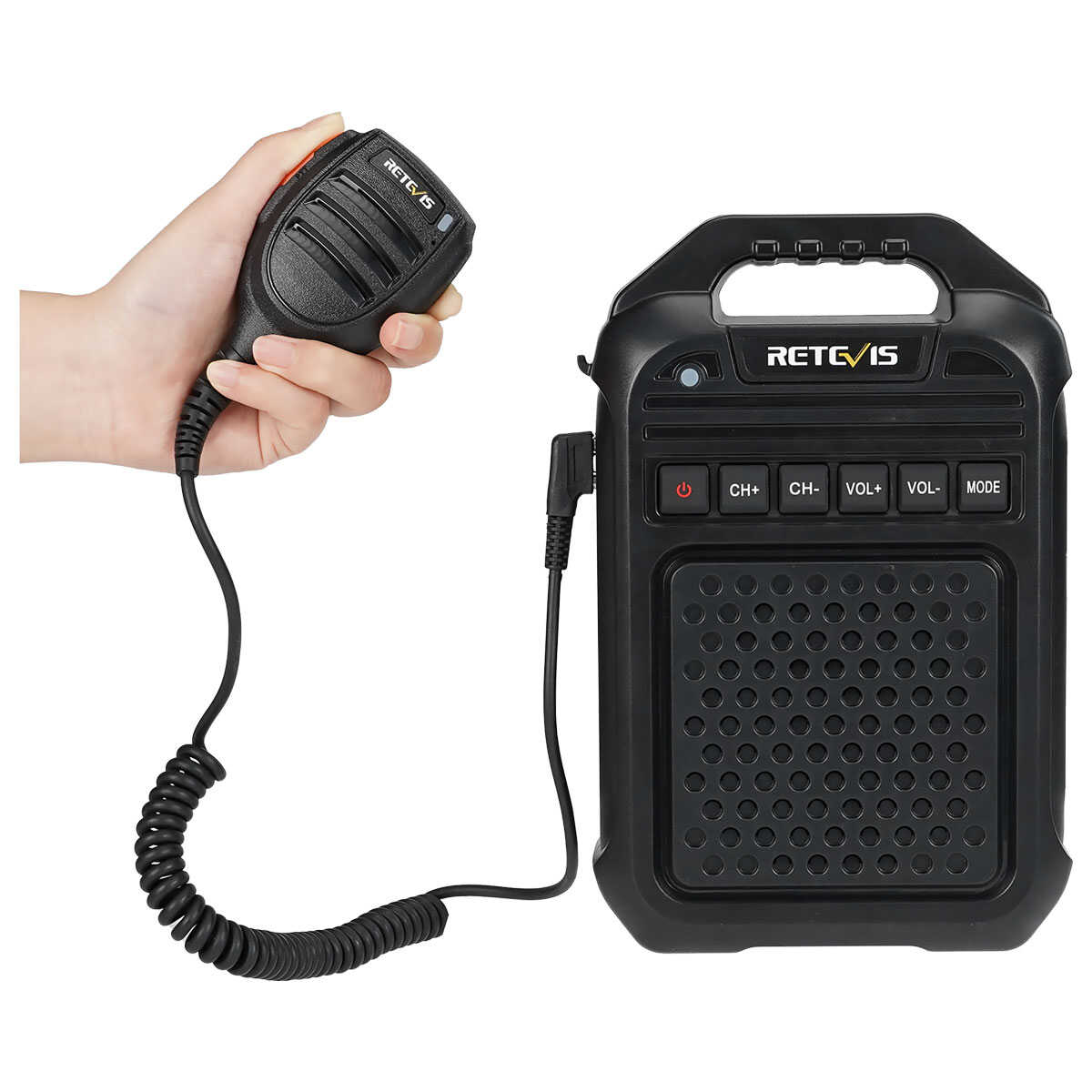

After the terminal is plugged in with the K-plug handmicrophone cable, press the PTT button to transmitting and release the PTT button to finish.

Turn on the Scan

There are Carrier and Tme scan mode to set in the software. when the "Scan Add" of the channel is set to "Yes", the channel is scannable. When the standby channel is the 22nd channel, and the "Scan Add" of the 22nd channel is set to "No", the radio will automatically start to scan, and the indicator light will flash green in the scan mode. When there is a signal, the radio will automatically stop on the channel for communication.

a. The radio will stop on the channel with a signal, and after 15 seconds of signal loss, it will continue to scan the next channel.

b. When the scanned channels are less than 2, the radio cannot scan.

Chinese and English Switch

The programming software can set three states: Chinese, English, and Off. Default: Chinese

Time Out Timer (TOT)

Programming software can limit the transmission time of the channel: 0-300s. Default: 30s

CTCSS/ DCS

Programming sofware can be used to set QT/DQT signaling on the radio channel. When the channel is set with QT/DQT signaling, the squelch can only be turned on when a signal using the same QT or DQT is received. If the same channel uses diferent QTIDQT for calling, the squelch cannot be turned on and the radio only lights up the green of the indicator. The bandwidth defaults to narrowband at the factory.

Summarize

Retevis RB65 has very comprehensive functions. After understanding the above, let’s try it out.
