How to Solve Short Transmission Distance Issues with RT97S Repeater?

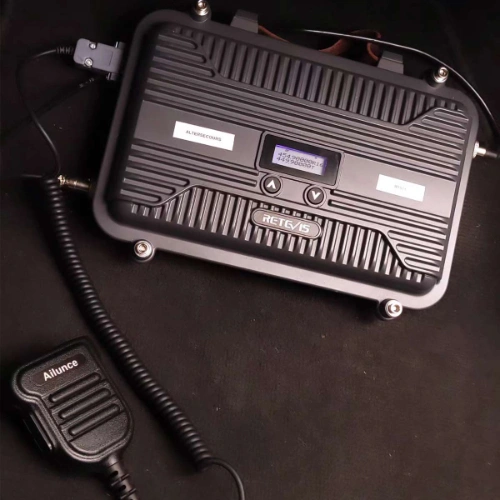

Retevis RT97S is known as a portable GMRS repeater. It is meant for those who want to place it on a tower or building, or even in a backpack. If your RT97S two way radio repeater has a short transmission distance, it can be frustrating. However, many common problems can be solved with a little troubleshooting. Here are a few key factors to consider and solutions to improve performance:

Optimal Antenna Placement

First, consider the placement of your antenna. Try to install the base station antenna at the highest point to allow as much line of sight as possible, like on top of a tall building or hill above the trees, for maximum line of sight. To reduce interference, install the antenna away from other equipment and in a relatively open area. This not only enhances reception but also allows for better signal dispersion, which is essential for extending transmission range. A coverage field test should be conducted at whatever site is selected as a repeater location.

Check Connections

Then, check all connections. Loose antenna, feeder, or port connections can significantly impact transmission distance. Make sure everything is securely fastened. A proper connection minimizes signal loss and maximizes the effective range.

Programming Frequencies

Next, pay close attention to the programming of your frequencies. When you send a signal to the repeater, it’s an output signal (TX) for you but an input (RX) for the repeater. Likewise, when the repeater transmits a message, it’s an output for the repeater (TX) but an input for the receiving radios (RX). Ensure that the TX and RX frequencies are within ±200kHz of your custom frequency point. Frequencies beyond this range can lead to decreased power output, ultimately affecting communication distance. Precision in tuning can make a world of difference.

Bandwidth Matching

Moreover, ensure that the bandwidth settings on both your repeater and your radio are aligned. Whether using wideband or narrowband, it’s crucial that both devices share the same bandwidth configuration. The optimal offset should be between 5MHz and 12MHz, as mismatched bandwidths can lead to inefficient transmission.

Power Supply Issues

Another factor to consider is the power supply. Insufficient voltage can result in lower output power from the duplexer, which reduces transmission distance. Regularly check the power supply's voltage and ensure it meets the necessary requirements for your device.

By addressing these critical factors, you can significantly improve the transmission distance of RT97S 2 way radio repeater, ensuring clearer communication and enhanced performance in various environments.
