NR630 Noise Reduction High Power Waterproof UHF Radio
- Two-Way AI Noise Reduction
- High Power and Long Range
- 2800mAh Large Capacity Battery
- IP67 Waterproof
GETTING CLOSER! ONLY $50.00 AWAY FROM FREE SHIPPING!
Order Handling Time within 3 Working days(Pre-sale products excluded).
- Secure Payments
- 30-Day Money-Back Guarantee
- Hassle-Free Warranty
- Lifetime Customer Support
Bulk order Inquiry
Personalize your device
OverView

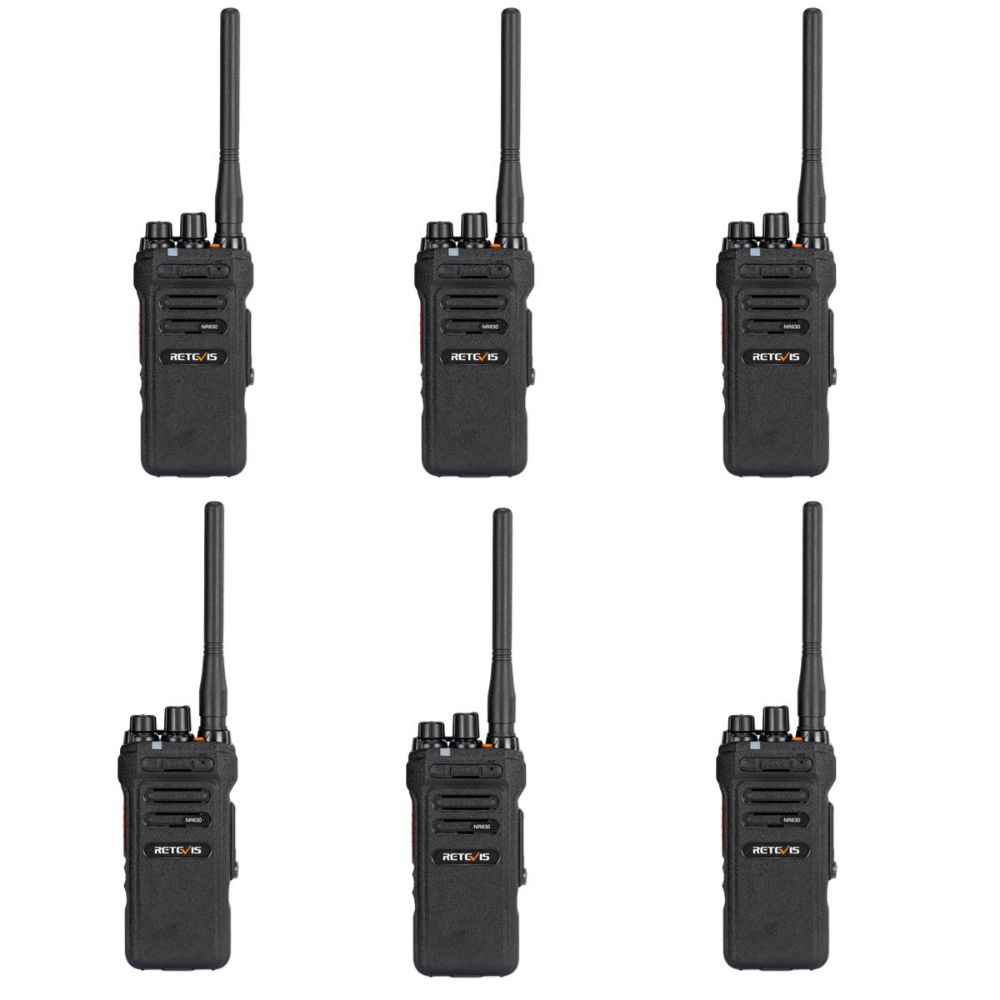

Retevis NR630 Noise Reduction High Power Waterproof UHF Radio
Retevis NR630 is a commercial high-end two-way AI noise reduction high-power radio with better reception and sound quality. With high power, it can make ultra-long-distance calls. It features IP67 waterproof, one key group call function, CTCSS/DCS cancellation, channel lock, local/remote alarm, and a variety of functions.
Two-Way Noise Reduction
Compared with single-channel AI noise reduction, NR630 adopts two-way AI noise reduction, which is better suitable for various noisy environments
One Key Group Call
The one-key group call function can easily arrange multi-departments to work together, which greatly meets the needs of different occasions.
Long Communication Distance
Up to 2 miles, easily connect repeaters to extend the communication distance, and solve communication problems in large-scale places such as construction sites and large-scale tourist attractions.
2800mAh Rechargeable Battery
2800mAh Large battery capacity and battery saving function allows the walkie-talkie to be used for a long time and improve work efficiency.
IP67 Waterproof
With an IP67 waterproof rating, NR630 can stay in 1 meter of water for 30 minutes and can be used without problem.
Disabling CTCSS/DCS
Disabling CTCSS/DCS is convenient for removing reception restrictions and communicating with other radios.
Emergency Alarm Function
When an emergency occurs, long press the alarm button to ensure your safety.
VOX Hands-Free Function
VOX levels are adjustable and provide convenience for special occasions. Makes your hands-free.
Multi-Function Side Keys
A variety of functions can be programmed as shortcuts.
Various Applications
Keys and Knobs
Specifications
NR630 Package Includes
What’s in the Box?
1 x NR630 UHF Radio
1 x Charger
1 x USB Cable
1 x Belt Clip
1 x User Manual
1 x Lanyard
1 x Adapter
Spec
Specification
Frequency Range |
400~480MHz |
Channel Number |
16 |
Audio Distortion |
<5% |
Working Temperature |
-20℃+55℃ |
Antenna Impedance |
50Ω |
RF Power |
≤10W |
Frequency Stability |
±2.5ppm |
Maximum Frequency Deviation |
Wideband: ≤5kHz; Narrowband: ≤2.5kHz |
Spurious Radiation |
TX≤7.5uW@-36dBm;RX≤2nW@-57dBm |
Modulation Method |
Wideband: 16KφF3E;Narrowband: 11 KφF3E |
Transmitting Current |
≤1500mA |
Receiving Sensitivity |
Wideband: ≤0. 25uV@-119dBm;Narrowband: ≤0. 282uV@-118dBm |
Adjacent Channel Selectivity |
≥65dB |
Intermodulation |
≥60dB |
Working Voltage |
DC 7.4V |
Feature
16 Channels (UHF)
IP67 Waterproof
VOX Delay Time
Time Out Timer
Busy Channel Lock
Low Battery Alert
Local/Remote Alarm
VOX Hands-free
Channel Lock
50 CTCSS Codes/210 DCS Codes
Scan/Monitor/Squelch
Product Reviews
-
ChristopherCould have more functionsReviewed on Dec 06,2023This is a preliminary review. This model is a basic 16 channel analog FM HT with the 5 following interesting features besides the fact it's really a nice looking rugged radio: 1) watertight 2) 10W-ish power 3) noise reduction 4) usb charge capability on both battery and docking station. 5) 2800 mA/h battery Measured power on a dummy load is close to 10W in the 400-430 mhz range but decreases down to 8W at GMRS freqs. Also, as measured, antenna looks like also optimized for the 400-430 mhz range with almost no SWR. GMRS sees a higher mismatch >1.5 but nothing dramatic. Folks having a license to work on GMRS freqs will choose the NR30. The 4 * rating is because of the OEM antenna (it's a monobander) which concerns me: albeit it has a good match, on 444 mhz (HAM repeater downlink) it does not receive as well as my 1/2 size Yaesu FT73 oem antenna with the same match in the same freq range. I didn't measure the radio's sensitivity and selectivity nor the quality of its transmission (but I think it sounds like my RA89, which is also watertight). Compared to other radios, with dual band and display capabilities, this model looks like it's a little too expensive. Still, it may be interesting to anyone looking for a rugged powerful HT equipped with Noise Reduction, easy to use by someone not familiar with both radios and FM sound which can sound harsh. The screw holding the cap for the cables is a little too thick. It's easy to program, more functionalities would be welcome.CarltonrecommendReviewed on Jun 30,2023Good radios works great sounds clear range not bad at all battery last over 8 hours which is a good thing in case we have long day used it I recommend itVicky SpellVery durable!Reviewed on Jun 30,2023We work with materials that normally start breaking things fairly quickly in one way or another. We have had these a month now and so far we have no issues! The team loves them, long range, easy to use, easy to clean up. We now use these at multiple facilities.
Support
Firmware/Software
- NR630-UHF-Software-setup231116
- WIN11-USB-Driver
For the new version of the programming cable; Support WIN 11 System. NOTE: If you plug in the programming cable to the computer, and it shows “USB READER (COM3)” in device manager, then your cable is a new version.
- USB-Driver-2303TA
For the old version of the programming cable; Not support WIN 11 System. NOTE: If you plug in the programming cable to the computer, and it shows “Prolific USB-to-Serial Comm Port (COM6)” in device manager, then your cable is an old version.
