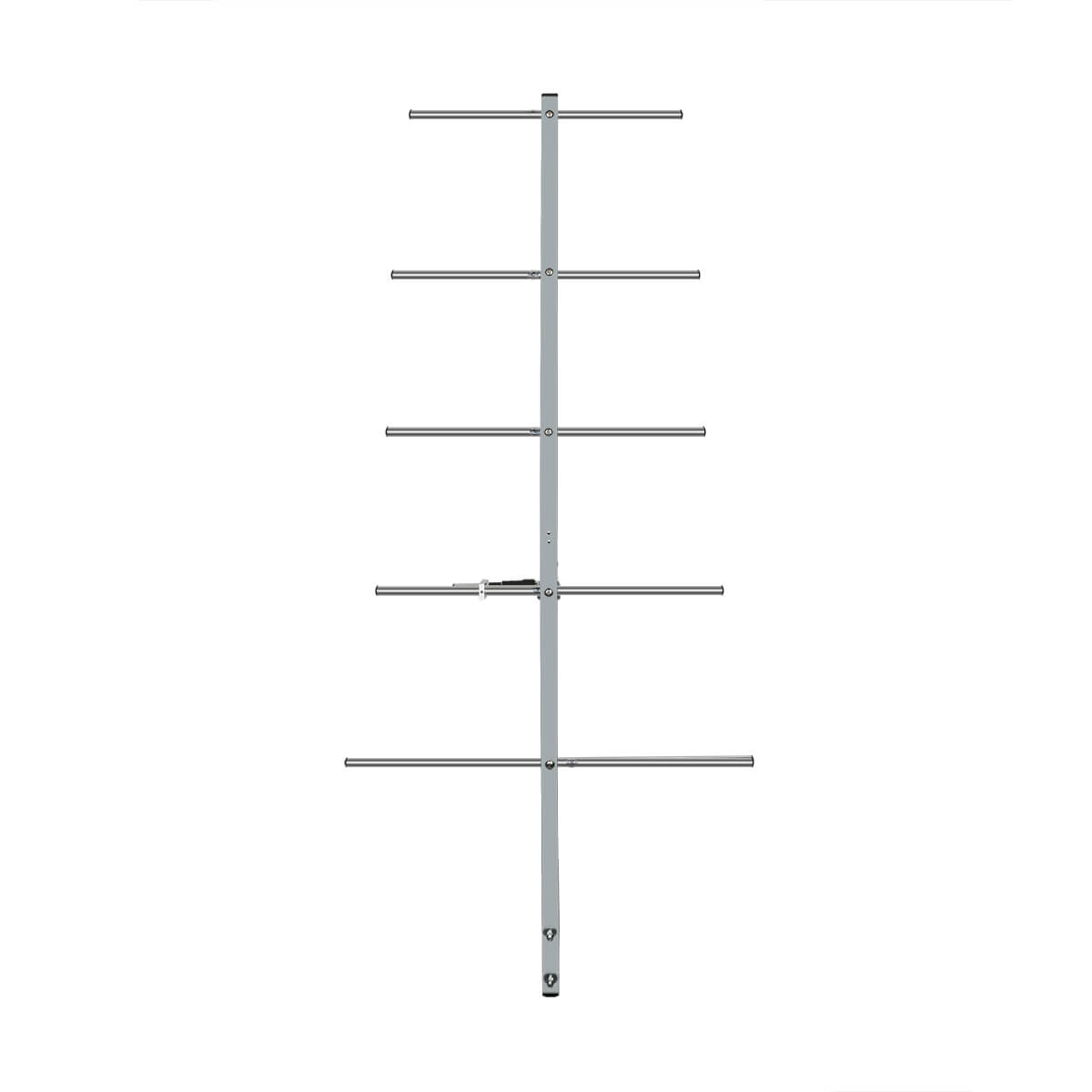

AY03 High Gain 5 Elements Yagi UHF Directional Antenna
US$200.99
SKU: US-C9071B
- UHF 400-470MHz
- 5 Elements Foldable
- SL16K Connector
- 50MHz Bandwidth
- Realize Long Distance Communication
GETTING CLOSER! ONLY $50.00 AWAY FROM FREE SHIPPING!
Order Handling Time within 3 Working days(Pre-sale products excluded).
6302 PEOPLE ARE LOOKING FOR THIS PRODUCT
Details:
Brand: Ailunce
Model: AY03
Frequency: UHF
Length: 72.5cm/28.5inch
Features:
- 5 Elements
- High Gain
- Strong Directionality
- Strong Anti-jamming
- Realize Long Distance Communication
- Simple Structure and Easy Disassembly
- Lightweight and Sturdy, Easy to Set Up
| Electrical Specifications | |
| Frequency Range | 400~470 MHz |
| Bandwidth | 50MHz |
| Impedance | 50Ω |
| VSWR | ＜1.5 |
| Gain | 9 dBi |
| Polarization | Vertical |
| Horizontal 3dB Beam Width | 58° |
| Vertical 3dB Beam Width | 40° |
| Front To Back Ratio | >15 dB |
| Maximum Power Input-watts | 100W |
| Lighting Protection | Direct Ground |
| Connector | SL16.K |
| Mechanical Specifications | |
| Size | 725 x 380x48mm |
| Mounting hardware | Ø30～Ø40 mm |
| Rated Wind Velocity | 60 m/s |
| Weight | 0.4Kg |
