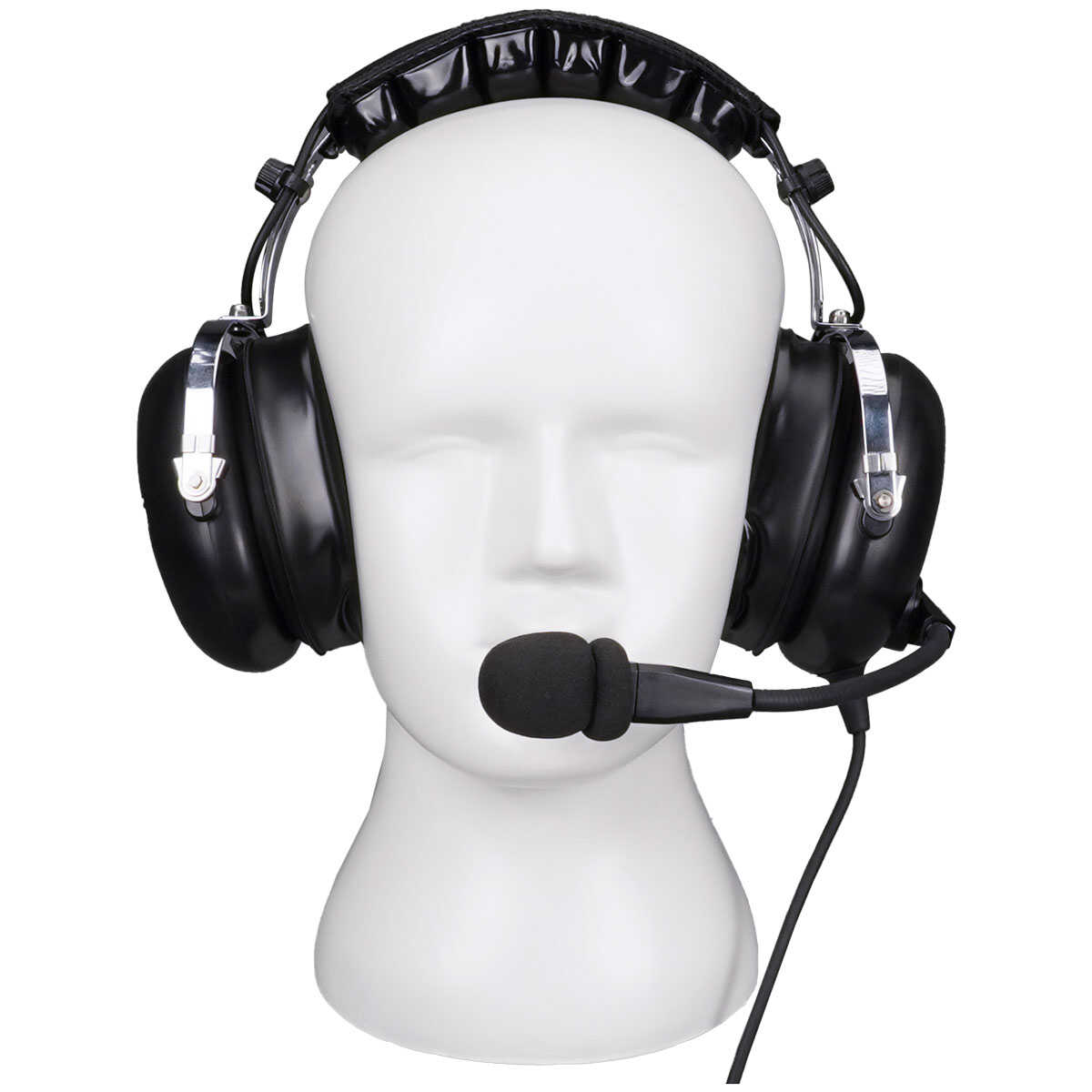

EHG001 Noise Reduction General Aviation Headset For Pilots
- 24dB NRR for Hearing Protection
- 270° Rotatable Boom Microphone
- Adjustable Microphone Gain
- Mono/Stereo Switchable
- Twin Plugs/PJ Plugs/GA Plugs (General Aviation Plugs)
Bulk order Inquiry
Personalize your device
OverView
Retevis EHG001 Noise Reduction General Aviation Headset For Pilots
Retevis EHG001 aviation headset is designed for pilots and student pilots. Using electret noise reduction microphone, the headphone offers a clear sound quality to pilots and student pilots. The silicone sponge ear pads and top cushioning enable you to wear the headphones comfortably. Kevlar-filled PU wire increases the durability of the microphone. It's the perfect aviation headset for those just getting started and experienced pilots.

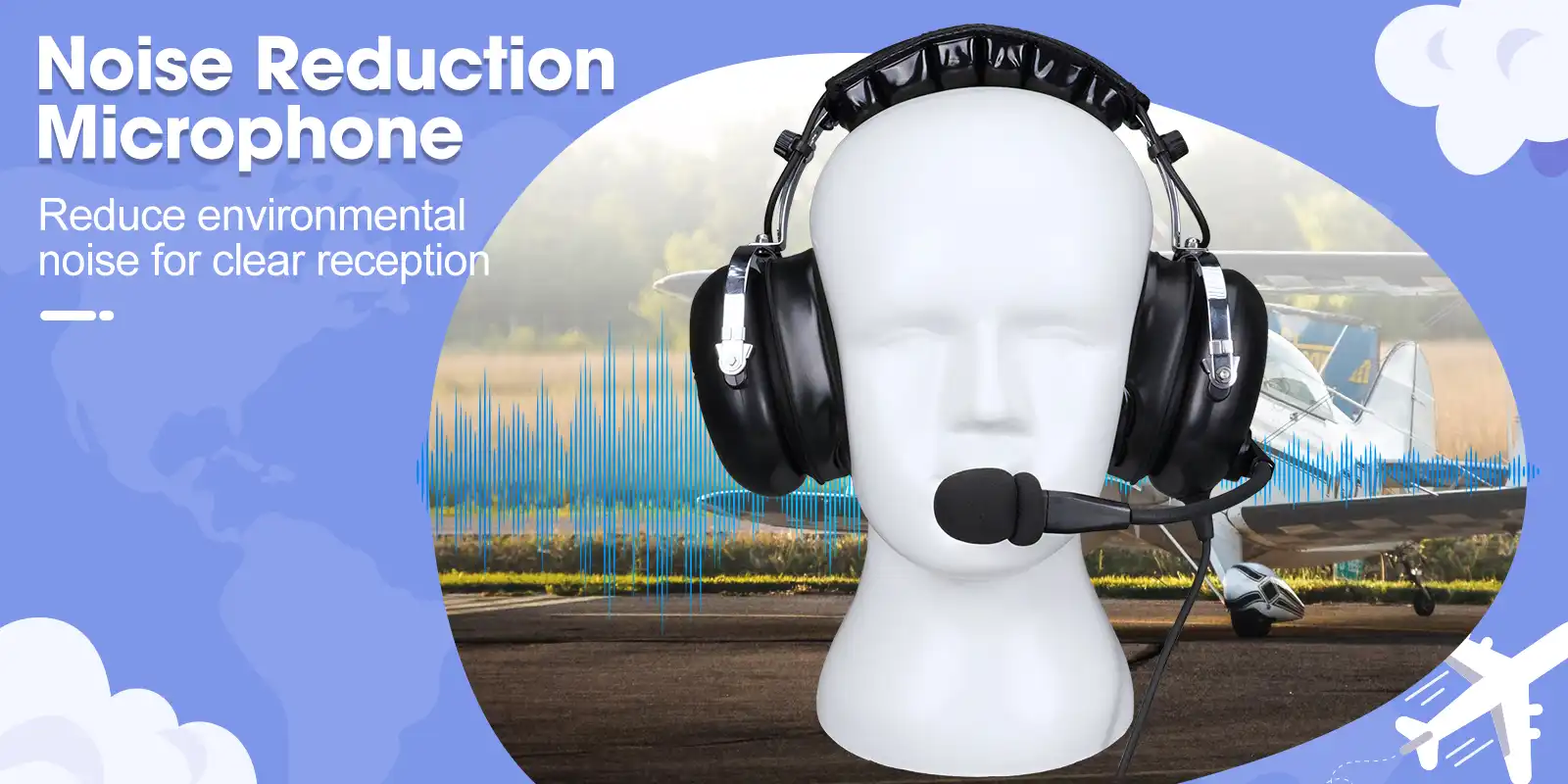

Noise Reduction Microphone
Electret noise reduction microphone and well-sealed sponge earmuffs are used to effectively isolate environmental noise and provide clear communication.

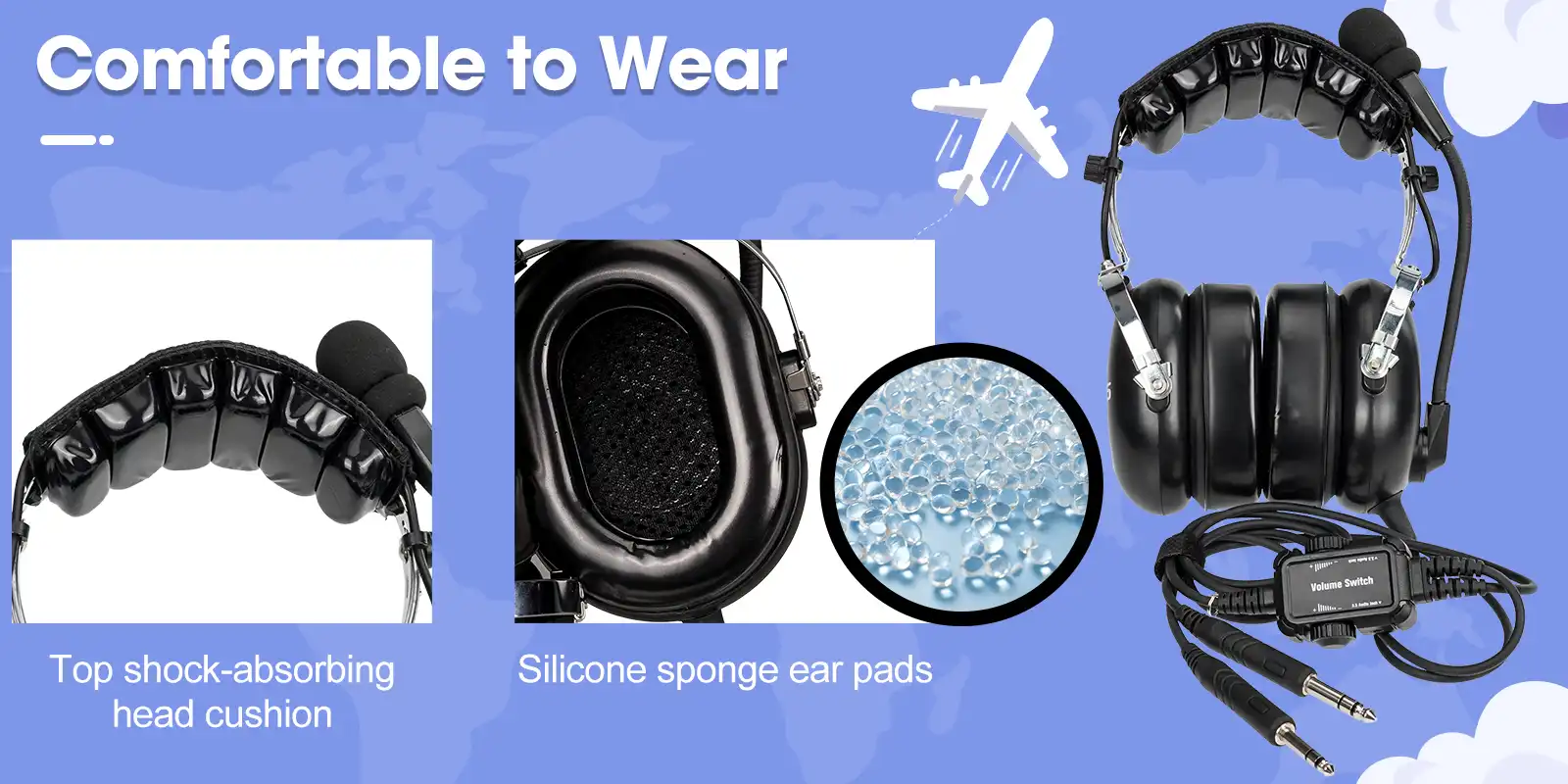

Comfortable to Wear
Silicone foam ear pads and the top head cushion reduce wearing pressure and provide a better wearing experience.
Robust and Durable design
Kevlar-filled PU wire and durable molded wire components increase the service life of the microphone.
Mono/Stereo Switchable
Mono/Stereo switch can improve the experience of entertainment functions.

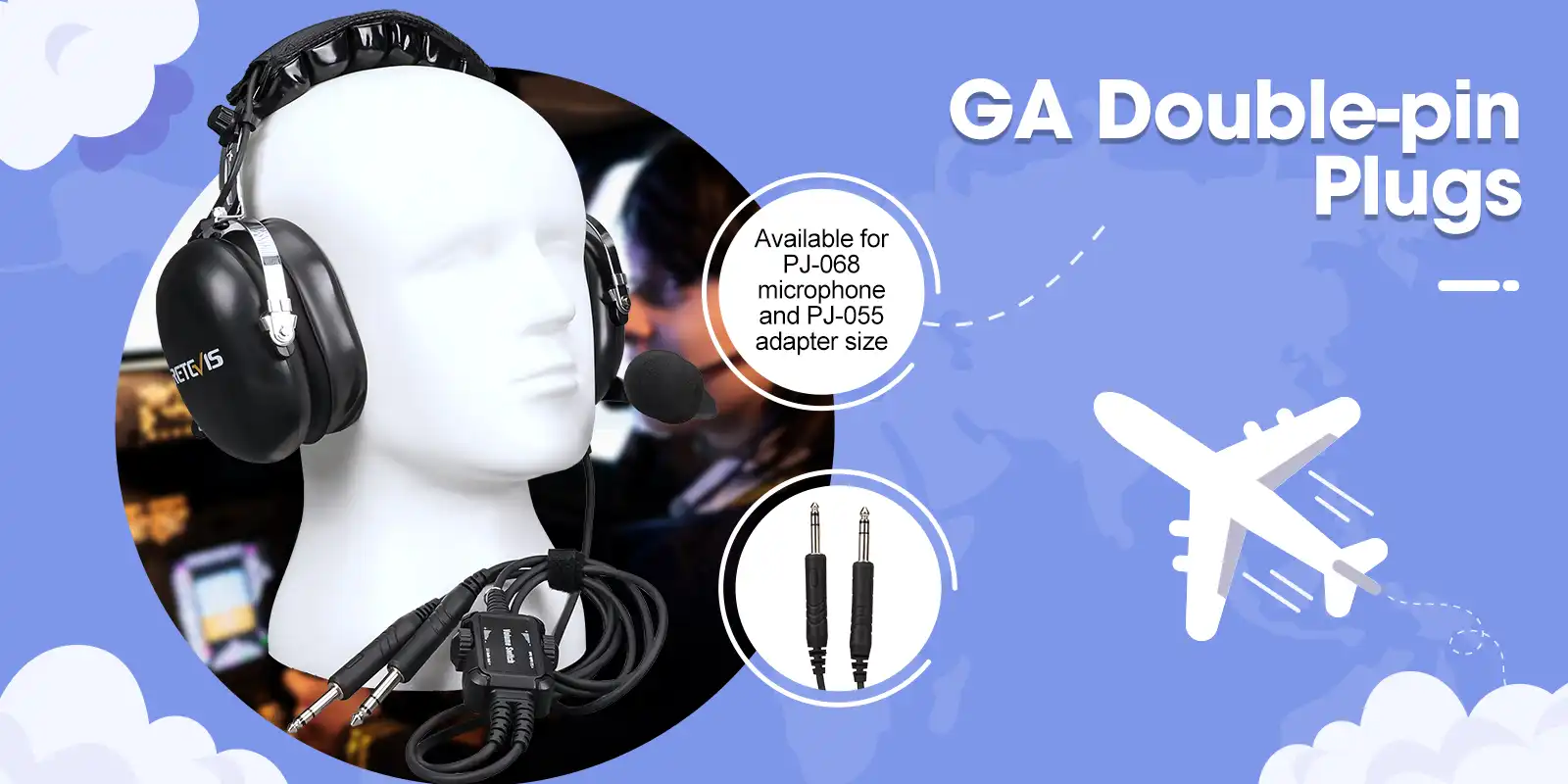

GA Plugs (General Aviation Plugs)
GA double-pin plugs are available for General Aviation and Commercial Aircraft. It is compatible with PJ-068 microphone and PJ-055 plug.

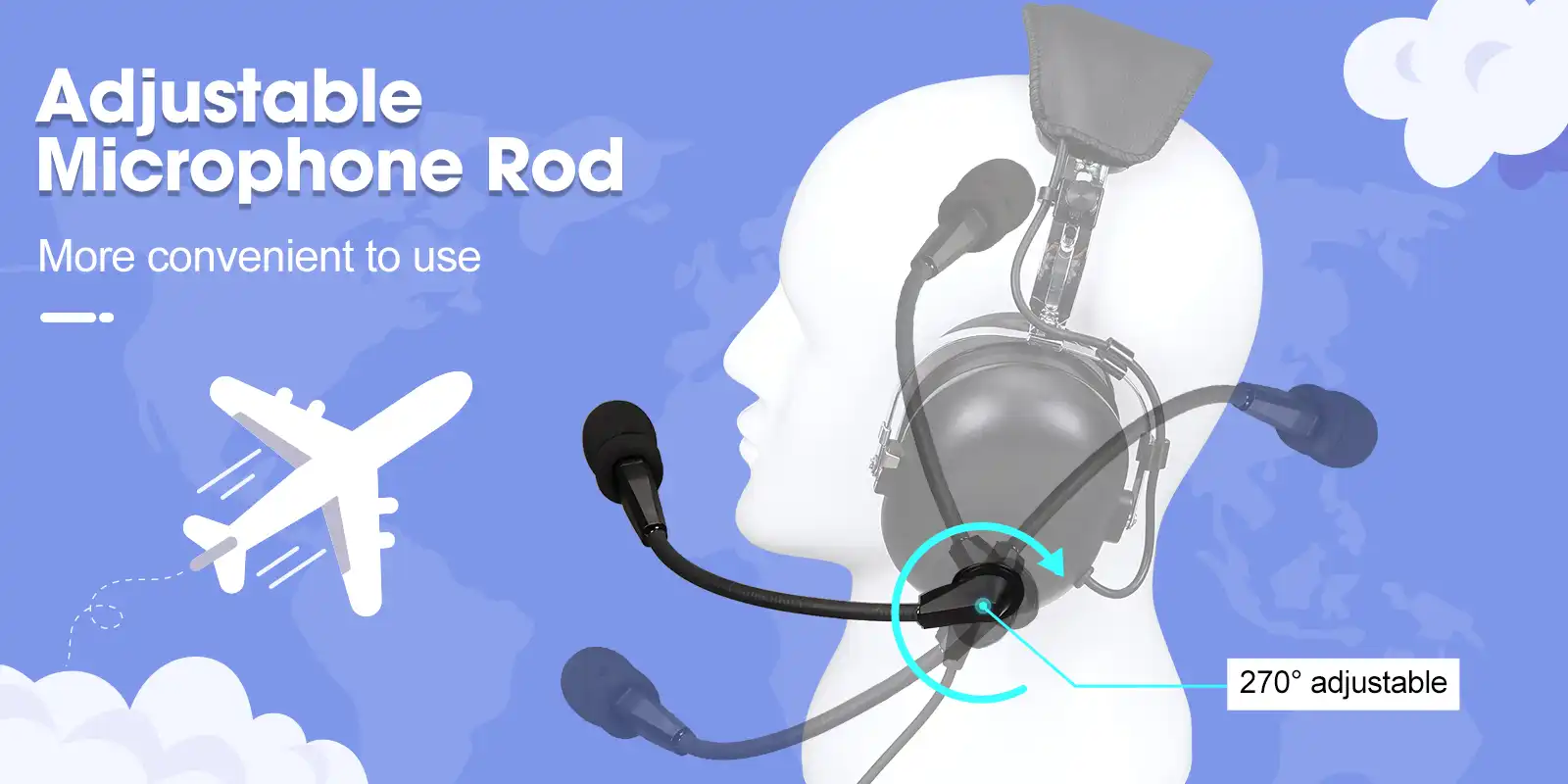

Adjustable Microphone Rod
270° rotatable microphone rod allows you to adjust the appropriate angle at will.

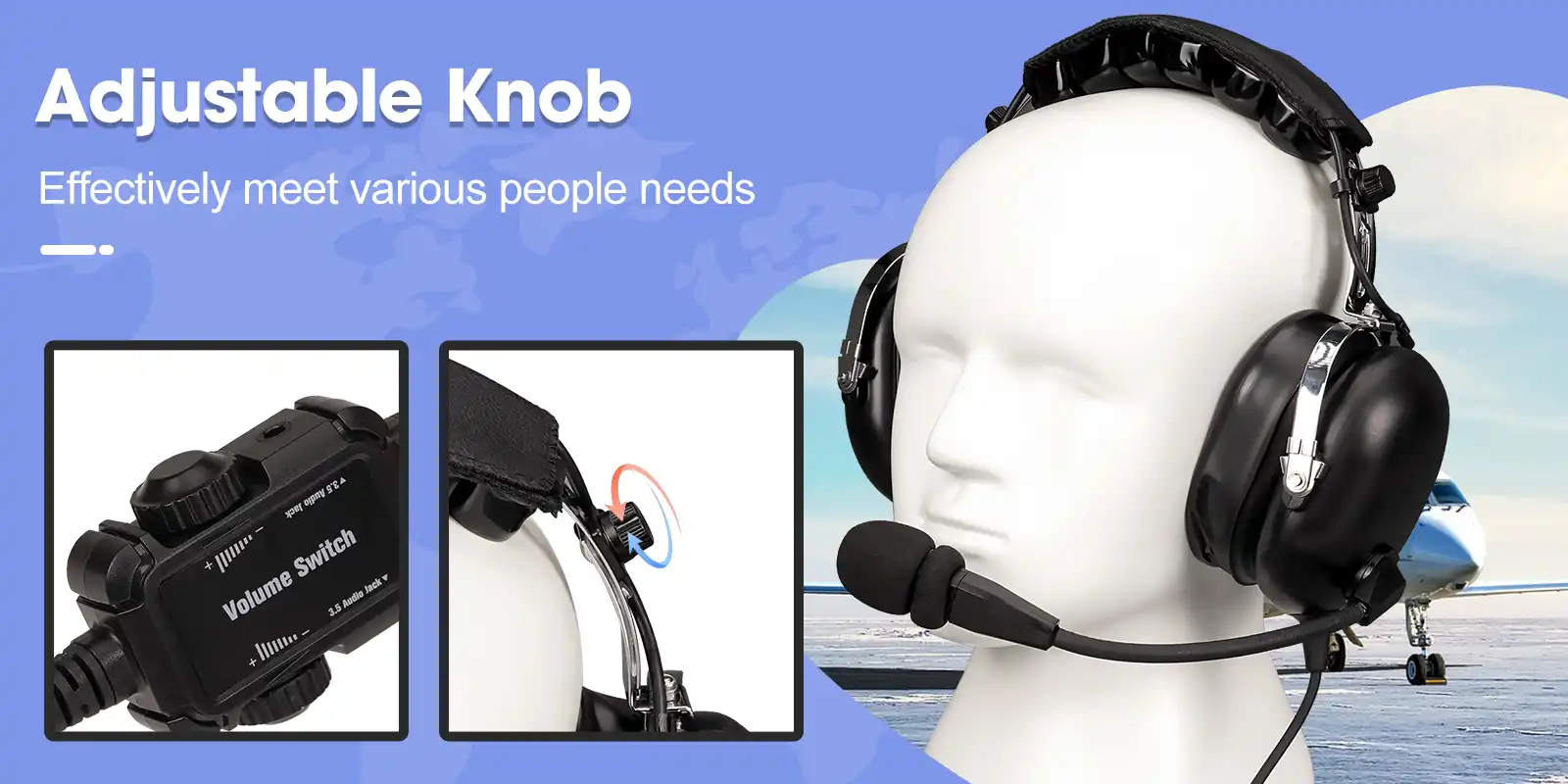

Adjustable Knob
Dual volume knobs provide convenience for adjusting the volume of right or left ear separately.

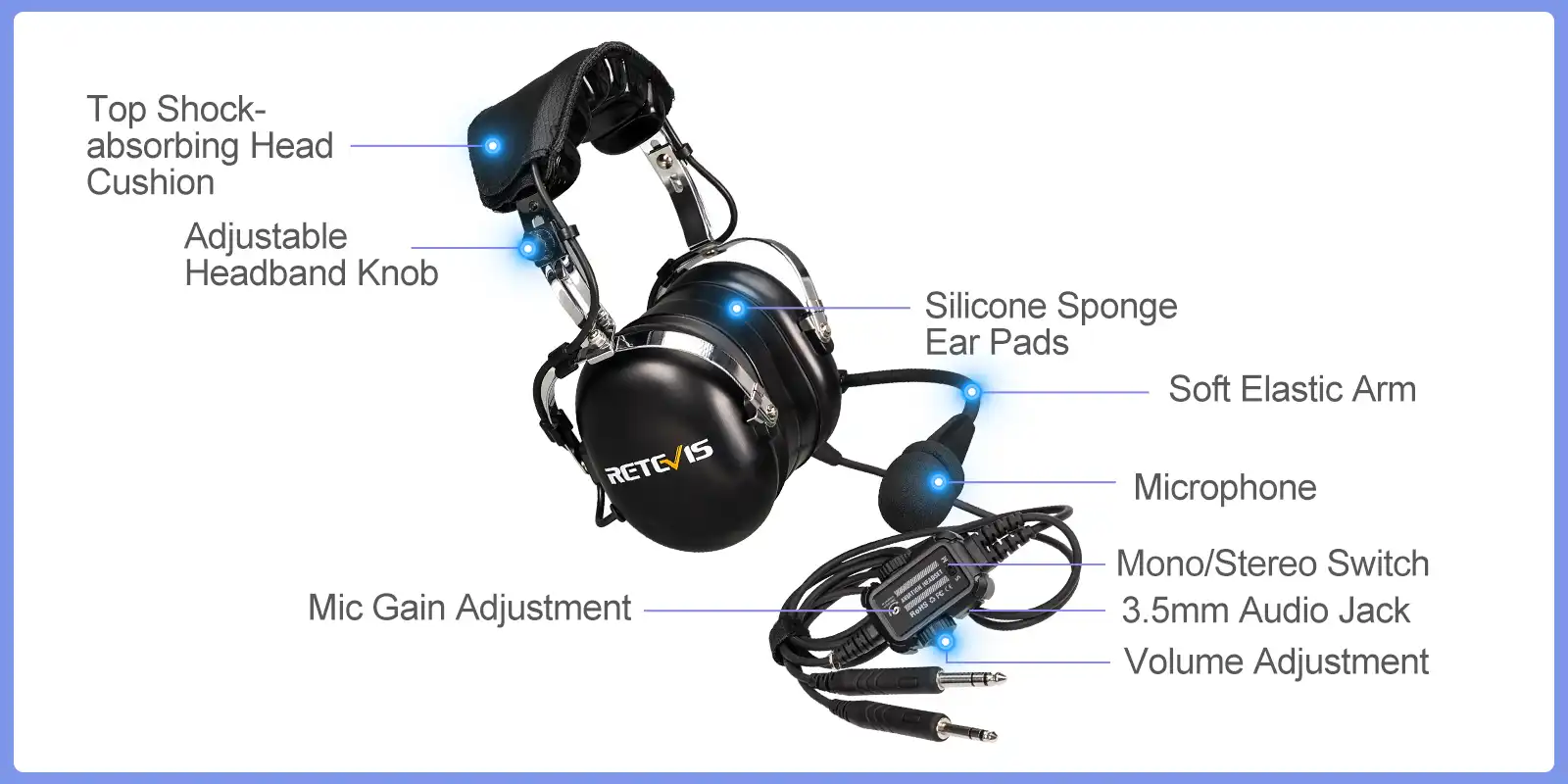

Design Details

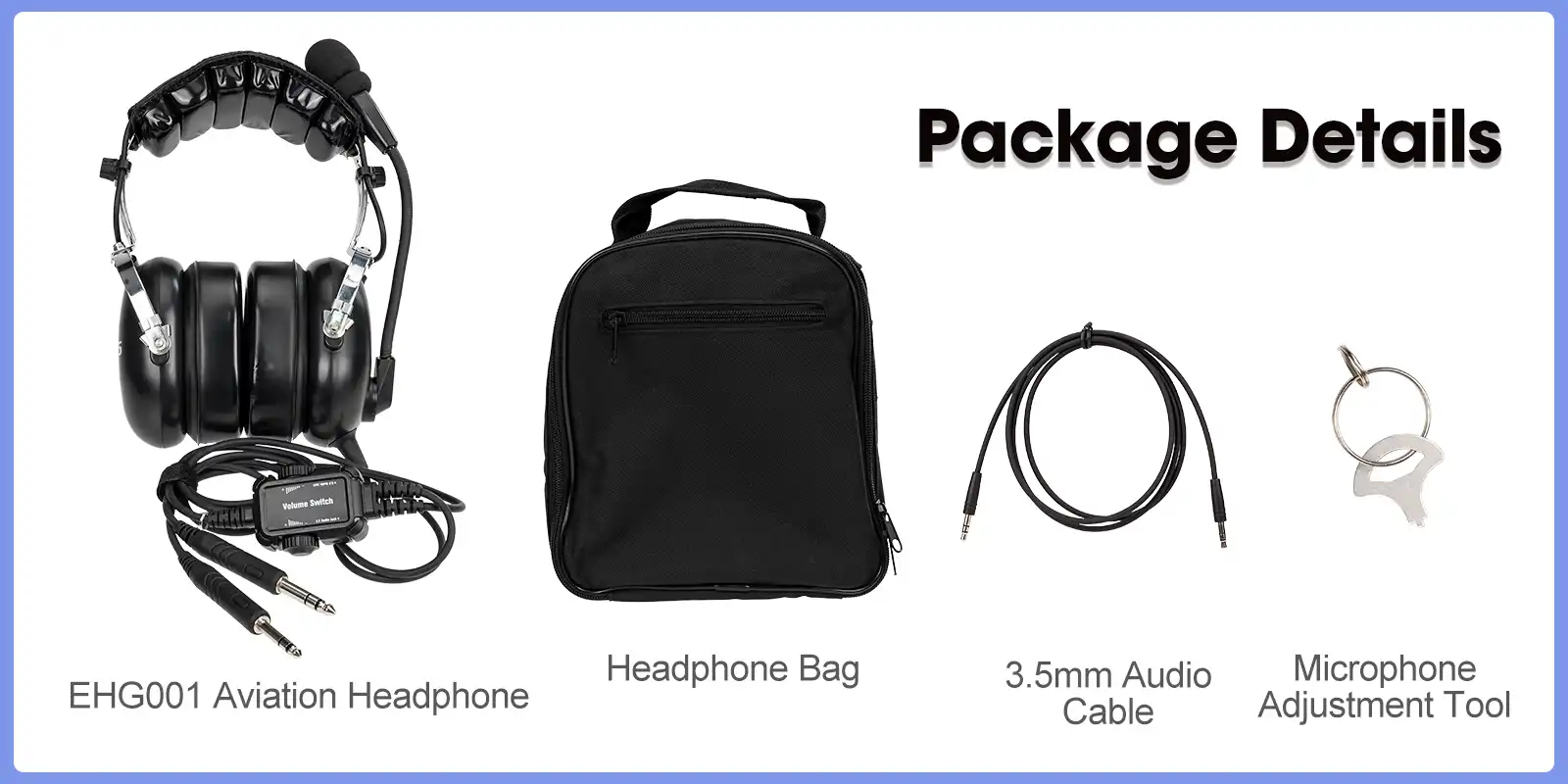

Package Includes
Spec
|
Speaker |
|
|
Type |
Dynamic speaker |
|
Impedance |
150 Ω（300 Ω） |
|
Sensitivity |
119±3dB At 1K Hz/IEC318, 547 m |
|
Resonance freq |
/ ±20%Hz |
|
Frequency respond |
20-20KHz |
|
Rated input power |
80mW |
|
Maximum input power |
80mW |
|
Microphone |
|
|
Microphone Specification |
Bidirectional |
|
Sensitivity Range |
-35±2dB |
|
Impedance Max |
2.2KΩ@1KHz |
|
Frequency |
50-10KHz |
|
Current Consumption Max |
500uA |
|
Operation Voltage Range |
1.0-10V |
|
Max Sound pressure Level |
110dB |
Feature
- 1. Twin plug/PJ plugs/GA plugs(General Aviation plugs);
- 2. Dual-directed electret noise-cancelling microphone for clear and reliable communication;
- 3. Control module with dual volume adjustment knobs for each ear, two Listen-only 3.5 mm audio source connections, mono and stereo switch compatibility, adjustable microphone gain;
- 4. Silicon gel ear seals with more comfortable, more durable, and better noise reduction,
- 5. Kevlar reinforced cables for superior strength and durability;
- 6. 270 degree swivel-flex boom microphone;
- 7. Adjustable headband for different head size;
- 8. Headset bag is convenient for carrying and storage;
- 9. NRR (Noise Reduction Rating): 24dB;
- 10. Color: Black and Weight: 550g;
- 12. Suitable for General Aviation Aircraft, Pilots, Passengers, Flight Schools, Flight Instructors, PPL (Private Pilot License) Students.
