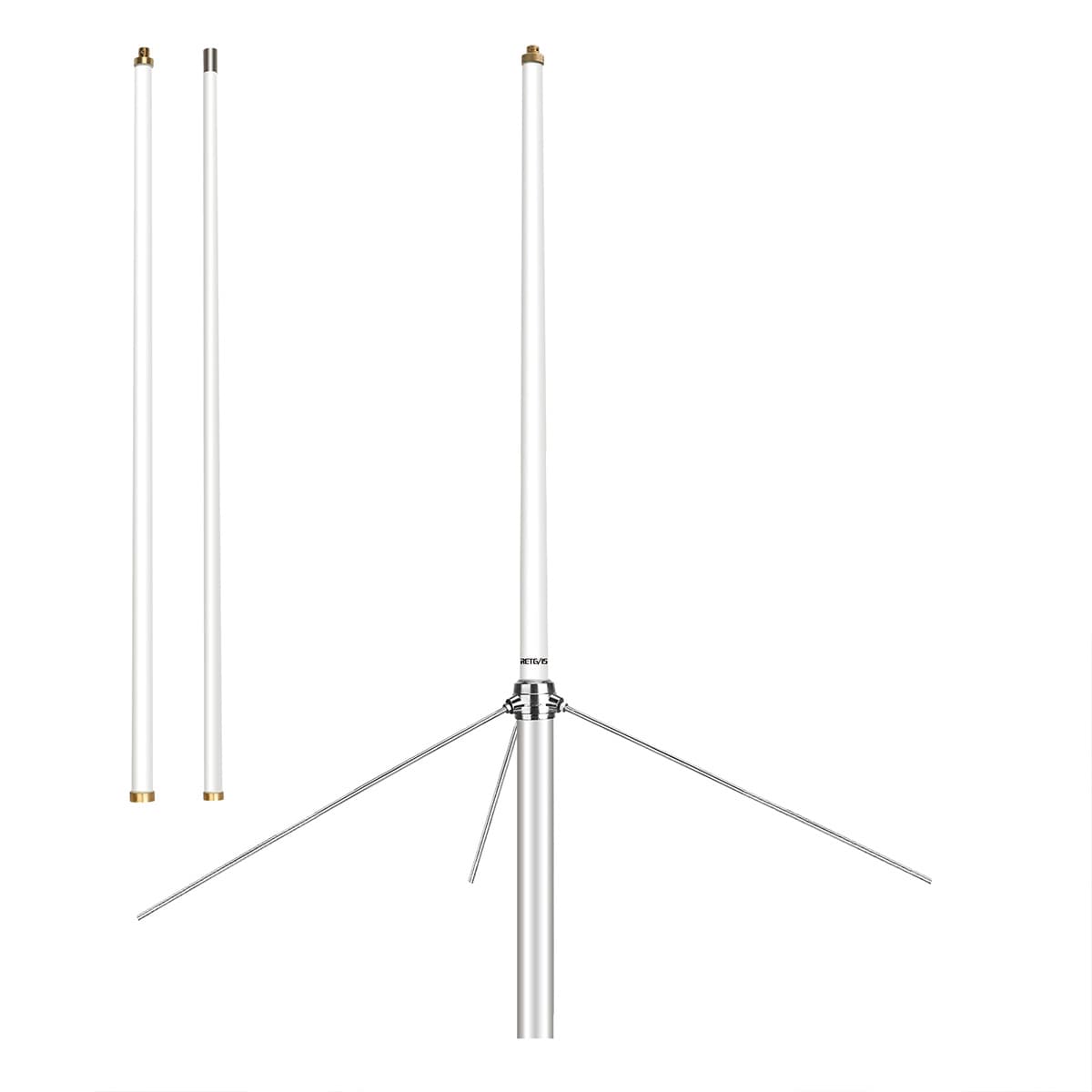

MA05 High Gain Glass Steel Omni-Directional Antenna

   Retevis MA05 5.5/8.5dBi 144/430MHz Dual Band Omni-Directional Base Station Antenna

Retevis MA05 antenna is Dual Band Omni-Directional Base Station Antenna, that supports UHF and VHF bands, with 5.5/8.5dBi high gain, wide bandwidth, and low standing wave ratio. Waterproof, anti-corrosion with high strength and high-quality fiberglass outer covering.

Features:

1. FRP encapsulation, omnidirectional waterproof and corrosion-resistant, anti-ultraviolet, no cracking, waterproof, wind resistant, strong sealing.
2. Using a pure copper vibrator, high receiving sensitivity, accurate impedance matching, and longer communication distance.
3. Three-section detachable design, easy to disassemble and assemble.
4. Support maximum power: 200W
5. High-Gain: 5.5/8.5dbi

Specification:

1. Brand: RETEVIS
2. Model: MA05
3. Frequency:144/430MHz
4. Gain: 5.5/8.5dBi
5. Max power: 200W
6. VSWR: Less1.5
7. Impedance: 50Ω
8. Connector: SL16-K
9. Length: 2.2M
10. Radome Material: Fiberglass
11. Pole diameter: Ø30～Ø62 mm
12. Net Weight: 1450g
13. Applicable models: Retevis RT97, RT9550, RT92. RT74 repeater, reply, base station radio
14. Applicable coaxial cable: Retevis CA31 CA32

Package Details:

• 1 x MA05 fiberglass base station antenna (UV dual-segment three-section 2.2m SL16K interface)
• 1 x Aluminum alloy connecting pipe
• 2 x Aluminum fixture
