- Glass Fiber Reinforced Plastic Encapsulated
- IP66 Waterproof and Corrosion-Resistant
- 180° Degree Adjustable
- SL16J Connector, Compatible With Retevis RA27 and RM20
-

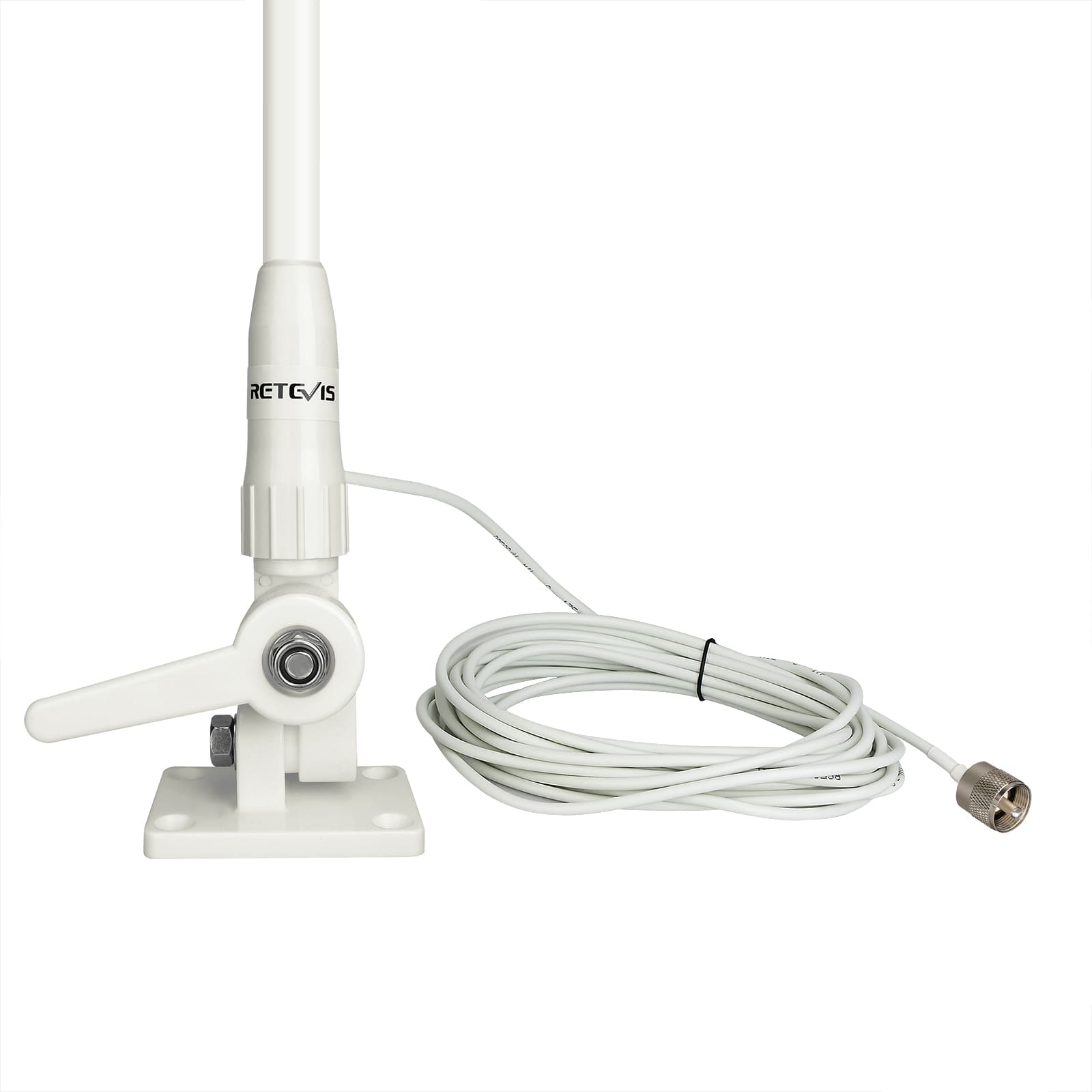

Retevis MA06 IP66 3.5dBi Fiberglass VHF Marine Antenna For RA27 RM20
-
The special antenna for ship platform is encapsulated in glass fiber reinforced plastic, waterproof, and corrosion resistant; contains pure copper vibrator, has a long communication distance, is equipped with an adjustable fixed base, and can adjust the antenna angle by 180°; includes all maritime frequency bands and can be installed on the ship or outdoors.
Features:
1. FRP encapsulation, omnidirectional waterproof and corrosion-resistant, anti-ultraviolet, no cracking, waterproof, wind-resistant, strong sealing, suitable for harsh marine environments.
2. Using pure copper vibrator, the receiving sensitivity is high, the impedance is accurately matched, and the communication distance is longer.
3. The built-in fixture is easy to install, and the antenna direction can be adjusted by 180°.
4. Support maximum power: 100W gain: 3.5dbi.
Specification:
- Brand: RETEVIS
- Model : MA06
- Frequency : 156-163 MHz
- Gain : 3.5dBi
- Max power: 100W
- VSWR: Less 1.5
- Impedance : 50 Ω
- Coax Supplied: RG-58C/U (white),7 Meters
- Connector : SL16-J
- Length : 1.1 Meters
- Radome Material: Fiberglass
- Applicable models: Retevis RA27 and RM20
- Net Weight: 685g
Package Details:
- 1 x MA06 Marine Fiberglass Antenna
- 1 x Fixed Bracket
