MR400 1200mm Heavy Duty Fiberglass Radome UHF/VHF Antenna
- UHF/VHF Band
- High Gain 6.5db
- Stainless Steel Spring Mounting Base
- Rugged and heavy-duty radome antenna
Retevis MR400 UHF and VHF Dual Band Fiberglass Mobile Radio Antenna
Retevis MR400 is a UHF/VHF Dual Band Fiberglass Mobile Radio Antenna, which is designed specifically for off-road mobile radios. Anti-collision spring base makes the fiberglass antenna more durable and not easy to break. And the installation is firm, not easy to fall off.
Black Fibreglass Radome and Spring Base, 6.5dBi Gain and Length: 1200mm Antenna for your Mobile Radios.
Made of Fiberglass Material
The antenna is durable and rugged because the antenna is made of fiberglass material, which is resistant to rainwater corrosion and supports long-term use.
Sturdy Spring Base
This antenna has an exceptionally strong base spring and is designed to be mounted on a sturdy mount such as a metal front bumper/bull bar. Please note that mounting through body panels would not be recommended, as the moment generated by vehicle movement may bend and potentially yield body panels.

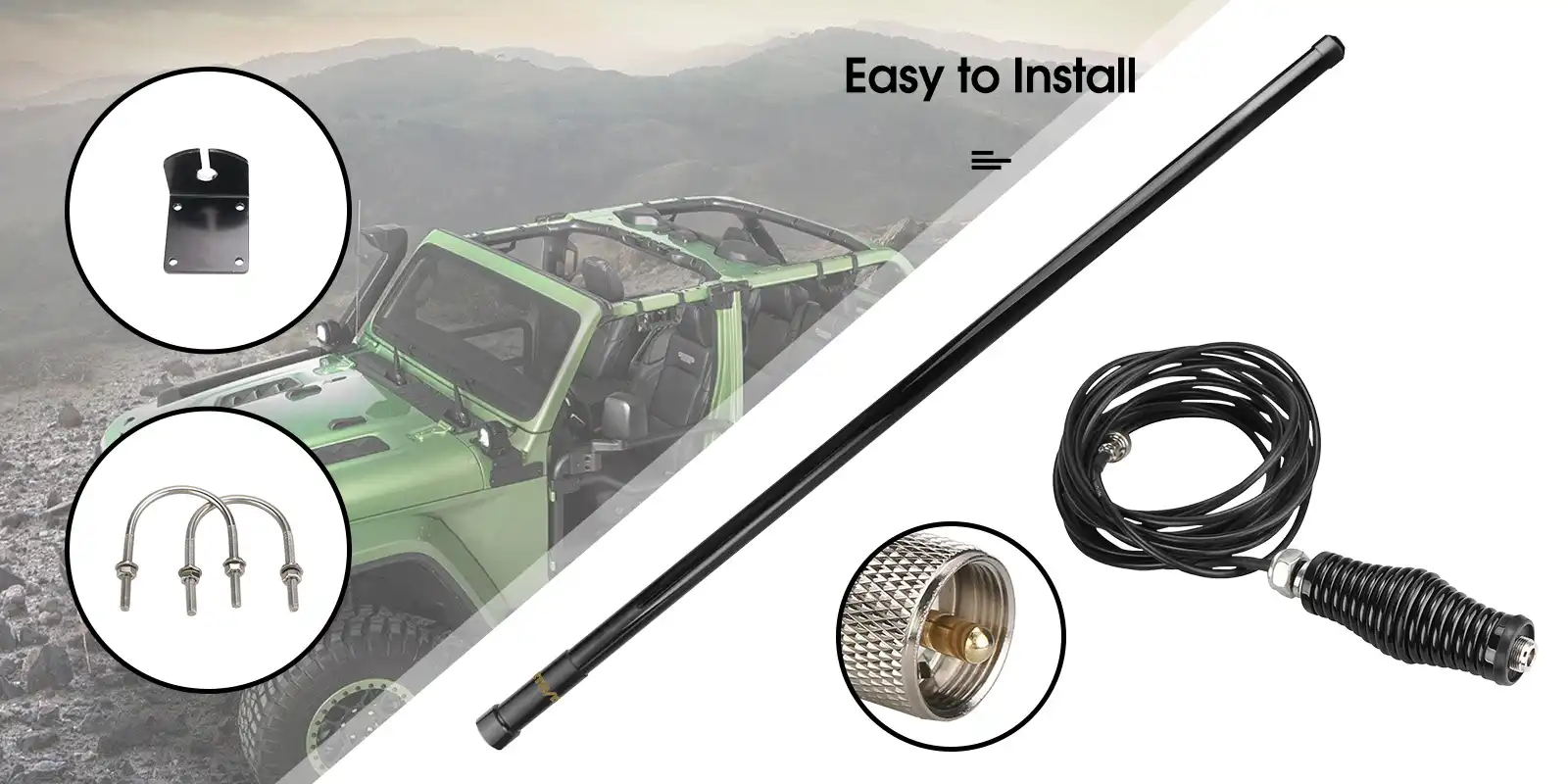

Easy to Install
The black bracket makes it easy to attach the antenna to the car. Use bolts instead of screws to secure the antenna, allowing the antenna to remain stable even when the car vibrates.
Strong Compatibility
The antenna is highly compatible and can be easily used with various UHF/VHF mobile radios, Retevis RT95, RT73, RA25, RT9000D, etc.
Various Applications
The Antenna is versatile. You can use the antenna on various occasions, such as off-road camping, etc.
About DB

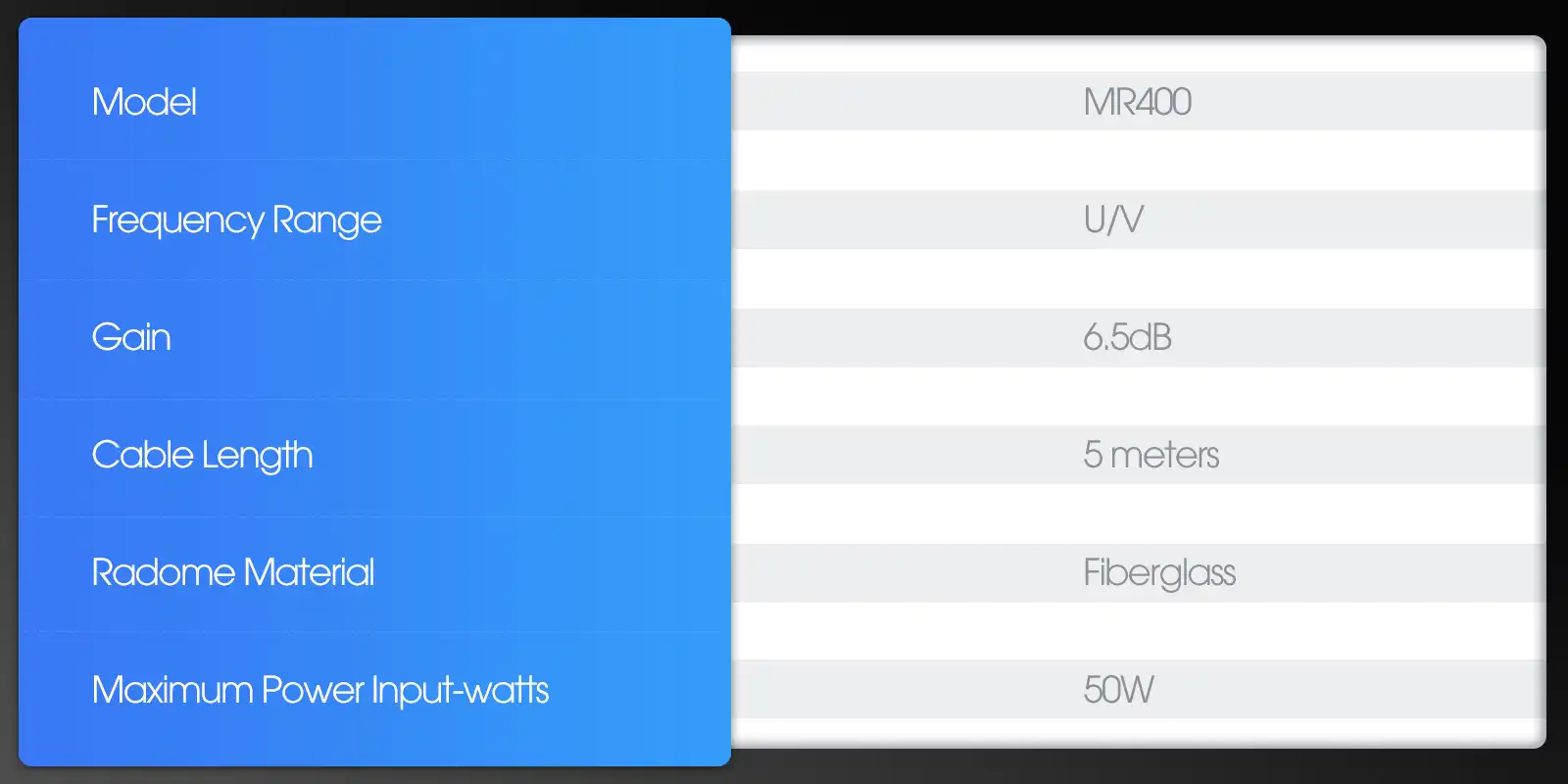

Specification of MR400
Package Includes
Specifications
|
Frequency |
UV（144/430 MHz） |
|
VSWR |
≤1.5 |
|
Input Resistance |
50Ω |
|
Gain |
6.5dB |
|
Power Capacity |
50W |
|
Antenna Length |
110cm |
|
Antenna Diameter |
20mm |
|
Antenna Housing Material |
Fiberglass Radome |
|
Antenna weight |
335g |
|
Antenna Connector |
N.J |
|
Spring Base Height |
102mm(top plastic spacer not included) |
|
Spring Base Material |
Steel |
|
Feeder Type |
RG-58U |
|
Cable |
5M |
|
Connector |
SL16J |
|
(Spring Base + Feeder) weight |
670g |
|
Colour |
Black |

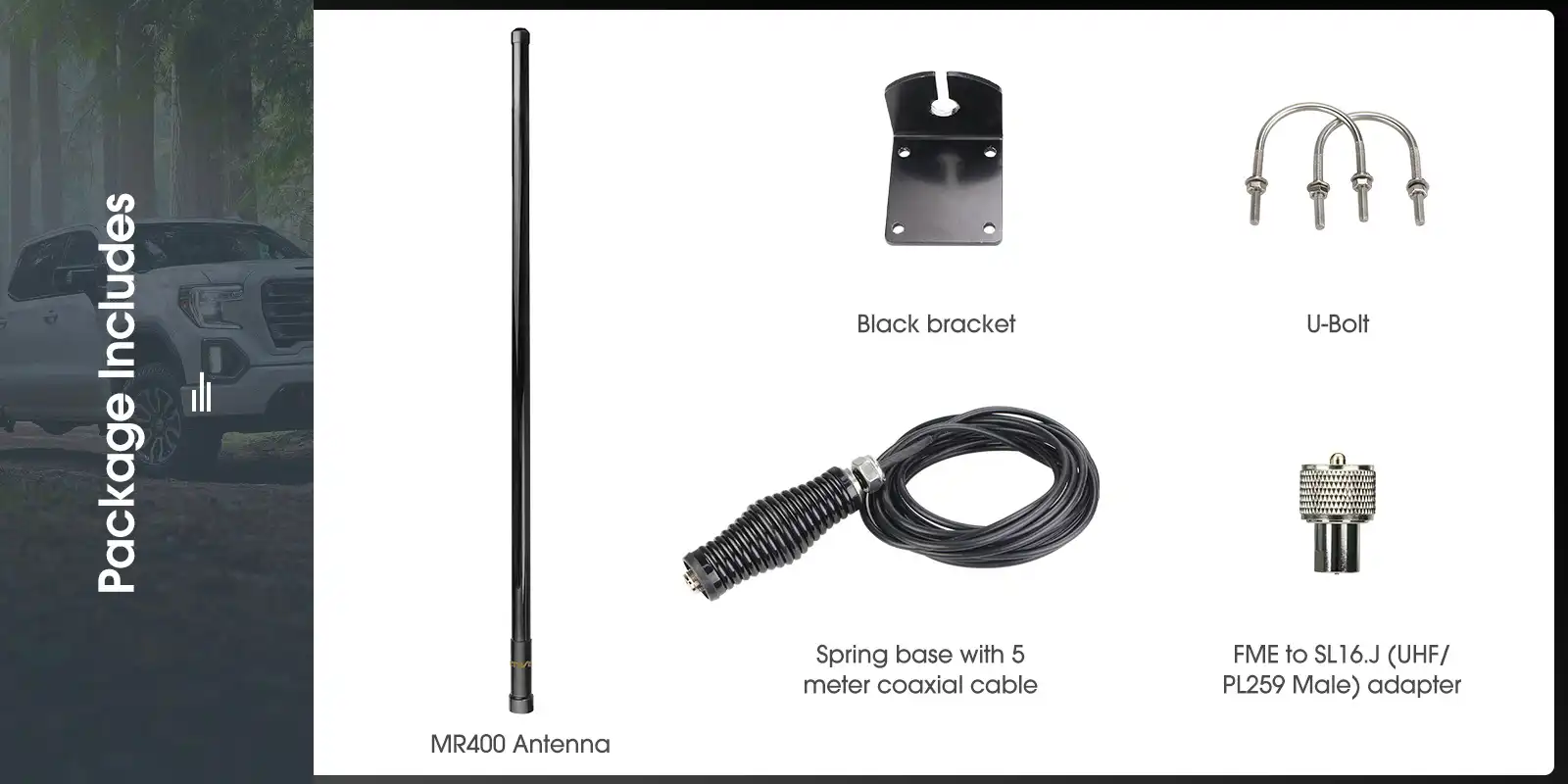

Package Includes:
1 x MR400 Antenna
1 x Bracket
2 x U Bolts
1 x Spring Base with 5 Meter Coaxial Cable
