RA25 20W GMRS Mobile Radio FARM TRACTOR BUNDLE
- 20W
- GMRS Mobile Radio
- 1.44 Inch display
- 462.5500-467.7250MHz
- FM radio
RA25 20w GMRS Mobile Radio With Ghost Antenna
Retevis RA25 20w gmrs mobile radio. Small, lightweight, regular appearance, optional light width installation. The buttons are simple, clear and easy to operate. Can be used with a variety of antennas for driving, farm tractors, trucks and combine harvesters.
Simple and professional GMRS mobile radio
Retevis RA25 GMRS mobile radio has nice housing, stoutness & stability, advanced and reliable functions, perfect & valuable. This GMRS mobile radio is specially designed for tractor drivers and it pursues philosophy of innovation and practicality.
Compatible with other FRS/GMRS radios
Retevis RA25 GMRS mobile radio with 30 standard GMRS Channel Table, you can use it to connect with your other FRS and GMRS radios after setting them to the same CTCSS/DCS and bandwidth.
Long Range GMRS mobile radio for farm tractor drivers
Full 20W output power, up to 10miles talking range in farm open area, very fit for farm drivers face to face communication, improve farming efficiency, and keep safe.
Easy install GMRS mobile Radio
12V Cigarette Lighter Plug design, only plug in, you can use it directly, more flexible and easy to put away the mobile radio when you don't need it.
Other functions
- Adopt superior quality material, better technology and high quality radiator to ensure stable and durable operation;
- 1.44 Inch TFT display;
- 30 programmable memory channels, identified by editing name;
- CTCSS, DCS, DTMF, 2Tone, 5Tone setting for each single channel,
- 11 groups fixed code plus self define code;
- LCD brightness control;
- Main unit and microphone key lock function;
- Compander function;
- Tone Pulse frequency;
Characteristics of different antennas:
Short Antenna：
Frequency: 136-174Mhz&400-470Mhz
Gain: 2.15/3dBi
Length: 9 cm
Mini Antenna:
MR100 + Magnet Mount + 3.9m Coaxial Cable
Frequency: 144/430MHz
Gain: 2.15/3.5dBi
Height (magnet mount and antenna): 479mm/18.86 inches
Chassis diameter: 90mm/3.54in
Weight (magnet mount and antenna): 550g/1.21lb
NGP Antenna:
MR200+ magnetic mounting base + 4m coaxial cable
Frequency: 144/430MHz
Gain: 2.15/3.5dBi
Height: 51.5cm
Weight: 765g
Stainless Steel Antenna:
MA07 stainless steel antenna
Frequency: 144/430MHz
Gain: 2.15/5.2dBi
Height: 78cm
Weight: 168g
| GMRS: TX: 462.5500-467.7250MHz RX:462.5500-462.7250MHzFM:86.7-108MHz | |||
| Number of Channels | 30 channels | ||
| Channel Spacing | 25K (Wide Band) 12.5K (Narrow band) | ||
| Phase-locked Step | 2.5KHz,5KHz,6.25KHz,10KHz,12.5KHz,15KHz,20KHz,25KHz,30KHz,50KHz | ||
| Operating Voltage | DC 13.8V±15% (Standard version)DC 12V (Optional version) | ||
| Squelch | Carrier/CTCSS/DCS/5Tone/2Tone/DTMF | ||
| Frequency Stability | ±2.5ppm | ||
| Operating Temperature | -20℃~+60℃ | ||
| Dimensions(mm) | 124x101x36mm | ||
| Weight | 0.45kg (mian unit) | ||
| RECEIVER | |||
| Wide band | Narrow band≤0.25μV | ||
| Sensitivity (12dB Sinad) | ≤0.25µV | ≤0.35μV | |
| Adjacent Channel Selectivity | ≥70dB | ≥60dB | |
| Audio Response | +1~-3dB(0.3~3KHz) | +1~-3dB(0.3~2.55KHz) | |
| Hum & Noise | ≥45dB | ≥40dB | |
| Audio distortion | <3% | ||
| Audio power output | > 2W@10% | ||
| TRANSMITTER | |||
| Wide band | Narrow band | ||
| Power Output | ≤20W | ||
| Modulation | 16KΦF3E | 11KΦF3E | |
| Adjacent Channel Power | ≥70dB | ≥60dB | |
| Hum & Noise | ≥40dB | ≥36dB | |
| Spurious Emission | ≥60dB | ≥60dB | |
| Audio Response | +1~-3dB(0.3~3KHz) | +1~-3dB(0.3~2.55KHz) | |
| Audio Distortion | ≤5% | ||

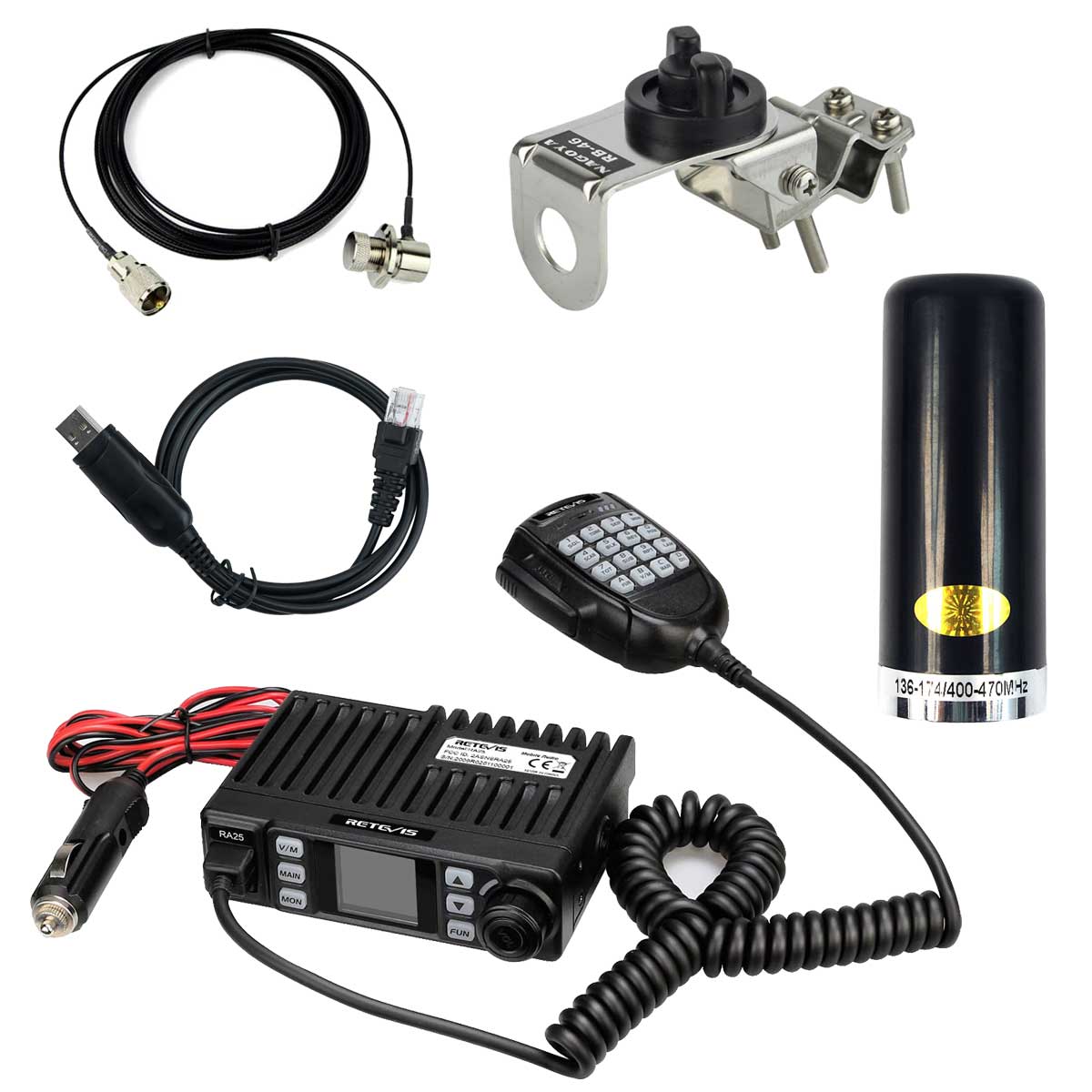

What’s in the Box？
- 1 x RA25 20W GMRS Mobile radio
- 1 x USB Programming Cable
- 1 x Short Antenna
- 1 x Microphone
- 1 x microphone Hanger
- 2 x Adjusting screws
- 4 x Pads
- 4 x Screws
- 1 x Fuse
- 1 x Mobile Bracket
- 2 x non-slip mat
- 1 x User manual
