- 30 GMRS channels
- 8 GMRS repeater available channels
- VFO/channel mode switch
- Frequency/channel/name display
- 260 privacy codes
- FM: 86.7-108MHz
NOTE: Programming software: please click "support" to download
GETTING CLOSER! ONLY $50.00 AWAY FROM FREE SHIPPING!
Order Handling Time within 3 Working days(Pre-sale products excluded).
34528 PEOPLE ARE LOOKING FOR THIS PRODUCT
Bulk order Inquiry
Personalize your device
OverView

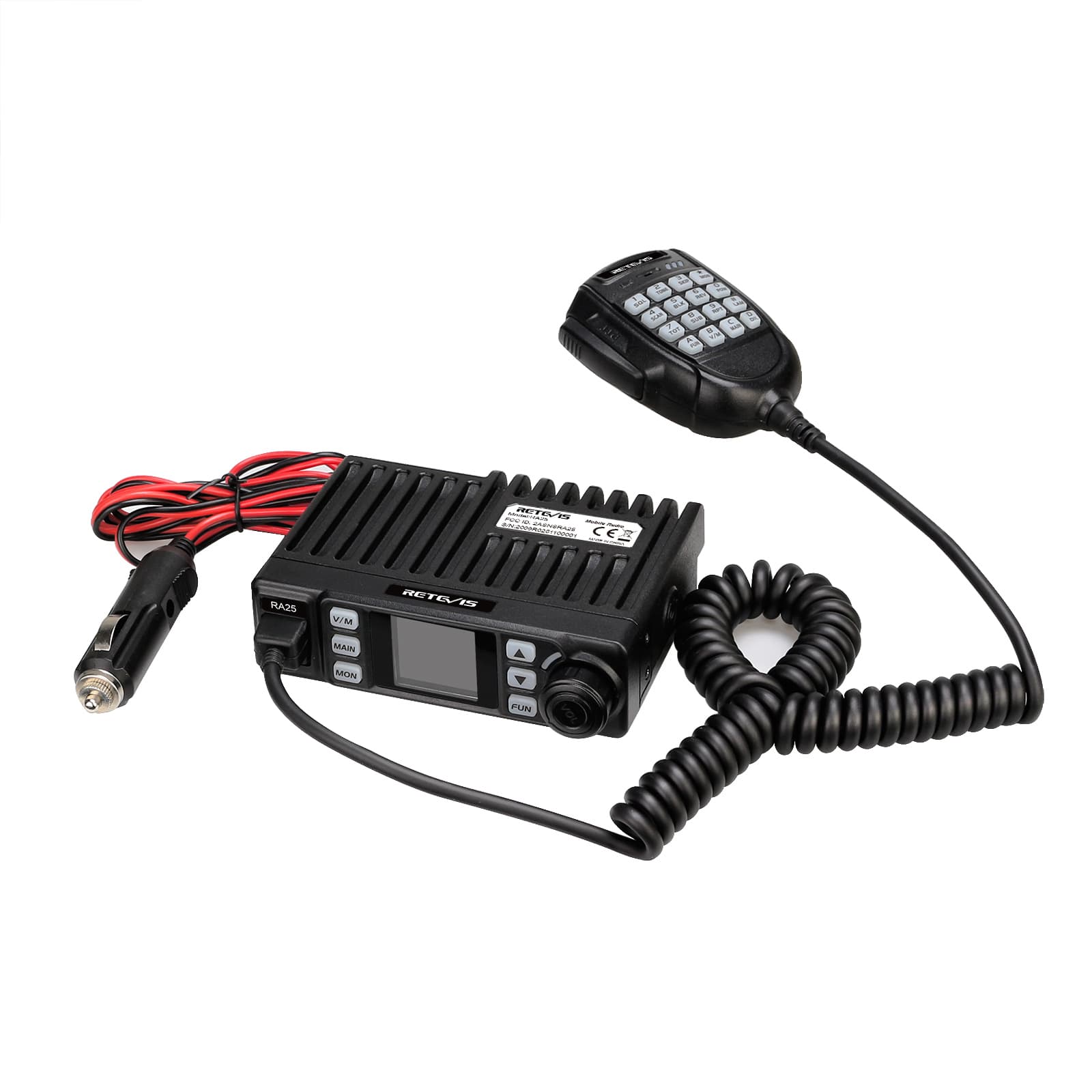

RA25 GMRS 20w Mobile walkie talkie
The easiest high-power car to obtain authorization
You may apply for a GMRS license if you are 18 years or older and not a representative of a foreign government. If you receive a license, any family member, regardless of age, can operate GMRS stations and units within the licensed system.
RA25 and repeater stations consistent
A GMRS licensee may use a combination of portable, mobile, fixed and repeater stations consistent with the operational and technical rules in Subpart E of FCC Part 95.
Other functions
- Adopt superior quality material, better technology and high quality radiator to ensure stable and durable operation;
- 1.44 Inch TFT display;
- 30 programmable memory channels, identified by editing name;
- CTCSS, DCS, DTMF, 2Tone, 5Tone setting for each single channel,
- 11 groups fixed code plus self define code;
- LCD brightness control;
- Main unit and microphone key lock function;
- Compander function;
- Tone Pulse frequency;
Spec
| GMRS: TX: 462.5500-467.7250MHz RX:462.5500-462.7250MHzFM:86.7-108MHz | |||
| Number of Channels | 30 channels | ||
| Channel Spacing | 25K (Wide Band) 12.5K (Narrow band) | ||
| Phase-locked Step | 2.5KHz,5KHz,6.25KHz,10KHz,12.5KHz,15KHz,20KHz,25KHz,30KHz,50KHz | ||
| Operating Voltage | DC 13.8V±15% (Standard version)DC 12V (Optional version) | ||
| Squelch | Carrier/CTCSS/DCS/5Tone/2Tone/DTMF | ||
| Frequency Stability | ±2.5ppm | ||
| Operating Temperature | -20℃~+60℃ | ||
| Dimensions(mm) | 124x101x36mm | ||
| Weight | 0.45kg (mian unit) | ||
| RECEIVER | |||
| Wide band | Narrow band≤0.25μV | ||
| Sensitivity (12dB Sinad) | ≤0.25µV | ≤0.35μV | |
| Adjacent Channel Selectivity | ≥70dB | ≥60dB | |
| Audio Response | +1~-3dB(0.3~3KHz) | +1~-3dB(0.3~2.55KHz) | |
| Hum & Noise | ≥45dB | ≥40dB | |
| Audio distortion | <3% | ||
| Audio power output | > 2W@10% | ||
| TRANSMITTER | |||
| Wide band | Narrow band | ||
| Power Output | ≤20W | ||
| Modulation | 16KΦF3E | 11KΦF3E | |
| Adjacent Channel Power | ≥70dB | ≥60dB | |
| Hum & Noise | ≥40dB | ≥36dB | |
| Spurious Emission | ≥60dB | ≥60dB | |
| Audio Response | +1~-3dB(0.3~3KHz) | +1~-3dB(0.3~2.55KHz) | |
| Audio Distortion | ≤5% | ||
Product Reviews
-
khalidthank y
Matt BI really like this little radio. I've since replaced it with a slightly higher power model but not because I was unhappy with it. The display is well laid out and easy to read, the programming menus take a little bit to get used to but once you do it's pretty easy to change things like CTCSS on the fly. My only real complaint in the menus is that it would be nice to make a DCS direct entry rather than having to scroll through to the right setting (with 1024 combinations including both N and I that's a lot....) The biggest complaint is that it doesn't work with chirp. Yes, it also uses a prolific knock off so you have to find a windows 7 laptop or install dodgy third party drivers but I can deal with that if I can use chirp. The included software is TERRIBLE. I wrote a python script that will inject a Chirp CSV channel list into an existing dat file that you can then upload with the Retevis software. Look at issue 9241 on the Chirp website. This is the same guts as several other radios like the RT95...search youtube for more information on that...George PlotkinNice package, with excellent footprint in my car. Sound quality is excellent, both on send and receive. Truly a gem.
Support
Firmware/Software
- WIN11-DRIVERINSTALLER
The WIN 11 driver is compatible with WIN 10, WIN 8 and WIN 7 operating systems.
- RA25_Software_Setup_2.00-230726
