RA85 5W Long Range GMRS Handheld Radio
1, 60 Channels GMRS two way radio
2, NOAA weather Channels supports
3, FM boardcast (receiving 65-108MHz)
4, Dual Display, Dual Standby
GETTING CLOSER! ONLY $50.00 AWAY FROM FREE SHIPPING!
Order Handling Time within 3 Working days(Pre-sale products excluded).
Bulk order Inquiry
Personalize your device
OverView

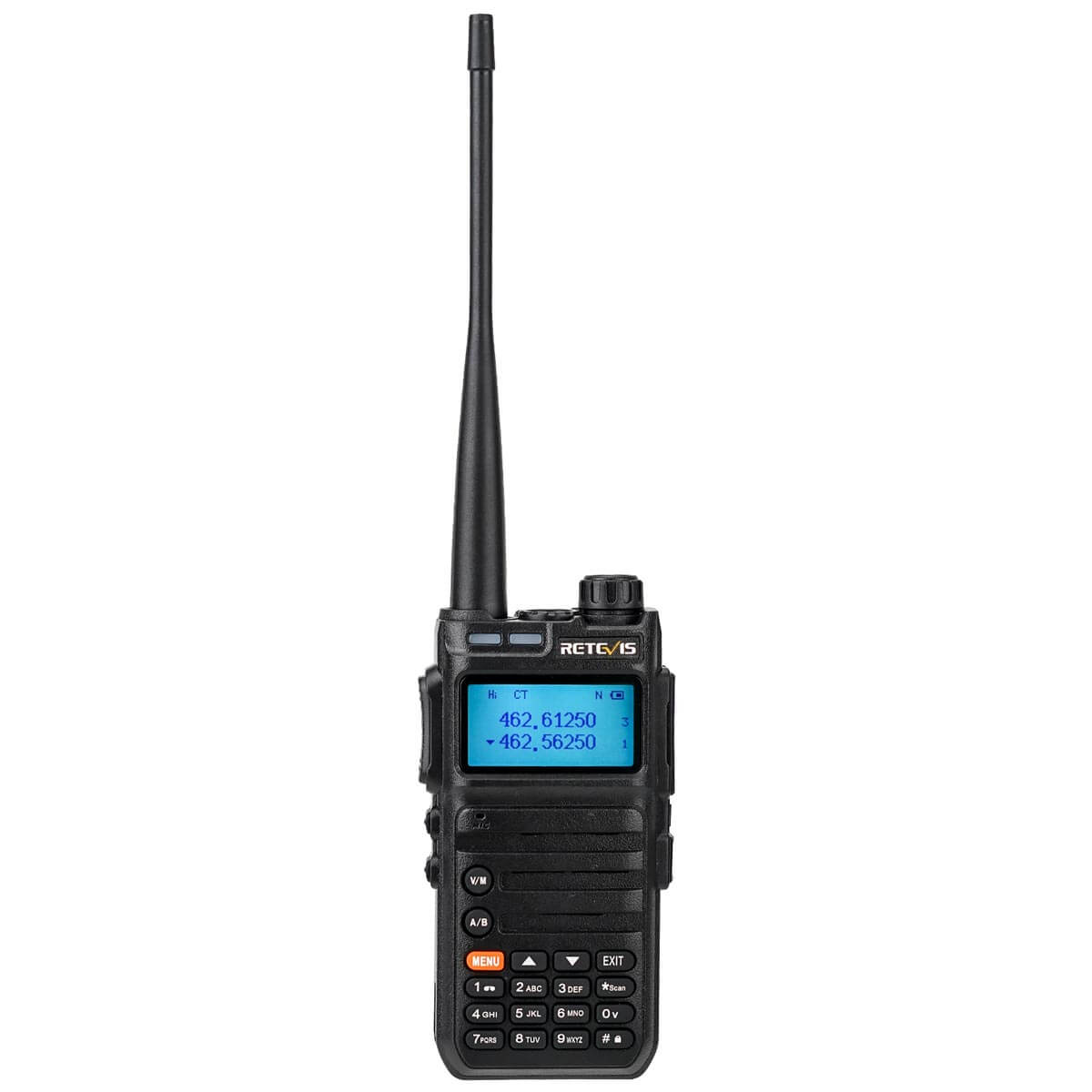

Retevis RA85 60CH GMRS Portable Radio GMRS Repeater Capable Two Way Radio
1, Offers 60 Channels and privacy codes
Usually the GMRS band radio with 30 channels, but our Retevis RA85 has 60 channels, offers you more channel options to help you block other conversations. And help you to set more GMRS channels with different CTCSS/DCS codes.

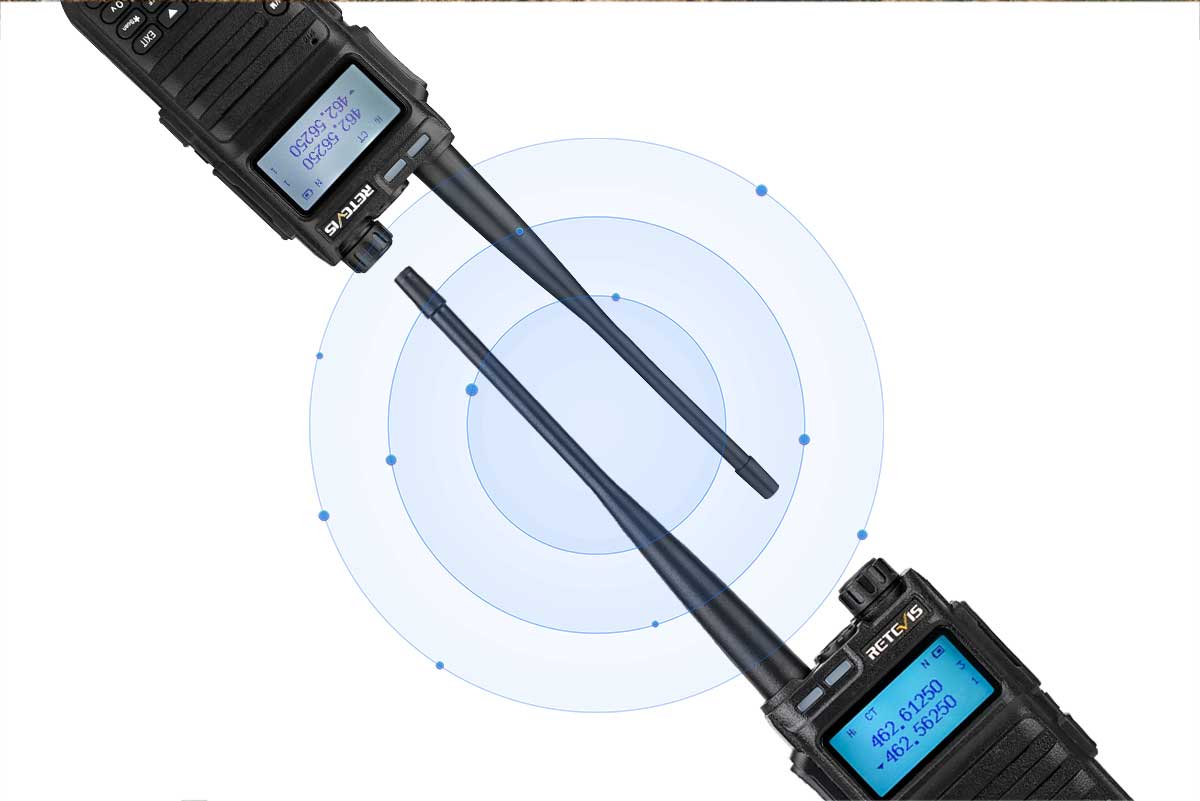

2, 5W High Power & Repeater Capable
RA85 is a powerful handheld GMRS radio, with an output power of 5W. It can also work with GMRS repeaters, which will help it get a stronger signal and reach a longer distance.
3, 11 NOAA weather channels
GMRS portable radio RA85 comes with 11 pre-programmed NOAA weather channels, keep abreast of the latest hazard weather reports and stay safe.

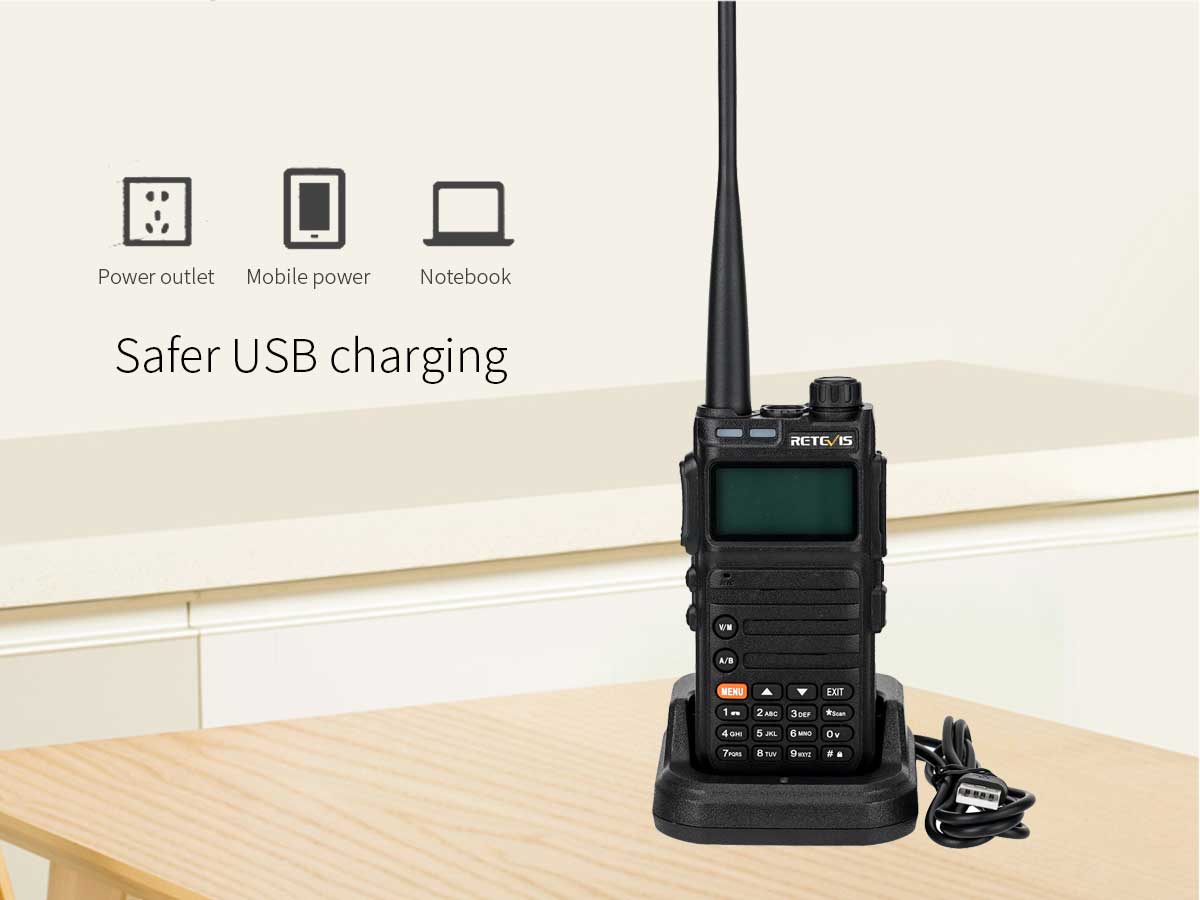

4, USB charger with desk charger base
The RA85 is USB rechargeable GMRS radio, you can easily charger, also comes with the desk charger base.

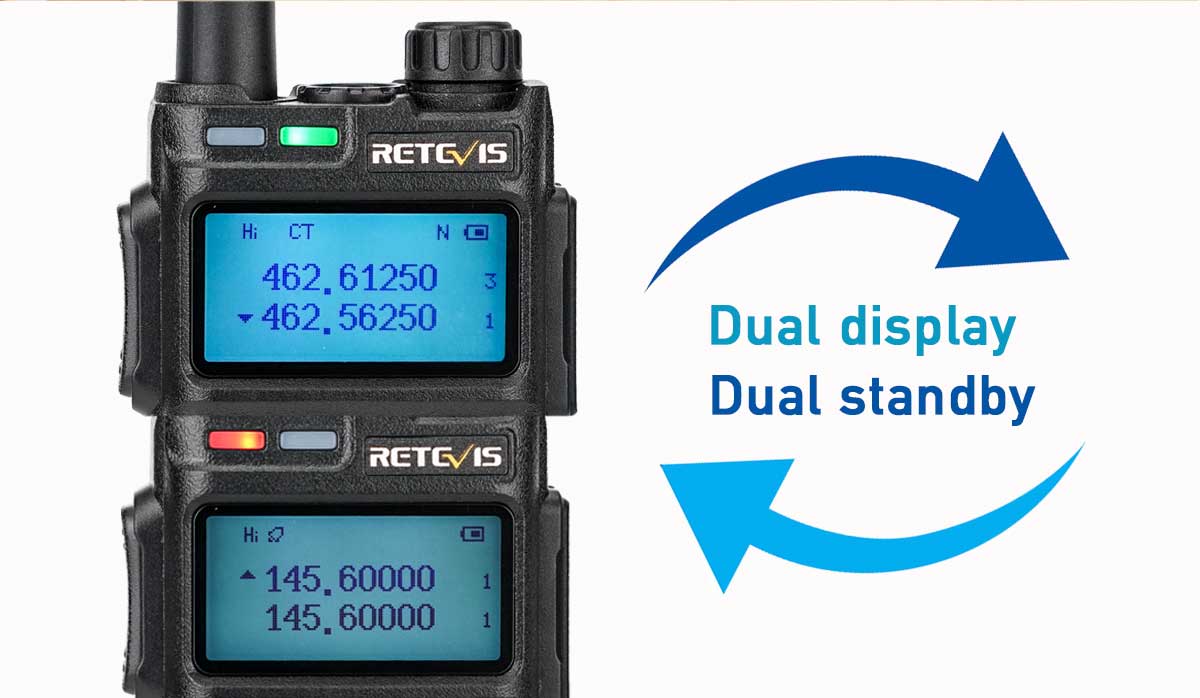

5, Dual display and Dual standby functions
RA85 comes with the 1.6-inch LCD display, you can not only check the radio information from its display, but also it is the dual standby and dual display. You can set the main and sub-main channels. If you want to monitor two channels at the same time, just activate the dual standby functions.
Spec
| General | Frequency range | GMRS | |
| Memory channels | 60 | ||
| Frequency step | 12.5kHz | ||
| Input voltage | 7.4 VDC | ||
| Battery(standard configuration) | 1800mAH(Li-Ion) | ||
| Battery life(5-5-90,high power transmission) | About 14 Hours | ||
| Power | Consumption in standby | ≤65mA | |
| Consumption in reception | ≤450 mA | ||
| Consumption in transmission | ≤1.8 A @high power，850 mA @ low power | ||
| Frequency stability | ±2.5ppm | ||
| Operating temperature | -20℃ to +60℃ | ||
| Antenna impedance | 50Ω | ||
| Dimensions (With battery, but without antenna) | 121×61×33mm | ||
| Weight (Including antenna and battery) | 223g | ||
| Transmitter | Transmit output power | 5W/0.5W | |
| Modulation | 11K0F3E@12.5KHz | ||
| Spurious emission | -36dBm＜1GHz， -30dBm＞1GHz | ||
| FM signal-to-noise ratio | 40dB @12.5KHz | ||
| Audio distortion | ≤5% | ||
| Modulation limit | ±2.5 KHz@12.5 KHz | ||
| Adjacent channel power | 60dB @ 12.5KHz | ||
| Audio response (300-3000Hz) | +1~3dB | ||
| Receiver | Receiving sensitivity | 0.25μV (12dB SINAD) | |
| Adjacent channel selectivity | ≥55dB@12.5KHz | ||
| Intermodulation immunity | ≥55dB@12.5KHz | ||
| Conducted spurious emissions | ≤-57dB @12.5KHz | ||
| FM signal-to-noise ratio | ≥40dB @12.5KHz | ||
| Audio output power | 1W @16ohms | ||
| Audio distortion | ≤5% | ||
| Audio response (300-3000Hz) | +1～-3dB | ||
Feature
NEW version：
1, The default bandwidth of the channel allows the wide and narrow bandwidth to be adjusted.
Channels 8-14 are set to fixed narrowband and low power by default and do not allow adjustment;
2, After the firmware is updated, press and hold PTT+8 to power on, the sub-audio will be canceled and automatically saved.
3, 30-60 channel when the following frequency points are selected: 467.5625, 467.6125, 467.6625, 467.7125, 467.5875, 467.6375, 467.6875, the default fixed narrowband and low power;
Main Features:
TOT (Time out timer)
VOX: No need to press the PTT button to talk, make your hands free.
Low battery voice indicator.
FM radio receiver.
SOS alarm function
NOAA weather channels
FM boardcast radio function
Automatic power saving function
- Flashlight functions
Product Reviews
Support
Firmware/Software
Firmware/Software
- RA85-software
- win11-DriverInstaller
- RA85-new-software-v1.0.1
Difference between old and new versions: Press side key 2 and turn on the radio, and the screen displays the version number, which means it is a new version of the machine.
