- New silver back clip, more installation positions
- With GMRS repeater function
- With integrated control microphone, ideal for tractor communication, simple design and easy operation
- Suitable for tractors, combines, UTVs, jeeps, off-road, etc.
-
RA86 Long-range GMRS Two-way radio With MA07 V/F mobile radio flexible stainless steel antenna
- RETEVIS RA86 GMRS TWO WAY RADIO with integrated control microphone, ideal for tractor communication, simple design, easy to operate, with GMRS repeater function, new silver back clip, suitable for tractors, combine harvesters, UTVs, jeeps, off-road, etc.
RA86 GMRS mobile radio offers a Fully Integrated Control Mic
Fully integrated control microphone, you can finish all operations yourself. You can place the radio base anywhere in the car. It is convenient to stash the radio unit away and save dashboard space.
Operate every function by its Microphone. You may install the base unit anywhere in your car.
NOAA Weather Alert on RA86 mobile two-way radio
NOAA weather alert provides great convenience for you. It efficiently helps you learn about the latest weather information and emergencies. It is convenient for you to adjust your journey in time.
Driver with RA86 GMRS mobile radio, you may get the weather information in time.
Dual Speaker to get a Clear and loud sound
With dual speakers, the mobile radio can transmit and receive clearly. You also can choose to use a single speaker or dual speaker as needed. Communicating with your friends for clear sound transmission in a noisy environment.
RA86 Long-range mobile radio
high power, the mobile radio has a long communication distance. 8 repeater channels and gain antenna are efficient to extend communication range. You can easily communicate with your friends even if you are apart from each other.
This RA86 mobile two-way radio has 22 GMRS channels and 8 repeaters. Repeater channels and high-gain antennae are efficient in extending communication range. You can easily communicate with your friends even if you are apart from each other.
Adjustable Power
High/Low power is adjusted. You can select the proper power according to different occasion needs. *When the radio is in the 01-07 channel, the high power menu setting can’t be seen.
RA86 High power GMRS mobile radio with LCD Display
4 personalized backlight and 3 display brightness are adjustable. The mobile radio has better visibility and you can clearly know the status of the mobile radio no matter in the day or night.
VOX Function
VOX function is efficient for having your hands free and the microphone bracket is convenient for fixing the microphone. You can communicate with your friends even when you driving the car.
Applications
Keys and Connectors
Special Details

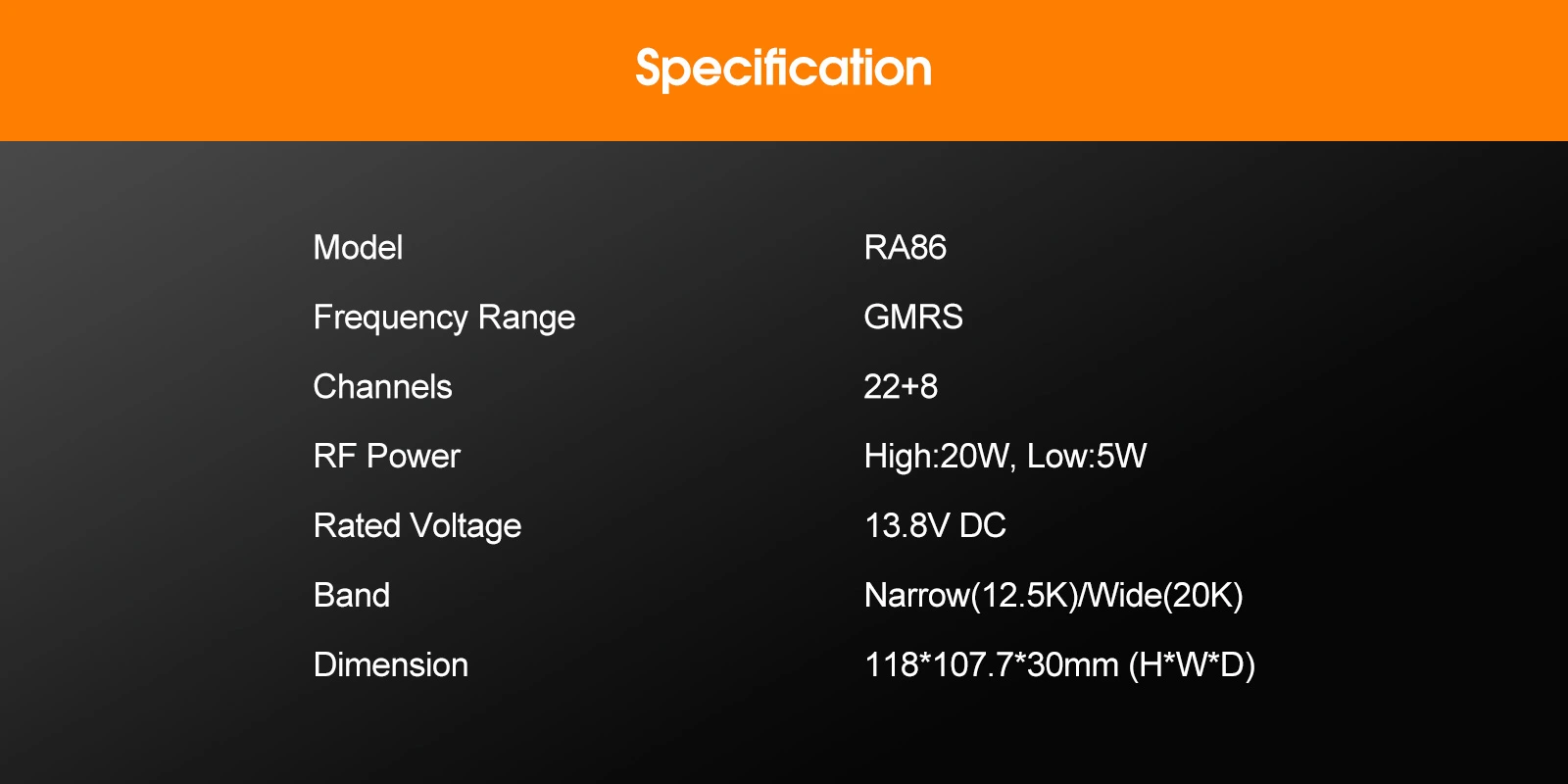

Specification

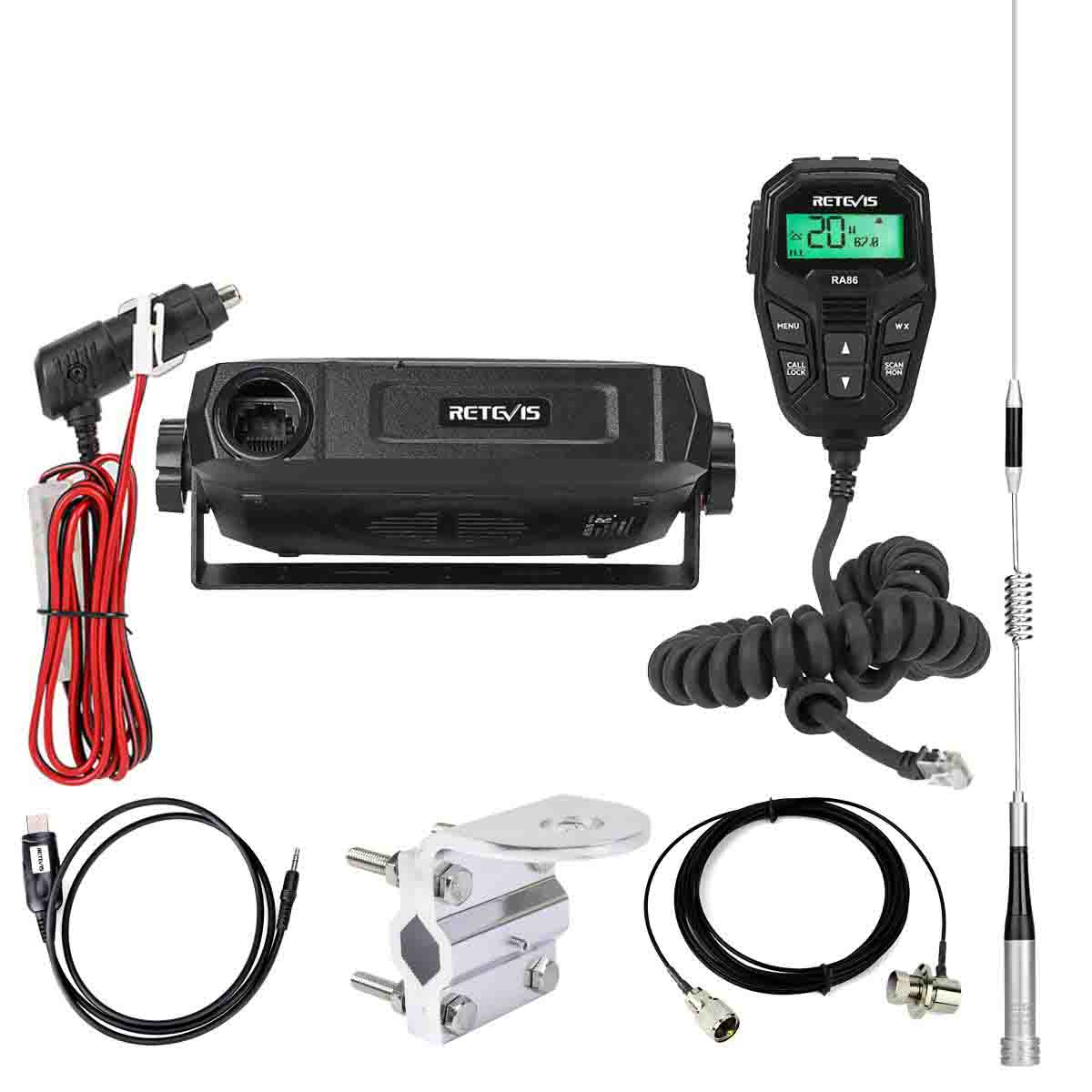

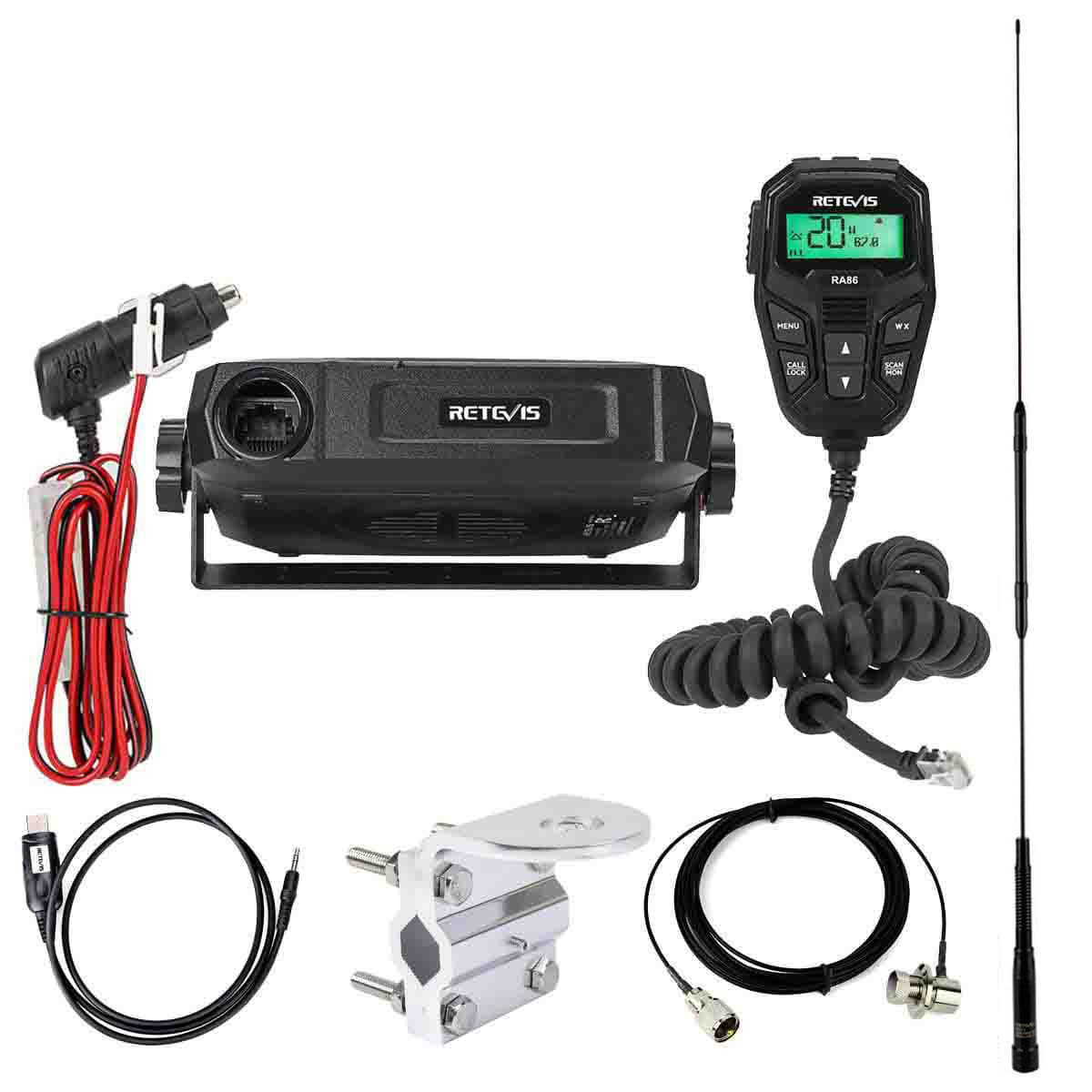

Package includes:
- 1 x RA86 NOAA GMRS Mobile Radio
- 1 x MA07 V/F Mobile Radio Flexible Stainless Steel Antenna
- 1 x coaxial cable
- 1 x RA86 programming cable
- 1 x Silver Antenna Mounting Back Clip
- 1 x power cord
- 1 x handheld microphone
- 1 x user manual
- 1 x pack of screws and accessories
| overall parameters | ||
| Modulation | FM | |
| Frequency Range | GMRS（462.5625-467.725） | |
| frequency error | ±500Hz | |
| Operating Voltage | 12.6-14.4V | |
| Antenna Impedance | 50Ω | |
| bandwidth | 12.5kHz/20kHz | |
| Working current | ≤3.3A Hi power | |
| ≤1.8A Lo power | ||
| Operating temperature | -30℃-+55℃ | |
| TX parameters | ||
| Spurious RF components | ≤-60dBC | ≤-13dbm |
| Transmit SNR | ≥35 | |
| modulation limit | ≤2.5KHZ（N） | |
| ≤5KHZ（W）@Repeater Channel | ||
| Adjacent power | ≤-65dBc | ≤-60dBc |
| Modulation Sensitivity | 5-15mV | |
| audio pre-emphasis | -3~-7@AF=500Hz | -6±3@AF=500Hz |
| 3-7@AF=2KHz | 6±3@AF=2KHz | |
| RX parameters | ||
| Receiver sensitivity | ≤-122m@SINAD=12dB | |
| audio output | 3.2V-4.2V@8R SPK | 3.2v-4.2v@8R SPK @AF=1KHz.FM Devation=1.5KHZ |
| reception distortion | ≤5.0% | ≤8% |
| Receive SNR | ≥40 | ≥36 |
| receive blocking | ≥80 | ≥75 |
| co-channel rejection | ≤-12 | |
| lane selectivity | ≥70 | |
| audio de-emphasis | 2~6@AF=500Hz | 6±3@AF=500Hz |
| -8~-3@AF=2KHz |
-6±3@AF=2KH z |
|
MR07 ANTENNA-Specification:
| Brand | Retevis |
| Model | MA07 |
| Color | Silver |
| Frequency | 144/430MHz |
| Max power | 100W |
| V.S.W.R | Less 1.5 |
| Impedance | 50Ω |
| Gain | 2.15/5.2dBi |
| Length | 0.78M |
| Connector | SL16-J |
| Weight | 168g |
Retevis RA86 GMRS Mobile Tractor Radio Bundle Features
- Two Year Warranty
- Full Micro Mobile GMRS Radio, with an external magnetic mount 2 dB gain antenna for extended range
- Total 99 direct GMRS channels+8 gmrs repeater channels.
-
30 factory set GMRS Channels
- 8 GMRS repeater channels
- 66 preset blank channels for program
- 10 NOAA channels, NOAA Weather Alerts and Weather Scan: NOAA Weather Scan will automatically scan through 10 available weather (WX) band channels and locks onto the strongest weather channel to alert you of severe weather updates. NOAA Weather Alert will sound an alarm indicating that there is a risk of severe weather in your area.
- 260 CTCSS/DCS PRIVACY CODES: The privacy codes give you up to 5720 channel options to protect your conversations
- Fully Integrated Control Microphone and low profile hide away unit. Personalized backlight selection, clearer microphone for better call sound quality.
- Scan
- Monitor
- Squelch
- VOX
- Keypad lock
- Power Level Hi/Lo
- Bandwidth Settings
- TOT
- Call Alert Tone
- Repeater ON/OFF
- MIC Gain
- Backlight Settings
- LCD Brightness Settings
- Sleep Time Settings
- Extemal Speaker Jack
- Automatic Power On Function
- GMRS License Required
- FCC ID: 2A3OORA86
