Retevis RA87 40W Powerful Long Range GMRS Mobile Radio

Fast Shipping from the USA
Bulk order Inquiry
Personalize your device
OverView
RETEVIS RA87 40W High-power GMRS Radio Long Range GMRS Mobile Radio for sale
Off-Road Outdoor Boat Ranches Tractors radio and compatible GMRS walkie-talkies

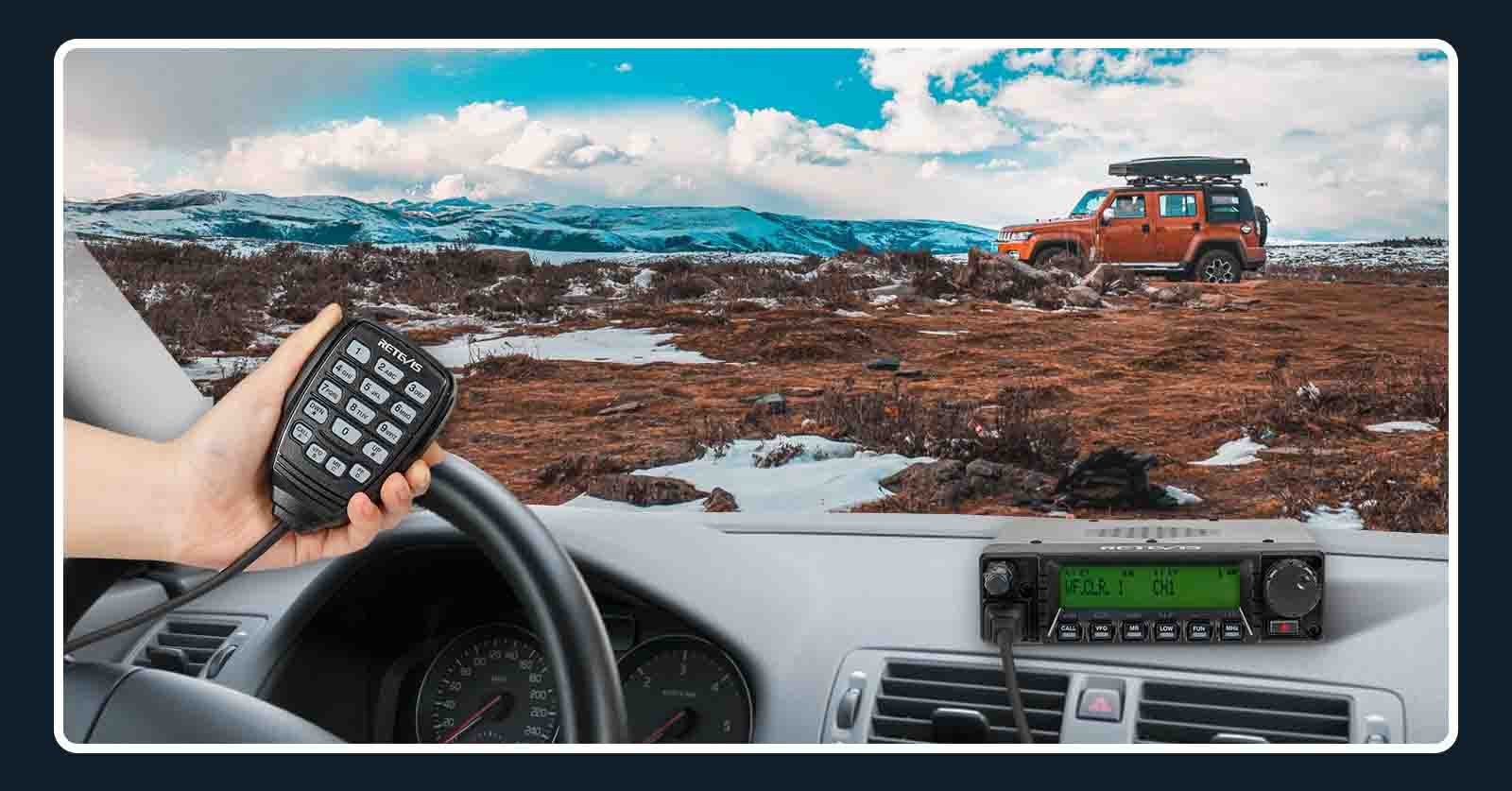

It easily mounts in most vehicles. The most powerful GMRS Radio in the Retevis line.

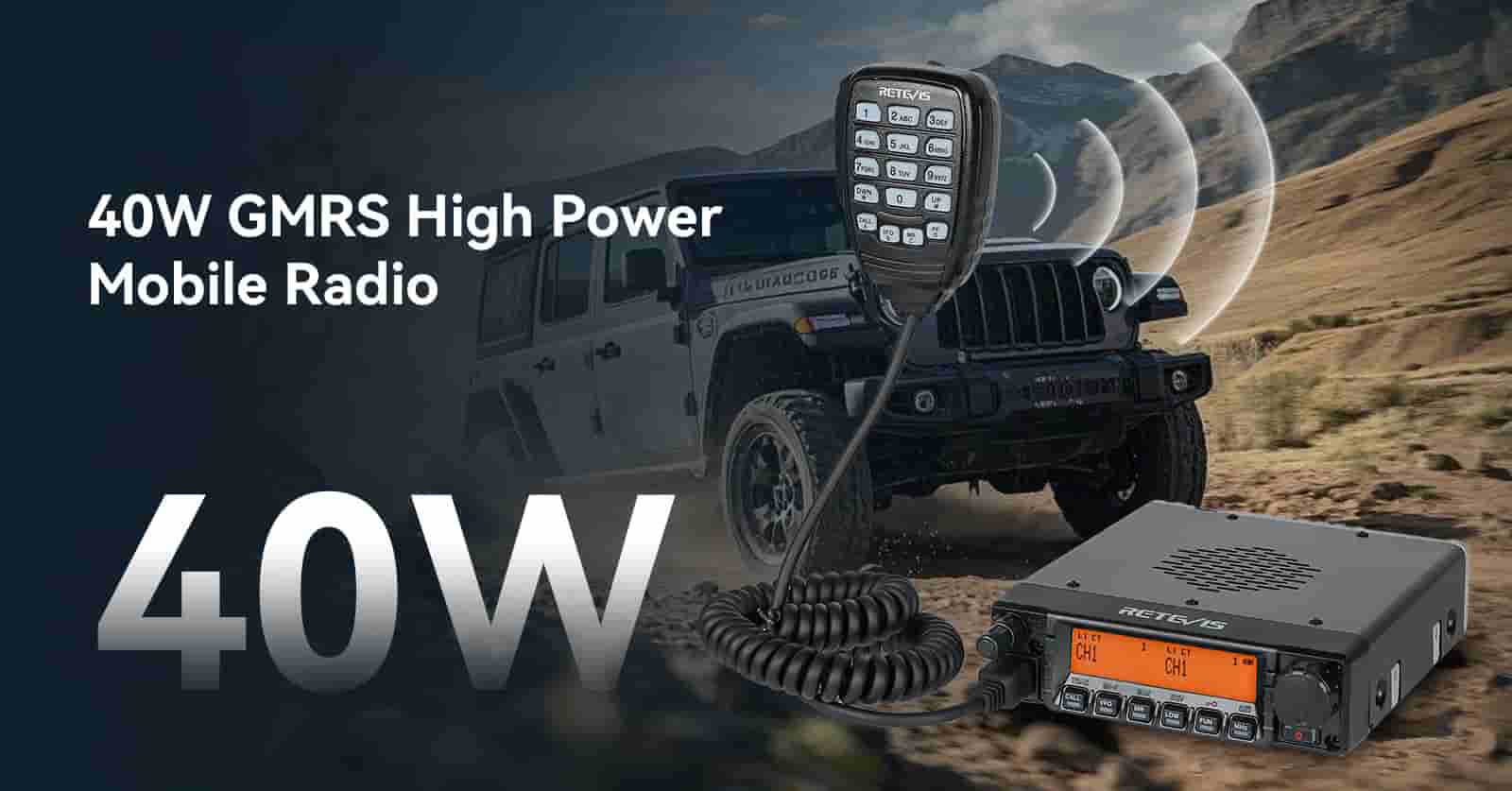

Retevis RA87 is a 40-watt GMRS mobile radio, that can reach 20 km in the open field, ideal for 4wd expeditions, remote outback touring, convoys, and truck drivers.
Its GMRS channels can be connected to a local GMRS repeater for further range.
Integrated microphone and panel with buttons for easy operation.
GMRS License Mobile Radio-Low Cost but offers long-range

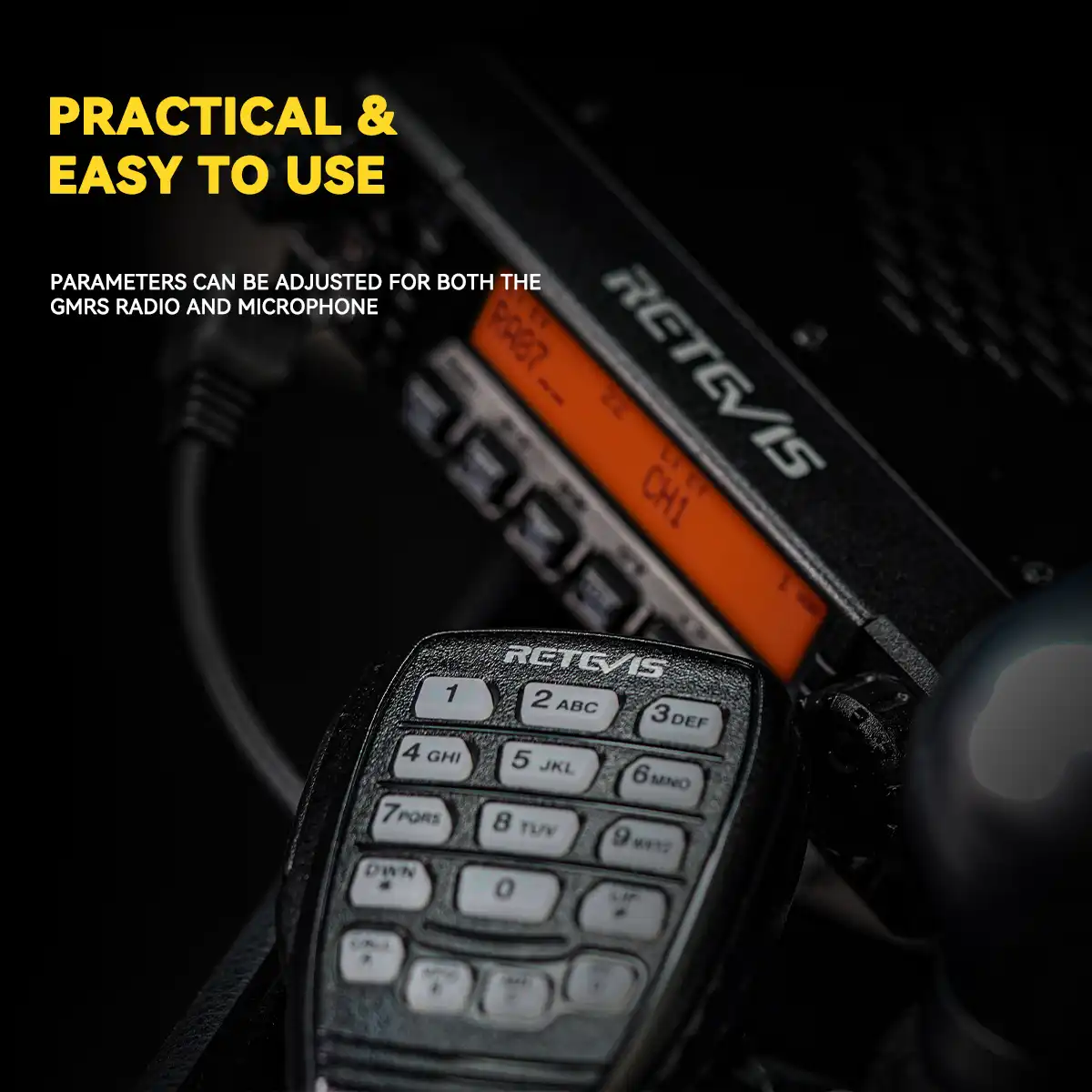

Practical and Easy to Use
Support VFO mode: Easy to build a new channel with VFO mode without the computer and software.
Easy to use: No need to program your RA87 Mobile radio with software, making it easy to use this long-range mobile radio.

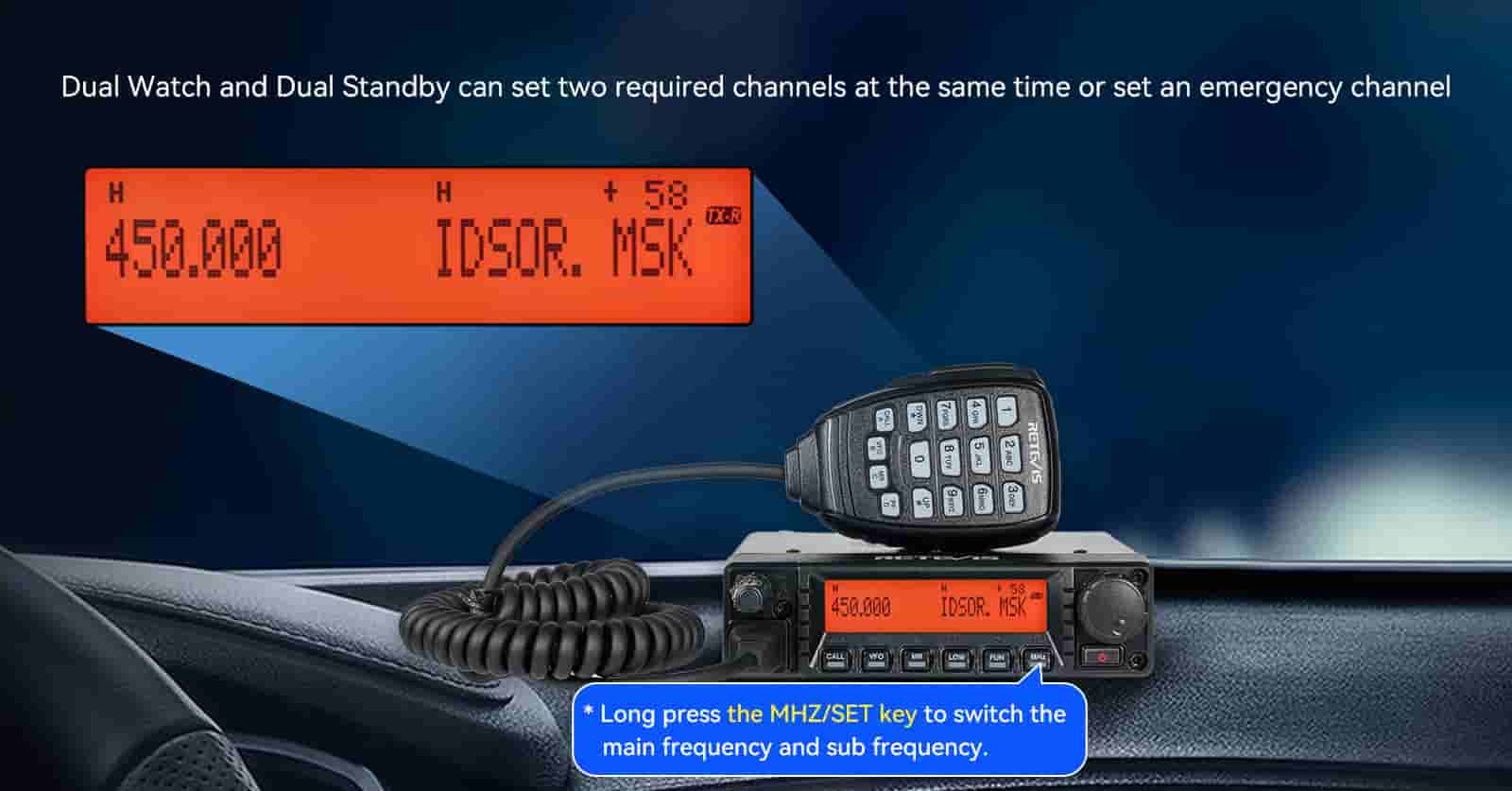

Dual standby, dual watch
displays two channels at the same time and can be switched; set two required channels at the same time or set an emergency channel
GMRS band high-power mobile radio: RA87 is the GMRS Mobile radio, it has 22 GMRS channels with 8 repeater channels. GMRS license is easy to get and can be used for the whole family.
Long-distance GMRS mobile radio; high-power two-way radio; 8 base station channels can be connected to nearby relay stations to extend the distance; a powerful assistant for outdoor off-road
Reliable and Durable

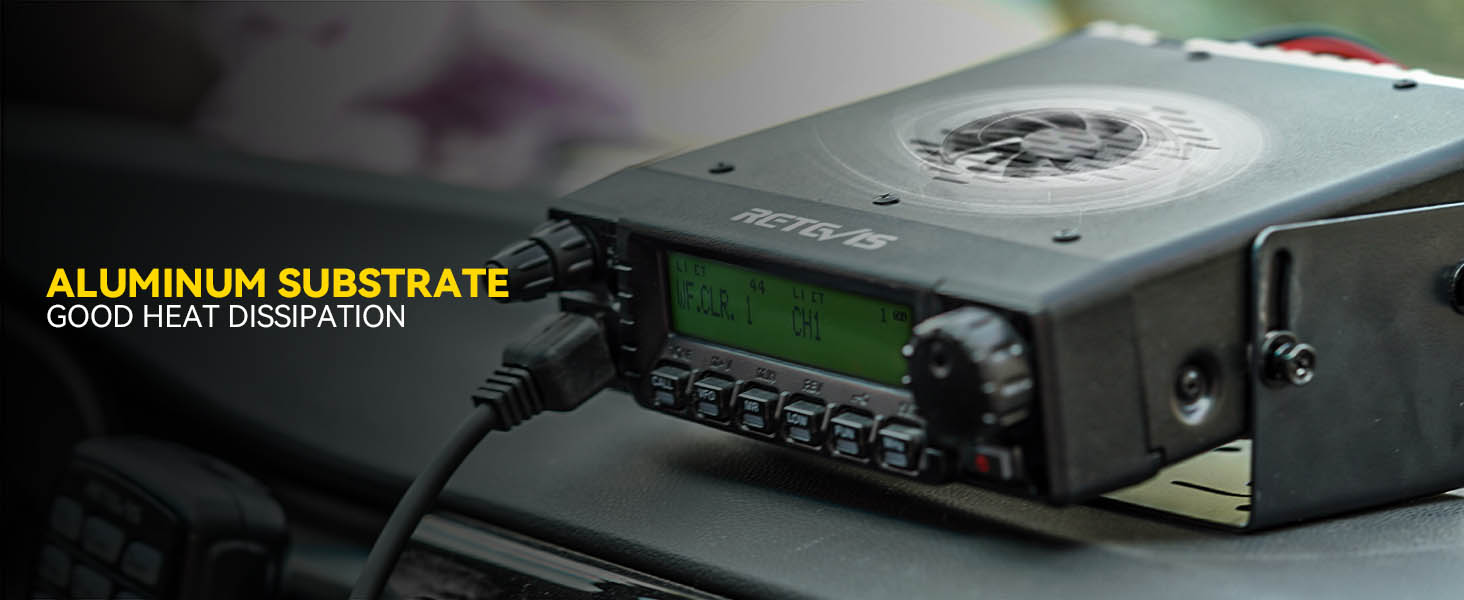

RA87 high-power radio uses aluminum substrate material, which provides better heat. Good material will extend the RA87 GMRS radio last long.
Better materials and high quality will make RA87 GMRS Mobile radio durable.

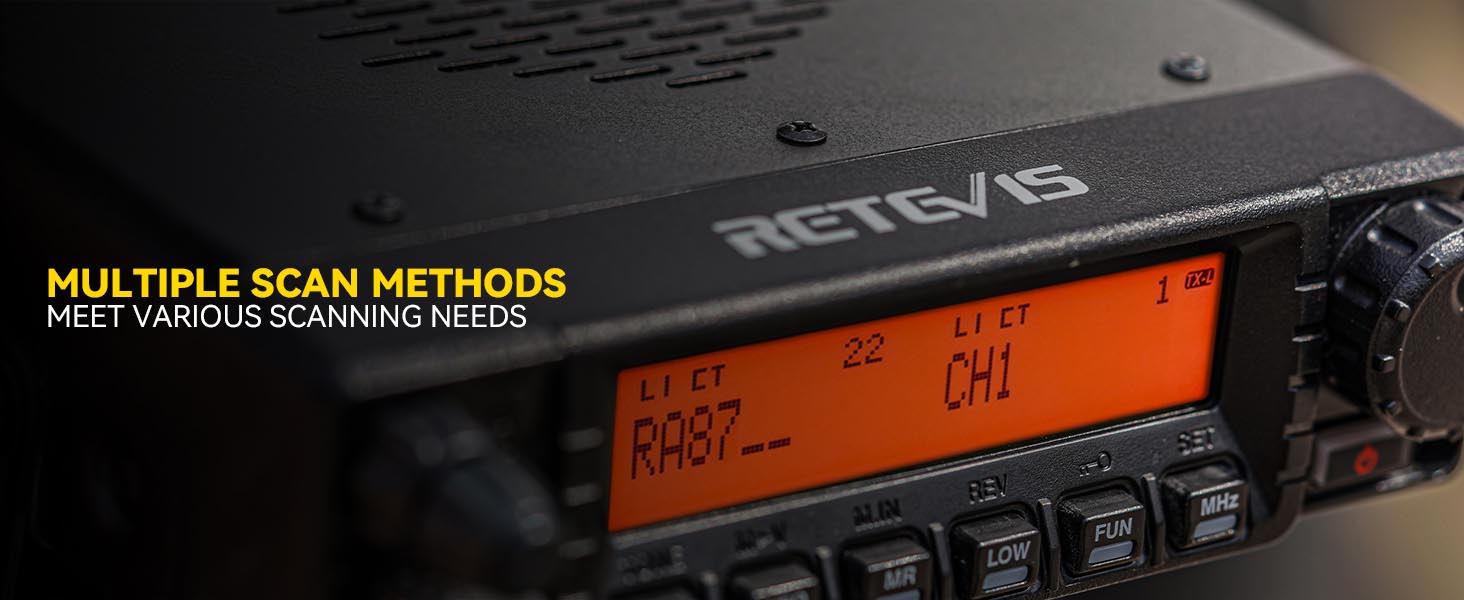

Multiple scan methods
The mobile radio supports multiple scanning methods, including normal scan, call scan, etc. It is convenient for you to choose the appropriate scan methods based on your or the occasion’s needs.

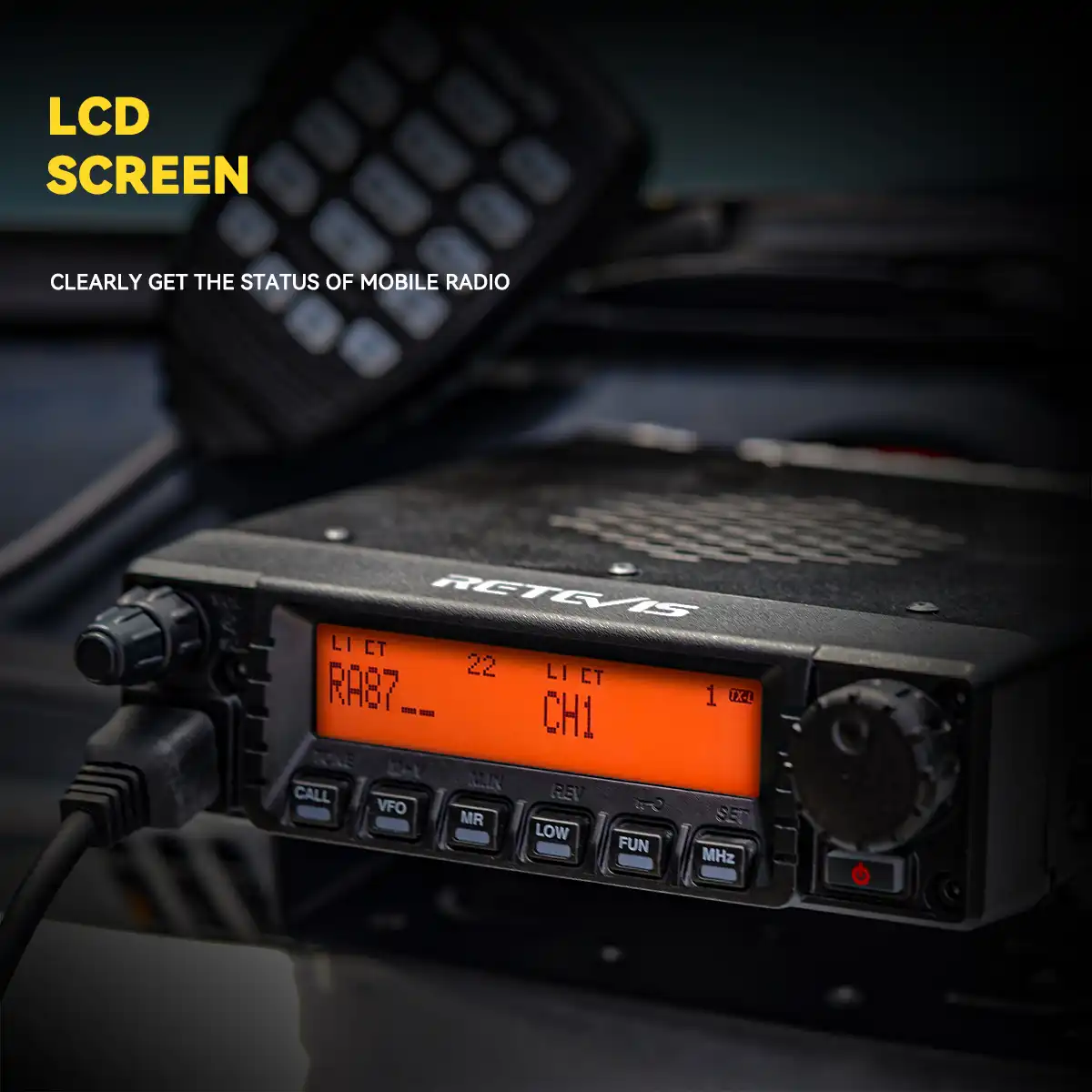

LCD Screen
RA87's LCD display has 8-kind backlight lights. High Contrast Backlit LCD display provides good visibility for day or night use.
LCD display shows the radio's information: frequency, channel number, and other functions. You may easily check this information from an LCD display.

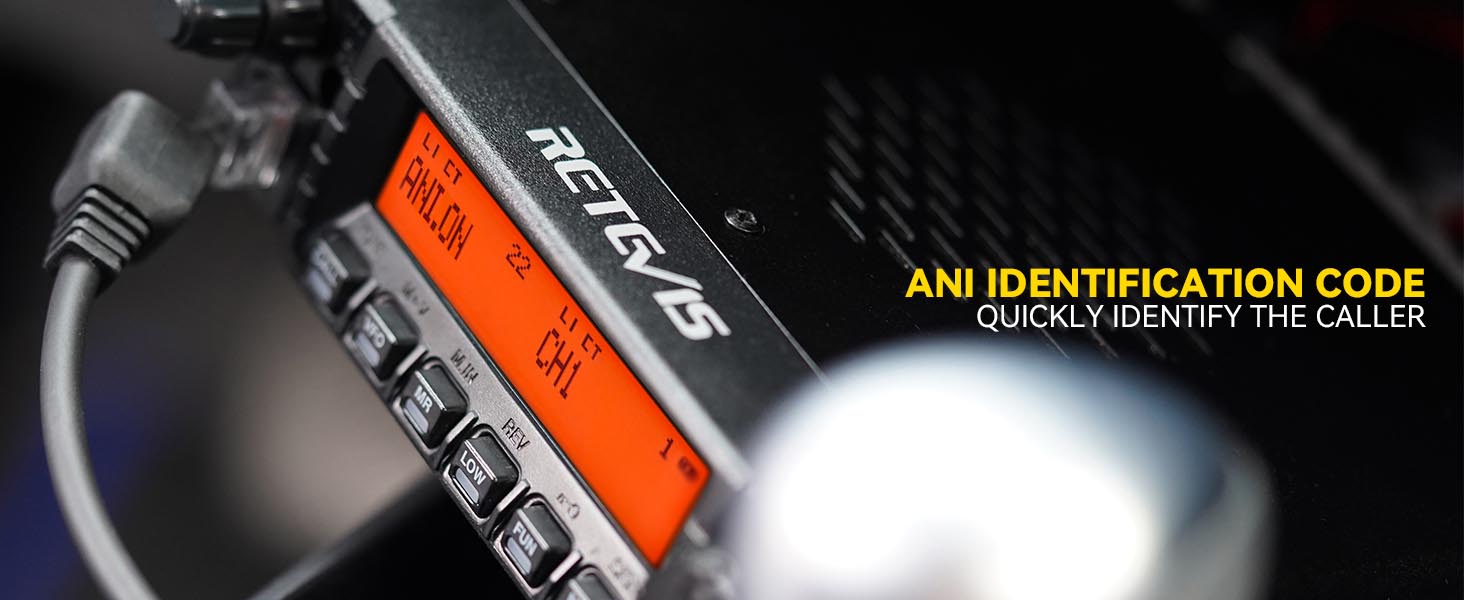

ANI identification function
ANI identification code brings convenience for identifying the people who call you and reducing the unwanted conversation.
Avoid unnecessary communication through using ANI identification code to identify the caller.
Strong Compatibility
The RA87 GMRS mobile radio has strong compatibility. With the 22 GMRS channels included, it is convenient to work with GMRS or FRS two-way radios.
RA87 can work with other brands and Retevis GMRS handheld radios or mobile radios easily.

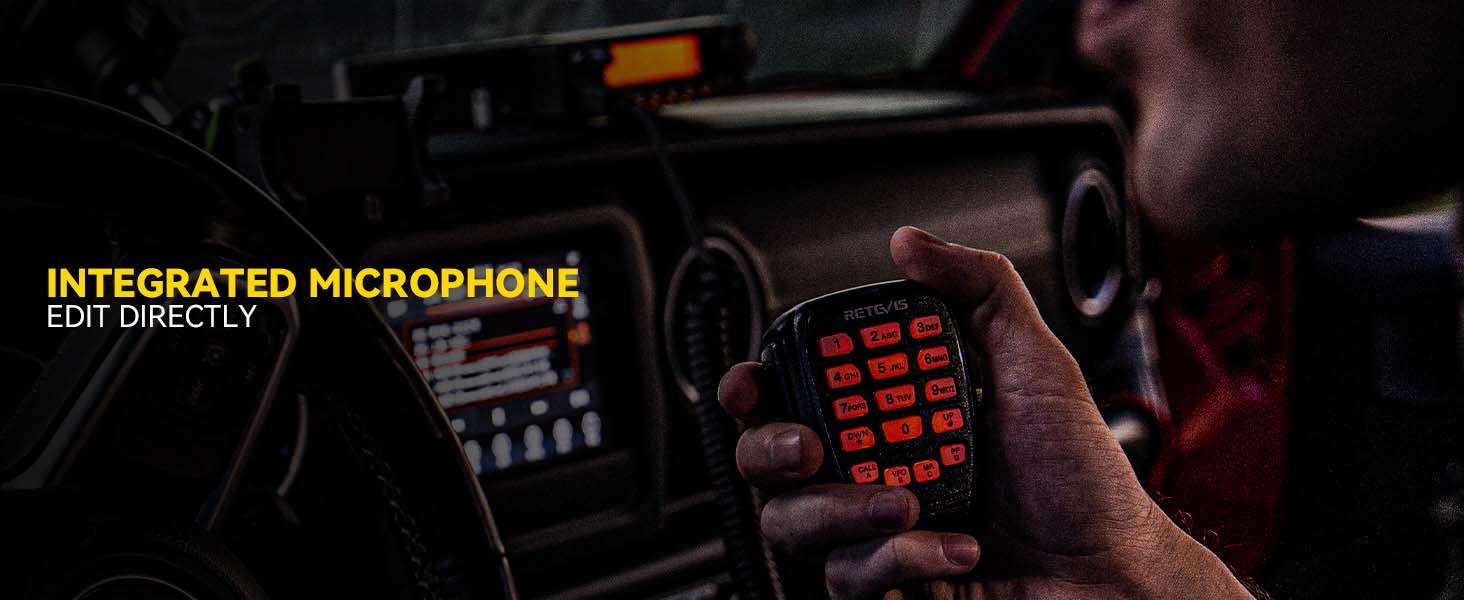

Integrated Microphone
Without programming software, the handheld microphone can be operated to change settings or functions, which is more convenient to use.

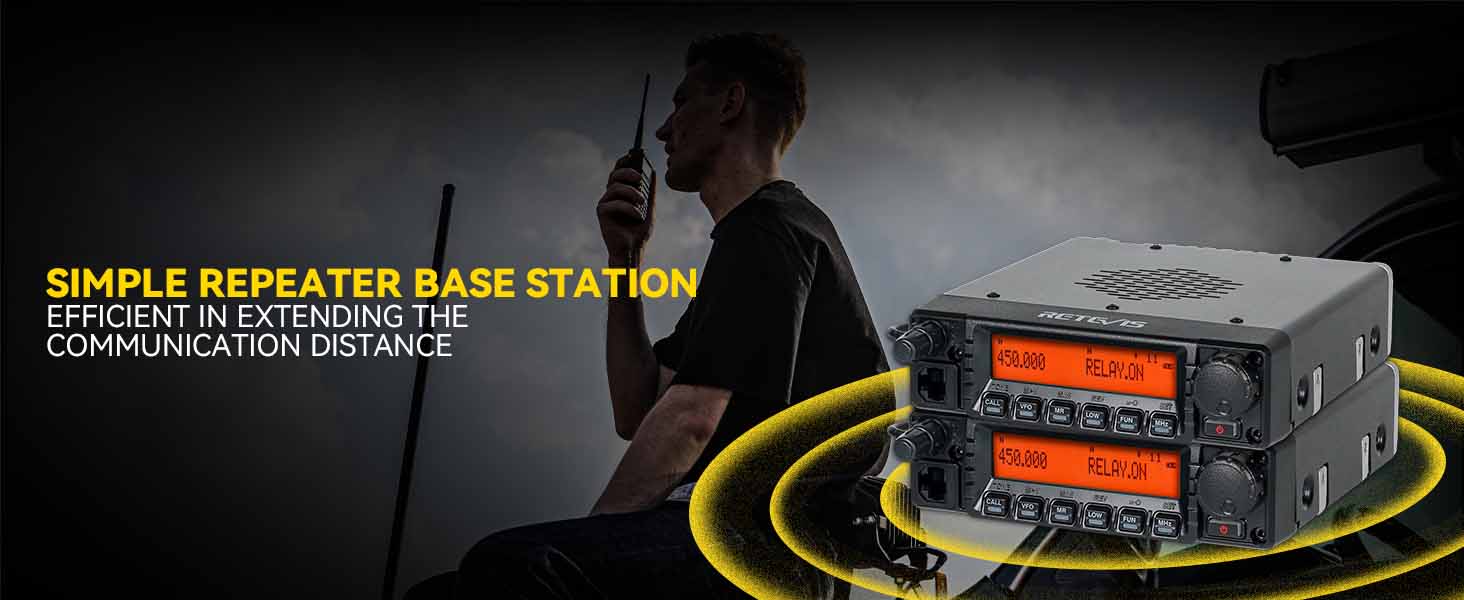

Build a Simple Repeater Base Station with 2packs RA87 powerful GMRS radio

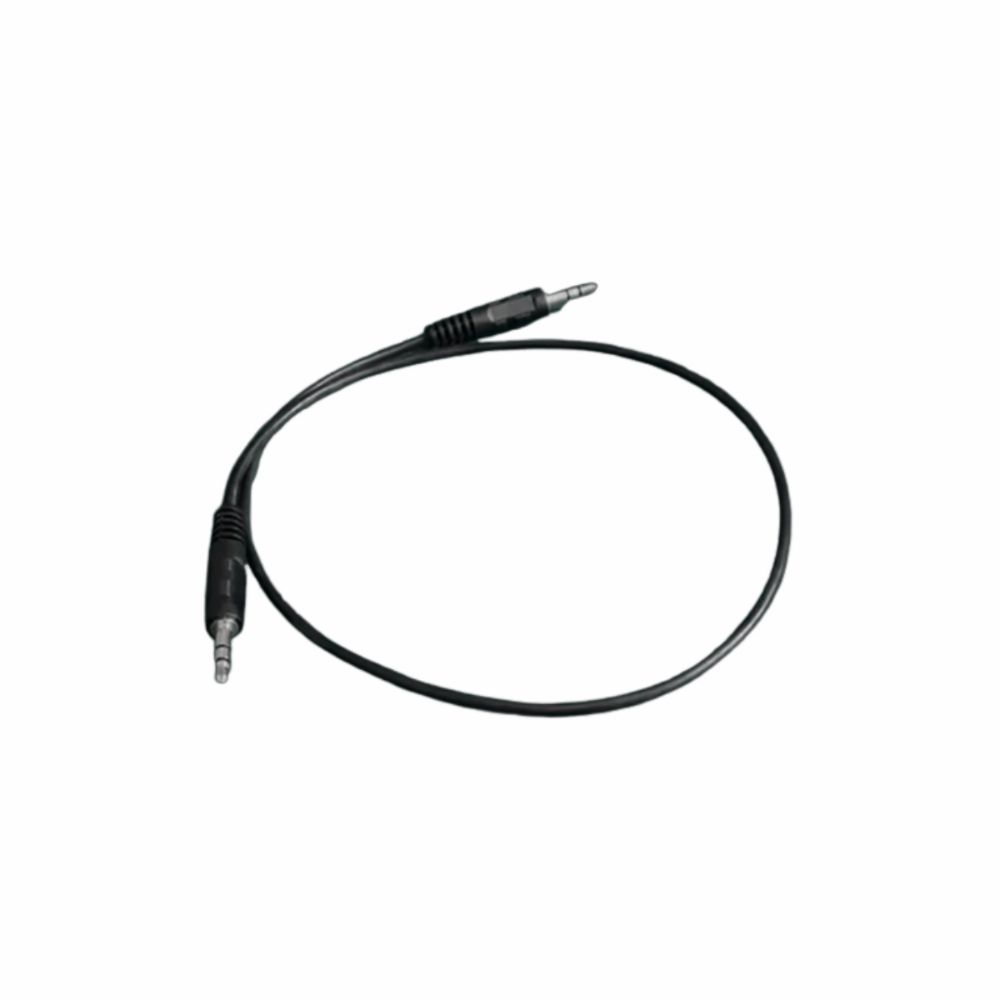

Two RA87 GMRS mobile Radios can copy data through one data cable (not included) and build a simple repeater. Easy to build your repeater with two RA87 GMRS radios.
Expand your handheld GMRS radios easily.
Emergency Rescue
Equipped with the emergency alarm function, it has great convenience for keeping you safe in the event of an emergency.

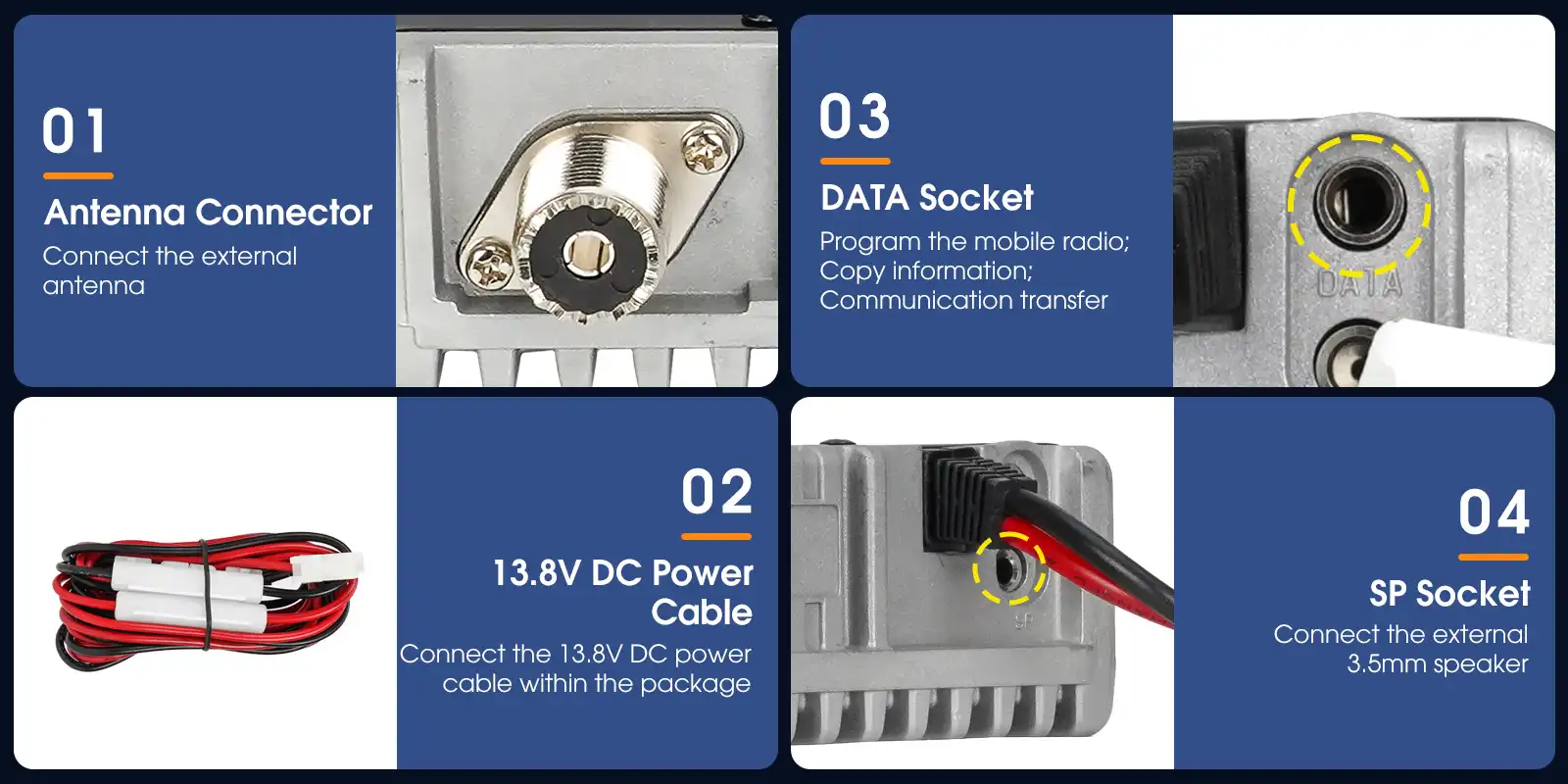

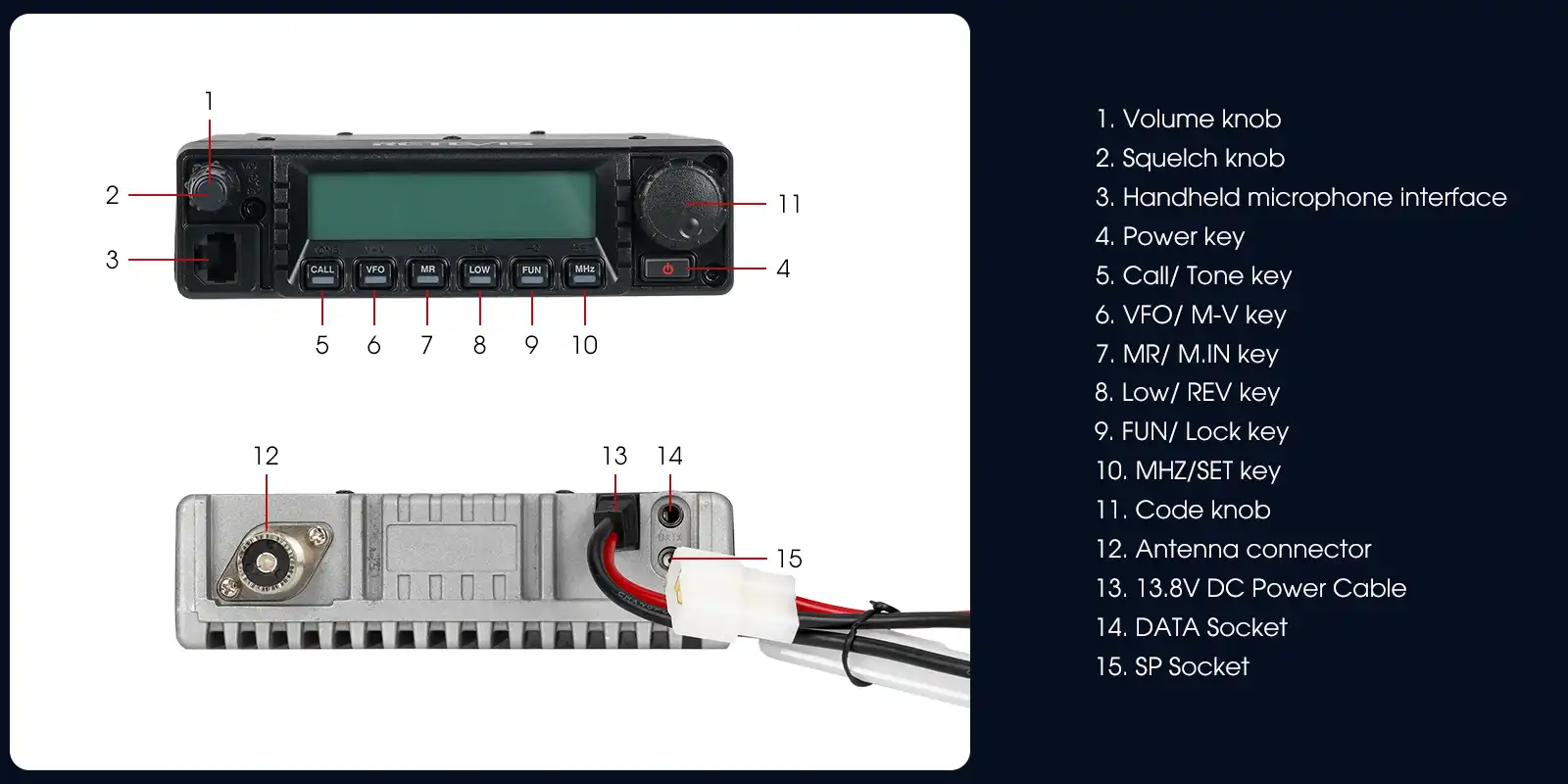

Radio Details

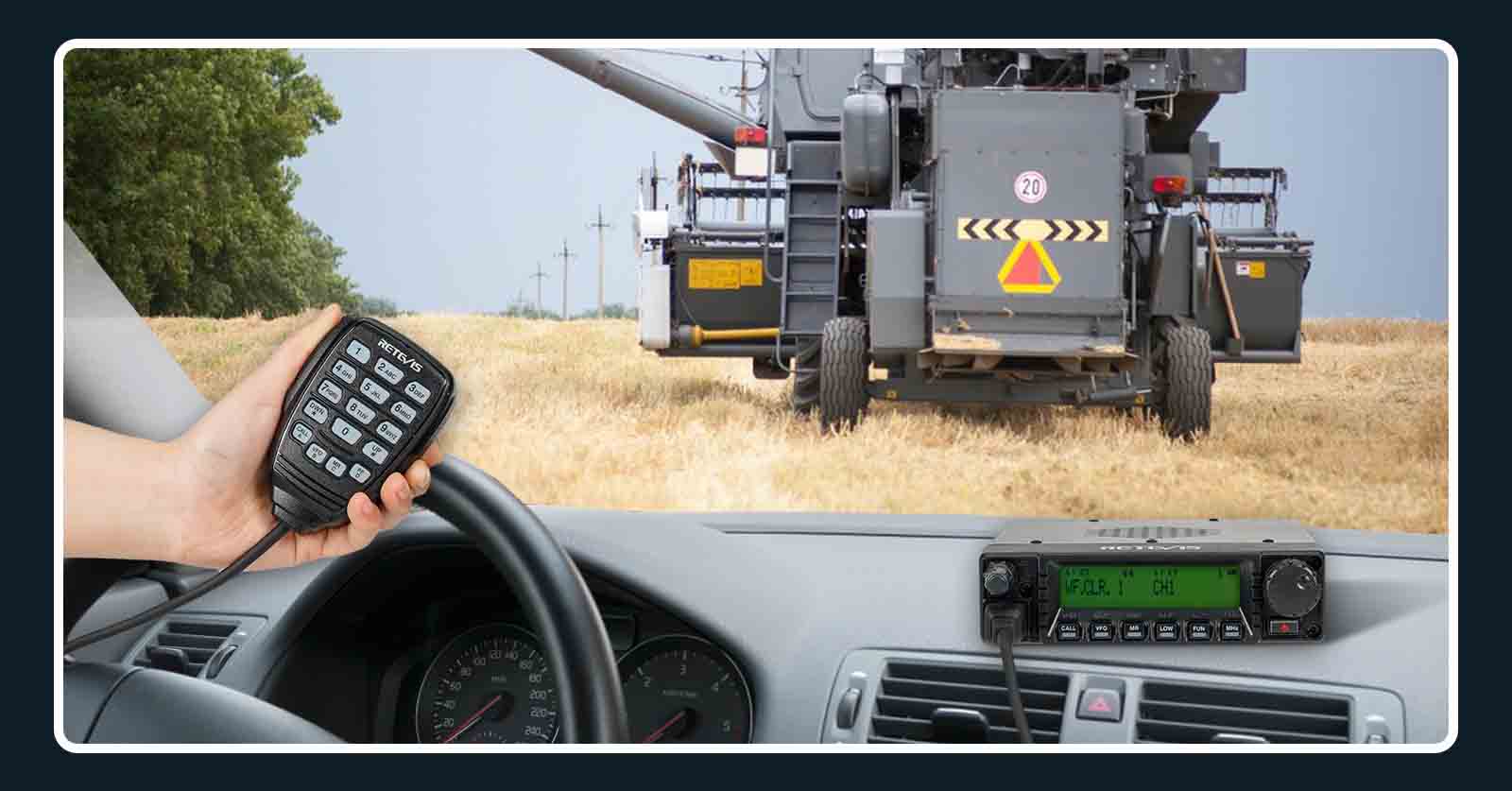

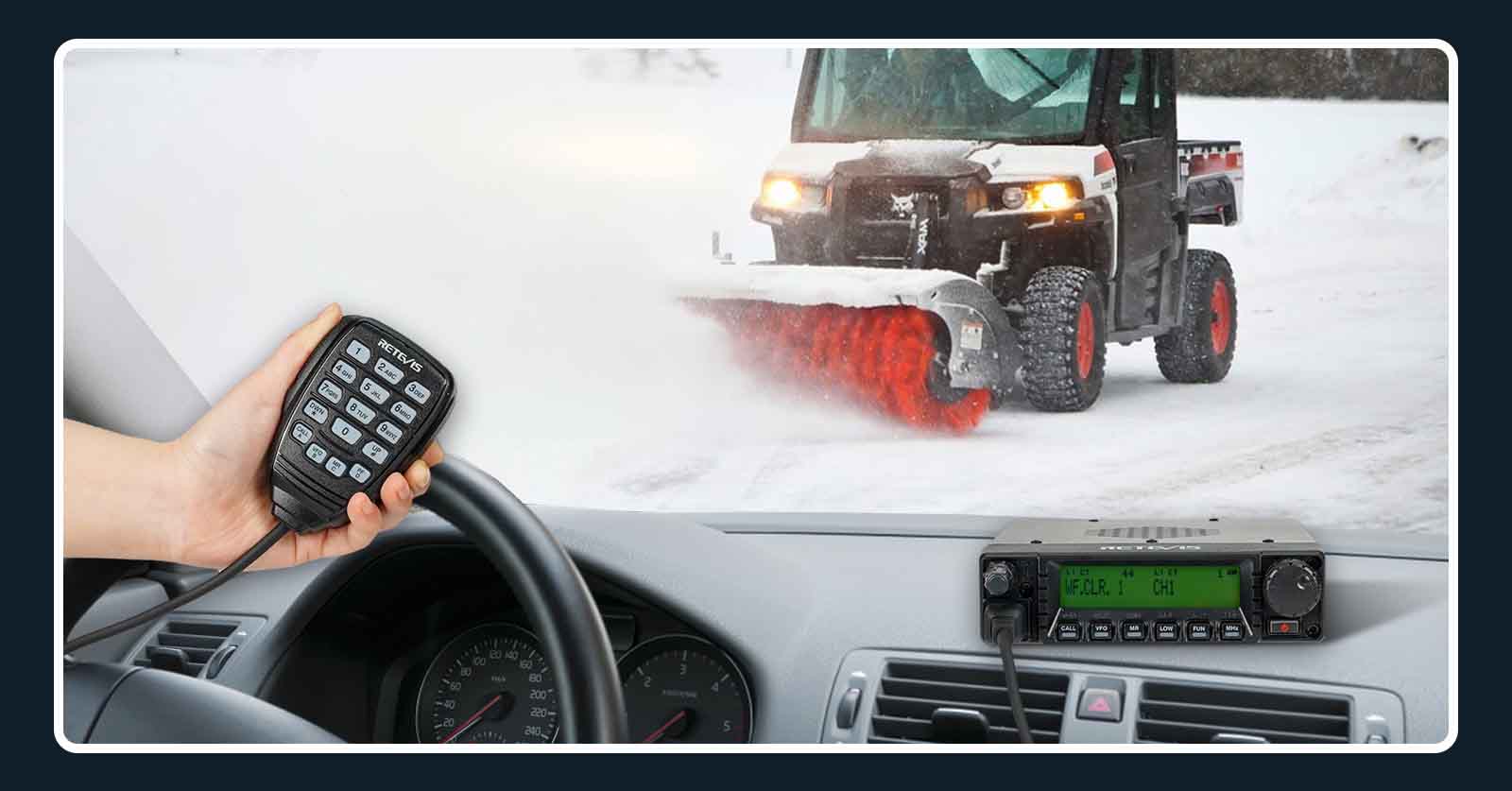

Various Applications

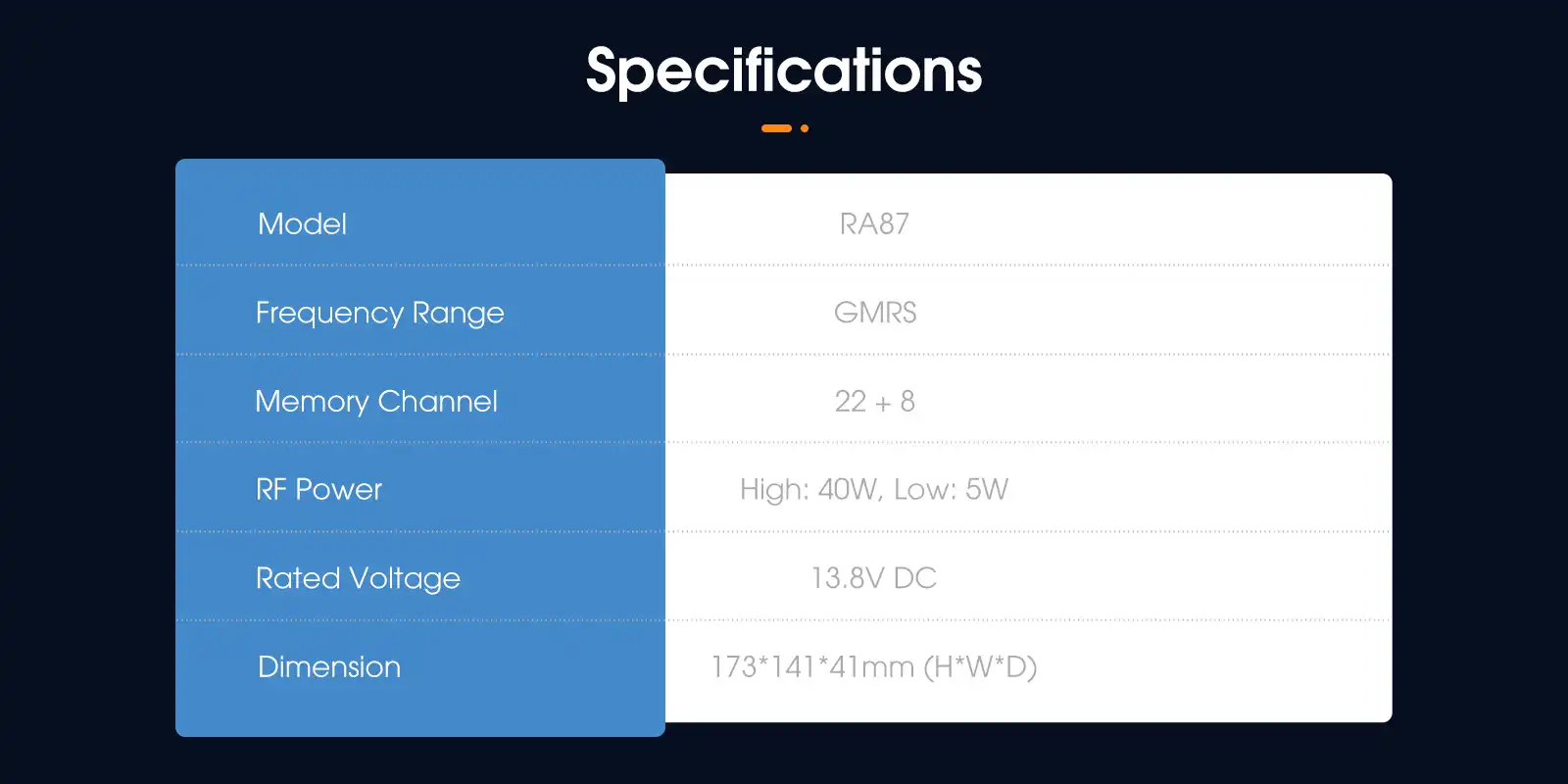

Specifications

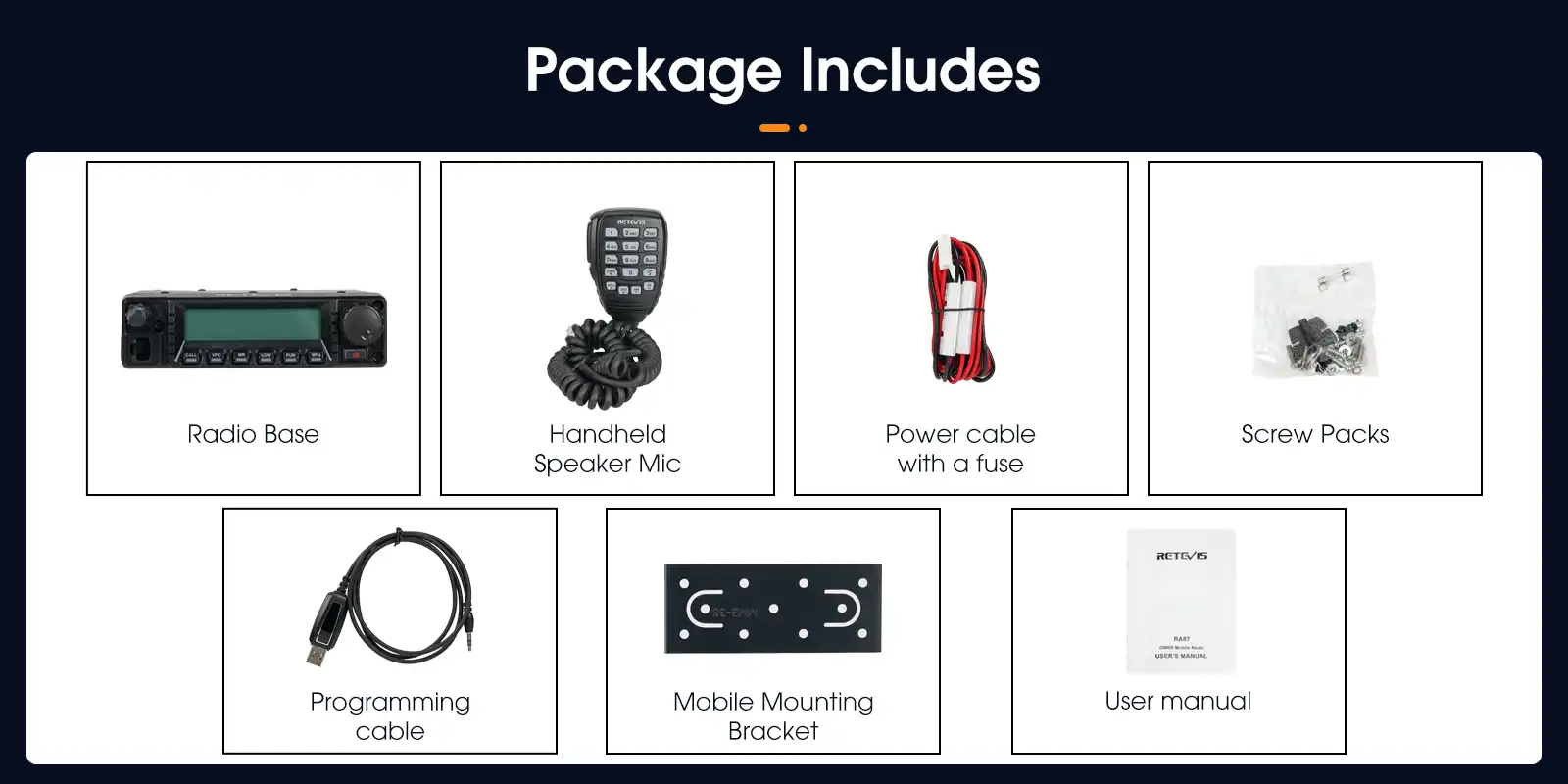

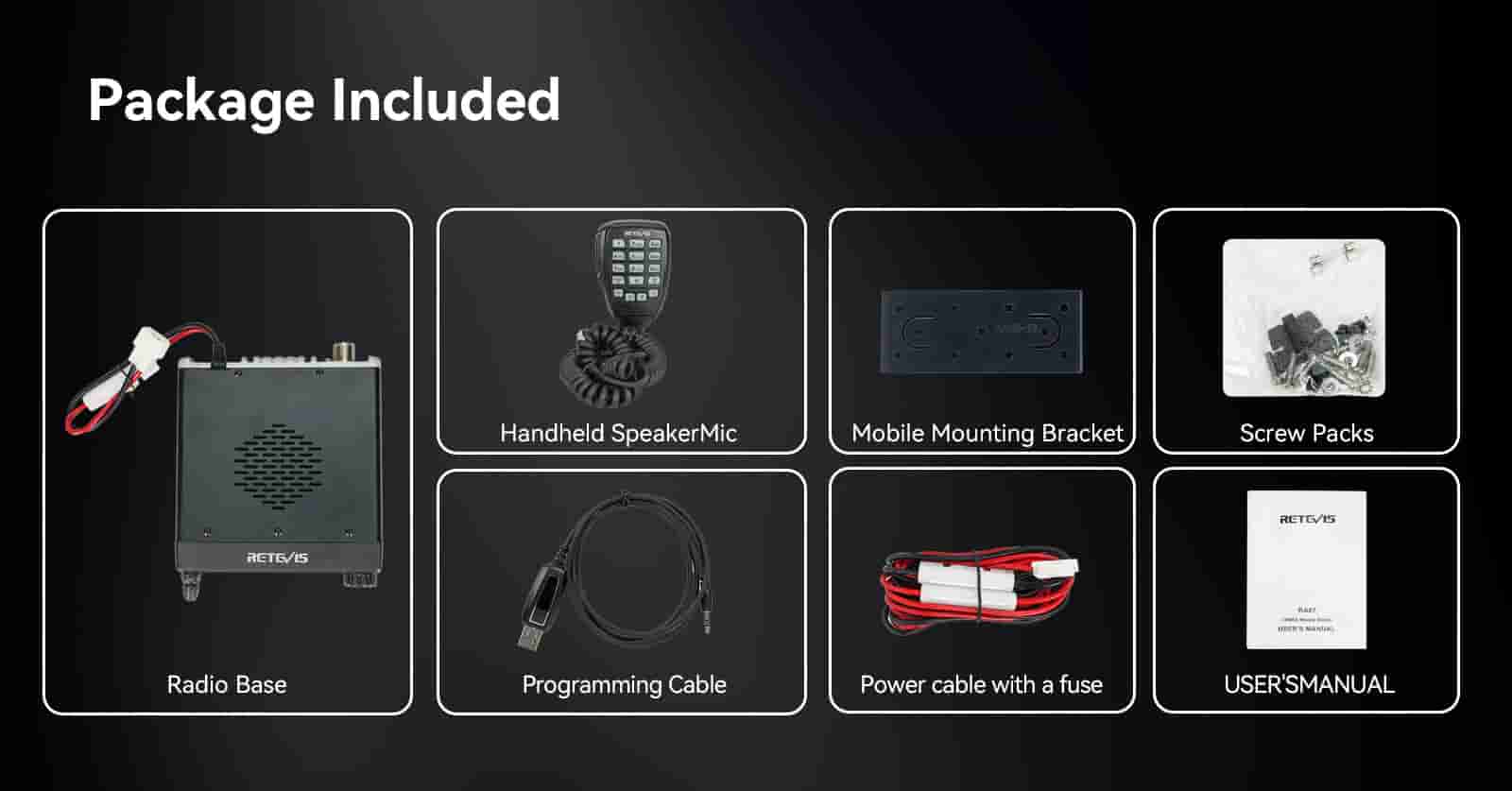

Package Includes
Spec
RA87 Specification |
|
Frequency Channels |
22 GMRS+ 8 Repeater |
Power |
40W/5W |
Rated Voltage |
13.8V DC |
Bandwidth |
Narrow(12.5K)/Wide(20K) |
Dimension |

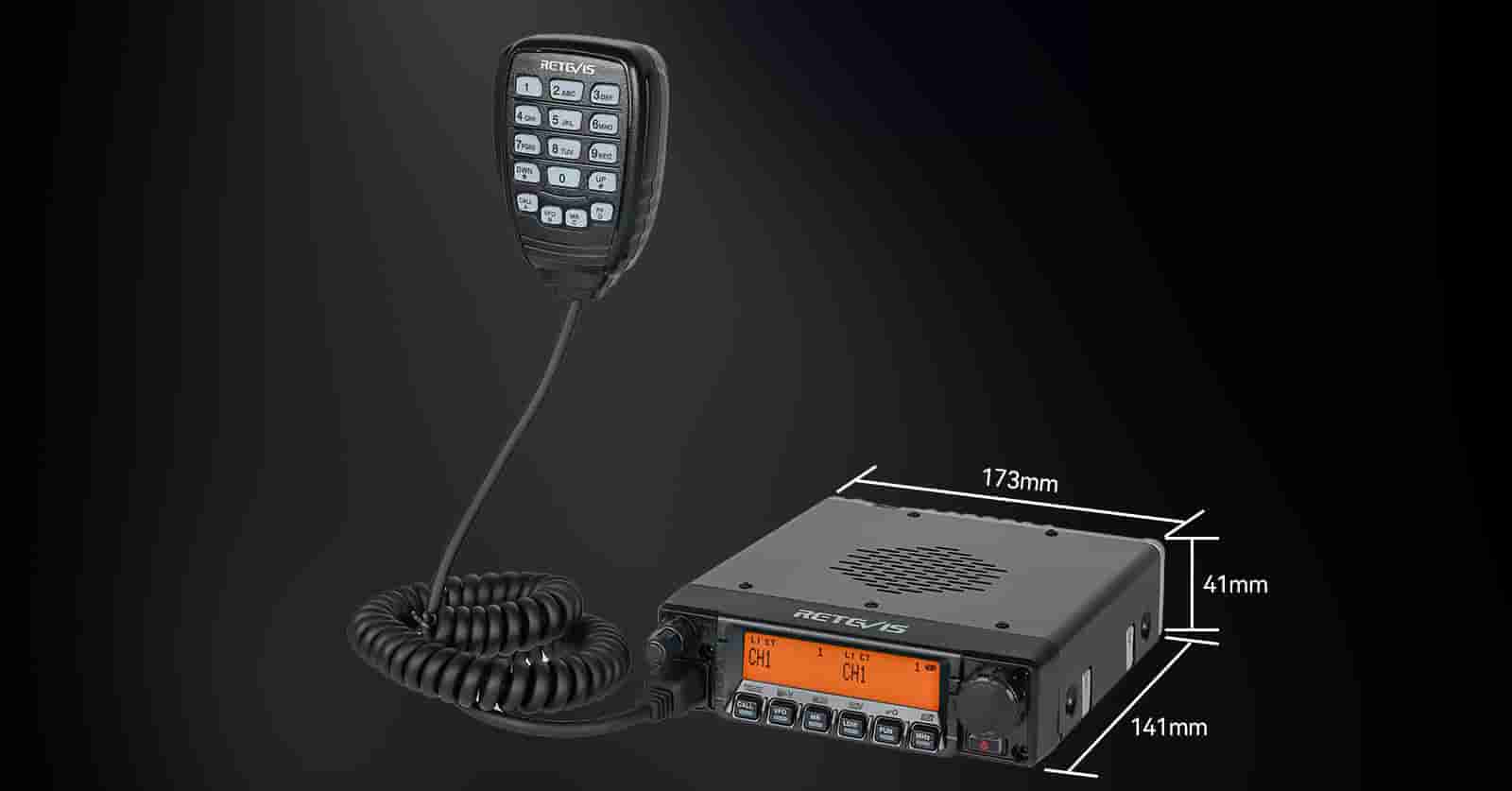

173*141*41 mm(H*W*D) |
MR300 Specification |
|
Frequency |
GMRS(462-467MHz) |
VSWR |
≤1.5 |
Input Resistance |
50Ω |
Gain |
6.5dB |
Power Capacity |
50W |
Antenna Length |
110cm |
Antenna Diameter |
20mm |
Antenna Housing Material |
Fiberglass Radome |
Antenna weight |
335g |
Antenna Connector |
N.J |
Spring Base Height |
102mm (top plastic spacer not included) |
Spring Base Material |
Steel |
Feeder Type |
RG-58U |
Cable |
5M |
Connector |
SL16J |
(Spring Base + Feeder) weight |
670g |
Color |
Black |
RA85 Specification | |||
General | Frequency range | GMRS | |
Memory channels | 60 | ||
Frequency step | 12.5kHz | ||
Input voltage | 7.4 VDC | ||
Battery(standard configuration) | 1800mAH(Li-Ion) | ||
Battery life(5-5-90,high power transmission) | About 14 Hours | ||
Power | Consumption in standby | ≤65mA | |
Consumption in reception | ≤450 mA | ||
Consumption in transmission | ≤1.8 A @high power,850 mA @ low power | ||
Frequency stability | ±2.5ppm | ||
Operating temperature | -20℃ to +60℃ | ||
Antenna impedance | 50Ω | ||
Dimensions (With battery, but without antenna) | 121×61×33mm | ||
Weight (Including antenna and battery) | 223g | ||
Transmitter | Transmit output power | 5W/0.5W | |
Modulation | 11K0F3E@12.5KHz | ||
Spurious emission | -36dBm<1GHz, -30dBm>1GHz | ||
FM signal-to-noise ratio | 40dB @12.5KHz | ||
Audio distortion | ≤5% | ||
Modulation limit | ±2.5 KHz@12.5 KHz | ||
Adjacent channel power | 60dB @ 12.5KHz | ||
Audio response (300-3000Hz) | +1~3dB | ||
Receiver | Receiving sensitivity | 0.25μV (12dB SINAD) | |
Adjacent channel selectivity | ≥55dB@12.5KHz | ||
Intermodulation immunity | ≥55dB@12.5KHz | ||
Conducted spurious emissions | ≤-57dB @12.5KHz | ||
FM signal-to-noise ratio | ≥40dB @12.5KHz | ||
Audio output power | 1W @16ohms | ||
Audio distortion | ≤5% | ||
Audio response (300-3000Hz) | +1~-3dB |
Feature
Function:
- 22 GMRS Channels with 8 repeater channels
- Control and select various functions conveniently through the menu

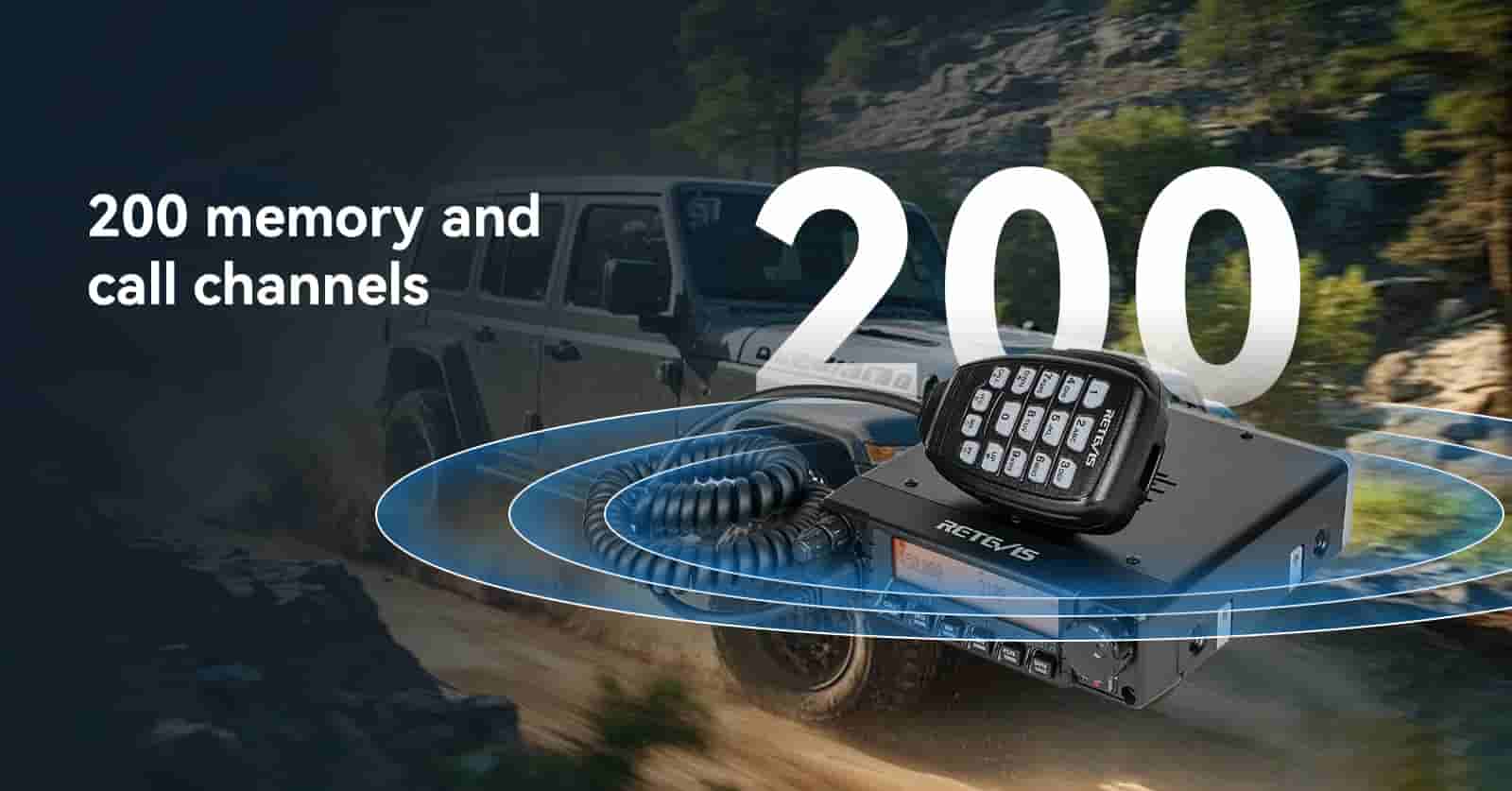

- 200 memory and Call channels; memory channel group management
- Multiple easy and high-quality scan modes can be selected.
- Compose simple repeater station
- LCD display and adjustable backlight colors
- Dual standby, dual frequency display
- Programmable hand microphone function keys
- Voice companding
- 260 CTCSS/DCS
- AIN Identify code
- DTMF encode and decode function
- MSK signaling encode and decode
- Same, different, reverse frequency setting
- Wideband/Narrowband adjustment
- APO protection when battery voltage is out of allowance range
Product Reviews
-
SogySealBetter with ChirpReviewed on Apr 05,2025This is a great radio! My first I use as a base station that I planned to use as a mobile once I got it loaded with all my local frequencies. However the Retevis CPS that you use to program the radio is absolute trash and it would have taken far to long to enter everything to make it a viable mobile option for me. I had been using it as a base for several months and a few others on my local repeater had them also and we all agreed that we loved the radio and hated the CPS. I recently updated Chirp to program a different radio and happened to notice that it was now supported. I quickly connected my base and was very pleased with the Chirp support so I ordered a second one to use as a mobile. There are better mobile units out there but for the money this one is great bang for the buck. The menus are strange and don't make much sense but with Chirp it's very easy.Ron A. ParsonsWorks ! (34-37 watts)Reviewed on Mar 30,2025Suggest if vou internet search for RA87 Chirp There is a good working instruction set for how to use your RA87 with Chirp ((Turn on chirp developer mode )) and click on file dropdown menu) file, select py file you downloaded to load module RA87..... per instruction set When thats done and you’ve done the download to radio > using the supplied programming cable click on view > show extra fields It then lets you check mark those frequencies you dont need scanned for com activity You can also add UHF ham repeaters @ frequencies to monitor and listen to You can listen but not transmit on ham repeaters due to current firmware Suggest have a great dayDfcupp.Very nice radio with lots of bells and whistlesReviewed on Mar 25,2025The first one I received had issues, but the replacement was sent quickly and I couldn't be happier with this radio. I'm still learning all of the menu items and features. Their software leaves a lot to be desired, but this radio is compatible with chirp. Good job guys, keep making quality products.Dawn ArmbrestAfter learning how to program it the radio works very will.Reviewed on Mar 20,2025After learning how to program it, the radio works very well. Clear signal and easy to use—great value!Max ClaraGreat ProductReviewed on Mar 18,2025Easy install. Range is great and the compactness allows it to be put almost anywhere!Drew JudsonEasy install.....Reviewed on Mar 18,2025install. Great range. Easy to use.Ferdinand Holtgreat radios GMRSReviewed on Mar 18,2025I bought these to use on the farm and they are very handy to talk between drivers to communicate in the field.Jason HWorks Great!Reviewed on Mar 16,2025I love this radio. Was a little tedious to program but once it was programmed, it works great. Took a little bit of reading the manual to understand all the buttons on the front of the radio. But it was a great investment. I am new to GMRS radio and would definitely buy this radio/antenna combo again without hesitation.Sidney Pound8 milesReviewed on Mar 15,2025Just tried them out and it was clear as day 8 miles away!Hannah AugustineGreat priceReviewed on Mar 15,2025Great product , easy instal .Nicely tucked up in my Jeep
Support
Firmware/Software
- WIN11-DRIVERINSTALLER
The WIN 11 driver, also compatible with WIN 10, WIN 8 and WINDOWS 7 operating systems.
- RA87-GMRS-Software
Please install the software in the C Drive of your computer.
