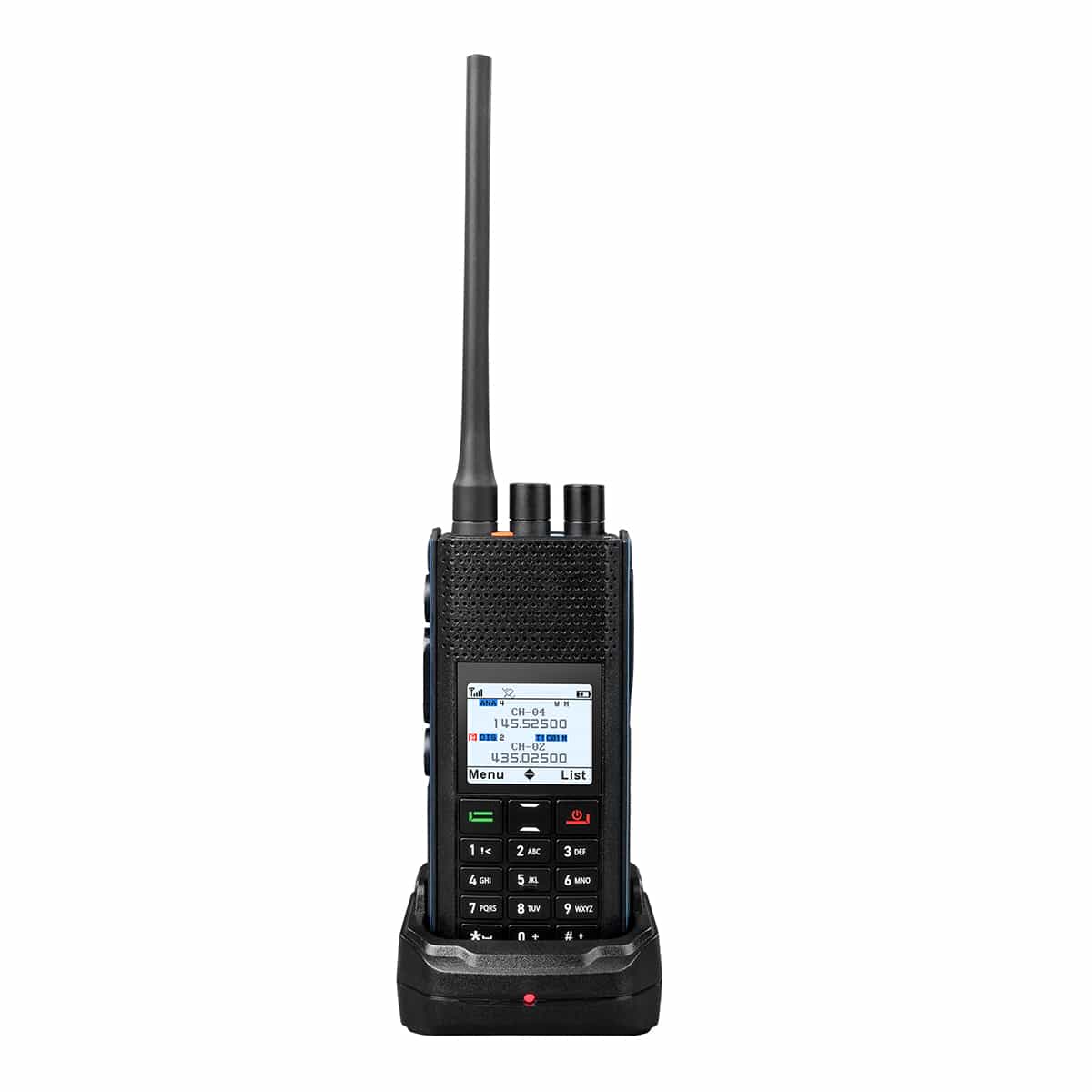

Retevis H1 6W GPS APRS UHF VHF Dual Band DMR Radio with 500K Contacts
The Retevis H1 GPS APRS UHF VHF Dual Band DMR Radio is a game-changer for outdoor enthusiasts and ham radio operators. With its advanced features like APRS, GPS, AES256 encryption, and SFR functionality, the H1 delivers unmatched performance, security, and convenience. Whether you're exploring the wilderness, coordinating a team, or engaging in ham radio activities, the H1 DMR radio ensures you stay connected and secure.

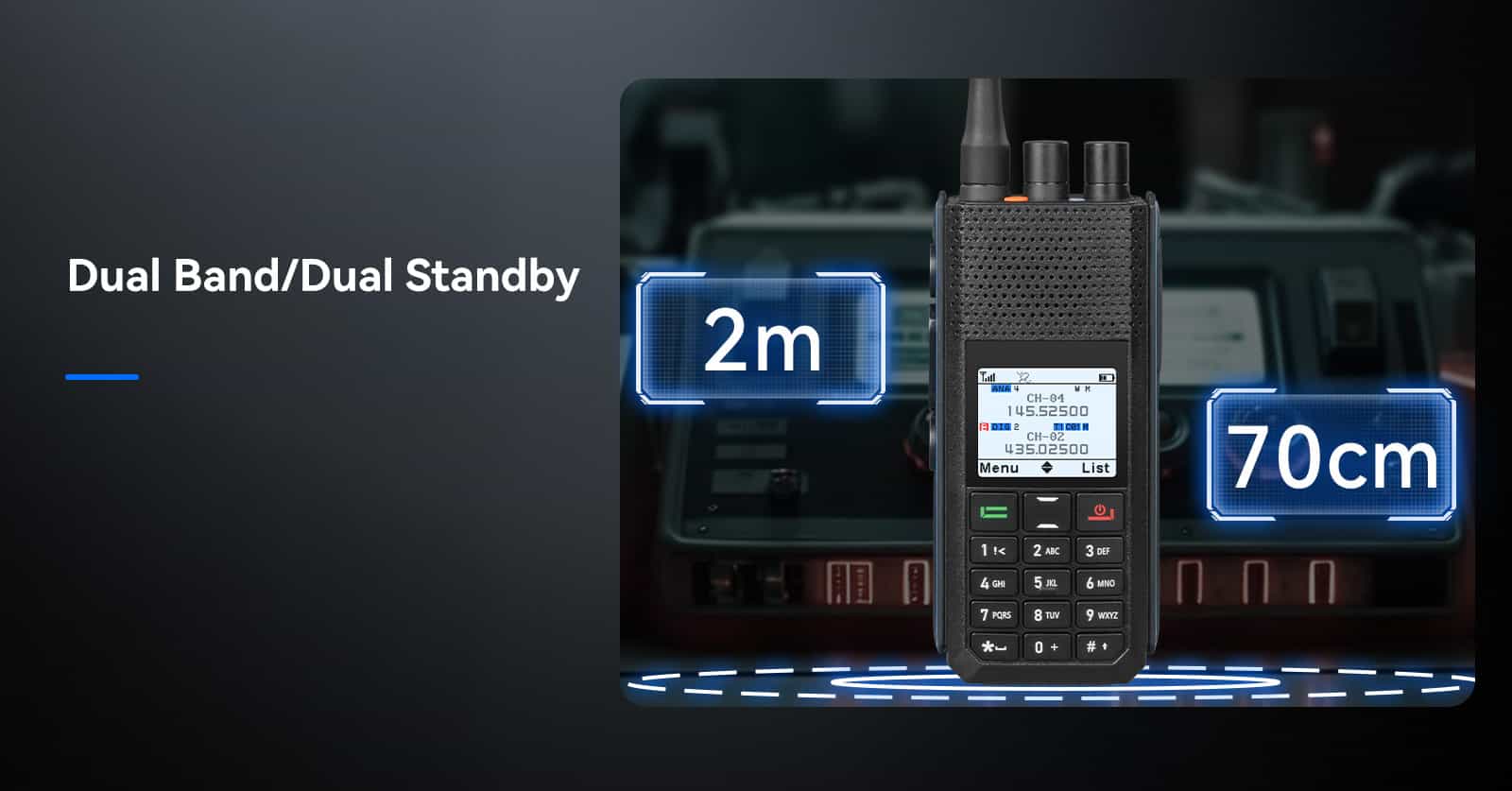

Dual Band/Dual Mode/Dual Standby
The Retevis Ailunce H1 HAM radio contains two independent VFOs that allow dual-band operation on 2m and 70cm frequency band . With dual mode, the H1 allows a smooth transition from communication with conventional analog radios to digital DMR (Tier II) at any time. It also comes with dual-standby to monitor two channels at the same time.

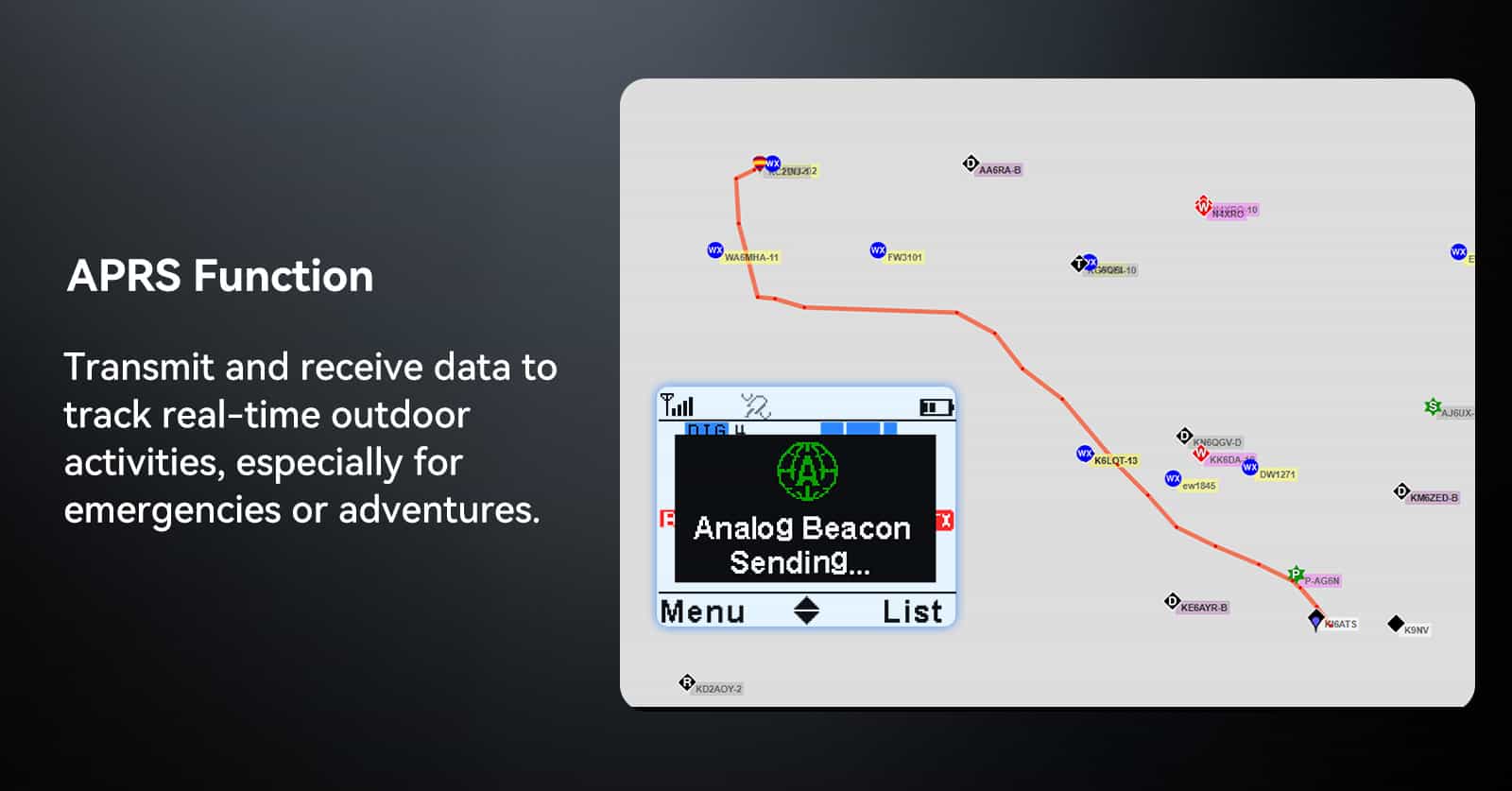

APRS (Automatic Packet Reporting System)
The Retevis Ailunce H1 DMR radio has APRS functionality that allows real-time push messages to the APRS network to track live outdoor activities. Capable of sending and receiving data in real-time, the H1 is perfect for emergencies, adventures, or competitions.
GPS Function
The H1 DMR radio has a powerful built-in GPS receiver that works with APRS, allowing real-time push messages of location beacons to the APRS network, making it ideal for outdoor activities. For outdoor activities, you need to be tracked by others for safety, especially in emergencies.
Large Contact Capacity
Retevis Ailunce H1 is a powerful handheld radio device with a compact design, 6W/3W/0.5W selectable output power, 4000 Channels and storage space for 500K DMR contacts, which can be imported in batches via software.

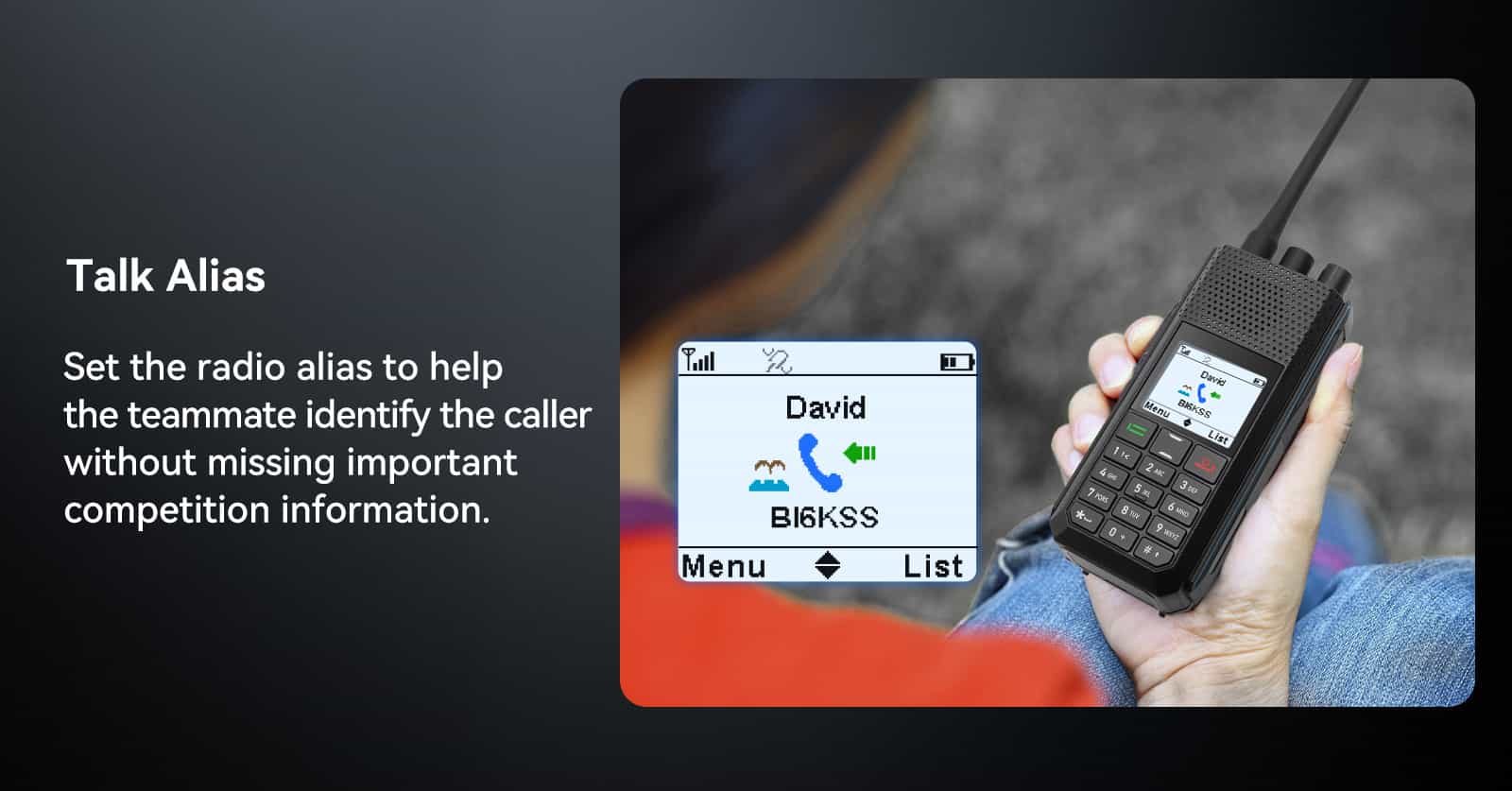

Talk alias
Ailunce H1 amateur radio allows you to set your specific display name by the computer; which is a good helper for rescue teammates to identify the caller

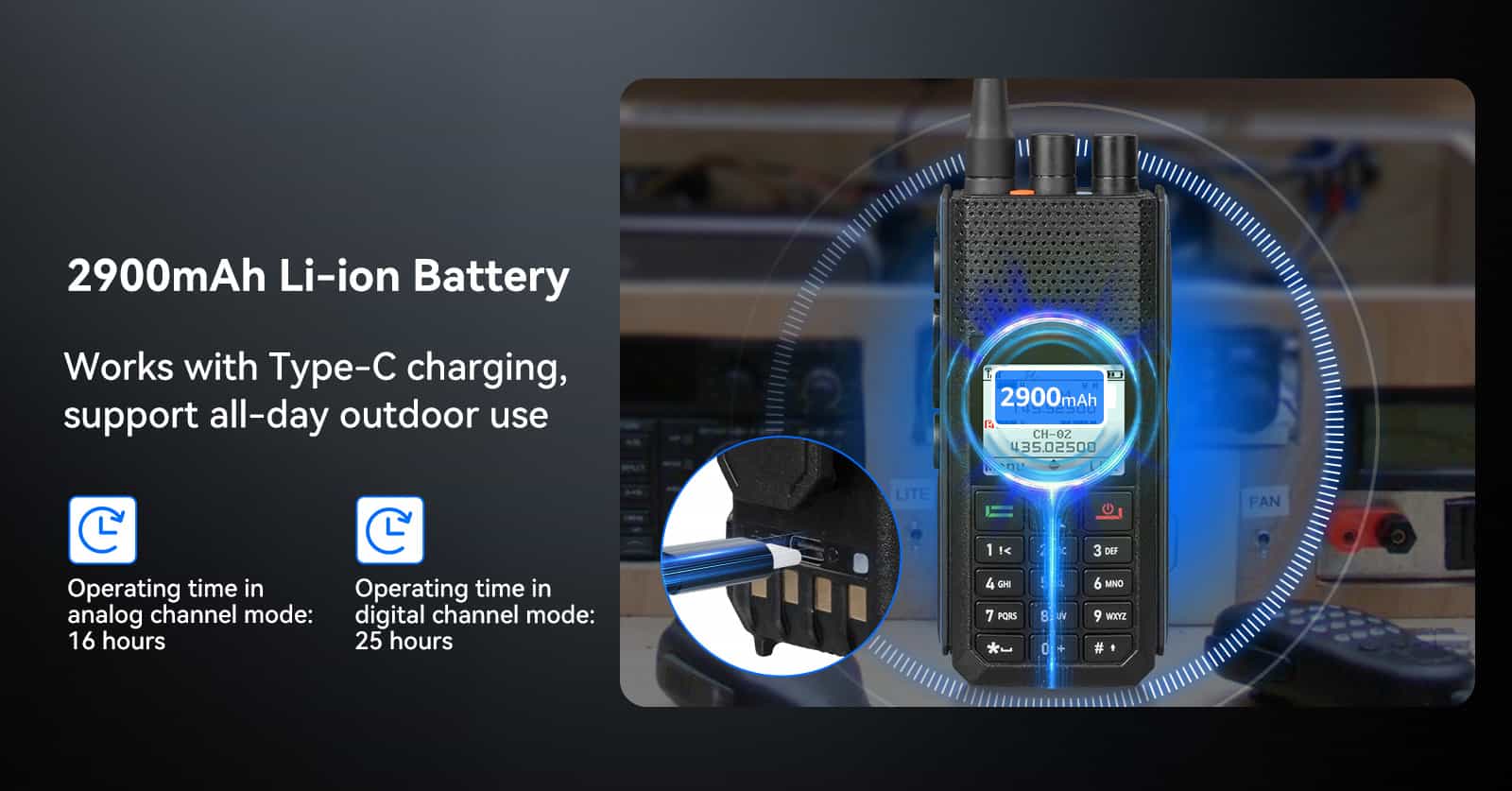

Long-Lasting Battery with Type-C Charging
With its powerful 2900mAh Li-ion battery and the built-in power saving feature, the Retevis Ailunce H1 supports up to 24 hours of standby time, 15 hours of continuous working time under the analog mode, and 23 hours under digital mode. The Type-C charging port ensures fast and convenient charging.

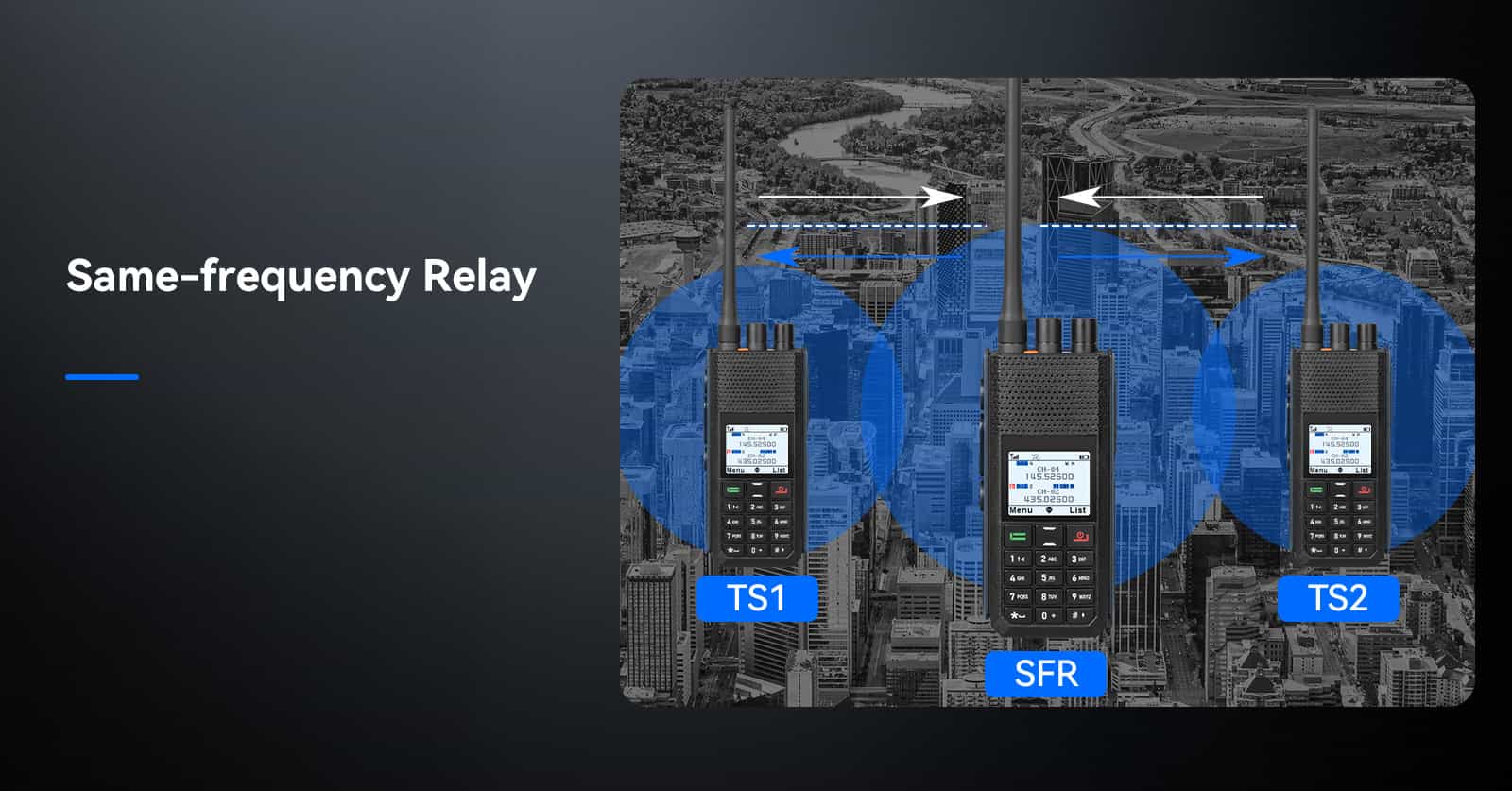

SFR (Single Frequency Repeater) Function
With dual slots, the Ailunce H1 amateur radio can act as a makeshift repeater, enabling communications between Slot 1 and Slot 2 on the same frequency. Multiple H1s in a given area can create a mesh network, allowing a single VFO radio to communicate with other radios bridged by multiple H1s operating in SFR mode. The H1 is a must-have radio in emergency situations where traditional communication systems are limited or unavailable.
AES256 Encryption
The Retevis Ailunce H1 DMR radio is compatible with Moto 32-bit encryption, which ensures your calls are secure and private, perfect for sensitive amateur radio activities.
Single/Group/All Call
without changing the walkie talkie; HD1 DMR two way radio helps you communicate with individuals; groups; and teams conveniently
Lone Worker
Good helper for alerting mates and keeping you safe when you are alone.
Man Down
Automatically alarm and remind your mates to ensure your safety when you fall over accidentally.
Emergency Alarm
Multi-alarm mode offers more options and increases safety insurance in emergencies.

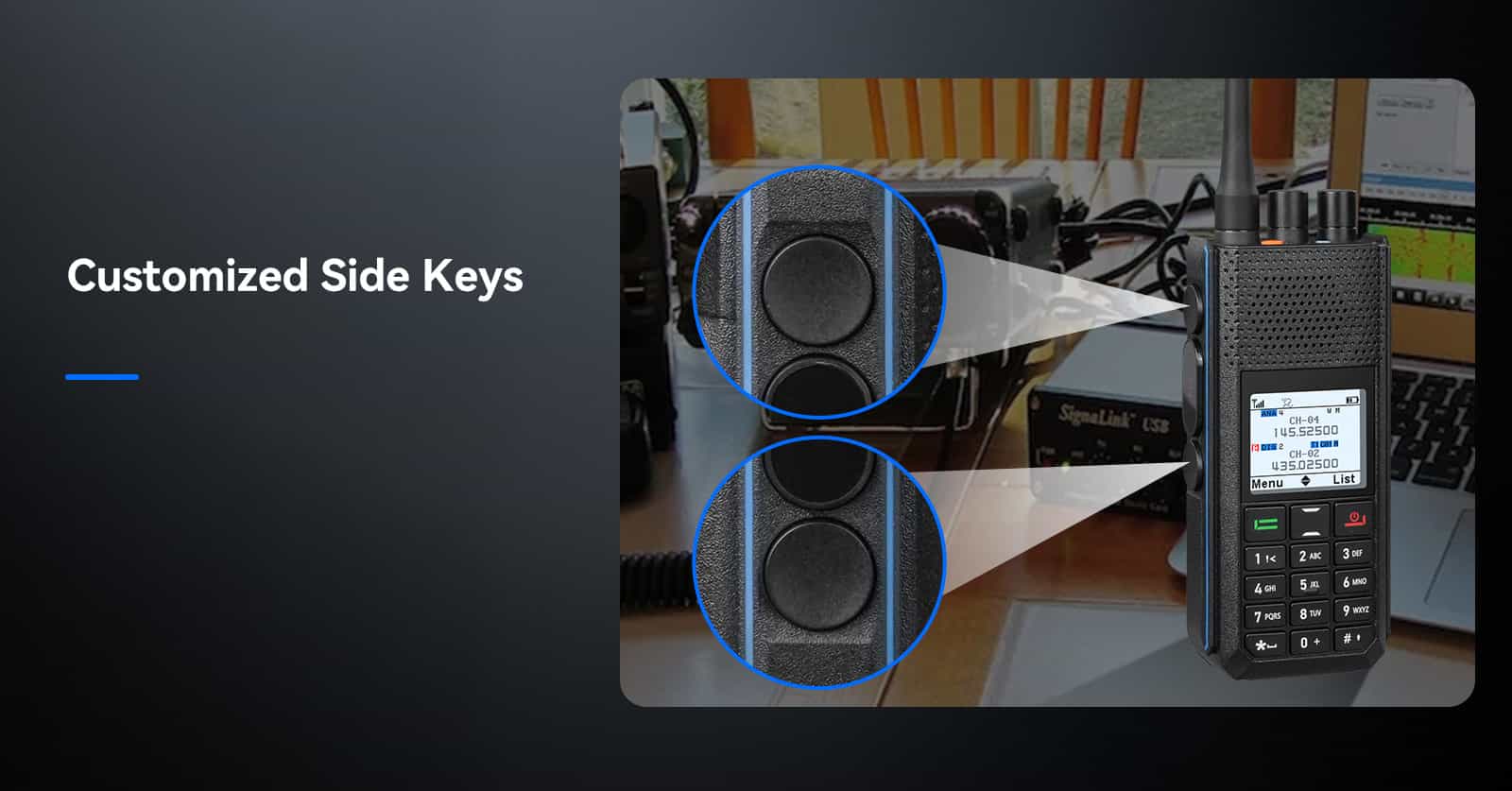

Customized Side Keys
2 side keys on the left side of the two way radio can be set to the needed function freely; including power adjustment; contact list; etc; making it easier to operate H1

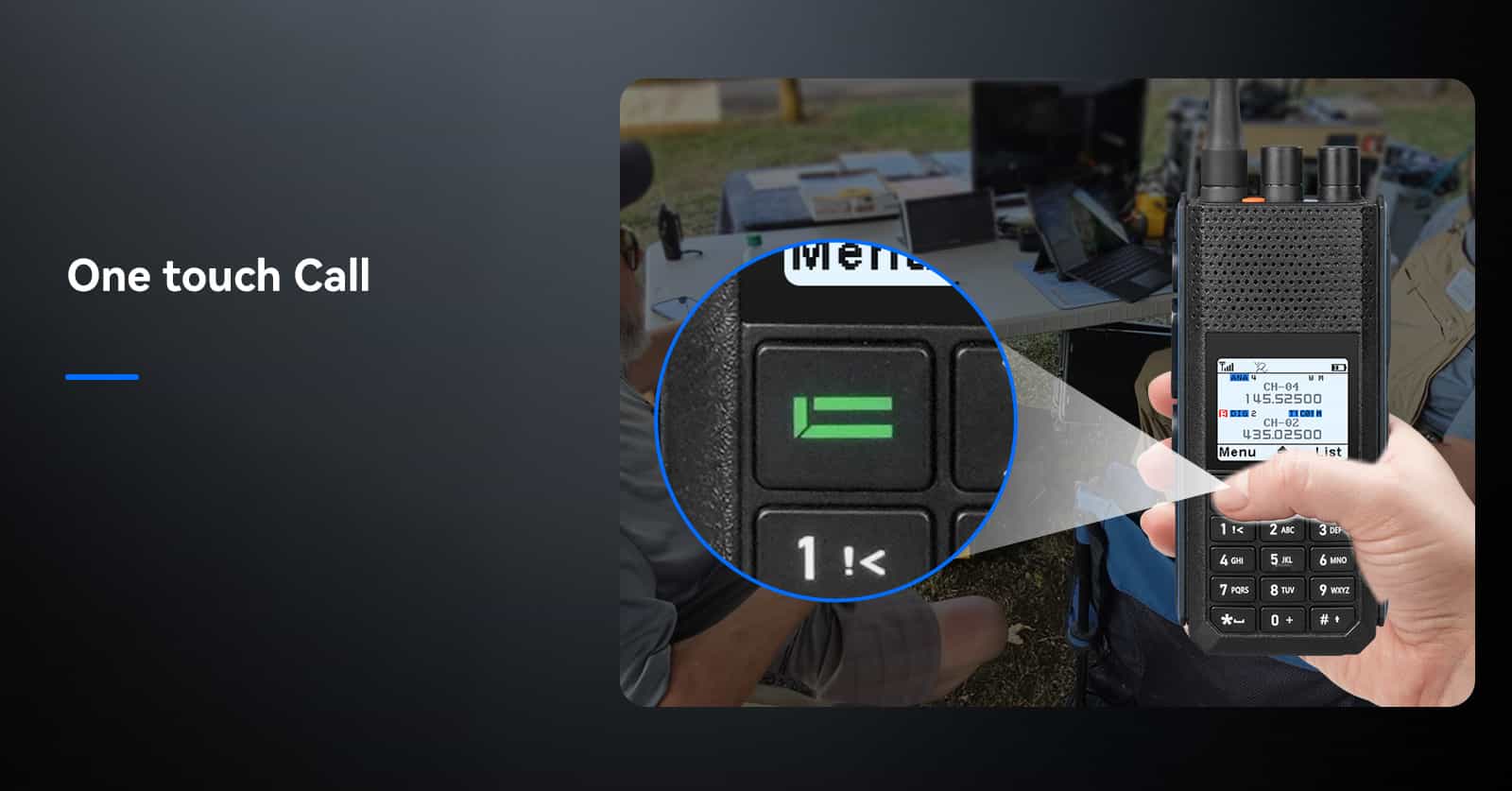

One-key Communication
Allows you to make calls or send messages to the predefined contact easily by pressing the One Touch Call key.

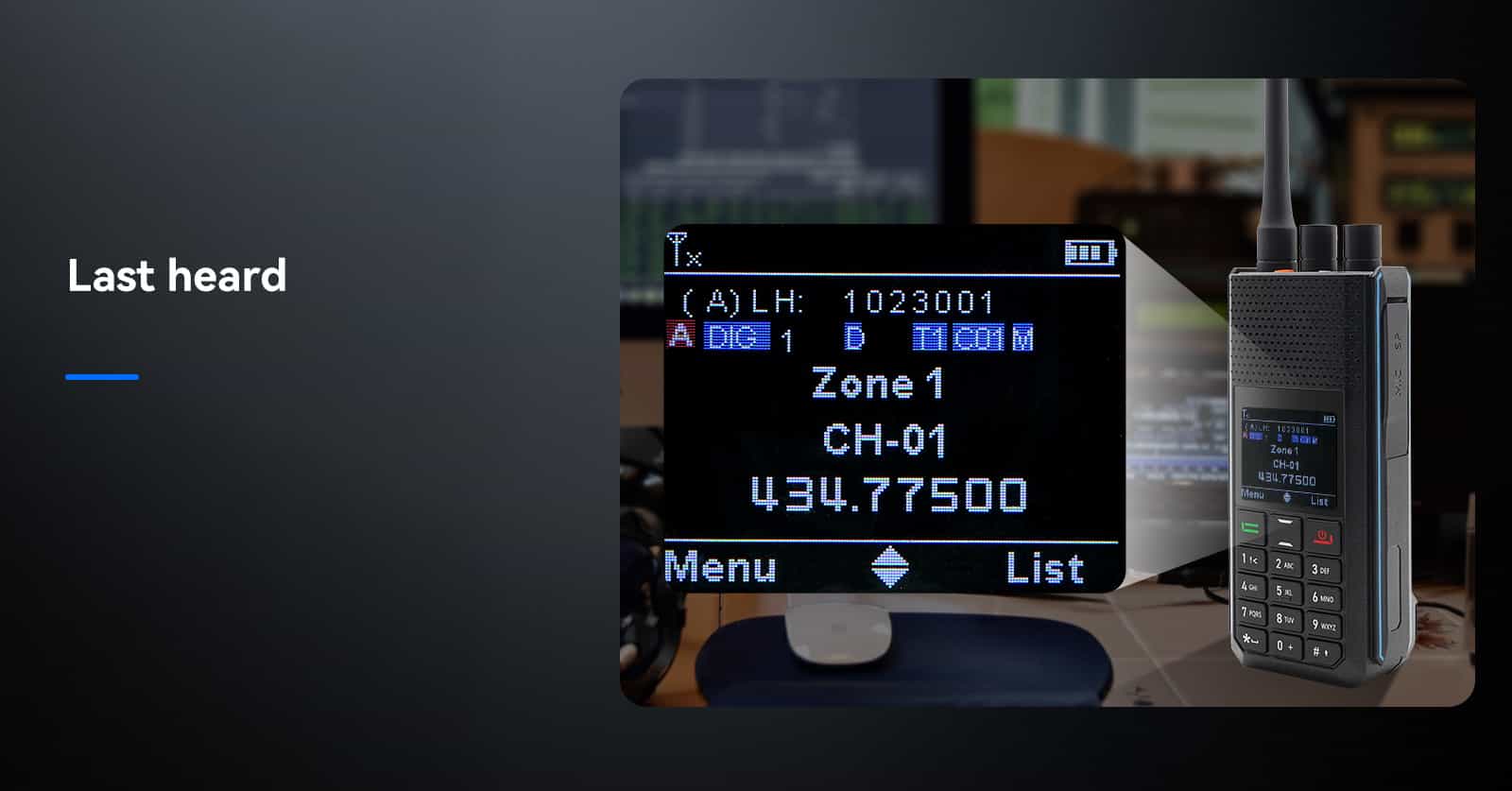

Last Heard
You can quickly review the most recent call on the screen, saving time.
Power adjustment: high power for long distance; middle power; and low power for long battery life; you can adjust the power based on your needs flexibly
Adjustable colors:background; zone; channel font; and channel name can adjust the color; meeting your various use needs on various occasions
Night mode:H1 handheld radio supports day and night two modes; day mode suits daytime to check information clearly; night mode offers a comfortable light to operate
GPS over range alarm:set the range limitation through the menu setting; once beyond the range; the ham radio will alarm automatically; ensuring your safety in emergency rescue

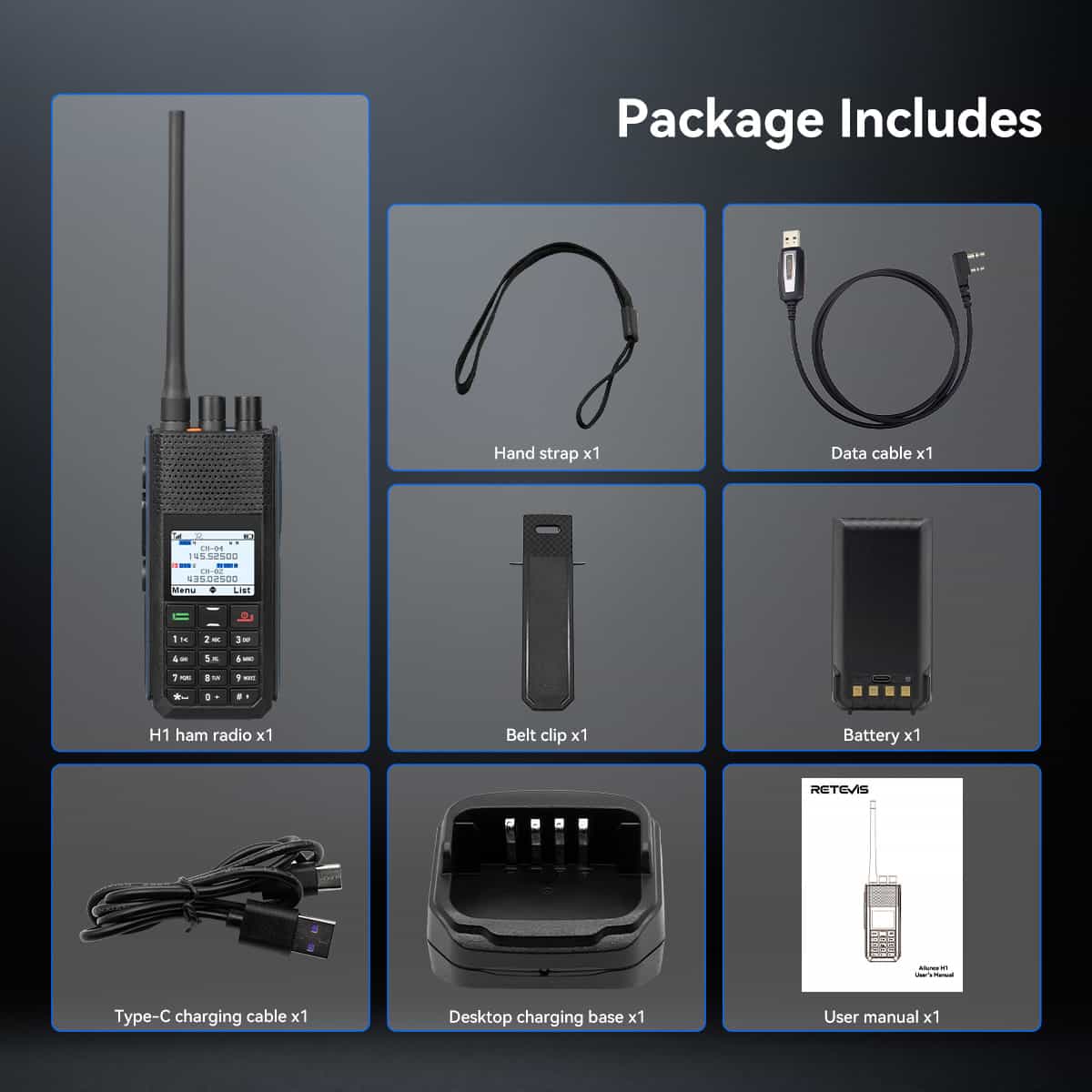

Package Details
Spec
SPECIFICATIONS
General Specifications |
Frequency range * |
TX: TX: VHF 144-146MHz & UHF 430-440MHz; RX:VHF 136-174 MHz & UHF 400-520 MHz; GPS :GPS L1C/A,SBAS L1C/A ,QZSS L1C/A,BDS B1I |
Channel Capacity |
4000 Channels |
|
Channel Spacing |
12.5KHz/25Khz |
|
Operating Voltage |
7.4V |
|
Battery Type |
Li-ion battery |
|
Operating Temperature |
-20°C ~ +50°C |
|
Audio Power Output |
16Ω 1W |
|
Antenna Impedance |
50Ω |
|
Receiver |
Sensitivity |
(12dB SINAD)≤-121dBm |
Adjacent Channel |
≥70dB(25Khz) |
|
Selectivity |
≥60dB(12.5Khz) |
|
Spurious Emissions |
≤-57dB(25Khz) ≤-57dB(12.5Khz) |
|
Spurious Suppression |
≥70dB(25Khz) ≥70dB(12.5Khz) |
|
Signal-to-Noise Ratio |
≥45dB(25Khz) ≥40dB(12.5Khz) |
|
Audio Distortion |
≤5% |
|
Transmitter |
TX power |
High: ≤6W Middle : 3W Low: 0.5W |
Frequency Stability |
±2.5ppm |
|
Modulation Limits |
±5.0KHz@25KHz(25Khz) ±2.5KHz@12.5KHz(12.5Khz) |
|
Adjacent Channel Power |
≤70dB(25Khz)≤60dB(12.5Khz) |
|
Signal-to-Noise Ratio |
25Khz: 45dBm;12.5Khz: 40dBm |
|
4FSK digital modulation |
12.5KHz(Data)7K60FXD 12.5KHz(Data+Voice)7K60FXE |
|
Audio Distortion |
≤5% |
|
Bit Error Rate |
≤3% |
Feature
FUNCTIONS & FEATURES
- Support to import 500,000 DMR Contacts.
- Upgraded USB Type-C charging battery, charge the radio on the desktop charger, or just the battery alone.
- Eye-catching alarm button on top of the radio, easy and quick to request an emergency call in emergencies.
- Almost all the operations can be done via the radio keyboard.
- Support to use a side key as the secondary PTT.
- Support night mode and adjust the brightness.
- Support different keyboard lock mode.
- NOAA receive and NOAA Weather Alarm.
- Analog APRS and digital APRS function.
- GPS out of range alarming.
- CTCSS scan, and color code scan, VFO frequency range setting.
- Mixed channel working mode;
- ARC4, AES encryption;
- Work Alone; Man Down;
- SFR;
- User-defined the channel character color and background color.
- Auto Power off;
- Mic Gain Setting;
