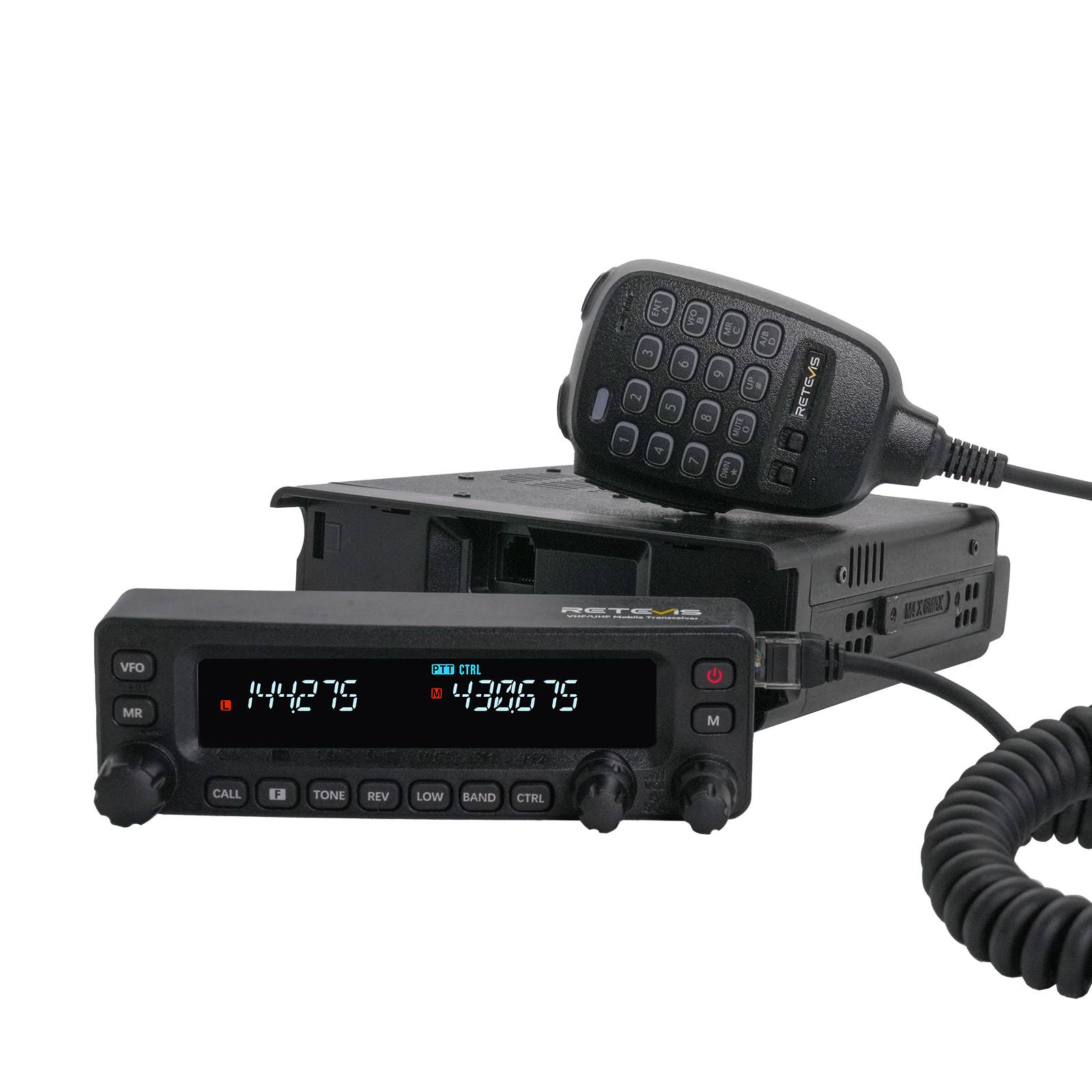

Retevis MA1 UHF VHF 50W High Power Amateur Ham Radio with Detachable Front Panel
- Detachable Panel: The front panel of the MA1 mobile radio is removable and equipped with a 3m connecting cable. The speakers that take up space can be placed under the seat or on the pillars behind the seat, which increases the ease and convenience of daily use.
- High power and long distance: Retevis MA1 has a powerful 50W (UHF) / 40W (VHF) transmission power, which can provide a stable signal for long-distance communication. No matter what you encounter on the road, MA1 is a reliable long-distance communication tool.
- Multi-band reception: Supports reception of 2m, 70cm, FM, AM and aviation band frequencies, providing extended receiver coverage beyond the amateur band, so you can also keep up with public safety, business, aircraft and government communications while on the road, increasing the fun of your trip
- Cross-band repeater: In order to cope with emergency work or extend the range of handheld devices, cross-band relay has been added to allow long-distance transmission, helping you communicate smoothly with distant workers and ensure the continuity of communication.
- Superheterodyne receiver: MA1 mobile radio has strong anti-interference ability, high receiving sensitivity, and stable transmission signal. Even when driving in the mountains and forests, it can always maintain smooth and clear communication with members on the road.
GETTING CLOSER! ONLY $50.00 AWAY FROM FREE SHIPPING!
Order Handling Time within 3 Working days(Pre-sale products excluded).
- Secure Payments
- 30-Day Money-Back Guarantee
- Hassle-Free Warranty
- Lifetime Customer Support
Bulk order Inquiry
Personalize your device
OverView
Retevis MA1 UHF VHF 50W High Power Amateur Ham Radio with Detachable Front Panel
Retevis MA1 50W high power ham mobile radio supports control panel detachment, which is easy to use; 50W high power and TX noise reduction make long-distance communication smooth and clear. Multi-band reception provides you with a variety of listening experiences. The superheterodyne receiver has good sensitivity, frequency stability and selectivity. Whether it is camping, traveling or competing, MA1 will be your better partner. In addition, Retevis MA1 can be used as a cross-band base station to extend the communication range.
Detachable Panel
The Retevis MA1 mobile radio has a detachable front panel which supports 180° flipping, making it easy to check and adjust the ham car radio at any time, effectively preventing speaker damage, and making the sound clearer when driving; the ham mobile radio transceiver supports random single operation, equipped with a separate 3m connection cable, and the large car radio speaker can be placed under the seat, on the pillar behind the seat, etc., which increases the ease and convenience of daily use.
High Power and Long Range
The Retevis MA1 is a long-range ham radio with a powerful 50W(UHF) /40W(VHF) TX power that can provide a stable signal; when traveling or in emergency rescue, MA1 can achieve smooth long-distance communication no matter how far away the members are.
Multi-band Reception
The Retevis MA1 amateur radio transceiver supports multi-band reception, provides extended receiver coverage beyond the Amateur bands, so you can keep informed of communication activities in the public safety, commercial, aircraft, and government communications ranges. including 2m, 70cm, FM, AM and air band frequencies. Retevis MA1 will provide you with a wider range of communications information when your phone loses signal.
Cross-band Repeater
For emergency work or to extend the range of a handheld, the Retevis MA1 adds cross-band relay, allowing transmissions at long range to ensure consistent communications. When used with a handheld, it helps you extend your range and communicate smoothly with workers at long distances.
Superheterodyne Receiver
Retevis MA1 mobile two way radio uses a superheterodyne receiver, which has strong anti-interference ability, high receiving sensitivity, and stable transmission signal; the MA1 mobile radio achieves stable communication without worries, and always maintains smooth and clear communication with members on the road.
Noise Canceling
Retevis MA1 HAM radio supports TX noise cancellation, which can effectively reduce background noise and ensure transmission clarity, even in noisy emergency situations, it can also carry out clear and bright communication without affecting timely rescue missions.
Dual Display/Dual Watch
The Retevis MA1 dual band ham radio can display and view both 2m and 70cm frequencies simultaneously, increasing communication flexibility and efficiency
Colorful Display
The LCD screen displays frequency information intuitively, and function setting changes are simple and clear; in addition, the included 8-level adjustable brightness provides clear reading during the day and at night
Convenient Operation
The MA1 radio has a multi-function speaker microphone. The microphone is equipped with a full keyboard and function keys. Users can set functions and change frequencies directly on the microphone without having to pay much attention to the MA1 radio, reducing the risk when driving on the road
Independent Operation
Retevis MA1 ham radio base station includes 2 independent adjustment knobs; separately control the dual band frequencies,without affecting each other;operation is more convenient.
FM Radio
FM radio allows you to receive news and listen to music at your leisure, making for a relaxing and enjoyable highway drive.
One-key Mute
One-touch mute helps you quickly turn off the volume of the amateur radio; when you need to talk to others, you can long press the mute button to mute (long press the mute button again to cancel the mute)
Power Adjustment
MA1 mobile radio supports high, medium, and low power adjustment. Shortly press the Low key to choose the needed power flexibly.
Other functions
800 channels: Retevis MA1 mobile radio base station provides you with more channel choices, flexible and convenient communication with more people
Key lock function: The key lock function keeps the amateur radio settings unchanged to avoid misoperation
3-level auto backlight:mobile transceiver will automatically adjust the screen brightness based on the use environment; meeting different use

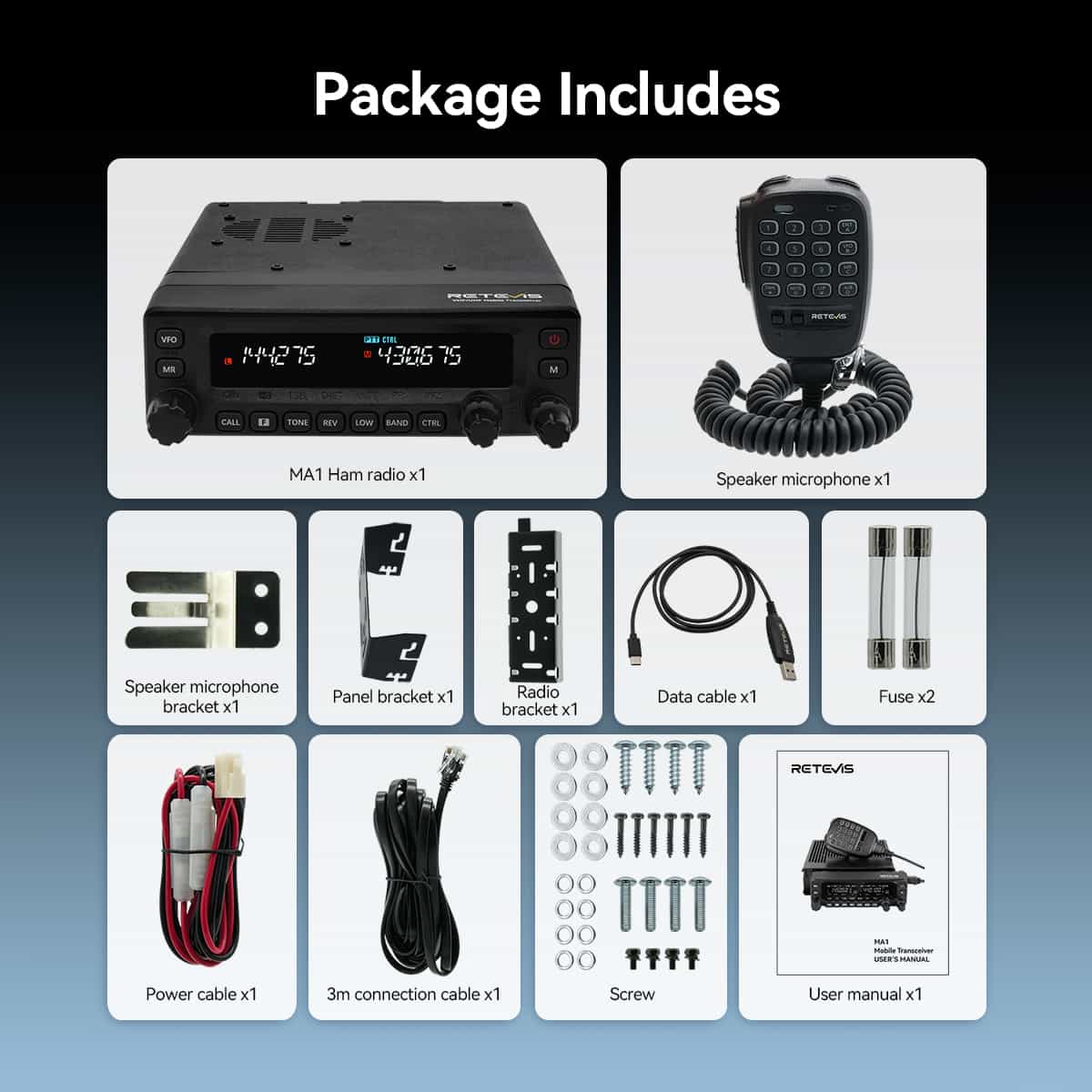

Package Includes
Spec
Model | MA1 |
General |
Channel capacity: 999
|
Channel spacing: 5/6.25/8.33/10/12.5/15/20/25/30/50/100KHz
|
|
Modulation type: F3E
|
|
Antenna impedance: 50Ω
|
|
Frequency stability: ±5ppm @(-10℃-+60℃)
|
|
Working voltage: DC: 13.8V (±15%)
|
|
Receiving current: <0.5A;
|
|
Transmission current: < 9A (power=50W/40W)
|
|
Working temperature: -20℃~+60℃
|
|
Dimension: 140×43×215mm
|
|
Weight: 1100g
|
|
PCB type: Double conversion Super-heterodyne
|
|
Medium Frequency: 38.85MHZ/450KHz (Left band)
|
|
Receiver
|
Receive Frequency Range: VHF:108-174Mhz, UHF: 400-480Mhz;
Receive & Transmit :144-148MHz, 420-450 MHz
Aviation frequency: AM 108-136Mhz;
FM Radio: 64-108Mhz
|
49.95MHZ/450KHz (Right band)
|
|
Sensitivity: 0.8uV for 12dB SN ( 108MHz ~ 134MHz, AM )(Left band)
|
|
0.2uV for 12dB SN ( 136MHz ~ 174MHz, FM )
|
|
0.25uV for 12dB SN ( 168MHz ~ 180MHz, FM )
|
|
0.2uV for 12dB SN ( 400MHz ~ 480MHz, FM )
|
|
0.25uV for 12dB SN ( 480MHz ~ 520MHz, FM )
|
|
Squelch sensitivity: 0.16uV
|
|
Selectivity: 2KHz/30KHz (-6dB/-60dB )
|
|
Audio output: 8Ω, 2W
|
|
Audio distortion: <5%
|
|
AF output impedance: 4~16Ω
|
|
RF Power Amplifier: RF Power Mosfet
|
|
Output power: VHF:50W/20W/5W; UHF:40W/20W/5W
|
|
Transmitter
|
Transmit Frequency: VHF: 144-148Mhz;UHF: 420-450Mhz;
|
Modulation type: Variable Reactance | |
Modulation type: Variable Reactance
|
|
Max. modulation deviation: ≤5KHz/2.5KHz
|
|
Spurious emission: ≧ -60dB (144MHz/440MHz)
|
|
Microphone impedance: 2KΩ
|
Feature
FUNCTIONS & FEATURES
- Main Band A+Sub Band B independent operation
- V+V & U+U & U+V Dual Receiver (two independent receivers)
- Detachable Front Panel for Flexible Installation Direction
- RF Power Amplifier: RF Power Mosfet
- Cross-Band Repeater Function
- Artificial intelligent Noise Cancellation Function
- Artificial intelligent VOX
- Multi modes for external speaker audio output
- Front panel keys programmable
- Quick access to repeater mode
- Auto Power off time setting
- Auto brightness
- 8 groups of scrambler
- 50W output power for VHF
- 40W output power for UHF
- Wide/Mid/Narrow bandwidth selectable
- Aviation band reception
- Super-heterodyne Receiver
- The large LCD display on both sides is easy to identify the current working status;
- DTMF/2-tone/5-tone optional signaling;
- Ultra wide receiving range: including 108-180 and 400-520 MHz frequency bands;
- Automatic transfer frequency difference function;
- User customization features for hand microphones;
