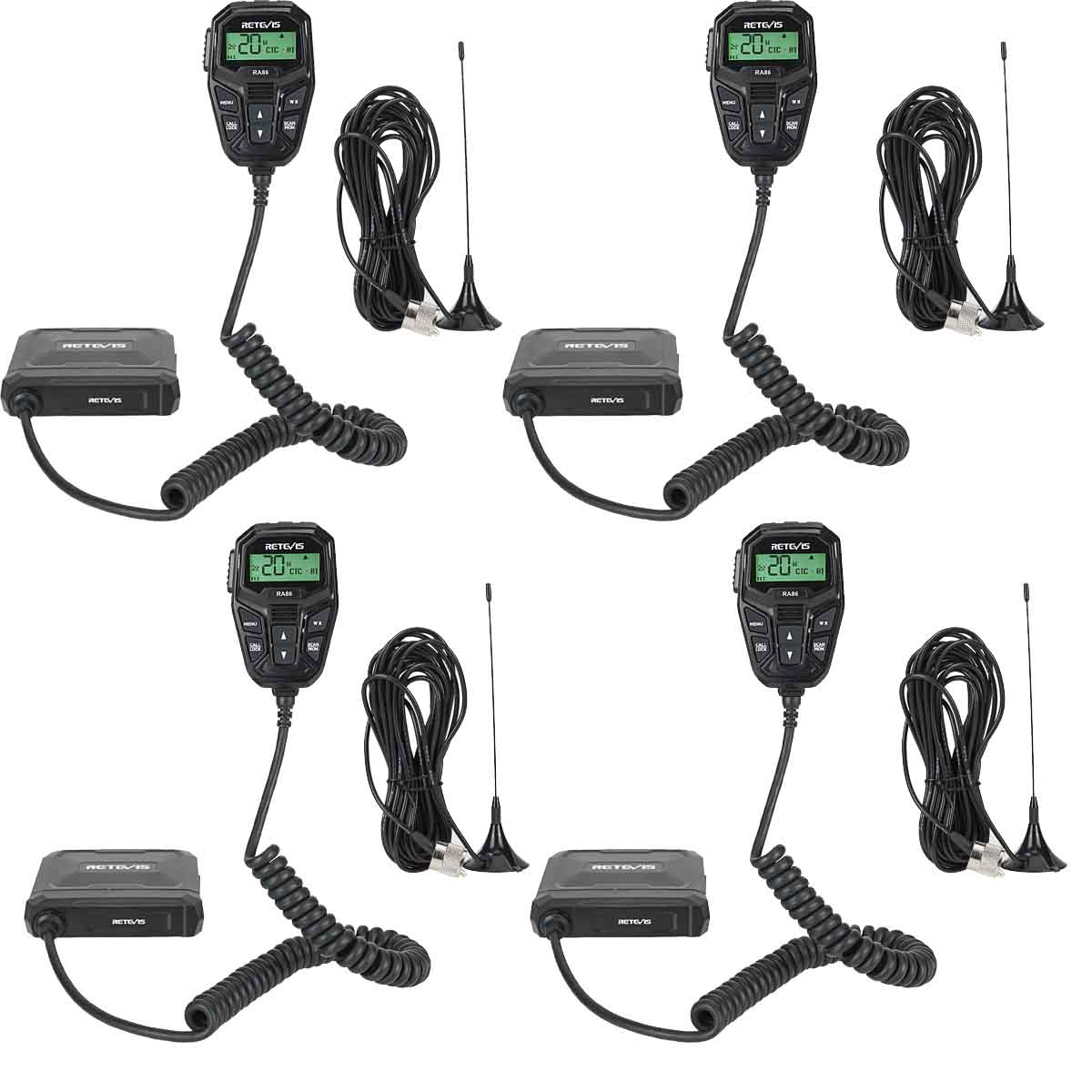

Retevis RA86 GMRS NOAA Mobile Radio With 2 dB Antenna 4 Pack——Fleet, Farm Bundle
Retevis RA86 GMRS mobile tractor radio with antenna beam and integrated control microphone. No matter where the RA86 is placed, the microphone can be fixed near the hand.
Retevis RA86 Bundle Sale with 4Pack is perfect for a variety of fleets such as Jeeps, UTVs, or any other open cab vehicle, also suitable for farm communications, mounted on tractors, combines, and more. Simple design, easy to operate, sturdy, and durable.
High Power Radio For Truck Fleets & Off-Road Teams
Feature：
99 GMRS direct channels:
8 GMRS relay channels + 22 factory-set GMRS channels. Multiple channels are set up in advance for outdoor use and are more convenient for use by multiple teams and groups.
Privacy code:
Press the PTT key and scan key and turn on RA86 Mobile radio to cancel the code; 50 CTCSS 210 DCS tone; 5720 channel selection; two ways to display code values or groups; effectively eliminate communication interference.
NOAA Weather Alerts and Scans:
10 weather channels; supports scanning and alarming; automatically scans weather band channels and locks the strongest weather channel to remind you of severe weather updates in advance; making it easy to adjust your itinerary promptly.
NOAA weather alert provides great convenience for you. It efficiently helps you learn about the latest weather information and emergencies. It is convenient for you to adjust your journey in time.

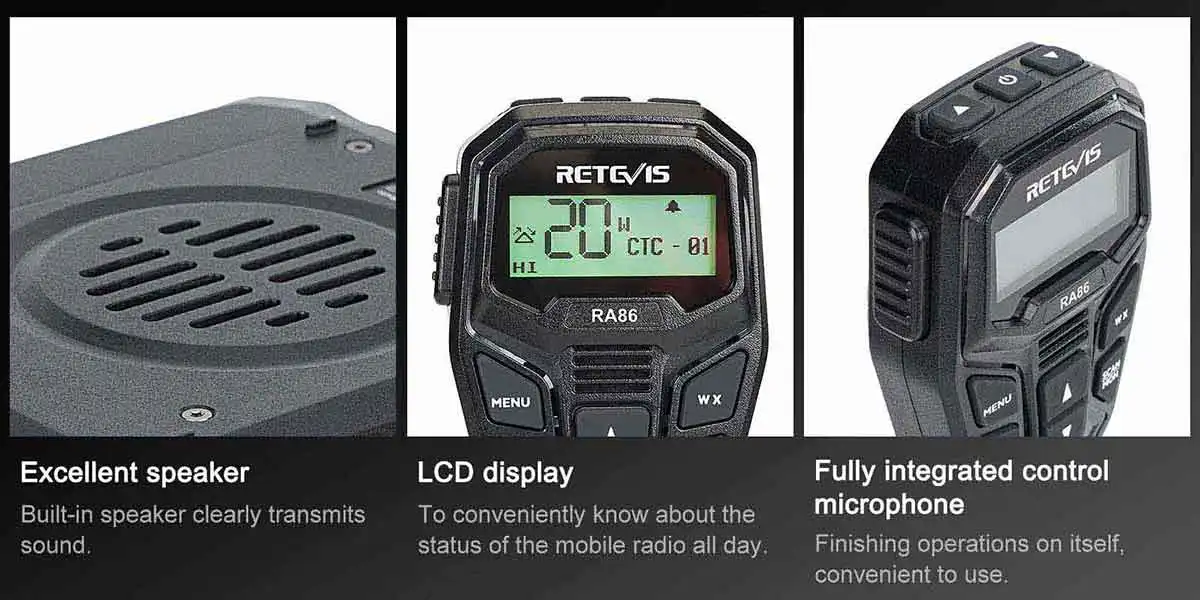

LCD Monitor:
The microphone has an LCD display with 4 backlight colors; 3. Adjustable backlight brightness; better visibility; you can clearly see the content on the screen whether day or night.
Booster antenna：
Long-range mobile radio with antenna; easy to fix on the car; extended communication distance; and the overall height of the antenna is low, 165 mm can be placed on the roof of the car without any problem.
| overall parameters | ||
| Modulation | FM | |
| Frequency Range | GMRS（462.5625-467.725） | |
| frequency error | ±500Hz | |
| Operating Voltage | 12.6-14.4V | |
| Antenna Impedance | 50Ω | |
| bandwidth | 12.5kHz/20kHz | |
| Working current | ≤3.3A Hi power | |
| ≤1.8A Lo power | ||
| Operating temperature | -30℃-+55℃ | |
| TX parameters | ||
| Spurious RF components | ≤-60dBC | ≤-13dbm |
| Transmit SNR | ≥35 | |
| modulation limit | ≤2.5KHZ（N） | |
| ≤5KHZ（W）@Repeater Channel | ||
| Adjacent power | ≤-65dBc | ≤-60dBc |
| Modulation Sensitivity | 5-15mV | |
| audio pre-emphasis | -3~-7@AF=500Hz | -6±3@AF=500Hz |
| 3-7@AF=2KHz | 6±3@AF=2KHz | |
| RX parameters | ||
| Receiver sensitivity | ≤-122m@SINAD=12dB | |
| audio output | 3.2V-4.2V@8R SPK | 3.2v-4.2v@8R SPK @AF=1KHz.FM Devation=1.5KHZ |
| reception distortion | ≤5.0% | ≤8% |
| Receive SNR | ≥40 | ≥36 |
| receive blocking | ≥80 | ≥75 |
| co-channel rejection | ≤-12 | |
| lane selectivity | ≥70 | |
| audio de-emphasis | 2~6@AF=500Hz | 6±3@AF=500Hz |
| -8~-3@AF=2KHz |
-6±3@AF=2KH z |
|
Antenna:
| Antenna ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS |
| Frequency Range:462 MHz | Length: 165 mm |
| Impedance: 50 V | Diameter of Chassis:φ39.5 mm |
| VSWR: ≤1.5 | connector: SL16-J |
| Gain: 2 dBi | Coaxial Cable: RG-174 |
| Polarization: Vertical | Length of Cable: 5 m |
| Radiation: Omni |
Retevis RA86 GMRS Mobile Tractor Radio Bundle Features
- Two Year Warranty
- Full Micro Mobile GMRS Radio, with an external magnetic mount 2 dB gain antenna for extended range
- Total 99 direct GMRS channels+8 gmrs repeater channels.
-
30 factory set GMRS Channels
- 8 GMRS repeater channels
- 66 preset blank channels for program
- 10 NOAA channels, NOAA Weather Alerts and Weather Scan: NOAA Weather Scan will automatically scan through 10 available weather (WX) band channels and locks onto the strongest weather channel to alert you of severe weather updates. NOAA Weather Alert will sound an alarm indicating that there is a risk of severe weather in your area.
- 260 CTCSS/DCS PRIVACY CODES: The privacy codes give you up to 5720 channel options to protect your conversations
- Fully Integrated Control Microphone and low profile hide away unit. Personalized backlight selection, clearer microphone for better call sound quality.
- Scan
- Monitor
- Squelch
- VOX
- Keypad lock
- Power Level Hi/Lo
- Bandwidth Settings
- TOT
- Call Alert Tone
- Repeater ON/OFF
- MIC Gain
- Backlight Settings
- LCD Brightness Settings
- Sleep Time Settings
- Extemal Speaker Jack
- Automatic Power On Function
- GMRS License Required
- FCC ID: 2A3OORA86
