Retevis RT43 5W 32CHS UHF Portable DMR Radios (20 Pack)
- Long Range: The RT43 DMR radio reaches up to 2.4 km in urban areas and over 8 km with repeaters, ideal for wide-area communication.
- Durable Design: Built to withstand drops and tough environments, the RT43 is perfect for outdoor and commercial use.
- Long Battery Life: With a 1400mAh rechargeable battery, the RT43 lasts up to 25 hours, ensuring all-day use.
- Multiple Channels: Featuring 32 channels (2 zones of 16) and offering Single, Group, and All Calls.
- Easy to Use: The simple design prevents accidental button presses and side buttons for quick access to functions.
Buy Now, Get 2 Free Programming Cables
GETTING CLOSER! ONLY $50.00 AWAY FROM FREE SHIPPING!
Order Handling Time within 3 Working days(Pre-sale products excluded).
Bulk order Inquiry
Personalize your device
OverView

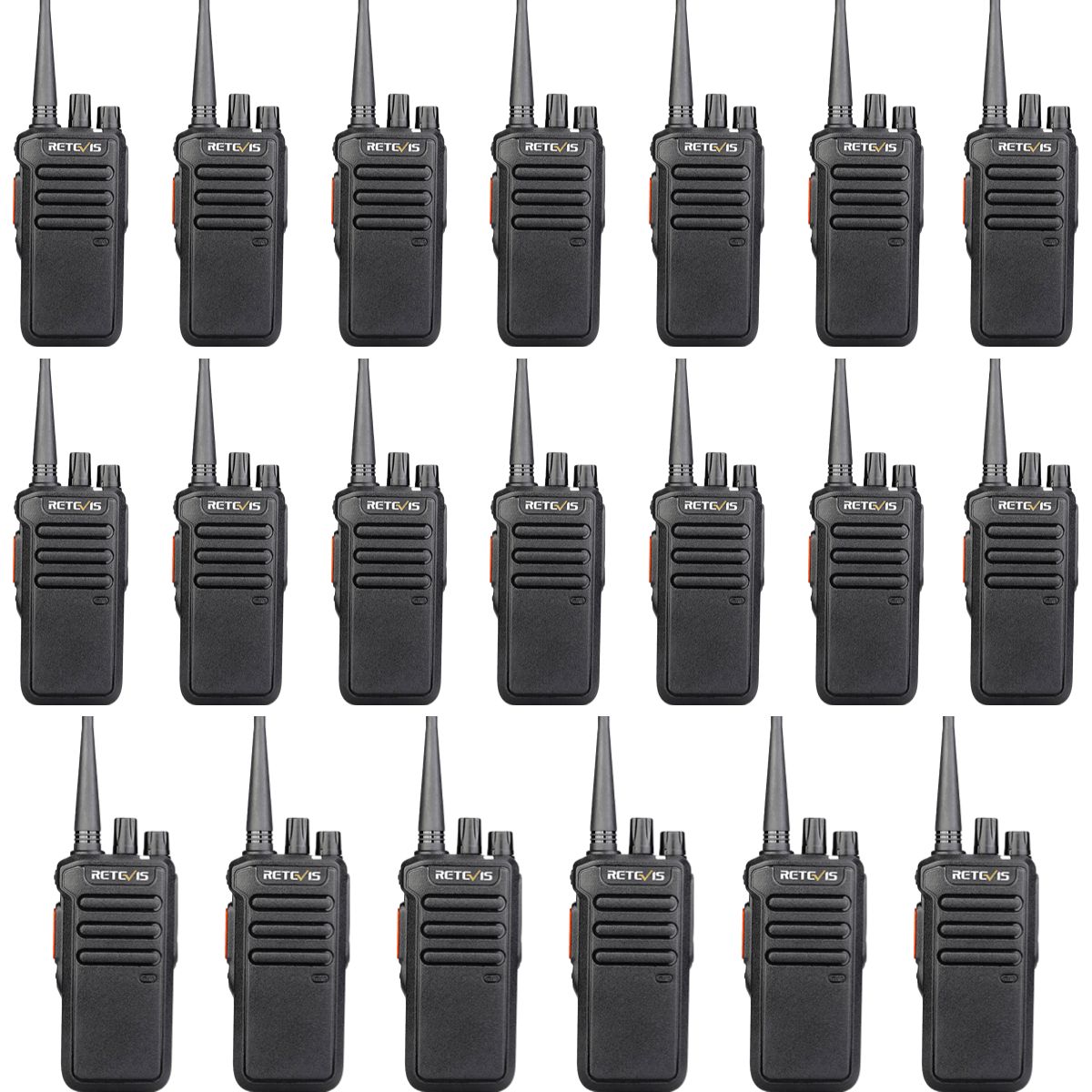

Retevis RT43 5W 32CHS UHF Portable DMR Radios (20 Pack)
Retevis RT43 is a 5W DMR digital 2 way radio with a compact and portable body. It supports digital and analog communication modes to meet different communication needs. Its simple design and intuitive controls make it easy for anyone to use. Built to withstand the rigors of daily use, the RT43 portable DMR radio is a reliable and cost-effective radio solution for construction sites, supermarkets, schools, churches, and other demanding sites.
Long Talking Distance DMR Radio
Depending on the real test, RT43 DMR two way radio can reach up to 2.4 km in the urban area. With the ability to connect to repeaters via channel settings, the RT43 significantly extends its transmission range over 8 km.
Durability and Performance
The RT43 DMR handheld radio is built for rugged use. Its robust design provides excellent resistance to drops and friction, ensuring reliable performance even after a 1-meter fall. This durability, combined with a strong outer shell, makes it ideal for both outdoor adventures and demanding commercial environments.
Long-Lasting Battery
A portable 1400mAh rechargeable battery can last 25 hours for an entire shift without requiring a recharge. This ensures that workers stay connected throughout the day without worrying about battery life.
Multiple Channels and Calling Options
The RT43 DMR handheld radio is equipped with 32 channels (2 zones of 16 channels each), providing ample channels for large or diverse teams to avoid transmission congestion. It also supports Single Calls, Group Calls and All Calls, with customizable IDs and settings (frequency, time slot) to meet different communication needs.
Simple Design & Operation
There are no buttons and display screens in Retevis RT43 DMR Radio, which can prevent workers from accidentally touching the buttons during work. The structure is simple and easy to operate. And the side buttons can be set as a function shortcut for the user's operating habits.
Superior Audio Quality
Utilizing advanced AMBE + 2TME voice processing technology, the RT43 delivers exceptionally clear and high-quality audio, eliminating the need for strained communication. The included earpieces help improve the sound quality and also ensure the call information privacy.
Dual-Time Slot Capability
The dual time slot (DCDM) functionality allows for two simultaneous conversations on a single frequency, increasing communication efficiency.
Hands-Free Operation
The integrated VOX (Voice Operated Exchange) feature enables voice-activated transmission, freeing your hands for other tasks.
Low-Temperature Resistance
Retevis RT43 DMR radio operating temperature is -25℃~+60℃; for the working environment of -10℃~ -20℃ in cold storage, Retevis RT43 can be used normally in the cold storage environment.
Spec
| Frequency range | UHF:400-470MHz |
| Channel Capacity | 32CH (2 Zones) |
| Channel Spacing | 12.5KHz |
| Operating Temperature | -25℃~+60℃ |
| Operating Voltage | DC 7.4V |
| Antenna Impedance | 50Ω |
| Microphone Impedance | 2.2KΩ |
| Battery | Li-ion DC7.4V 1400mAh |
| Dimension | 116×54×35mm (excluded antenna) |
| Weight | 316g |
| Transmission | |
| Output power | High:5W; Low:1W |
| FM modulation | 25/16K¢F3E 12.5K/8K¢F3E |
| 4FSK digital modulation | 12.5KHz for data: 7K60FXD 12.5KHz for data and voice: 7K60FXE |
| Vocoder type | AMBE++or SELP |
| Digital Protocol | ETSI-TS102 361-1,-2, |
| Harmonic | ≥70dB |
| Signal-to-noise Radio (wide/narrow) | 25K≤-45 dB 12.5≤-40 dB |
| Rated audio Distortion | ≥5% |
| Frequency Stability | ±2.5ppm |
| Max Frequency Stability | 12.5K≤-40dB |
| Reception | |
| Sensitivity (12dB SINAD) | Analog 25K≤-121dB 12.5K≤-119dB |
| Digital 0.3μV/BER5% | |
| Signal-to-noise Radio | 25K≥45 dB 12.5K≥40dB |
| Adjacent channel selectivity | 25K≥65 dB 12.5K≥60dB |
| Intermediation (wide/narrow) | 25K≥60 dB 12.5K≥55dB |
| Spurious Response Rejection | ≥65 dB |
| Audio power | 1W |
| Audio distortion | <5% |
| Frequency Stability | ±2.5ppm |
| Battery life under 5-5-90duty | Analog Mode: 14.8 hours (with a 1400mAh Li-ion battery) |
| Digital Mode: 20.9 hours (with a 1400mAh Li-ion battery) | |
Feature
● 32 Channels (2 Zones), 64 Contacts (Digital)
● Digital and Analog Mode
● Single/Group/All Call
● Encryption (Normal/Enhanced)
● High/Low Power Switch
● Wide/Narrow Band Selectable
● Repeater/Talk Around
● Time Out Timer (TOT)
● Tail Elimination
● VOX Hands-Free
- ● Squelch 1~10
● Scan / Monitor
● QT/DQT
