OverView

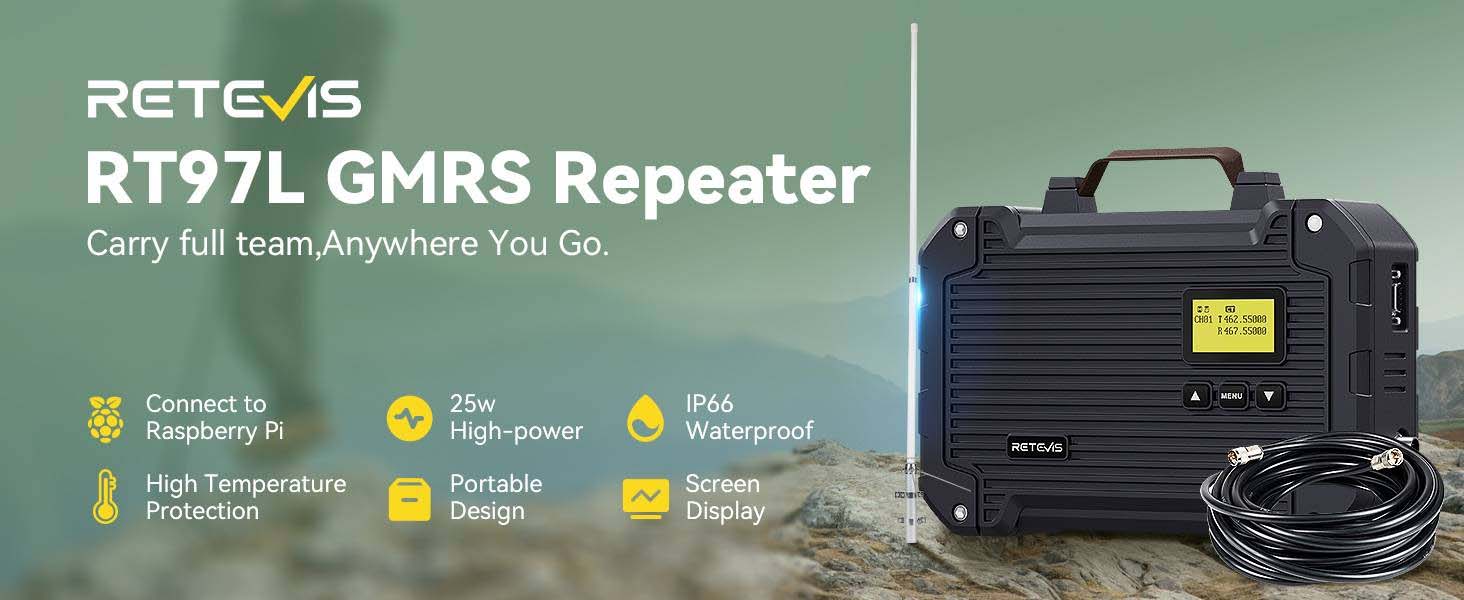

25W RT97L GMRS Portable Repeater Kit

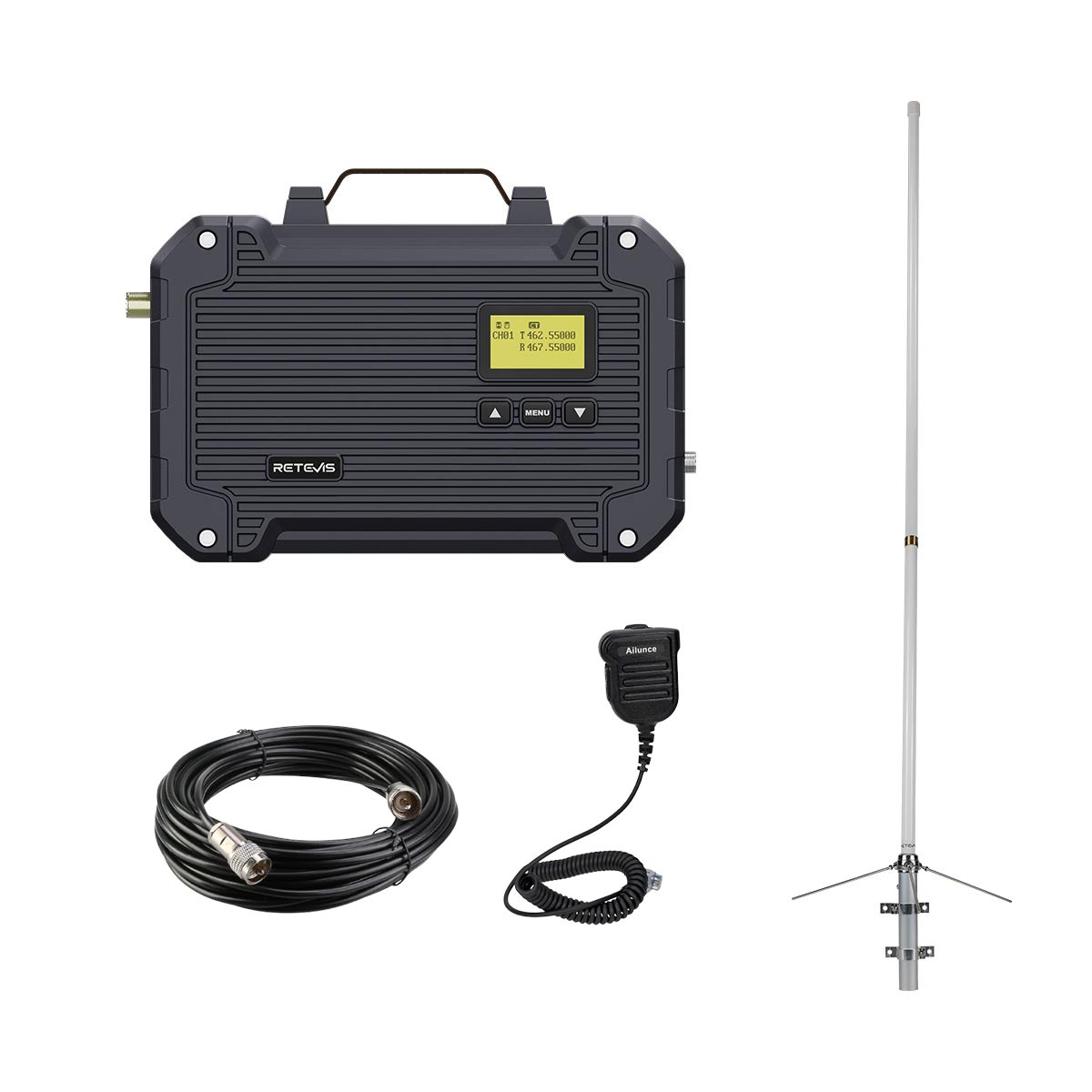

The Retevis 25W RT97L GMRS Repeater kit with FRP antenna, speaker mic and coaxial cable offers high power, IP66 waterproof, and high-temperature protection, ensuring reliable communication in any environment. Its portable design, screen display, and easy Raspberry Pi connection make it a versatile solution for your team. Ideal for construction sites, logistics, property management, and large farms.

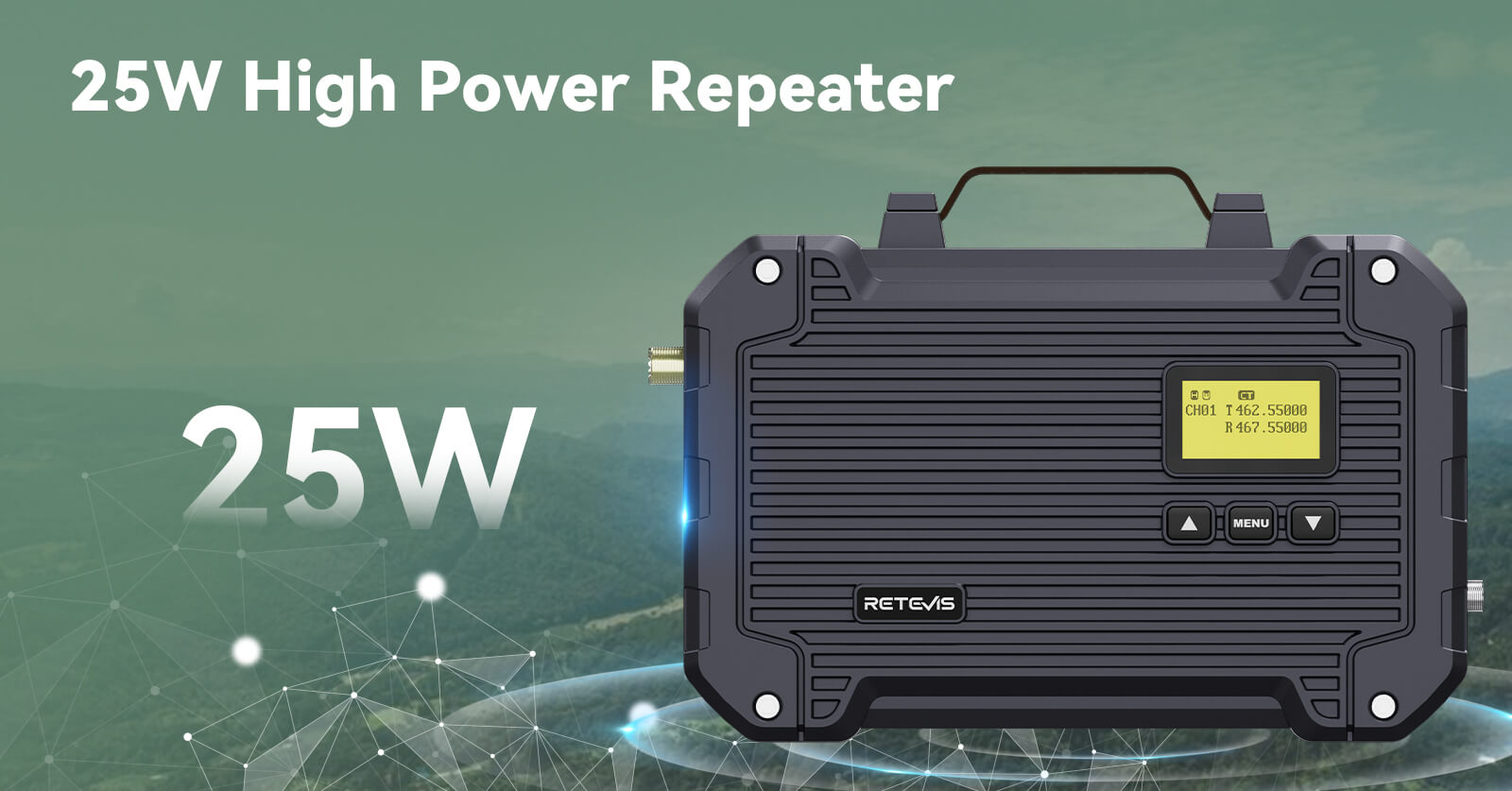

25W High Power GMRS Repeater

With the 25W GMRS repeater kit, including an FRP antenna, a speaker mic and a coaxial cable, you get strong and reliable signals across your farm or building, minimizing dead zones for seamless communication.

IP66 Waterproof GMRS Repeater

Whether it's torrential rain or a dusty construction site, the waterproof GMRS repeater kit with FRP antenna and coaxial cable keeps your signal strong—rain or shine.

Portable and Lightweight GMRS Repeater

The GMRS repeater, with its compact 11.22 × 2.68 × 7.28-inch size and lightweight 7.86lb design, fits easily in your backpack. It’s the perfect companion for maintaining strong signals in transient lifestyles or remote work scenarios.

Compatible with Raspberry Pi

Perfect for outdoors, construction sites, or rural cabins, this GMRS repeater kit extends your connectivity range. With Raspberry Pi integration, you can link sensors, cameras, and alarms—even through thick walls or dense forests.

16 Adaptive Channels

Stay connected effortlessly with 16 channels. Seamlessly switch between high and low power modes to adapt to your surroundings, ensuring clear and reliable communication wherever you go.

Smart Overheat Protection

Designed for extreme conditions, the portable GMRS repeater automatically reduces power when temperatures exceed 60°C, preventing overheating and ensuring consistent, reliable performance even in hot climates.

Cold-Weather Performance

The GMRS repeater is equipped with a low-temperature mode that activates an internal heating system when the temperature drops to -15°C, preventing freezing and ensuring reliable operation even in challenging winter conditions.

LCD Screen Display

The GMRS mobile repeater features a clear LCD screen display, providing real-time information such as channel and battery level, so you can easily monitor and adjust settings at a glance.

25W RT97L GMRS Repeater Kit Applicable Scenarios

The 25W RT97L GMRS Repeater Kit is perfect for large farms, ranches, construction sites, outdoor events, hunting camps, and open-air theaters, ensuring reliable communication in vast and challenging environments.

Detail Display

Installation Steps

FAQ

1. What is the difference between 5W and 25W?

The difference in power can be significant. For example, using 5W of power, communication over a long distance might result in weak or no signal. However, with 25W of power, the range can greatly improve, allowing for clearer and more reliable communication over much longer distances.

While power is crucial, factors like antenna height also play an important role. In situations where elevation isn't favorable, higher power can be a big help in extending communication range.

2. Is the actual output power really 25W?

The factory output is between 22W-25W. However, when operating with a duplexer, there may be power loss, reducing output to around 15W-22W, depending on the quality, thickness, and length of the feeder cable.

3. What’s the GMRS Repeater Frequency Range (TX and RX)?

For users operating with GMRS, the frequency range of the RT97L is:

• TX (Transmit): 462.550 - 462.725 MHz
• RX (Receive): 467.550 - 467.725 MHz

This range allows for effective communication and operation in the designated GMRS frequencies, which are crucial for users who need clear, uninterrupted signals.

4. How Does Using a Raspberry Pi Enhance RT97L’s Functionality?

The RT97L portable gmrs repeater is designed with flexibility in mind. By connecting the repeater to a Raspberry Pi via its DB-9 interface, users can expand the repeater's functions. This allows for easy programming and the ability to customize the repeater to fit specific needs, whether you’re operating in a particular area, enhancing security, or fine-tuning performance.

5. What Is Amp Absorption in TX and RX?

• Receive Mode Absorption: 180mA
• Transmit Mode Absorption: 5.5A

6. How is the RT97L Waterproof Even if the Doors Are Uncovered?

The RT97L gmrs mobile repeater is rated IP66 waterproof, meaning it can withstand powerful jets of water from all directions. This rating ensures that it performs well even in harsh weather or environments with heavy water flow. However, to ensure optimal performance and longevity, it's always a good idea to install the repeater in a protected location, especially in areas with extreme weather conditions.

7. Does the RT97L Have an Internal Duplexer?

Yes, the RT97L portable repeater comes equipped with an internal duplexer, which is essential for enabling the repeater to work efficiently with an antenna. The duplexer allows the device to handle both transmit and receive signals simultaneously without interference.

8. How Many Channels Does the RT97L Have? And What Does It Mean?

The RT97L is capable of storing 16 different channels, which means it can quickly switch between up to 16 communication frequencies.

9. What is the RT97L's Duty Cycle?

The duty cycle for RT97L repeater is 100%.

10. What is the DB-9 Female Connector used for?

RT97S base station comes with a DB-9 port, which can be directly connected to the included speaker mic and is compatible with Raspberry Pi.

11. Does this repeater work with your handheld FRS units? Or just the GMRS radios?

Because of the limitations on FRS by the FCC, this repeater can be only ued for GMRS radio, no mater handheld GMRS radios or Mobile GMRS radios.

12. Is this repeater compatible with other manufacturers handheld GMRs radios that are repeater capable? For example BTECH, Radioddity, Midland?

Yes, the RT97L repeater is compatible with GMRS handheld radios that are repeater capable.
