Retevis RT97P UHF Portable DMR Repeater with Base Station Antenna Bundle

- Digital/Analog Repeater: As a DMR repeater, RT97P supports both analog and digital signals for clear communication.
- Compatible with Digital/Analog Radios: RT97P works with DMR radios like HD1, HD2, RT3S, RT29D, NR30D, and more analog radios.
- Rugged Durability: Military-grade aluminum alloy housing protects against dust and harsh conditions.
- Easy to Plug in and Set Up: The RT97P base station has a built-in duplexer, allowing TX/RX using only one antenna.
- Rugged Durability: Military-grade aluminum alloy housing protects against dust and harsh conditions.
- Flexible Power Options: Works with DC 12V-24V power, car power, or solar battery.
GETTING CLOSER! ONLY $50.00 AWAY FROM FREE SHIPPING!
Order Handling Time within 3 Working days(Pre-sale products excluded).
- Secure Payments
- 30-Day Money-Back Guarantee
- Hassle-Free Warranty
- Lifetime Customer Support
Bulk order Inquiry
Personalize your device
OverView
Retevis RT97P UHF Portable DMR Repeater with Base Station Antenna Bundle
Retevis RT97P portable DMR repeater is easy to use and install, helping DMR radio greatly extend the range and offering clear good communication for racing, concerts, ball sports, construction sites, rescue, mines, ports, companies, mountaineering, etc.

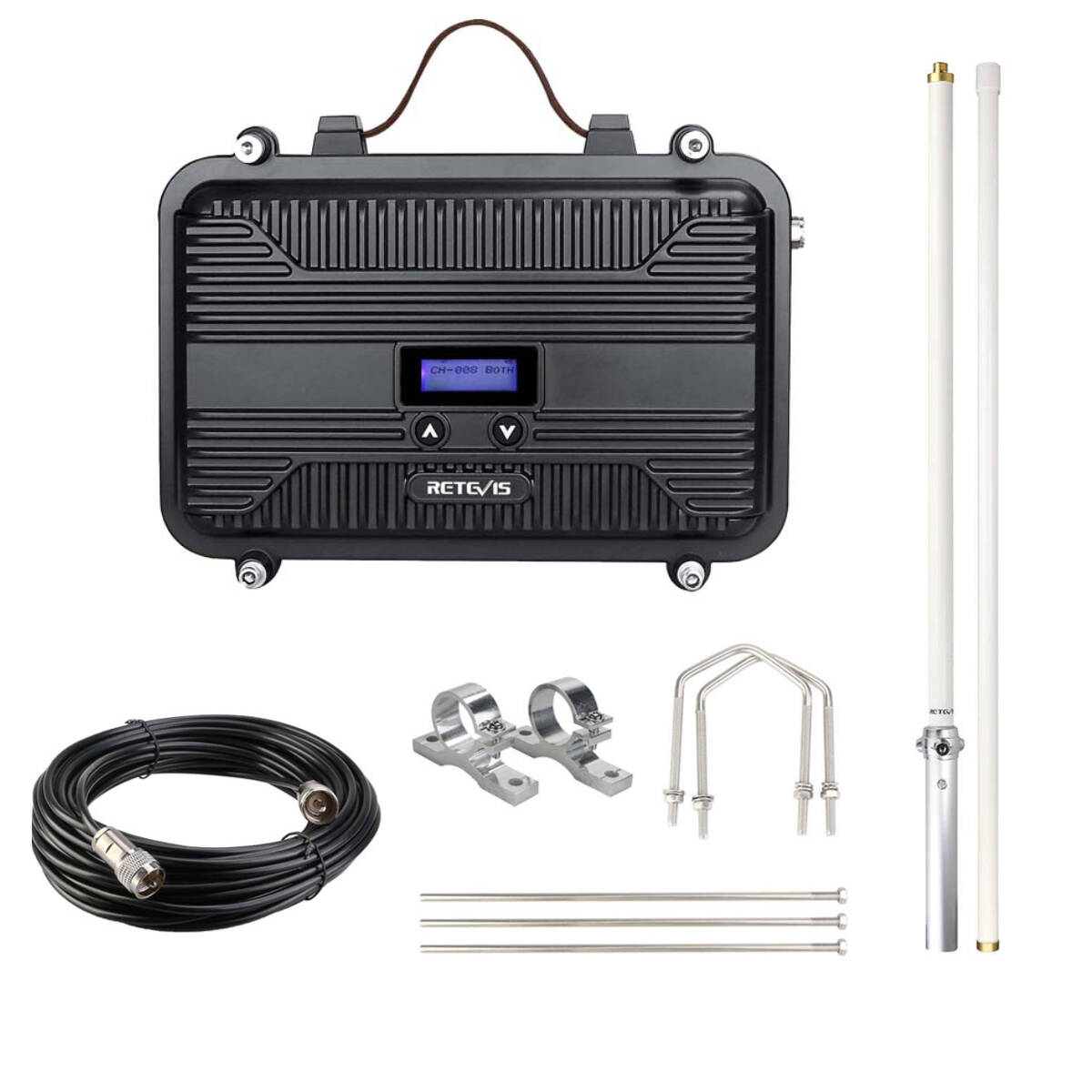

Complete Compact Repeater Bundle
The RT97P portable repeater bundle comes with a high-gain fiberglass antenna and a 15-meter pure copper low-loss feeder cable. The feeder cable can be used to connect the Retevis RT97P repeater and Retevis MA01 fiberglass antenna directly; there is no need for other accessories; it is a complete compact repeater kit.
Full Duplex DMR Base Station
- RT97P DMR repeater can receive both analog and digital signals, which is compatible with DMR radios, such as HD1, HD2, RT3S, RT10, RT50, RT81, RT29D, NR30D, etc., and analog radios like RT1, RT29, RT85, RT86, RT87, etc.
Easy-to-Read LCD Display
Retevis RT97P repeater comes with an LCD display. The display can help you know the TX and RX frequencies, CTCSS/DCS code, and bandwidth settings easily. There are also up and down keys, which can help you change channels and CTCSS/DCS tones. You can also use the key to lock/unlock the keypad.
Multiple Charging Options
RT97P base station can be powered by DC12V~24V power, car power, and a solar battery. You can use it from a fixed location, or you can also use it to extend the range of the two way radios when on a self-driving tour. When you join a road trip with your friends, RT97P can be used as a mobile base station, playing a leading role in coordinating all vehicles forward.
Solid and Durable
The sturdy body conforms to military specifications and can prevent dust, wind, and other adverse conditions; even if you set up RT97P on the mountain or in the woods, it can still operate normally in different environments. All aluminum alloy housing has a good heat dissipation effect, which can ensure that the RT97P radio repeater can work for a long time under high power without affecting its life.
Support Mixed Mode
The RT97P DMR repeater supports mixed mode, which means one channel can use the same frequency to communicate with analog radio and digital radio.
The Mixed Mode on Retevis RT97P Digital/Analog Repeater:
How to Make Ailunce HD1 Work with Retevis RT97P:
What’s in the Box?
1 x RT97P UHF DMR Repeater
1 x RT97P Power Supply and Charger
1 x RT97P Car Charger Cable
1 x RT97P Programming Cable
1 x RT97P User Manual
1 x Omni-Directional Fiberglass Antenna (390-470MHz)
1 x 15-Meter Coaxial Extender Cable
Spec
Specification of RT97P Repeater:
Frequency Range | TX 463.3125MHz / RX 453.3125MHz |
Standard form | DMR/FM/DMR+FM |
Channel Capacity | 8CH |
Channel Spacing | ±12.5KHz Narrow/±25KHz Wide |
Operating Temperature | -30℃~+60℃ |
Operating Voltage | DC12V-24V |
Antenna Impedance | 50Ω |
Frequency Stability | ±0.5ppm |
Dimension | 280×210×75mm |
Weight | 2624g |
Transmitter
Output power | 5W |
Transmission Current | ≤2.5A |
FM Modulation | 11kφF3E/16kφF3E |
Digital modulation | 4FSK |
Modulation Distortion | ≤5% |
FM Noise | ≥40dB(25KHz)/≥35dB(12.5KHz) |
Adjacent Channel Power | ≥70dB(25KHz)/≥60dB(12.5KHz) |
Audio Response | +1~-3dB |
DMR Protocol | ETSI-TS102 361-1,-2,-3 |
Receiver
Analog receive Sensitivity | 0.25μν(12dB)SINAD |
Digital receive sensitivity | -120dBm (BER≤5%) |
Adjacent channel selectivity | ≥70dB(25KHz)/≥60dB(12.5KHz) |
Inter-modulation | ≥60dB/≥65dB |
Signal imitation | ≥70dB |
Audio Response | +1~-3dB |
Audio distortion | <5% |
FM Noise | ≥45dB(25KHz)/≥40dB(12.5KHz) |
Specification of MA01 Base Station Antenna
Brand | Retevis |
Model | MA01 |
Color | Silvery White |
Frequency | 390-470MHz |
Gain | 4dBi |
Support Power | 100W |
S.W.R | <1.2 |
Element | 3 |
Length | 45.7 inch (116 cm) |
Weight | 0.748 kg |
