Retevis RT97S GMRS Repeater and 2PCS RB17P GMRS Handheld Radio Bundle

- Portable Repeater Solution for Extending GMRS Handheld Radio Range
- Repeater Comes with Fiberglass Antenna, Coaxial Cable and Speaker Mic
GETTING CLOSER! ONLY $50.00 AWAY FROM FREE SHIPPING!
Order Handling Time within 3 Working days(Pre-sale products excluded).
- Secure Payments
- 30-Day Money-Back Guarantee
- Hassle-Free Warranty
- Lifetime Customer Support
Bulk order Inquiry
Personalize your device
OverView
Retevis RT97S GMRS Repeater and 2PCS RB17P GMRS Handheld Radio Bundle
Retevis RT97S GMRS repeater can greatly extend the RB17P GMRS handheld radio's communication distance, which can supply up to 10 miles of talking range (the specific call distance depends on the usage environment). This is a perfect long range radio communication solution for farms, construction sites, racing, concerts, schools, churches, rescue, buildings, road trips, etc.
Main Features of RT97S GMRS Repeater:
1. Easy-to-Use GMRS Repeater Bundle
Featuring 8 GMRS repeater channels, a 10W transmitter with a full 5W output power after the duplexer, and a built-in notch duplexer, all you need to do is add an antenna and feeder cable to get on the air. A USB programming cable is also included to program the repeater to your channel and CTCSS/DCS tones of choice.
2. Small and Portable Repeater
Retevis RT97S repeater size is only 260 x 210 x 70mm. It is very small and compact, convenient to carry, and very useful for outdoor use and for families, individuals, and groups. You can also install it on the top of the mountain to build your own base station.
3. Multiple Charging Options
RT97S can be powered by DC12V~24V power, car power, or a solar battery. The RT97S is ideal for solar-powered repeater sites where low power and a small footprint are required. At such a portable size, this repeater is perfect for camping trips or emergency preparedness.
4. Easy-to-Read LCD Display
Retevis RT97S repeater comes with an LCD display. The display can help you know the TX and RX frequencies, CTCSS/DCS code, and bandwidth settings easily. There are also up and down keys, which can help you change channels and CTCSS/DCS tones. You can also use the key to lock/unlock the keypad.
Main Features of RB17P GMRS Handheld Radio:
1. Repeater Capability
RB17P GMRS two way radio has 8 repeater channels, which can be directly connected to the Retevis RT97S GMRS repeater to obtain stronger and longer-distance signals. This will greatly increase your communication range and reliability.
2. Long Battery Life
Equipped with a 2200mAh large-capacity battery, it supports 24 hours of work in the workplace without frequent charging. Long standby time, meet your daily work.
3. NOAA Weather Alerts
The dual-watch function allows you to monitor NOAA while communicating with your partner. NOAA weather channel scans and locks the strongest weather channel to remind you of severe weather updates.
4. Colorful Display and Multiple Background Colors
Retevis RB17P GMRS walkie talkie has a 1.7-inch TFT color screen to easily check the radio information. It also offers 8 different background colors. You can choose the best background color for different lights.
5. One-Key Alarm Function Button
Retevis RB17P has a single orange alarm button at the top of the radio. If you want to send an alarm, just press it. It will send both local and remote alarms.
6. Excellent Audio Quality
With high-quality speaker components, the sound of RB17P 2 way radios is loud but not harsh. RB17P also features 0-9 squelch levels, which can filter out incoming signals that are not strong enough. Users can set the appropriate squelch level according to their needs.

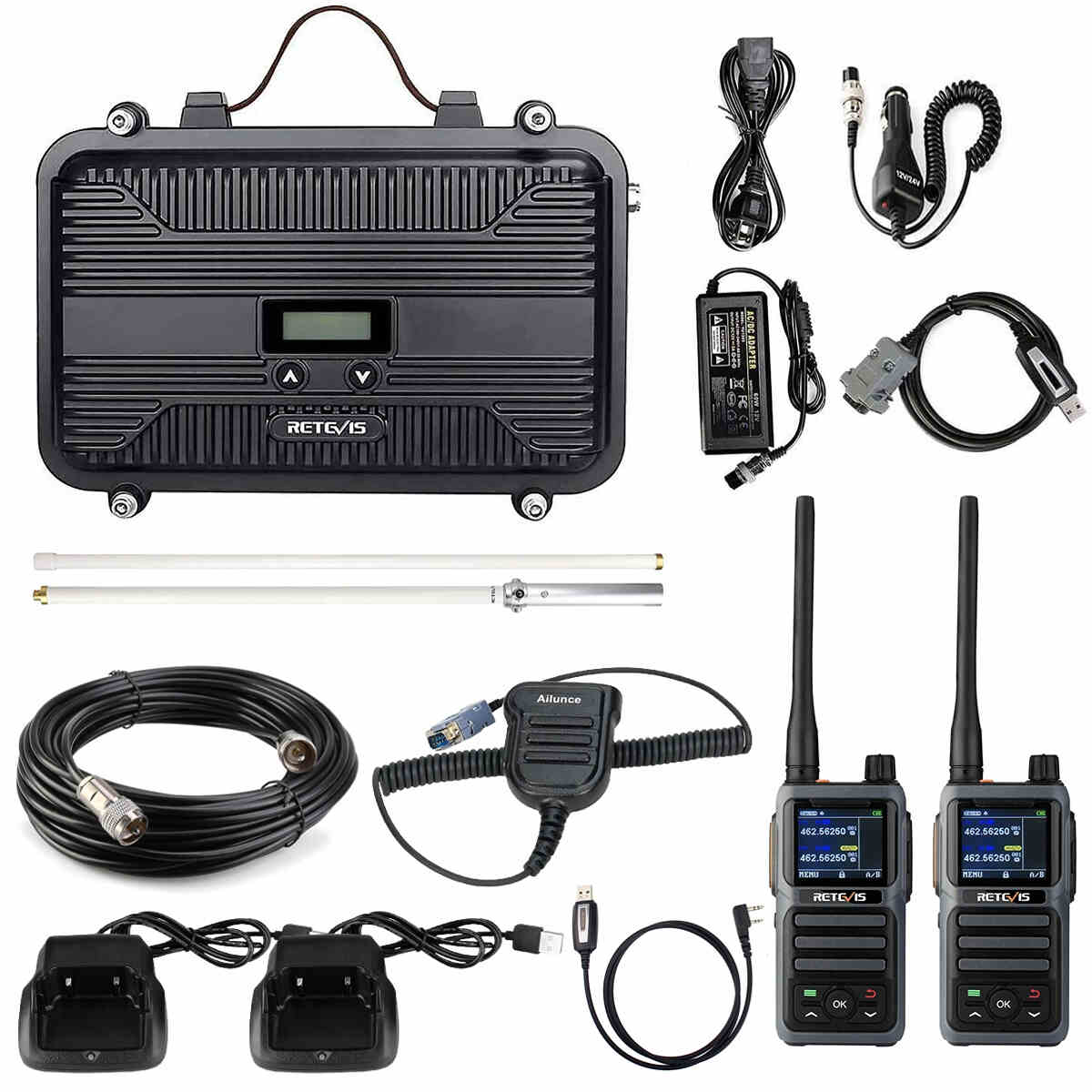

What’s in the Box?
- 1 x RT97S GMRS Repeater
- 1 x RT97S Power Supply and Charger
- 1 x RT97S Car Charger Cable
- 1 x RT97S Programming Cable
- 1 x RT97S User Manual
- 1 x RT97S Speaker Mic
- 1 x Omni-Directional Fiberglass Antenna
- 1 x 15-Meter Coaxial Extender Cable
- 2 x RB17P Handheld GMRS Radio
- 2 x RB17P Desktop Charger
- 1 x RB17P Programming Cable
- 2 x RB17P Battery
- 2 x RB17P Belt Clip
- 1 x RB17P User Manual
- 2 x Adapter
Spec
Specification of RT97S GMRS Repeater:
Specifications | |
Frequency Range | 462.550-462.725 MHz (TX), 467.550-467.725 MHz (RX) |
Channel Capacity | 8 GMRS Repeater Channels |
Channel Spacing | ±12.5KHz Narrow/±25kHz Wide |
Operating Voltage | DC:12V-24V |
Operating Temperature | -22°F-140° F (-30° C-60° C) |
Frequency Stability | ±2.5ppm |
Antenna Impedance | 50 Ω |
Dimensions | 10.25"x8.3"x2.8" (260x210x70mm) |
Weight | 3.7 lbs (1.66 kg) |
Transmitter | |
Power Output | 5W |
Modulation | F3E |
Spurious Emission | -60dB or less |
Maximum Frequency Deviation | Wide: ±5kHz Narrow: ±2.5kHz |
Audio Distortion | 5% or less |
FM Noise | Wide:≤45dB Narrow :≤40dB |
Receiver | |
Sensitivity(12dB SINAD) | 0.2μV (Wide) 0.25μV (Narrow) |
Squelch Sensitivity | 0.15μV (Wide) 0.2μV (Narrow) |
Adjacent Channel Selectivity | ≥ 70dB (Wide) / ≥65dB (Narrow) |
Intermodulation | ≥ 55dB |
Spurious Rejection | ≥ 55dB |
Image Rejection | ≥ 55dB |
FM Ham and Noise | ≤-45dB (Wide) / ≤ -40dB (Narrow) |
Modulation Type | F3E |
Operating Bandwidth | ≤±7KHz / ≤±5KHz |
Audio Distortion | ≤ 5% |
Specification of RB17P GMRS Handheld Radio:
General Specifications | |
Frequency Range | GMRS: TX: 462.5500-467.7125MHz; RX:462.5500-467.7250MHz |
Channel Capacity | 30 |
Channel Spacing | 12.5KHz |
Antenna Impedence | 50Ω |
Frequency tolerance | ≤2.5×10-6 |
Working Voltage | 7.4V DC |
Battery capacity | 2200mAh(Li-ion) |
Size | 120(H)*58(W)*39(D)mm |
Operating temperature | -30~+60°C |
net weight | About 250g |
Transmitter | |
Output Power | 5W/0.5W |
Carrier Frequency Tolerance | ≤2.5×10-6 |
Modulation Mode | 11K0F3E |
Modulation Limiting | ±2.5K |
Modulation Distortion | ≤5% |
Audio Response | +1/-3 dB |
FM Hum & Noise | ≤35 dB |
Transmit spurious emission | ≤-36dBm@9kHz~1GHz≤-30dBm@1GHz~12.75GHz |
Adjacent Channel Power | >60dB |
Receiver | |
Squelch Sensitivity | ≤0.22 μV |
Audio Power | 1W@16Ω |
Audio Distortion | <5% |
FM Hum & Noise | ≤38dB |
Inter-modulation response immunity | ≥65dB |
Adjacent channel selectivity | ≥60dB |
Co-Channel inhibition | ≥-12dB |
Spurious Response Immunity | ≥70dB |
Blocking | ≥85dB |
Feature
Functions of RB17P GMRS Radio:
- 30 Channels, Including 8 Repeater Channels
- 1.7-inch TFT Color Display
- 8 Optional Background Colors
- NOAA Weather Alerts
- One-Key SOS Alarm (Remote+Local)
- High /Low Power Switch
- Channel Switch
- Monitor Function
- Squelch Function
- TOT (Time Out Timer)
- Voice Annunciation
- Power Saving Function
- Battery Voltage Alert
- Busy Channel Lockout
- High /Low Power Switch
- VOX Hands-Free
- Companding
Product Reviews
-

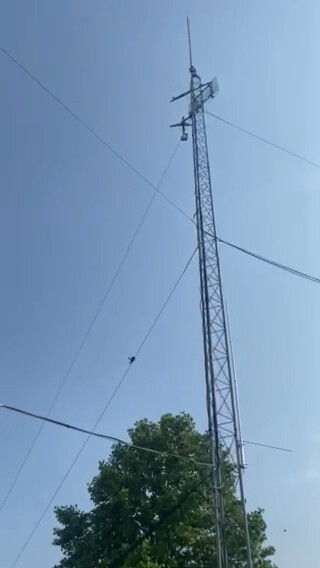

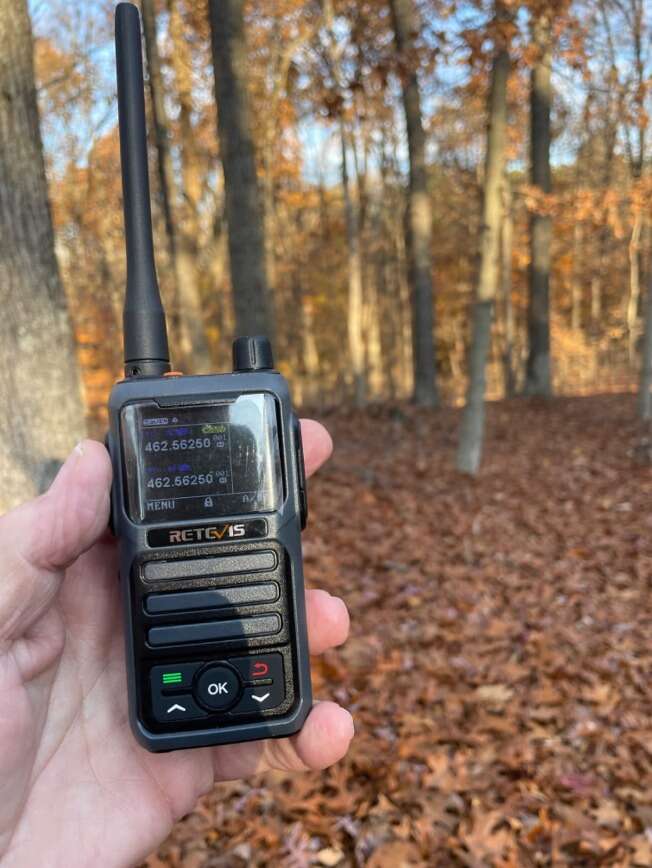

Milo MolinaAwesome GMRS Repeater!Reviewed on Oct 23,2024This repeater is a great asset for the price! It works great! Handhelds are also pretty.Trey StantonGood enough for my purposesReviewed on May 21,2024Bought a set of these with the intention of using them to help a group of Cub Scouts get around on various outings. The radio works great. I've used them in more different terrains with no issues. The weather alert feature of these radios is very effective. The safety of my Scouts is my top priority. Being alert to changes in weather is absolutely crucial. It's easy to install and carry repeaters outdoors. We use repeaters to extend the range when we're hiking in dense woods.Delmer MoranGreat Range!Reviewed on May 10,2024We love this little repeater! We mount the antenna up to about 30 meters (or more), with a coverage range of over 15 miles. If you have a large property, you could mount those up on top of a silo or tower. The repeater got a DB9 pin out for external interfacing. It's perfect if you want to get a backyard repeater up and linked to one of the GMRS networks taking over GMRS.
