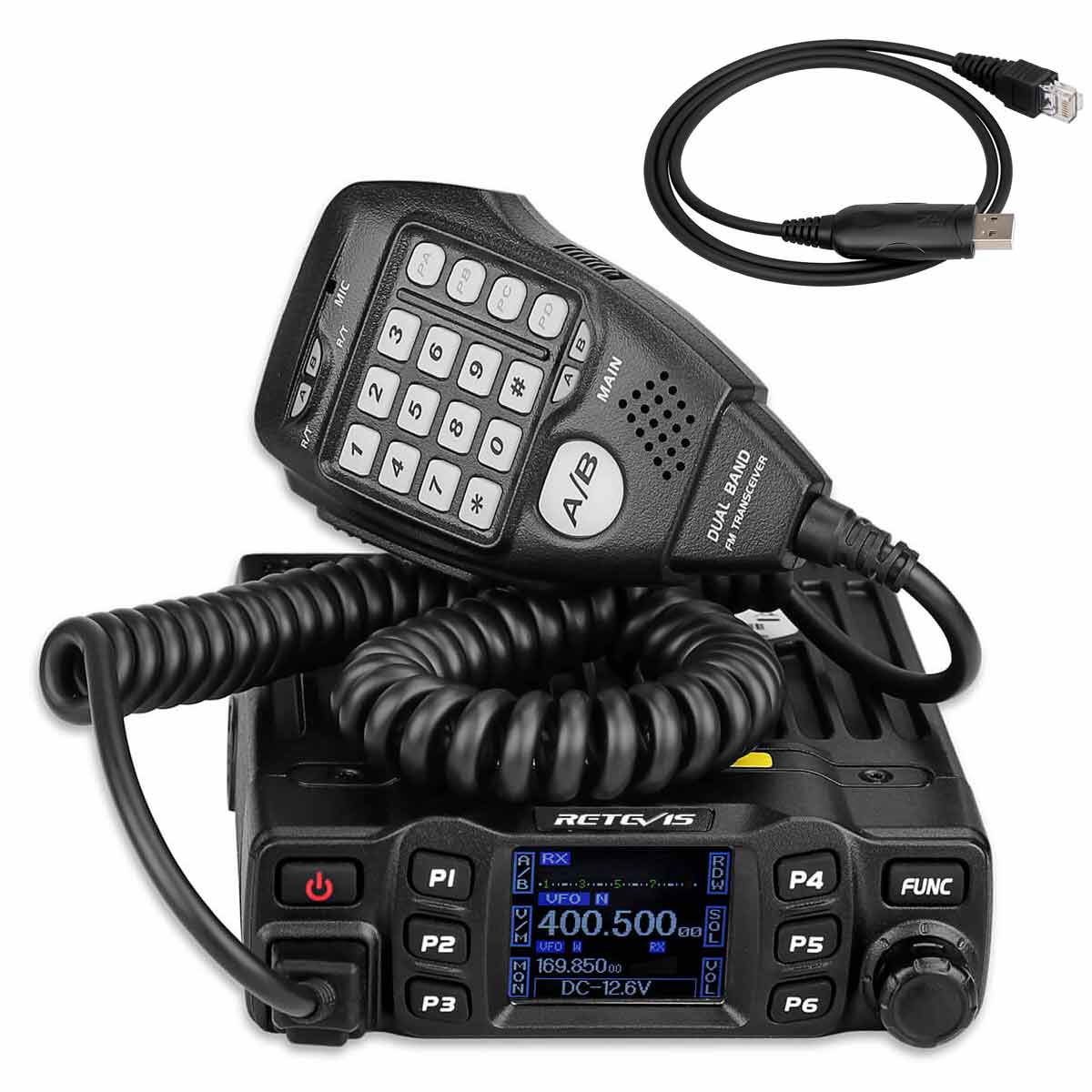

Retevis RT95 25W Dual Band HAM Mobile Radio With Program Cable
- 25w-long distance
- 200 Channels 52 CTCSS 1024 DCS Optional
- 180 Degree Rotatable LCD Display
- Smart Menu Control and 7 Programmable Keys
- Support CHIPR Programming
Bulk order Inquiry
Personalize your device
OverView
Retevis RT95 25W Dual Band HAM Mobile Radio With Program Cable
Retevis RT95 Mobile Radio has nice housing, stoutness & stability, advanced and reliable functions, perfect & valuable. This mobile Transceiver is especially designed for drivers and it pursues a philosophy of innovation and practicality.
Dual band mobile transceiver:
RT95 supports multi-band transmission and reception; it can be adjusted through the digital buttons on the microphone to quickly change the frequency band you need.
Car long range radio:
Use the antenna with SL16/PL259 port installed on the vehicle for long-distance transmission; suitable for long-distance driving communication
Mini mobile radio:
6.42 x 4.88 x 1.54 inches; installation does not take up much space and compact design; comes with a handheld microphone for quick phone calls
Microphone Control
The microphone can be set up quickly without having to lower your head to set up the base radio.
6 customizable buttons:
Customizable buttons on the radio and microphone; shortcut operations can be set through the software according to your usage habits
Programming software:
Supports CHIRP and keyboard programming; CHIRP is compatible with Windows XP/7/8/10/11 systems
180 degree rotatable LCD display:
The screen can be rotated and the radio can be flipped; more installation location options; large screen backlight with adjustable brightness, convenient for outdoor and indoor reading
Compact Size
Retevis RT95 Mini Mobile Car Radio is easy to install on the vehicle, convenient and simple. Suitable for off-road jeeps and trucks.
Full functioning:
Single call, group call, selective call, emergency call are all available, keyboard lock function, squelch level setting, LCD screen off control, voltage level protection, automatic power off function

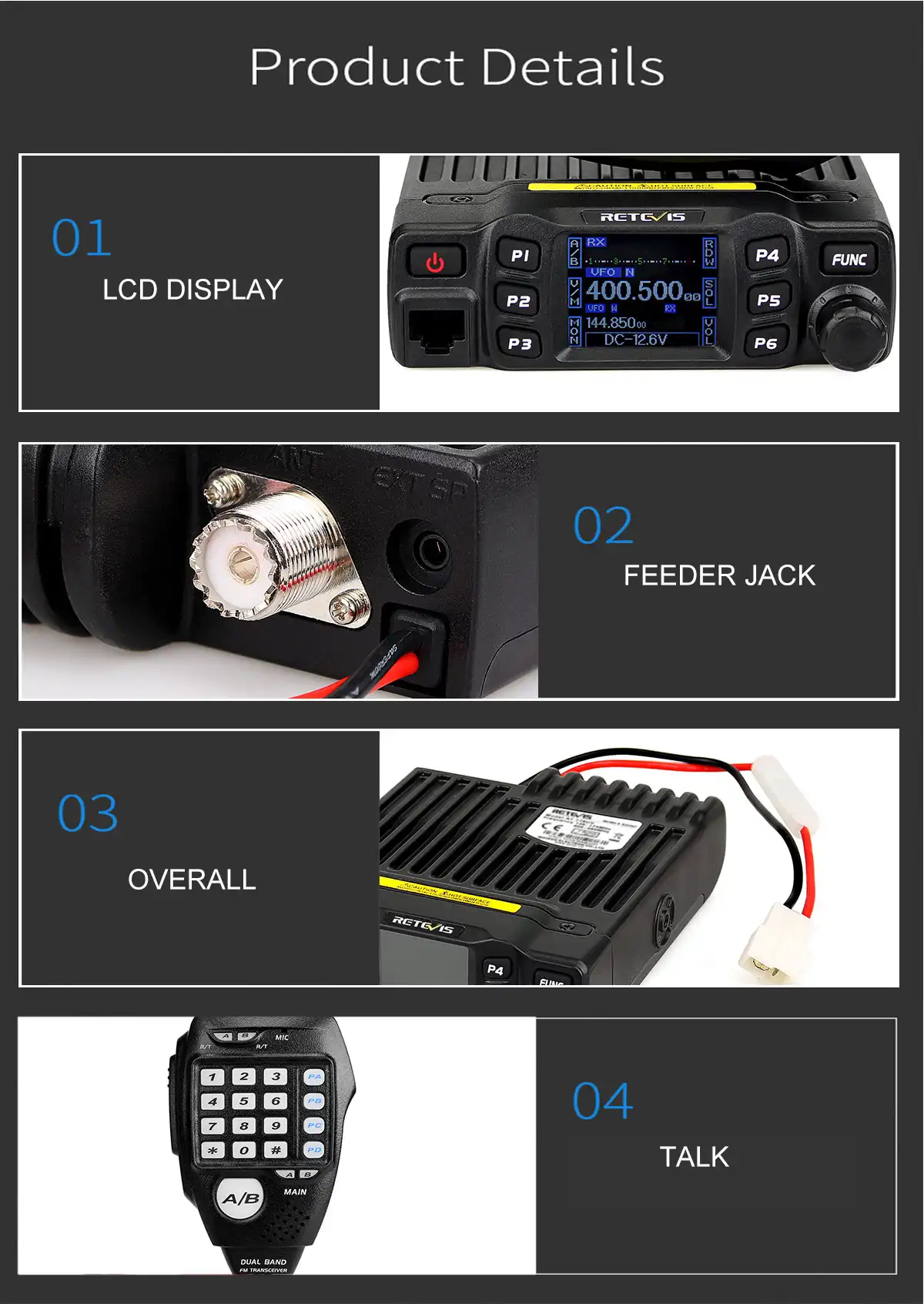

Product Details
Q and A
Q: Will the RT95 receiving signal quality be affected?
Answer: The quality of the received signal is related to two aspects. One is the quality of the transmitted signal itself; the other is the receiving sensitivity of the receiver.
Q: How many channels does RT95 have?
Answer: The Retevis RT95 mobile radio has 200 programmable memory channels, which can be identified by editing the name.
Q: Will there be call ID information on the screen?
A: The Retevis RT95 mobile radio will display the ID and caller's name (if editable).
Q: Does the Retevis RT95 mobile radio have encryption function?
Answer: Yes, the Retevis RT95 car radio has a scrambling function, which is similar to an encryption function and can make the decoded radio clearer.
Q: Is the antenna interface of the Retevis RT95 mobile radio a K-type female connector?
Answer: The antenna interface is SL16-J/M, and the RT95 itself is a SL16F/K female connector.
Spec
| Frequency Range | VHF:144-148MHz UHF: 430~440MHz | ||
| Number of Channels | 200 channels | ||
| Channel Spacing | 25K (Wide Band) 20K(Middle Band) 12.5K (Narrow band) | ||
| Phase-locked Step | 2.5KHz, 5KHz, 6.25KHz, 10KHz, 12.5KHz, 20KHz, 25KHz, 30KHz, 50KHz | ||
| Operating Voltage | 13.8V DC ±15% | ||
| Squelch | Carrier/CTCSS/DCS | ||
| Frequency Stability | ±2.5 ppm | ||
| Operating Temperature | -20℃~+60℃ | ||
| Dimensions(mm) | 124 (W) x 163(D) x 39 (H) | ||
| Weight | about 0.64Kg | ||
| RECEIVER | |||
| Wide band | Narrow band | ||
| Sensitivity (12dB Sinad) | ≤0.25μV | ≤0.35μV | |
| AdjacentChannelSelectivity | ≥60dB | ≥60dB | |
| Audio Response | +1~-3dB(0.3~3KHz) | +1~-3dB(0.3~2.55KHz) | |
| Hum & Noise | ≥45dB | ≥40dB | |
| Audio distortion | ≤5% | ||
| Audio power output | >2W@8 | ||
| TRANSMITTER | |||
| Wide band | Narrow band | ||
| Power Output | 25W / 15W / 5W | ||
| Modulation | 16KΦF3E | 11KΦF3E | |
| Adjacent Channel Power | ≥70dB | ≥60dB | |
| Hum & Noise | ≥40dB | ≥36dB | |
| Spurious Emission | ≥60dB | ≥60dB | |
| Audio Response | +1~-3dB(0.3~3KHz) | +1~- dB(0.3~2.55KHz) | |
| Audio Distortion | ≤5% | ||
Feature
- Adopt superior quality material, better technology and high quality radiator to ensure stable and durable operation
- 180 degree rotatable TFT LCD display
- Full alloy body for heat radiation
- Amateur mode and professional mode for different operation requirement
- Distribute buttons reasonably, convenient for operation
- Separate band width setting for each single channel, Wide 25K, Middle band20K, Narrow band 12.5K
- 200 programmable memory channels, identified by editing name
- Separate CTCSS, DCS, DTMF, 5Tone setting for each single channel, rejecting extra calling from other radios
- Various scan functions including CTCSS/DCS scan function
- Smart menu control and PC programming control
- Voltage level protection
- LCD brightless control
- Automatic power on function
- Main unit and microphone key lock function
- 5Tone signaling for data transfer, alarm, all call, ANI, remote kill, remote waken
- DTMF-ANI or 5Tone-ANI for automatical calling recognition
- Password function
- Dualwatch function
- Talk around function
- Frequency reverse function
- Offset function
