RT95 Dual Band Mobile Radios and Fiberglass Radome Antenna Kit
- UHF and VHF Dual Band Mobile Radio, free to switch between city and field.
- LCD display, Dual Display, Dual Standby.
- Anti-collision spring base, makes the fiberglass antenna more durable and not easy to break. And the installation is firm, not easy to fall off.
Bulk order Inquiry
Personalize your device
OverView
RT95 Dual Band Mobile Radios and MR400 Fiberglass Radome Antenna
Retevis RT95 Mobile Radio has nice housing, stoutness & stability, advanced and reliable functions, perfect & valuable. This mobile Transceiver is especially designed for drivers and it pursues a philosophy of innovation and practicality.
Features:

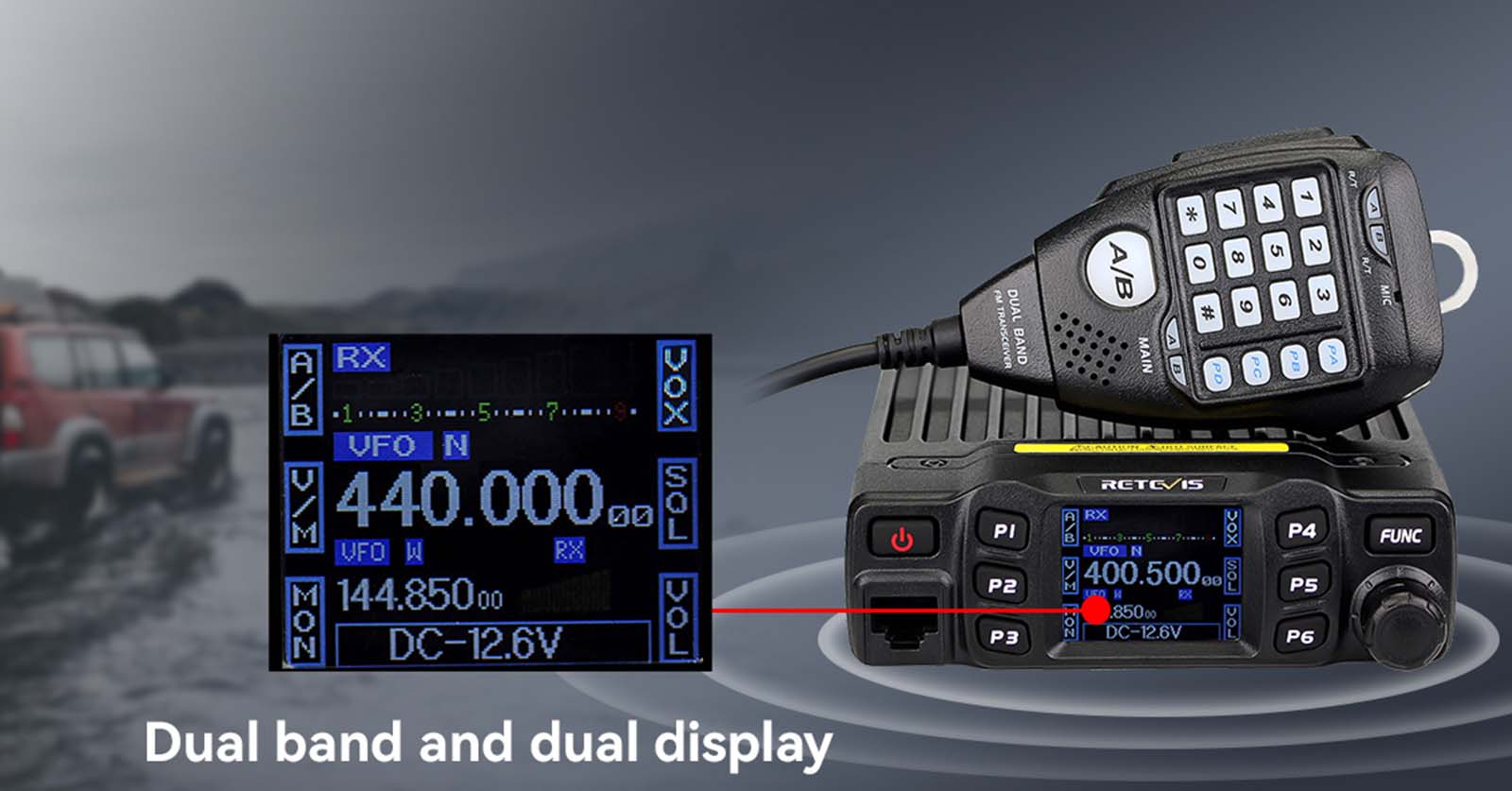

UV dual-band

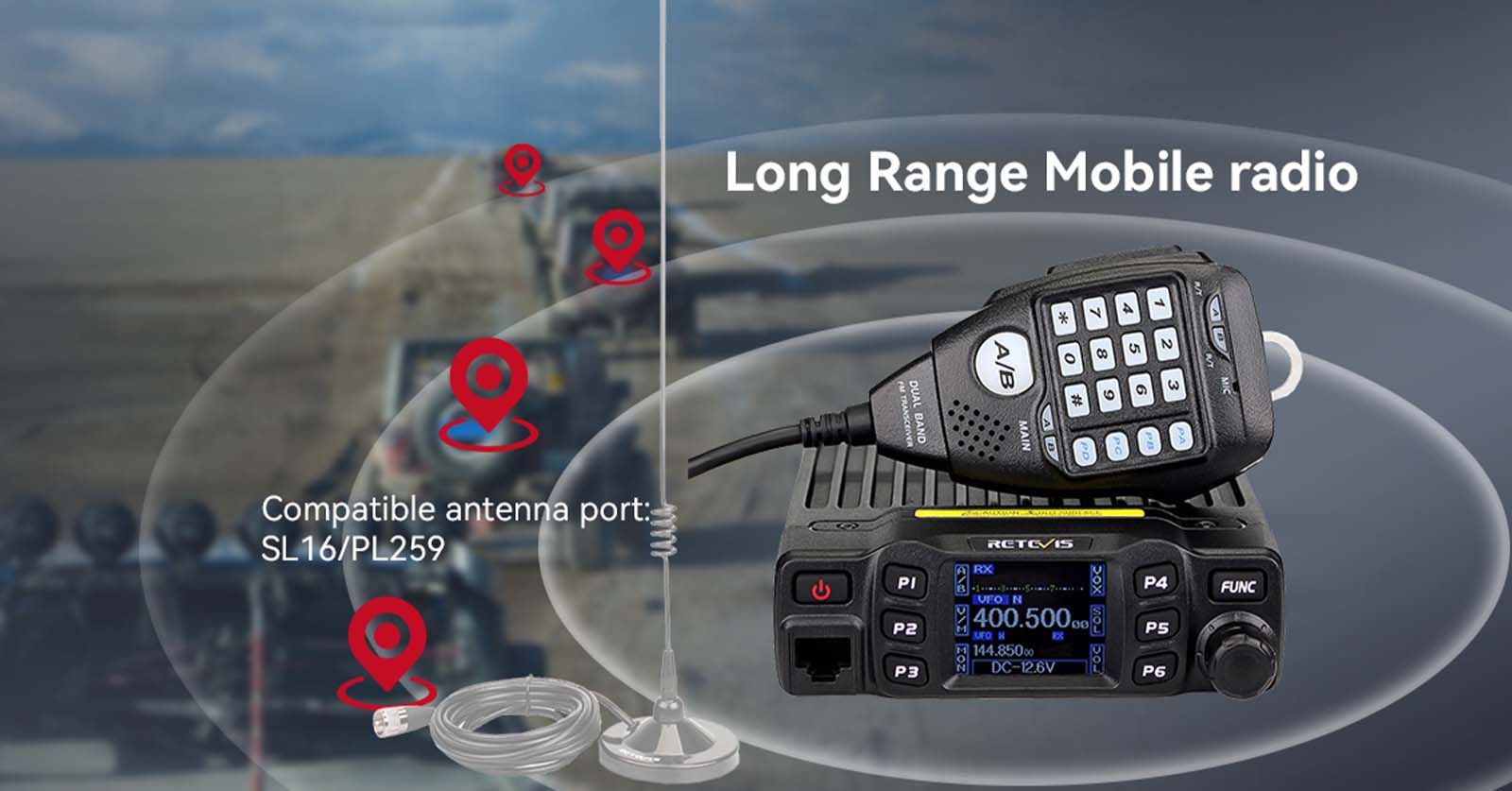

Retevis RT95 Mobile radio US version frequency is 144-148MHz/430-440MHz, EU version is 144-146MHz/430-440MHz, the U and V frequency range make it suitable for urban, outdoor and other call environments, allowing you to get a better experience.
200 channels
Retevis RT95 Mobile radio has up to 200 programmable memory channels, identified by editing name, can help you have enough channel resource settings to meet the needs of communication.
25W high power
Retevis RT95 Mobile radio have 25W / 15W / 5W output power optional, the 25W high power can allow you to get a longer call distance, and low power can meet the use of power saving, close distance and other scenarios.

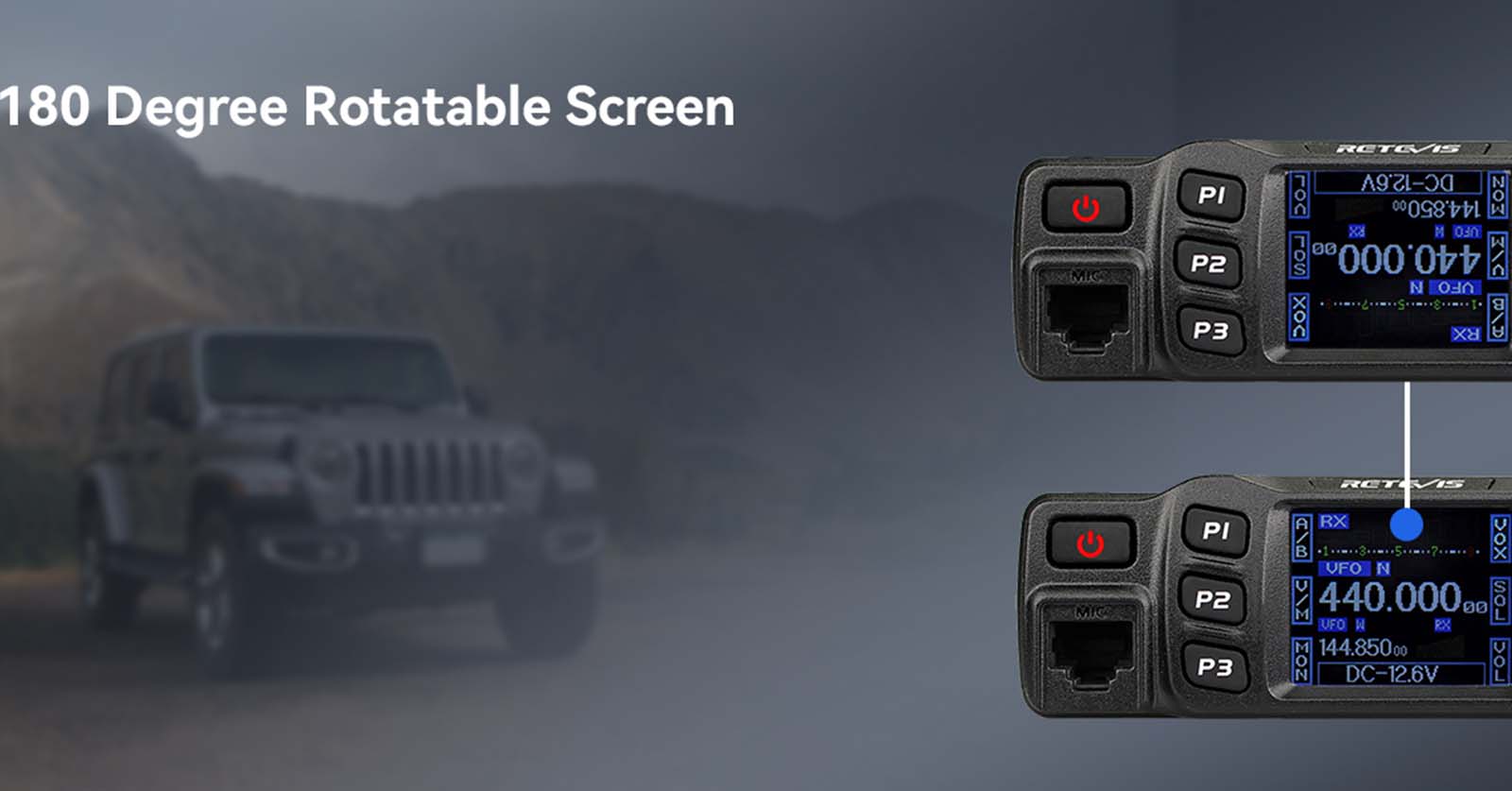

TFT LCD display
Retevis RT95 Mobile radio has 180 degree rotatable TFT LCD display, can meet the diverse usage scenarios of various vehicles such as outdoor travel, transportation, tractors, etc.
-

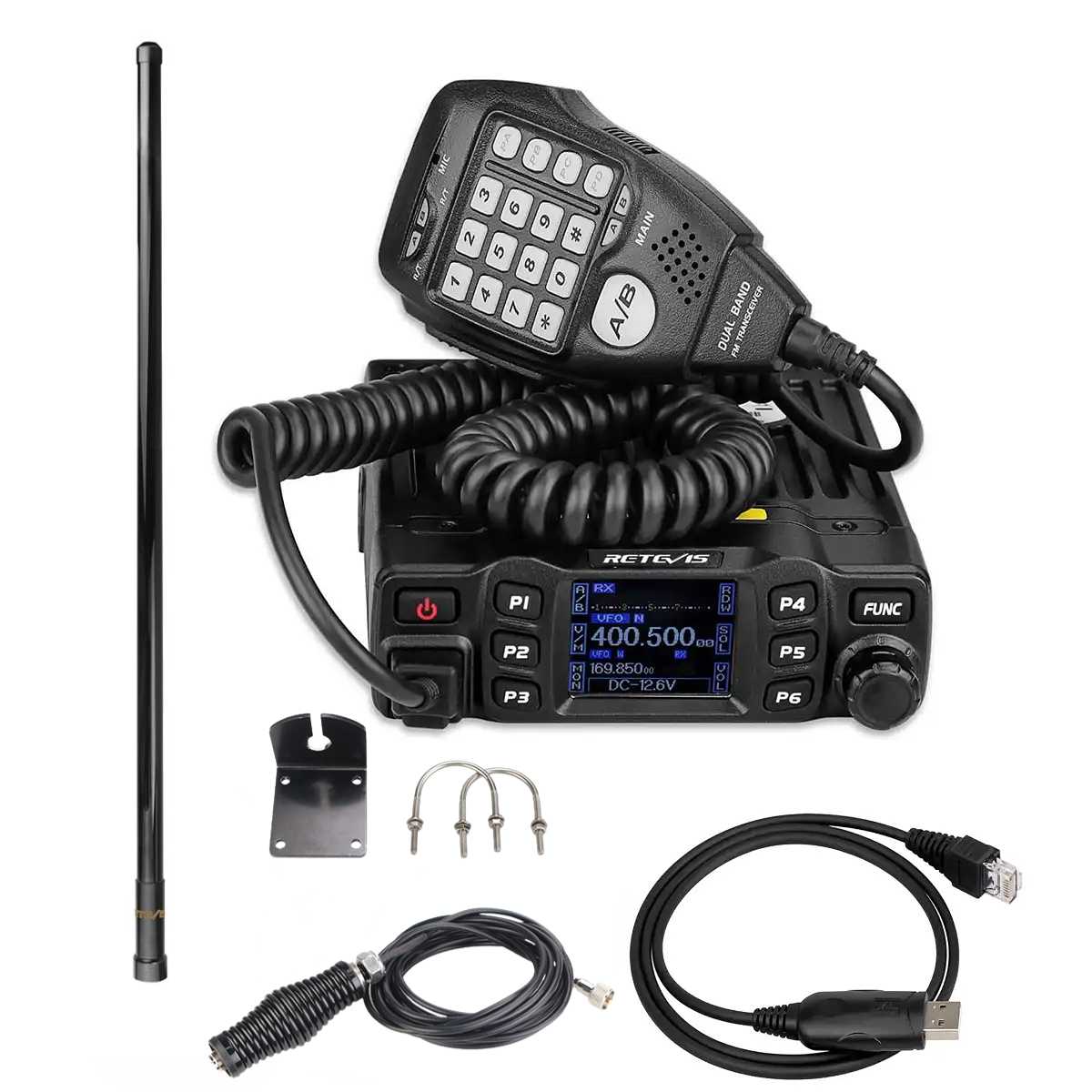

Package Includes:
- 1 x Dual Band Mobile radio
- 1 x Programming Cable
- 1 x U/V Fiberglass Radome Antenna
- 1 x Power cable
- 1 x Handheld mic
- 1 x User's manual
- 1 x One pack of screw and accessories
Learn More:
Spec
| Frequency Range | VHF:144-148MHz UHF: 430~440MHz | ||
| Number of Channels | 200 channels | ||
| Channel Spacing | 25K (Wide Band) 20K(Middle Band) 12.5K (Narrow band) | ||
| Phase-locked Step | 2.5KHz, 5KHz, 6.25KHz, 10KHz, 12.5KHz, 20KHz, 25KHz, 30KHz, 50KHz | ||
| Operating Voltage | 13.8V DC ±15% | ||
| Squelch | Carrier/CTCSS/DCS | ||
| Frequency Stability | ±2.5 ppm | ||
| Operating Temperature | -20℃~+60℃ | ||
| Dimensions(mm) | 124 (W) x 163(D) x 39 (H) | ||
| Weight | about 0.64Kg | ||
| RECEIVER | |||
| Wide band | Narrow band | ||
| Sensitivity (12dB Sinad) | ≤0.25μV | ≤0.35μV | |
| AdjacentChannelSelectivity | ≥60dB | ≥60dB | |
| Audio Response | +1~-3dB(0.3~3KHz) | +1~-3dB(0.3~2.55KHz) | |
| Hum & Noise | ≥45dB | ≥40dB | |
| Audio distortion | ≤5% | ||
| Audio power output | >2W@8 | ||
| TRANSMITTER | |||
| Wide band | Narrow band | ||
| Power Output | 25W / 15W / 5W | ||
| Modulation | 16KΦF3E | 11KΦF3E | |
| Adjacent Channel Power | ≥70dB | ≥60dB | |
| Hum & Noise | ≥40dB | ≥36dB | |
| Spurious Emission | ≥60dB | ≥60dB | |
| Audio Response | +1~-3dB(0.3~3KHz) | +1~- dB(0.3~2.55KHz) | |
| Audio Distortion | ≤5% | ||
Specifications
|
Frequency |
UV（144/430 MHz） |
|
VSWR |
≤1.5 |
|
Input Resistance |
50Ω |
|
Gain |
6.5dB |
|
Power Capacity |
50W |
|
Antenna Length |
110cm |
|
Antenna Diameter |
20mm |
|
Antenna Housing Material |
Fiberglass Radome |
|
Antenna weight |
335g |
|
Antenna Connector |
N.J |
|
Spring Base Height |
102mm(top plastic spacer not included) |
|
Spring Base Material |
Steel |
|
Feeder Type |
RG-58U |
|
Cable |
5M |
|
Connector |
SL16J |
|
(Spring Base + Feeder) weight |
670g |
|
Colour |
Black |
Feature
- Adopt superior quality material, better technology and high-quality radiator to ensure the stable and durable operation
- Amateur mode and professional mode for different operation requirements
- Distribute buttons reasonably, convenient for operation
- Separate bandwidth setting for every single channel, Wide 25K, Middle band20K, Narrowband 12.5K
- Separate CTCSS, DCS, DTMF, 5Tone setting for each single channel, rejecting extra calling from other radios
- Various scan functions including CTCSS/DCS scan function
- Smart menu control and PC programming control
- Voltage level protection
- LCD brightless control
- Automatic power on function
- Main unit and microphone key lock function
- 5Tone signaling for data transfer, alarm, all call, ANI, remote kill, remote waken
- DTMF-ANI or 5Tone-ANI for automatical calling recognition
- Password function
- Dual watch function
- Talk around function
- Frequency reverse function
- Offset function
Product Reviews
-

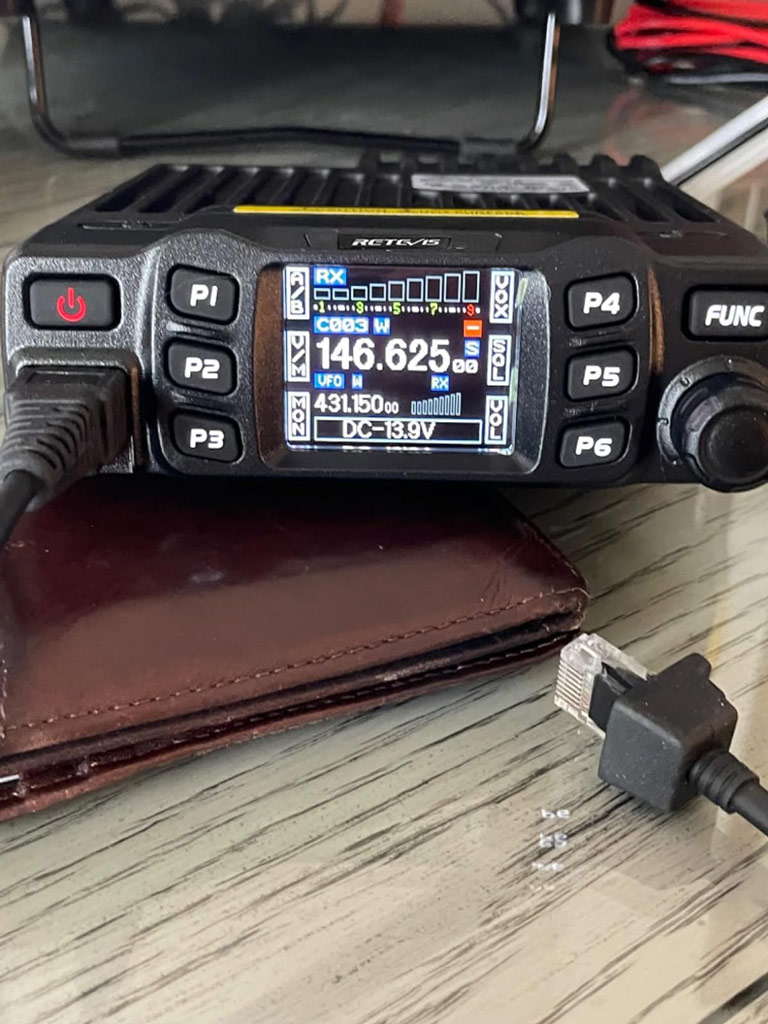

AveliI saw someone testing his frequency is almost indistinguishable from the 25w advertised, and I choose to believe retevis. I was not disappointed. The RT95 is really easy to use, I installed it on my dirt bike, it's easy and the screen is clear. This antenna also comes with a complete set of screws and bracket accessories.
BB.II've used the RT95 before on my friend's tractor and was impressed by its long range and loud sound. I also purchased a combo with a fiberglass antenna for my Jeep. I have to say it's really good. I am very satisfied with the appearance and quality of this antenna.
Support
Firmware/Software
- RT95_LCD(NG)_V1.41_20231202
- RT95_LCD(NG)_V1.41_20231202
- RT95_LCD(NG)_V1.41_20231202
- RT95_MAIN_V1.61_20231202
- RT95_MAIN_V1.61_20231202
- RT95_MAIN_V1.61_20231202
- RT_95(VOX)_Setup_2.01
- QXCodePro_Update_Setup_1.04
Before upgrading, please think carefully and confirm the S/N version! There are three versions of RT95, which are divided as follows: First version: Without VOX version (S/N code: before 202101, not applicable to these software) Second version: With VoX version, S/N code 202101-202312 (software is only for the second version of RT95) Third version: With VOX version, the machine has MIC gain function setting without upgrading, SN code 202401 version
