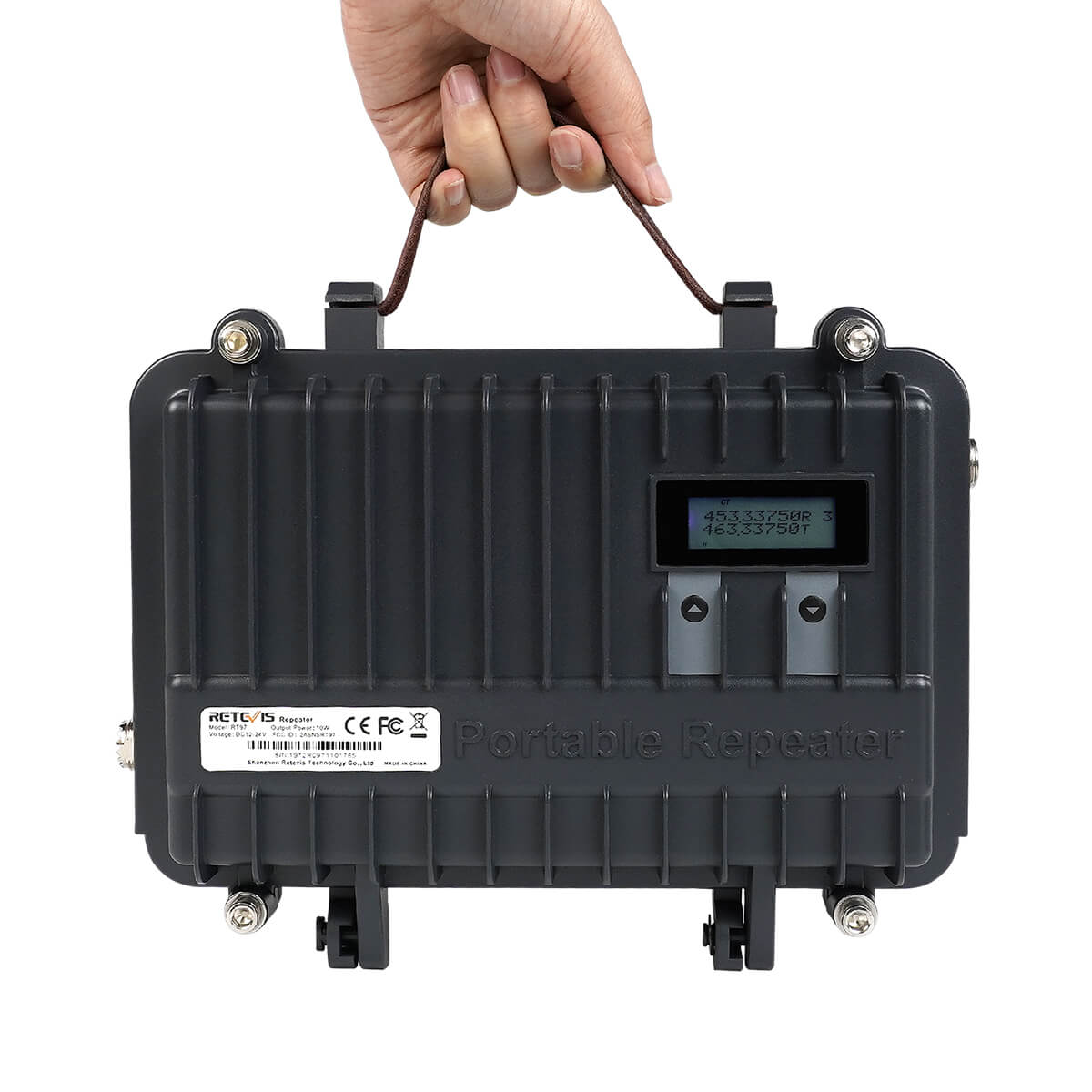

RT97 Long Range Full Duplex Mini Portable Repeater
- Extend range to ensure reliable communication
- Exceptional Clear Voice Quality
- Compact and Portable
- Durable and Sturdy Body
- Can be powered by DC12V~24V power, car power and solar battery
In stock version:
- VHF-10mHz-Stock: Offset 10mhz, Tx:162.6125mhz and RX:152.6125MHZ.
- UHF-10mhz-Stock: Offset 10mhz, TX: 463.3125mhz and RX: 453.3125MHZ
Bulk order Inquiry
Personalize your device
OverView
RT97 Long Range Full Duplex Mini Portable Repeater
The RT97 repeater is ideal for solar-powered repeater sites where low power and a small footprint are required. At such a small portable size, this repeater is perfect for farming, camping trips or emergency preparedness.
Small and Compact Design
With the package size:310×283×170mm. Very small and easy to carry, you can use it outdoor. Simple and convenient installation, flexible operation, can be operated as fixed or mobile.
Can be widely used for different Applications
Retevis RT97 with the mini size, and multi-charger, help you to extend your handheld radio, and easy to install and easy to use, can be widely used for different applications, such as farms, construction site and hotels, etc.
Car Charger
Built into a cable TV amplifier box, the RT97 is rugged and water-resistant. Two power adapters come with the repeater, a 12V/24V cigarette lighter plug, and an AC adapter.
Multi Charging Methods
RT97 Can be powered by DC12V~24V power, car power and solar battery.
Spec
Technical parameters:
| Specifications | |
| Frequency Range | Tx:162.6125mhz and RX:152.6125MHZORTX: 463.3125mhz and RX: 453.3125MHZ |
| Channel Capacity | 16CH |
| Channel Spacing | ±12.5KHz Narrow/±25kHz Wide |
| Operating Voltage | DC12V ~24V |
| Operating Temperature | -30°C~ +60°C |
| Frequency Stability | ±2.5ppm |
| Antenna Impedance | 50Ω |
| Dimension | 260*210*70mm |
| Weight | 1.66kg |
| Transmitter | |
| Intermediate Frequency | Tx:162.6125mhz and RX:152.6125MHZORTX: 463.3125mhz and RX: 453.3125MHZ |
| Power Output | 5W |
| Modulation | F3E |
| Spurious Emission | -60dB or less |
| Maximum Frequency Deviation | Wide: ±5kHz Narrow: ±2.5kHz |
| Audio Distortion | 5% or less |
| FM Noise | Wide:≤45dB Narrow :≤40dB |
| Receiver | |
| Intermediate Frequency | Tx:162.6125mhz and RX:152.6125MHZORTX: 463.3125mhz and RX: 453.3125MHZ |
| Sensitivity(12dB SINAD) | 0.2μV (Wide) 0.25μV (Narrow) |
| Squelch Sensitivity | 0.15μV (Wide) 0.2μV (Narrow) |
| Adjacent Channel Selectivity | ≥ 70dB (Wide) / ≥65dB (Narrow) |
| Intermodulation | ≥ 55dB |
| Spurious Rejection | ≥ 55dB |
| Image Rejection | ≥ 55dB |
| FM Ham and Noise | ≤-45dB(Wide) / ≤ -40dB(Narrow) |
| Modulation Type | F3E |
| Operating Bandwidth | ≤±7KHz / ≤±5KHz |
| Audio Distortion | ≤ 5% |
Feature
Retevis RT97 Portable Mobile Analog Mode Repeater
1, VHF-10mHz-Stock: Offset 10mhz, Tx:162.6125mhz and RX:152.6125MHZ.
2, UHF-10mhz-Stock：Offset 10mhz, TX: 463.3125mhz and RX: 453.3125MHZ
3, Output power: 10W.
4, Small size: With the package size: 310×283×170mm. Very small and easy to carry, you can use it outdoor.
5, Car charger: Provide the car charger, you can use this repeater in your car.
6, Multi-charger way: Not only provide the car charger, but also provide the DC12V~24V power. Very convenient.
7, LCD display will help you know the TX and RX frequencies, CTCSS/DCS code.
Product Reviews
Support
Firmware/Software
- RT97-RT97S-Software
- USB-Driver-WIN11-20230410
For the new version of the programming cable; Support WIN 11 System. NOTE: If you plug in the programming cable to the computer, and it shows “USB READER (COMX)” in device manager, then your cable is a new version.
- CH340-USB-Driver
For the old version of the programming cable; Not support WIN 11 System. NOTE: If you plug in the programming cable to the computer, and it shows “USB-SERIAl CH340 (COMX)” in device manager, then your cable is an old version.
