OverView

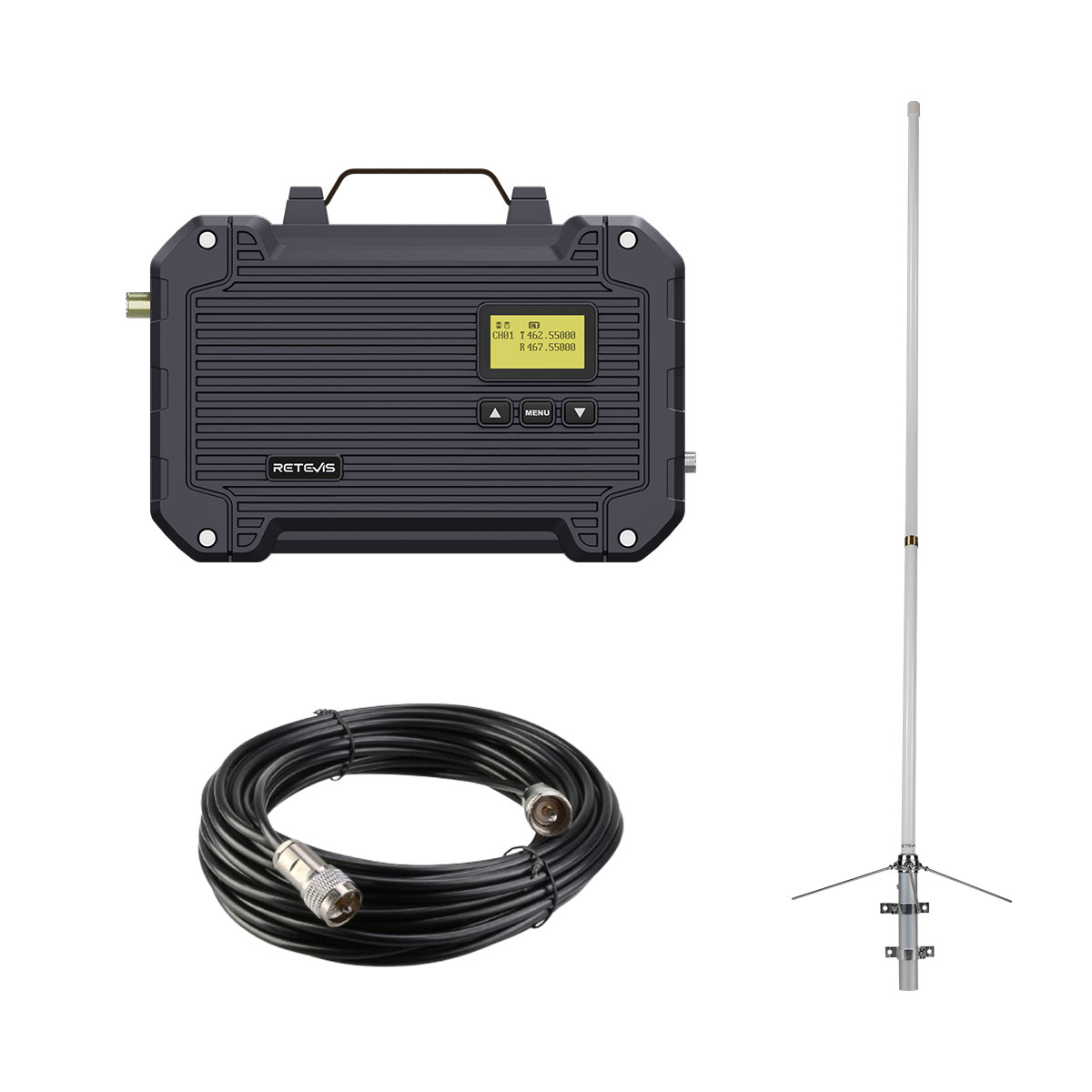

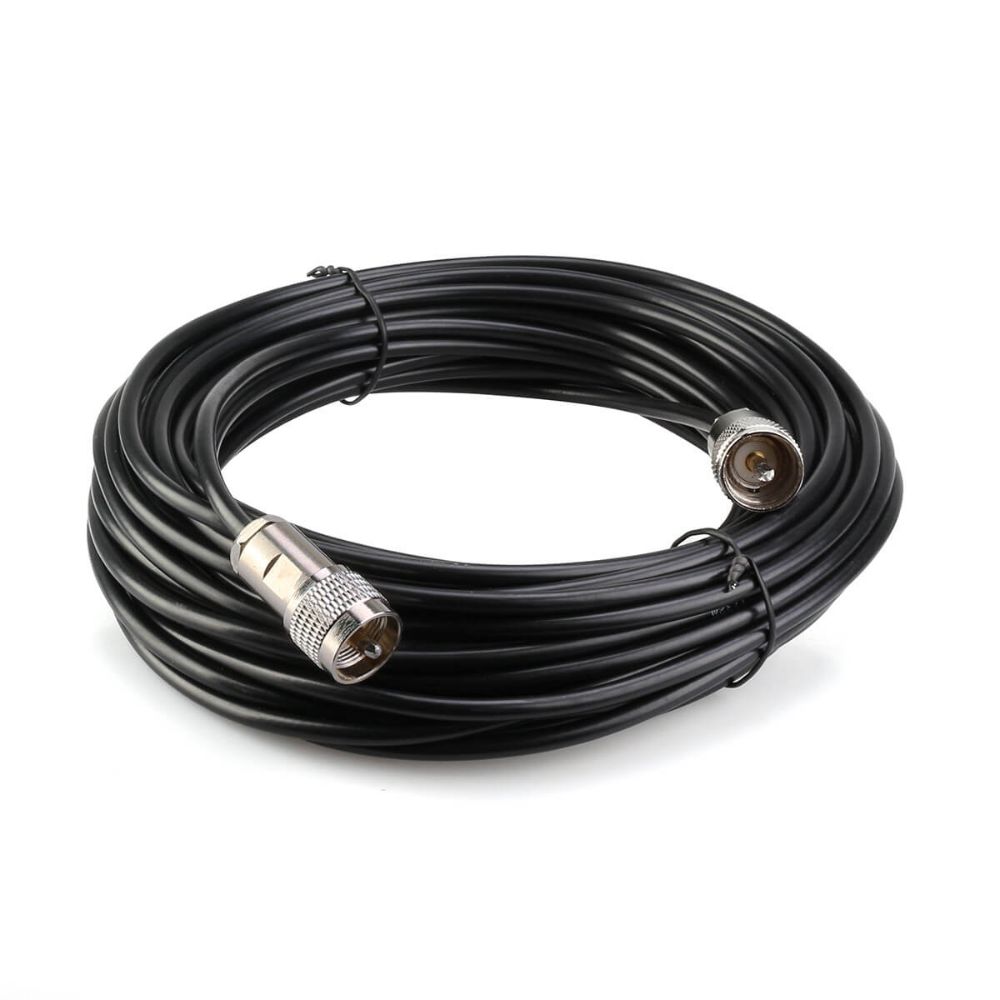

RT97L+Antenna+Cable

Enhanced signal coverage, ensuring long-distance clear calls, suitable for outdoor adventures, construction sites and other environments.

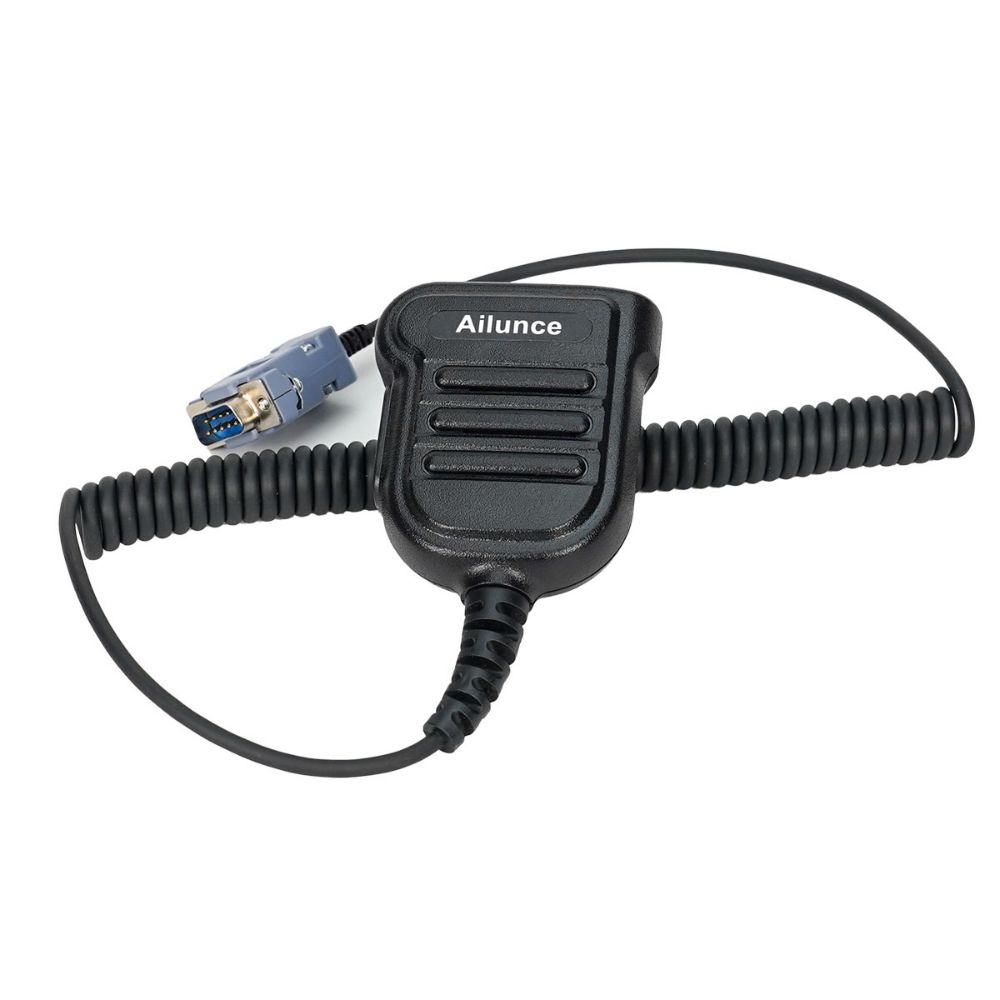

RT97L+Speaker Mic

Free your hands and make calls more convenient, especially suitable for security, event command or frequent mobile users.

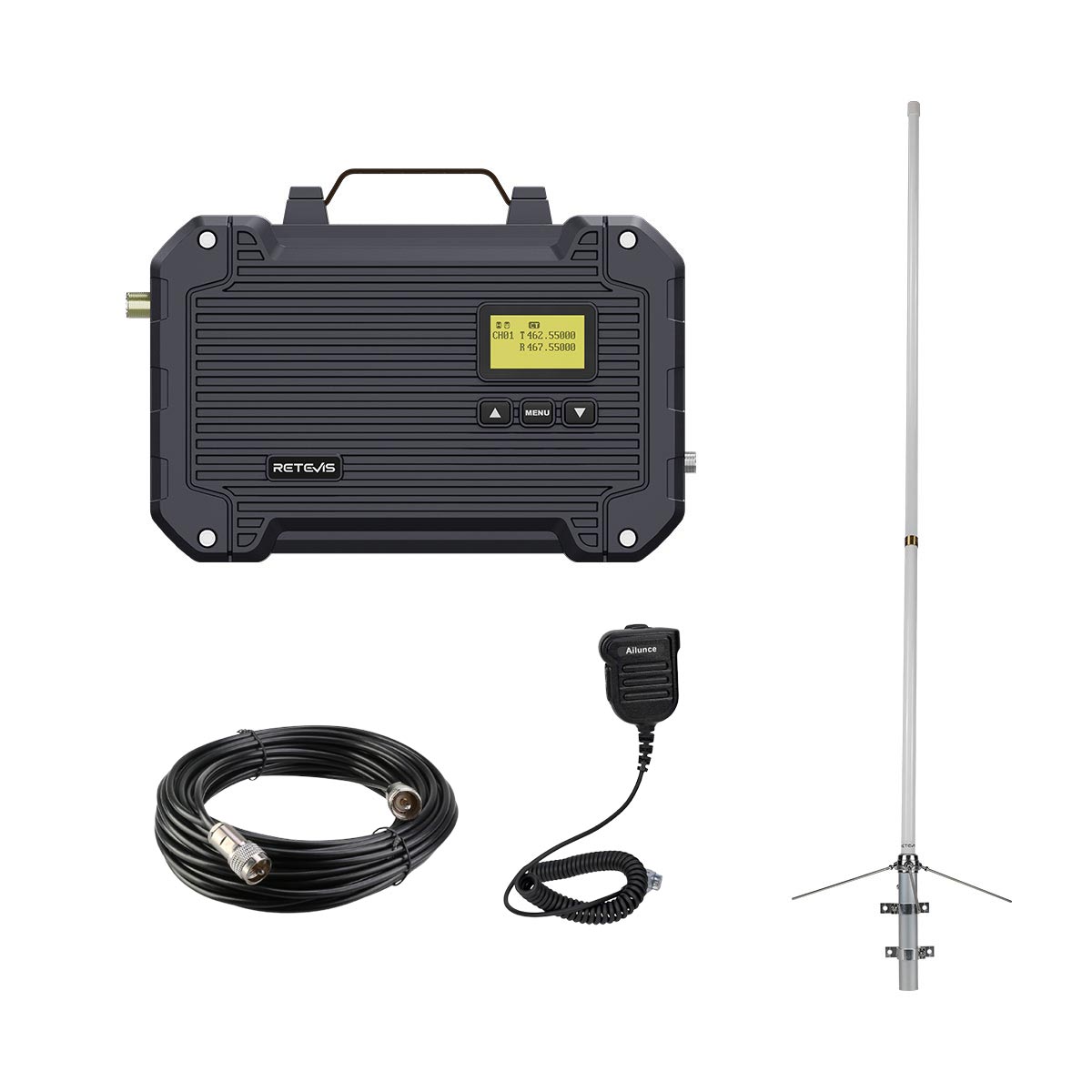

RT97L+Antenna+Cable+Mic

A comprehensive combination that takes into account signal enhancement and convenient operation, and is an ideal choice for professional users.

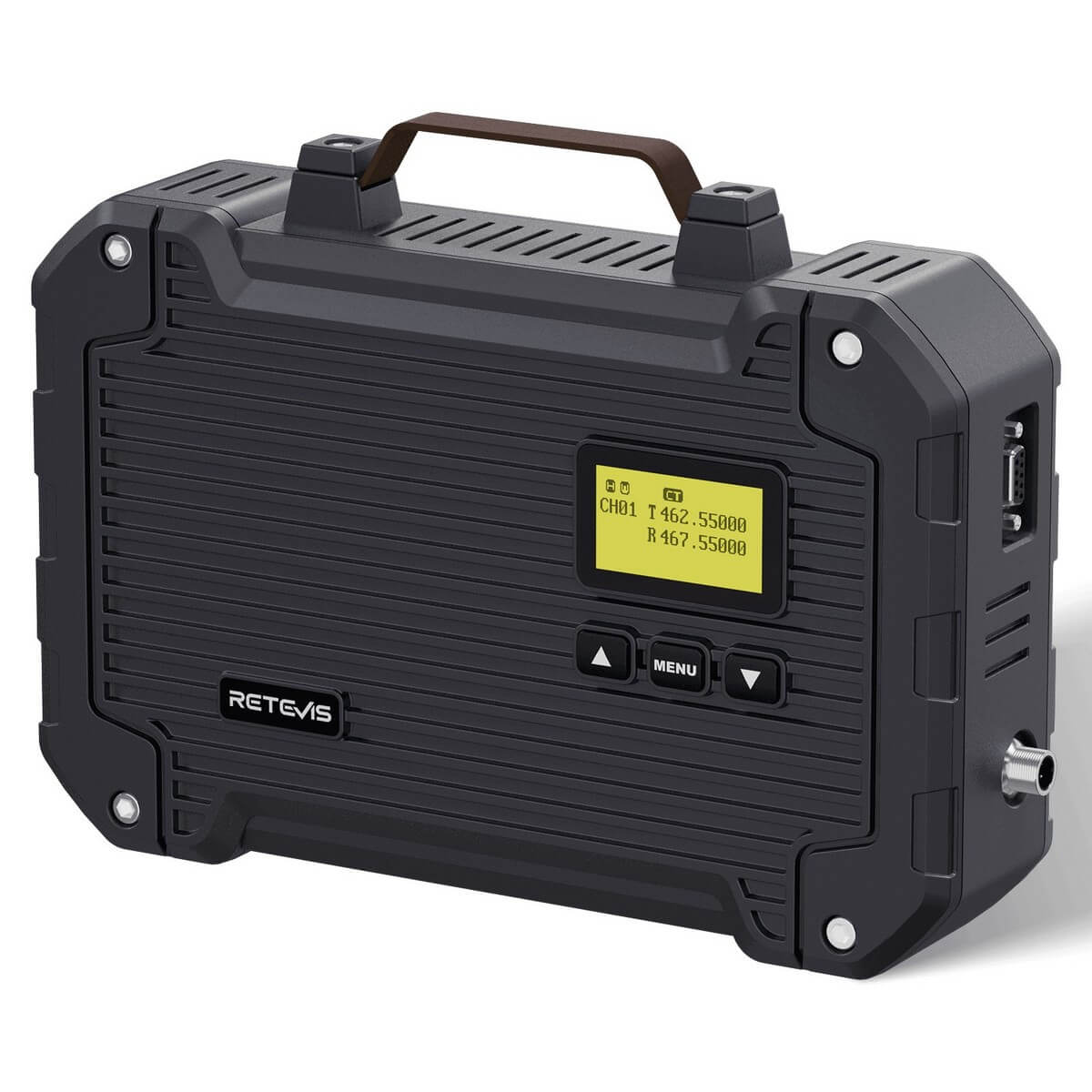

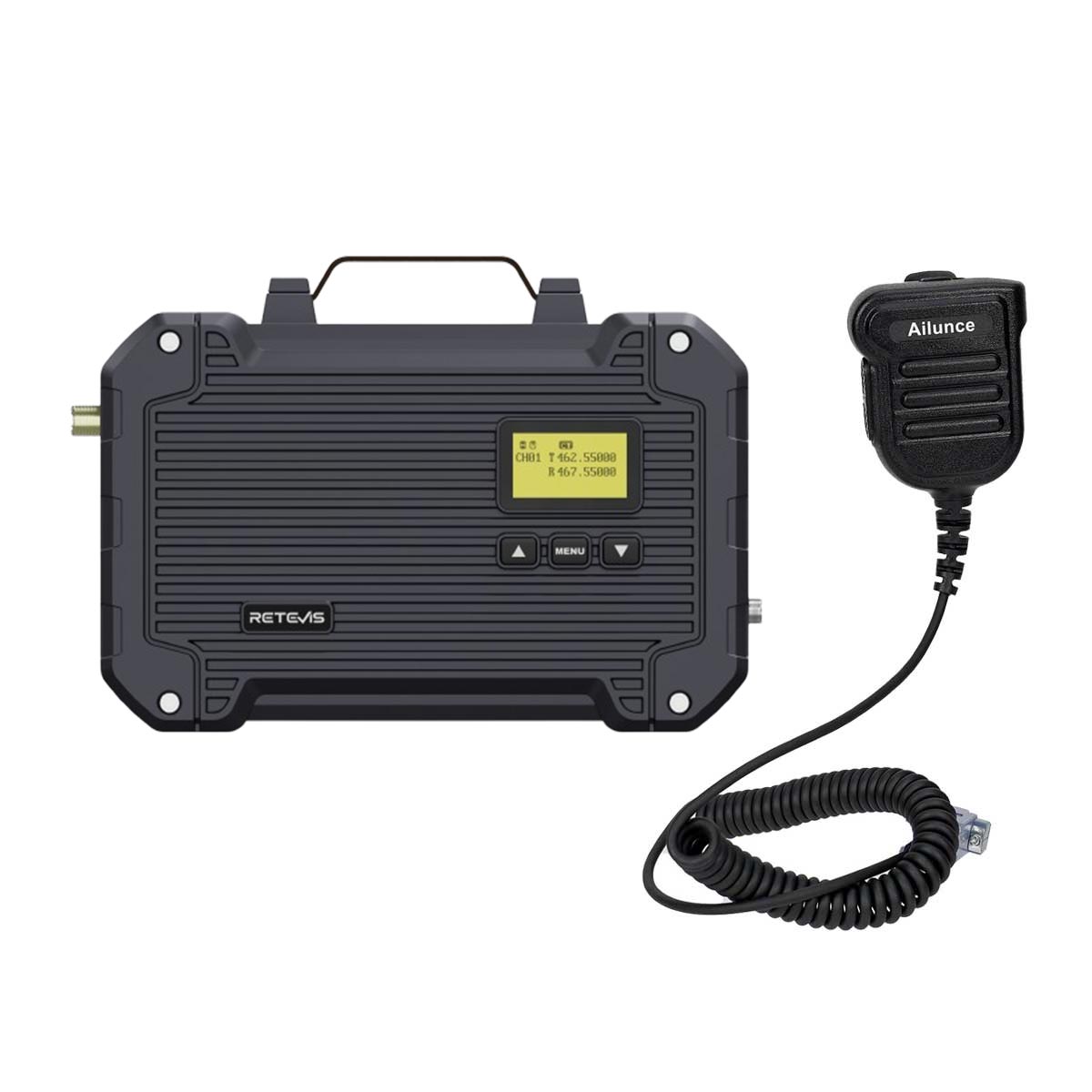

25W RT97L GMRS Long Range Waterproof Full Duplex Repeater

The Retevis RT97L GMRS Repeater offers high power, IP66 waterproof, and high-temperature protection, ensuring reliable communication in any environment. Its portable design, screen display, and easy Raspberry Pi connection make it a versatile solution for your team. Ideal for construction sites, logistics, property management, and large farms.

25W High Power

The RT97L repeater features 25W high power output, delivering stronger signal coverage to ensure clear and stable communication even in challenging terrains or long-distance environments. Whether on large farms, hunting camps, construction sites, or large outdoor events, the RT97L radio repeater significantly extends communication range, making team coordination more efficient.

Enhanced Signal Strength

Boost your Raspberry Pi's signal reach with the GMRS repeater. Whether you're in a remote farm or a bustling city, experience seamless internet connectivity and stable communication for enhanced performance in any environment.

High-Low Power Adjustment

Enjoy flexible power switching with the mobile GMRS repeater. Seamlessly switch between high and low power modes based on your needs, ensuring you always have the right signal strength without wasting resources. Whether for long-distance communication or conserving energy, it adapts to your environment.

Portable and Lightweight

It's convenient to carry and move, whether for emergency rescue or hiking adventures.

16 Versatile Channels

Stay connected with the GMRS repeater's 16 versatile channels; switch between high and low power options to match your environment; ensuring clear communication no matter where you are

High-Temperature Protection

The portable GMRS repeater features automatic power adjustment, switching to low power mode when temperatures exceed 60°C. This prevents overheating and ensures stable operation, even in hot climates.

Low-Temperature Mode

Keep your GMRS repeater running smoothly in cold weather with the low-temperature mode. When the ambient temperature drops to -15°C, the internal heating system automatically activates, preventing freezing and ensuring reliable performance even in harsh winter conditions.

LCD Screen Display

Provide a straightforward display of information such as channel and battery level, allowing you to check it at a glance.

Detail Display

Installation Steps

FAQ

1. What is the difference between 5W and 25W?

The difference in power can be significant. For example, using 5W of power, communication over a long distance might result in weak or no signal. However, with 25W of power, the range can greatly improve, allowing for clearer and more reliable communication over much longer distances.

While power is crucial, factors like antenna height also play an important role. In situations where elevation isn't favorable, higher power can be a big help in extending communication range.

2. Is the actual output power really 25W?

The factory output is between 22W-25W. However, when operating with a duplexer, there may be power loss, reducing output to around 15W-22W, depending on the quality, thickness, and length of the feeder cable.

3. What’s the GMRS Repeater Frequency Range (TX and RX)?

For users operating with GMRS, the frequency range of the RT97L is:

• TX (Transmit): 462.550 - 462.725 MHz
• RX (Receive): 467.550 - 467.725 MHz

This range allows for effective communication and operation in the designated GMRS frequencies, which are crucial for users who need clear, uninterrupted signals.

4. How Does Using a Raspberry Pi Enhance RT97L’s Functionality?

The RT97L portable gmrs repeater is designed with flexibility in mind. By connecting the repeater to a Raspberry Pi via its DB-9 interface, users can expand the repeater's functions. This allows for easy programming and the ability to customize the repeater to fit specific needs, whether you’re operating in a particular area, enhancing security, or fine-tuning performance.

5. What Is Amp Absorption in TX and RX?

• Receive Mode Absorption: 180mA
• Transmit Mode Absorption: 5.5A

6. How is the RT97L Waterproof Even if the Doors Are Uncovered?

The RT97L gmrs mobile repeater is rated IP66 waterproof, meaning it can withstand powerful jets of water from all directions. This rating ensures that it performs well even in harsh weather or environments with heavy water flow. However, to ensure optimal performance and longevity, it's always a good idea to install the repeater in a protected location, especially in areas with extreme weather conditions.

7. Does the RT97L Have an Internal Duplexer?

Yes, the RT97L portable repeater comes equipped with an internal duplexer, which is essential for enabling the repeater to work efficiently with an antenna. The duplexer allows the device to handle both transmit and receive signals simultaneously without interference.

8. How Many Channels Does the RT97L Have? And What Does It Mean?

The RT97L is capable of storing 16 different channels, which means it can quickly switch between up to 16 communication frequencies.

9. What is the RT97L's Duty Cycle?

The duty cycle for RT97L repeater is 100%.

10. What is the DB-9 Female Connector used for?

RT97S base station comes with a DB-9 port, which can be directly connected to the included speaker mic and is compatible with Raspberry Pi.

11. Does this repeater work with your handheld FRS units? Or just the GMRS radios?

Because of the limitations on FRS by the FCC, this repeater can be only ued for GMRS radio, no mater handheld GMRS radios or Mobile GMRS radios.

12. Is this repeater compatible with other manufacturers handheld GMRs radios that are repeater capable? For example BTECH, Radioddity, Midland?

Yes, the RT97L repeater is compatible with GMRS handheld radios that are repeater capable.
