RT97P UHF Mini Portable DMR Repeater
- 10W DMR Portable Repeater
- Analog and Digital Mode
- Extend the distance of the handheld Radios
- Exceptional Clear Voice Quality
- Can be powered by DC12V~24V power, car power and solar battery
NOTE:
- UHF-10mhz-Stock: Offset 10mhz, TX: 463.3125mhz and RX: 453.3125MHZ
- Programming software: please click "ServiceSupport" to download.
Bulk order Inquiry
Personalize your device
OverView
RT97P UHF Mini Portable DMR Repeater
The RT97P DMR Repeater is ideal for solar-powered repeater sites where low power and a small footprint are required. At such a small portable size, this DMR repeater is perfect for farming, camping trips, or emergency preparedness.

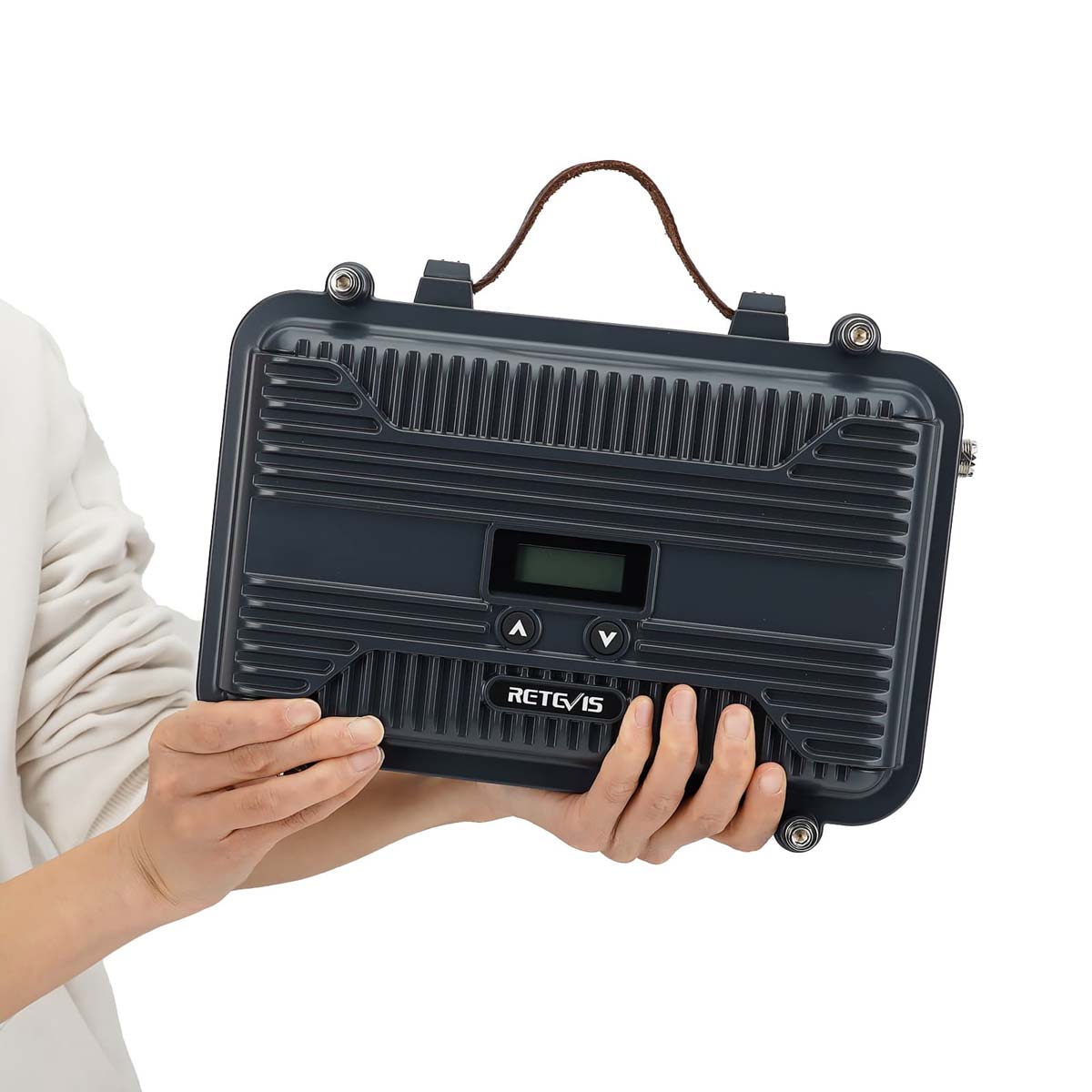

Mini and Portable Size
With the package size:310×283×170mm. Weight less than 3kgs. Very small and easy to carry, you can use it outdoors.
Car Charger
Built into a cable TV amplifier box, the RT97P is rugged and water-resistant. Two power adapters come with the repeater, a 12V/24V cigarette lighter plug, and an AC adapter.
Multi Charging Methods
RT97P Can be powered by DC12V~24V power, car power, and solar battery.
Dual Mode
RT97P DMR repeater can work in dual modes: digital mode and analog mode. You can use it to expand the communication range of not only digital radio but also analog radio.
Spec
Main Technological Specification
| Frequency | TX 463.3125MHz / RX 453.3125MHz |
| Standard form | DMR/FM/DMR+FM |
| Channel Capacity | 8CH |
| Channel Spacing | ±12.5KHz Narrow/±25KHz Wide |
| Operating Temperature | -30℃~+60℃ |
| Operating Voltage | DC12V-24V |
| Antenna Impedance | 50Ω |
| Frequency Stability | ±0.5ppm |
| Dimension | 280×210×75mm |
| Weight | 2624g |
Transmitter
| Output power | 10W |
| Transmission Current | ≤2.5A |
| FM Modulation | 11kφF3E/16kφF3E |
| Digital modulation | 4FSK |
| Modulation Distortion | ≤5% |
| FM Noise | ≥40dB（25KHz）/≥35dB（12.5KHz） |
| Adjacent Channel Power | ≥70dB（25KHz）/≥60dB（12.5KHz） |
| Audio Response | +1～-3dB |
| DMR Protocol | ETSI-TS102 361-1,-2,-3 |
Receiver
| Analog receive Sensitivity | 0.25μν（12dB）SINAD |
| Digital receive sensitivity | -120dBm (BER≤5%) |
| Adjacent channel selectivity | ≥70dB（25KHz）/≥60dB（12.5KHz） |
| Inter-modulation | ≥60dB/≥65dB |
| Signal imitation | ≥70dB |
| Audio Response | +1～-3dB |
| Audio distortion | <5% |
| FM Noise | ≥45dB（25KHz）/≥40dB（12.5KHz） |
Feature
Retevis RT97P UHF DMR Portable Repeater
1. UHF-10mhz-Stock：Offset 10mhz, TX: 463.3125mhz and RX: 453.3125MHZ
2. Output power: 10W.
3. Small size: With the package size: 310×283×170mm. Very small and easy to carry, you can use it outdoor.
4. Car charger: Provide the car charger, you can use this repeater in your car.
5. Multi-charger way: Not only provide the car charger, but also provide the DC12V~24V power. Very convenient.
6. LCD display will help you know the TX and RX frequencies, CTCSS/DCS code.
Product Reviews
ServiceSupport
Firmware/Software
- USB-Driver-WIN11-20230410
For the new version of the programming cable; Support WIN 11 System. NOTE: If you plug in the programming cable to the computer, and it shows “USB READER (COMX)” in device manager, then your cable is a new version.
- CH340-USB-Driver
For the old version of the programming cable; Not support WIN 11 System. NOTE: If you plug in the programming cable to the computer, and it shows “USB-SERIAl CH340 (COMX)” in device manager, then your cable is an old version.
- RT97P-software-20221112
