RT97S Customizable Frequency Portable Repeater and FRP Antenna Bundle
- Customized: The duplexer has a very narrow operating frequency band, Now allowing to customize the Repeater according to your TX and RX frequency.
- Built-in Sound Card: Exchange data with Raspberry Pi(not include) via DB9 connector
- Easy installation: built-in duplexer, volume is only 10.2*8.3*2.8in, weight is only 3.7ibl
- Multiple power supply methods: powered by DC12V~24V power (car power and solar battery), and AC220V power
- Best system performance: RT97S is dustproof and waterproof, and can be directly installed near the antenna to minimize the loss of the feeder.
NOTE:
- Please note the customized information when placing an order.
- After confirming your custom frequency, it will take 2 weeks to customize.
- After customization, the frequency is fixed and cannot be returned.
- This product does not include a cable to connect to the Raspberry Pi.
Bulk order Inquiry
Personalize your device
OverView

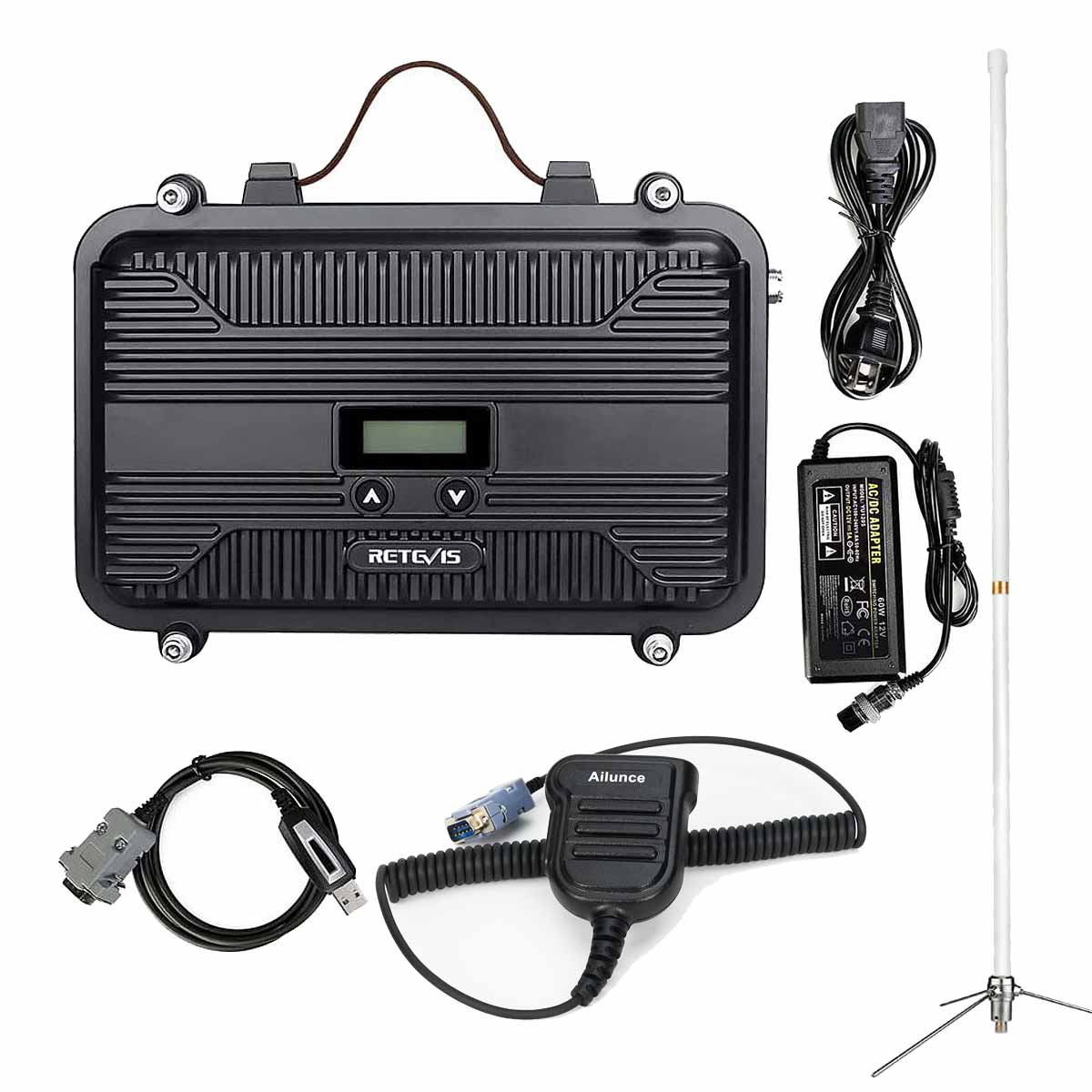

Retevis RT97S Customizable Full Duplex Portable Repeater Kit

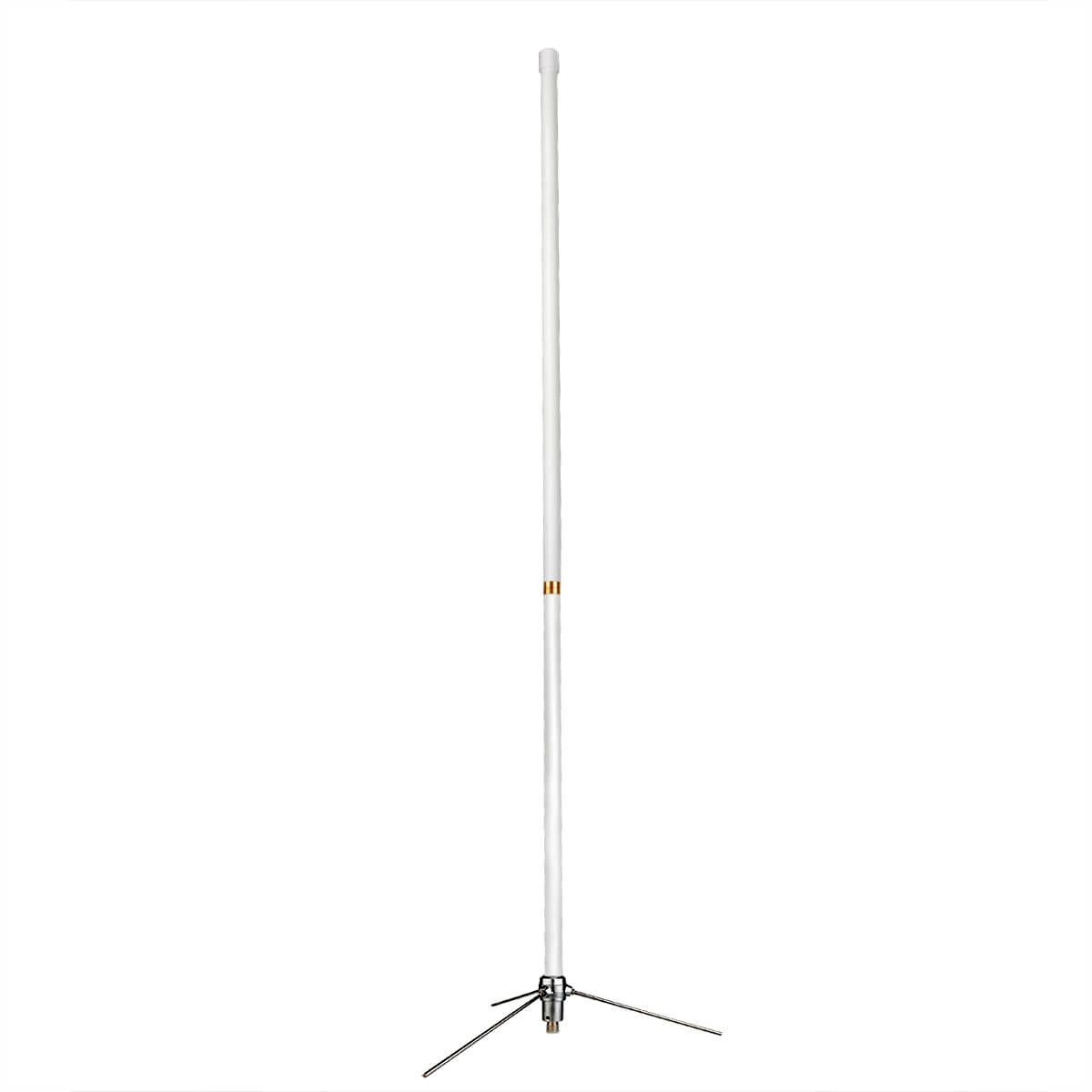

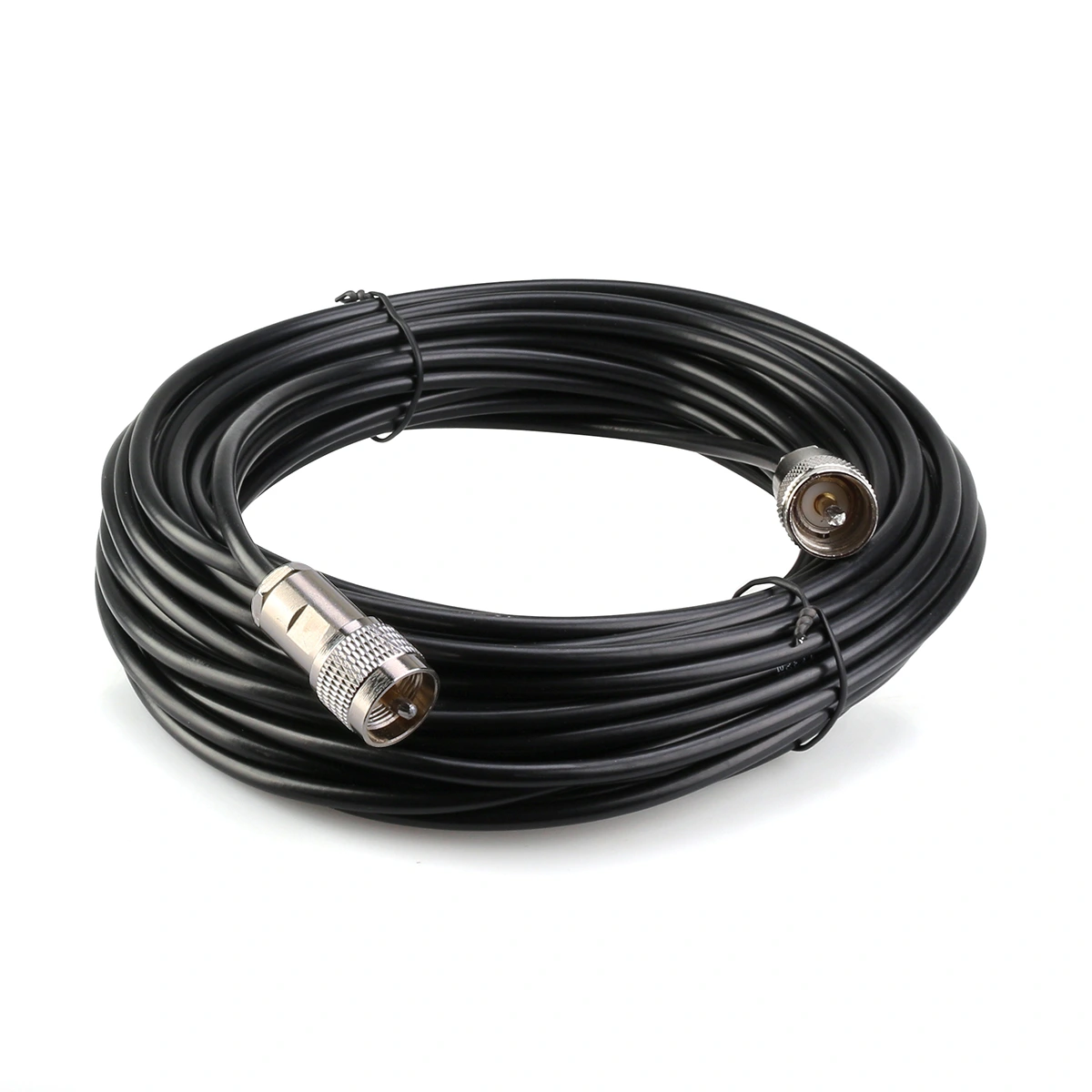

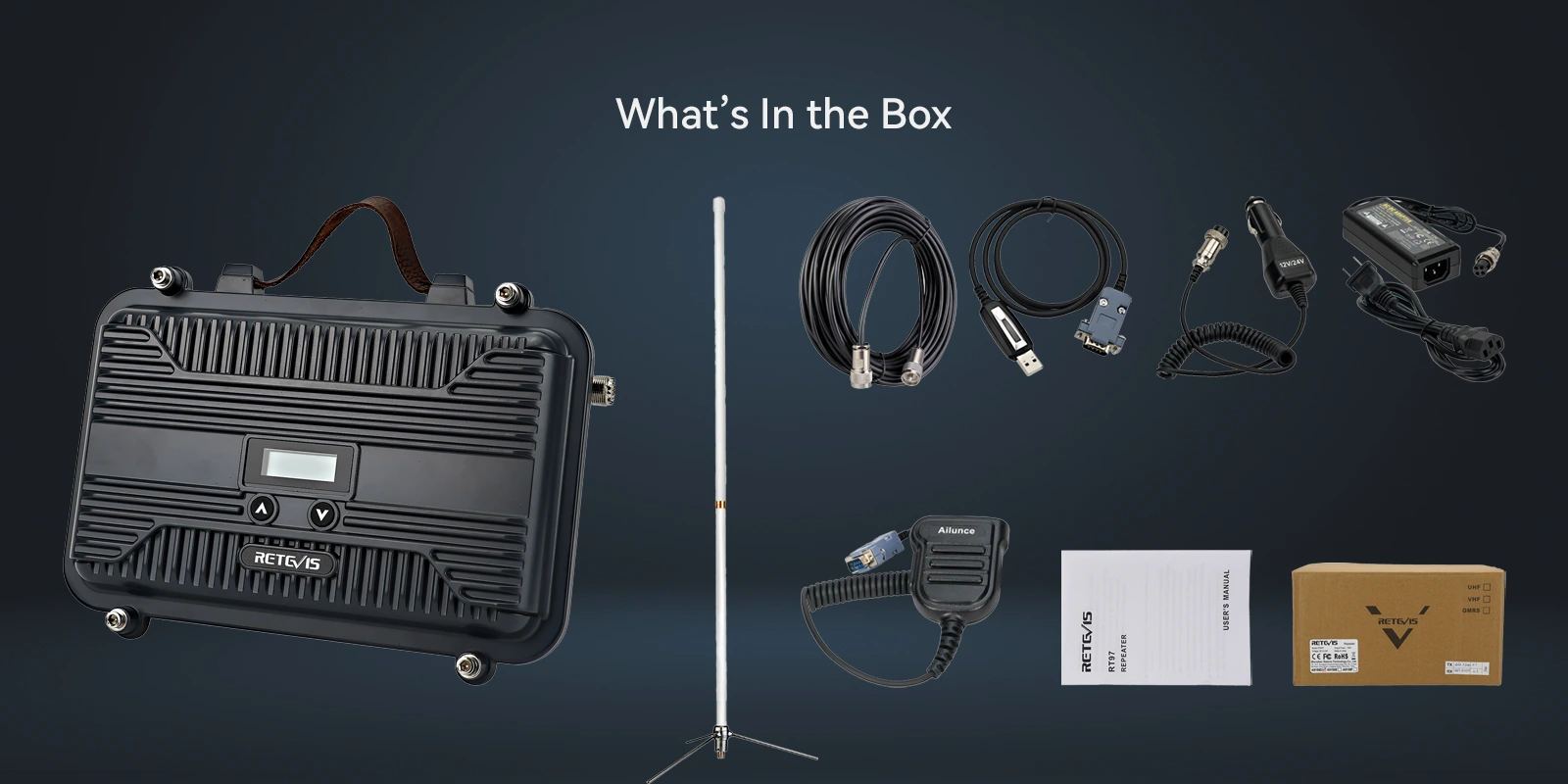

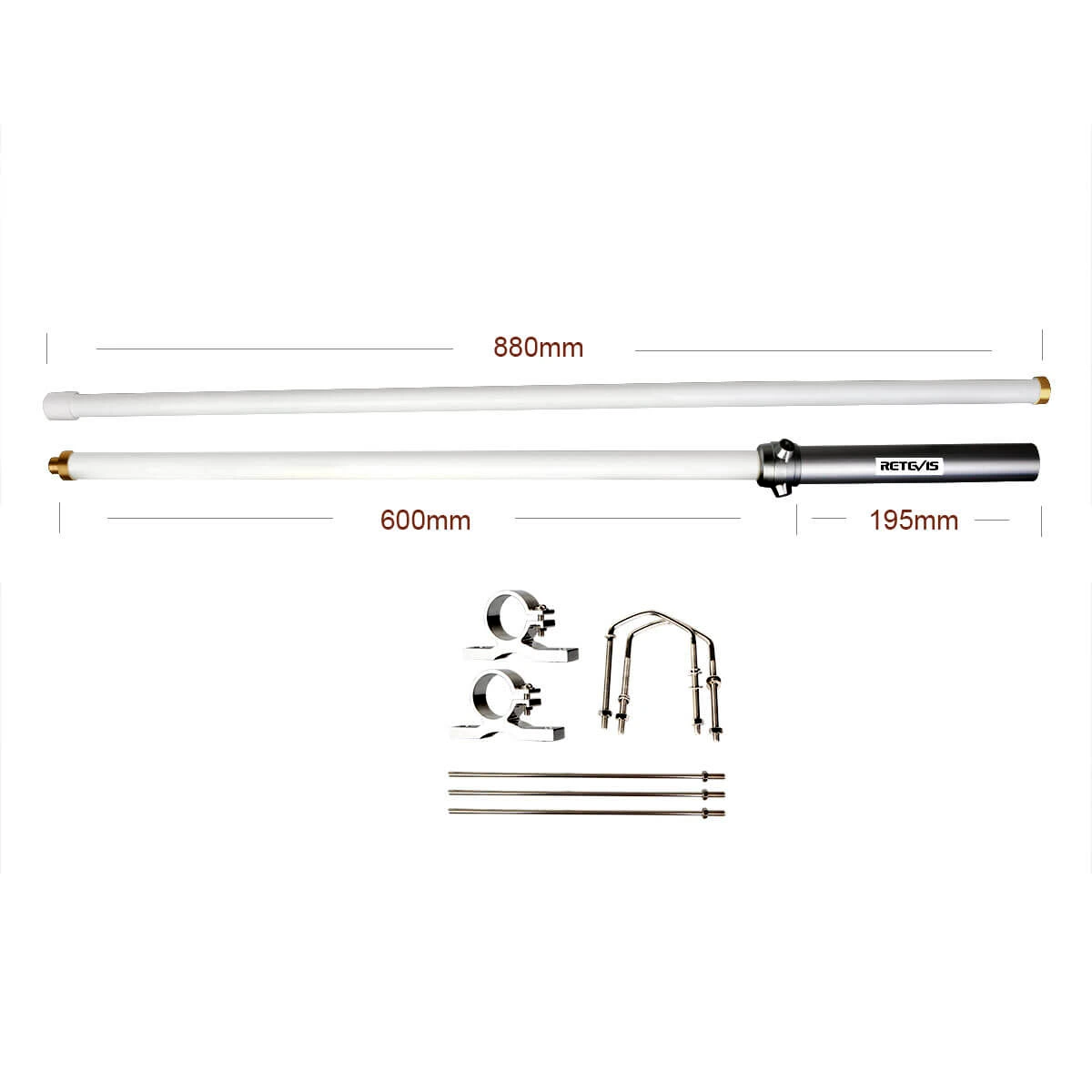

Retevis RT97S portable repeater can be customized between UHF (400-470MHZ) or VHF(136-174MHZ). This repeater kit also includes a high-gain FRP antenna with an extended cable to strengthen signals, a speaker mic for clearer communication, a programming cable for easy setting, and a car charger for convenient charging. Perfect for farming, camping trips, or emergency preparedness.
1. The RT97S repeater is ideal for solar-powered repeater sites where low power and a small footprint are required. At such a small portable size, this repeater is perfect for farming, camping trips or emergency preparedness.
2. This version features an updated case and a DB-9 Female connector for adding an external controller for linking purposes. You can add this repeater to the myGMRS Network by purchasing a linking bundle or an all-in-one kit that is plug-and-play (coming soon).
3. Customizable Frequency: TX frequency and RX frequency can be customized between UHF (400-470MHZ) or VHF(136-174MHZ). If you need to customize the repeater, please note the following information when placing the order: RX frequency, TX frequency, Offset (Offset ≥5MHz and ≤12MHz) and Charger type.
4. Built into a cable TV amplifier box, the RT97S is rugged and water-resistant. Two power adapters come with the repeater, a 12V/24V cigarette lighter plug, and an AC adapter. A USB programming cable is also included, so you can program the repeater to your channel and CTCSS/DCS tones of choice.
5. The RT97S is ideal for solar-powered repeater sites where low power and a small footprint are required. At such a small portable size, this repeater is perfect for camping trips or emergency preparedness.
6. Inside the case, there is a small 10W notch duplexer, an LCD display, a DC-DC power adapter, and the integrated radio module itself. This repeater does NOT simply have 2 handheld radios inside.
FAQs
Spec
| Specifications | |
| Frequency Range | Customizable Range: [UHF: 400-470MHz or VHF: 136-174MHz] |
| Channel Capacity | 8 CH Repeater Channels |
| Channel Spacing | ±12.5KHz Narrow/±25kHz Wide |
| Operating Voltage | DC12V - 24V |
| Operating Temperature | -22° F - 140° F (-30° C - 60° C) |
| Frequency Stability | ±2.5ppm |
| Antenna Impedance | 50 Ω |
| Dimensions | 10.25" x 8.3" x 2.8" (260 x 210 x 70mm) |
| Weight | 3.7 lbs (1.66 kg) |
| Transmitter | |
| Power Output | 5W |
| Modulation | F3E |
| Spurious Emission | -60dB or less |
| Maximum Frequency Deviation | Wide: ±5kHz Narrow: ±2.5kHz |
| Audio Distortion | 5% or less |
| FM Noise | Wide:≤45dB Narrow :≤40dB |
| Receiver | |
| Sensitivity(12dB SINAD) | 0.2μV (Wide) 0.25μV (Narrow) |
| Squelch Sensitivity | 0.15μV (Wide) 0.2μV (Narrow) |
| Adjacent Channel Selectivity | ≥ 70dB (Wide) / ≥65dB (Narrow) |
| Intermodulation | ≥ 55dB |
| Spurious Rejection | ≥ 55dB |
| Image Rejection | ≥ 55dB |
| FM Ham and Noise | ≤-45dB(Wide) / ≤ -40dB(Narrow) |
| Modulation Type | F3E |
| Operating Bandwidth | ≤±7KHz / ≤±5KHz |
| Audio Distortion | ≤ 5% |
