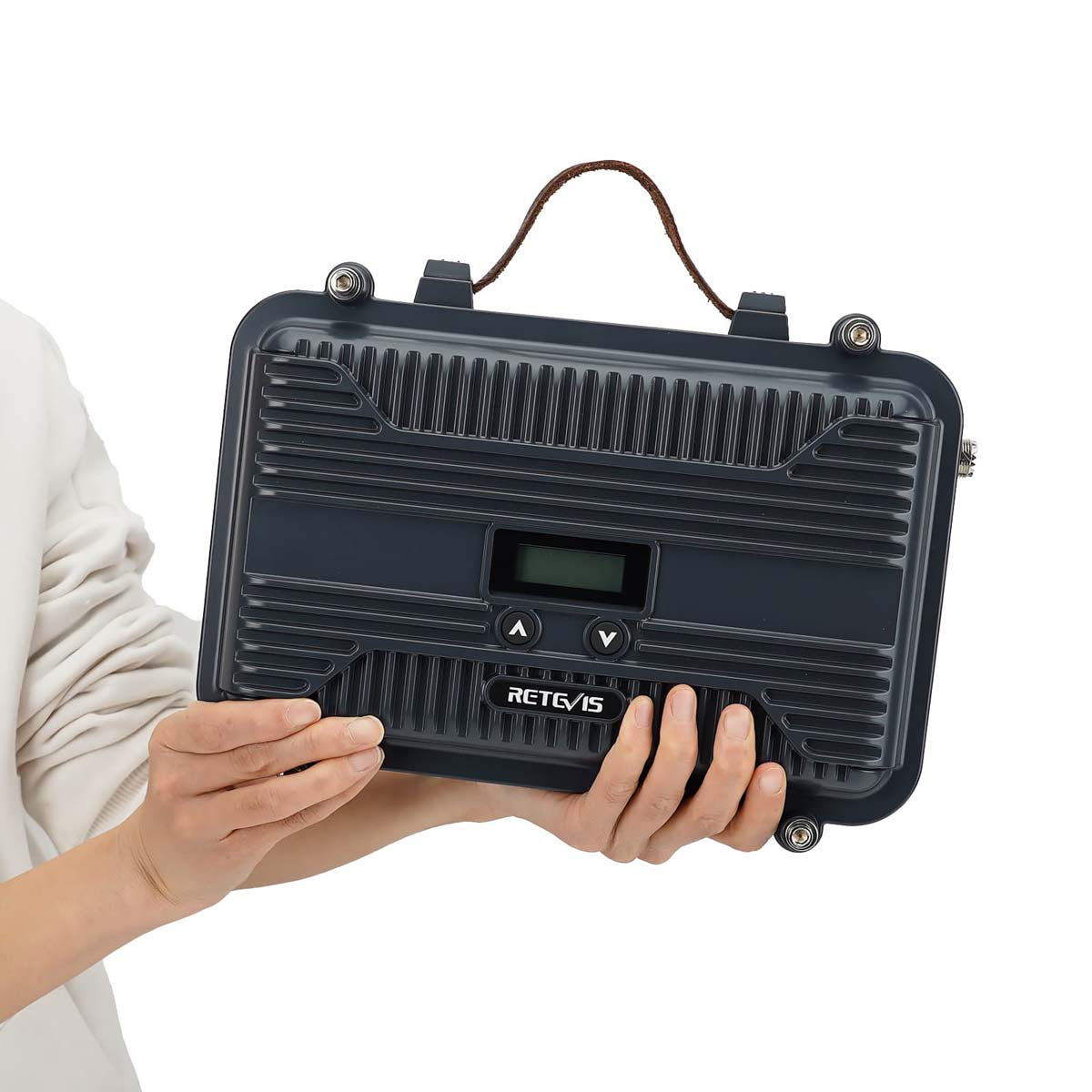

RT97S Customizable Full Duplex Portable Repeater
US$ 329.99
US$ 170.00
(34%OFF)

SKU: US-DC23030701
- Customized: The duplexer has a very narrow operating frequency band, Now allowing to customize the Repeater according to your TX and RX frequency.
- Built-in Sound Card: Exchange data with Raspberry Pi(not include) via DB9 connector
- Easy installation: built-in duplexer, volume is only 10.2*8.3*2.8in, weight is only 3.7ibl
- Multiple power supply methods: powered by DC12V~24V power (car power and solar battery), and AC220V power
- Best system performance: RT97S is dustproof and waterproof, and can be directly installed near the antenna to minimize the loss of the feeder.
NOTE:
- Please note the customized information when placing an order.
- After confirming your custom frequency, it will take 2 weeks to customize.
- After customization, the frequency is fixed and cannot be returned.
- This product does not include a cable to connect to the Raspberry Pi.
Save $30.00 Orders Over $300
Free shipping
Limited time deal
GETTING CLOSER! ONLY $50.00 AWAY FROM FREE SHIPPING!
Order Handling Time within 3 Working days(Pre-sale products excluded).
22102 PEOPLE ARE LOOKING FOR THIS PRODUCT
- Secure Payments
- 30-Day Money-Back Guarantee
- Hassle-Free Warranty
- Lifetime Customer Support
Bulk order Inquiry
Personalize your device
OverView




What’s in the Box?
- 1 x RT97S Customizable Repeater
- 1 x Charger
- 1 x Power Supply
- 1 x Car Charger Cable
- 1 x Programming Cable
- 1 x User's Manual
Spec
Specifications | |
Frequency Range | Customizable Range: [UHF: 400-470MHz or VHF: 136-174MHz] |
Channel Capacity | 8 CH Repeater Channels |
Channel Spacing | ±12.5KHz Narrow/±25kHz Wide |
Operating Voltage | DC12V - 24V |
Operating Temperature | -22° F - 140° F (-30° C - 60° C) |
Frequency Stability | ±2.5ppm |
Antenna Impedance | 50 Ω |
Dimensions | 10.25" x 8.3" x 2.8" (260 x 210 x 70mm) |
Weight | 3.7 lbs (1.66 kg) |
Transmitter | |
Power Output | 5W |
Modulation | F3E |
Spurious Emission | -60dB or less |
Maximum Frequency Deviation | Wide: ±5kHz Narrow: ±2.5kHz |
Audio Distortion | 5% or less |
FM Noise | Wide:≤45dB Narrow :≤40dB |
Receiver | |
Sensitivity(12dB SINAD) | 0.2μV (Wide) 0.25μV (Narrow) |
Squelch Sensitivity | 0.15μV (Wide) 0.2μV (Narrow) |
Adjacent Channel Selectivity | ≥ 70dB (Wide) / ≥65dB (Narrow) |
Intermodulation | ≥ 55dB |
Spurious Rejection | ≥ 55dB |
Image Rejection | ≥ 55dB |
FM Ham and Noise | ≤-45dB(Wide) / ≤ -40dB(Narrow) |
Modulation Type | F3E |
Operating Bandwidth | ≤±7KHz / ≤±5KHz |
Audio Distortion | ≤ 5% |
Support
Firmware/Software
- RT97-RT97S-Software
- USB-Driver-WIN11-20230410
For the new version of the programming cable; Support WIN 11 System. NOTE: If you plug in the programming cable to the computer, and it shows “USB READER (COMX)” in device manager, then your cable is a new version.
- CH340-USB-Driver
For the old version of the programming cable; Not support WIN 11 System. NOTE: If you plug in the programming cable to the computer, and it shows “USB-SERIAl CH340 (COMX)” in device manager, then your cable is an old version.
