RT98 Mini Transceiver Powerful VHF Mobile Radio Car Radio

- New-Mini Mobile Car Radio
- Single-Band VHF

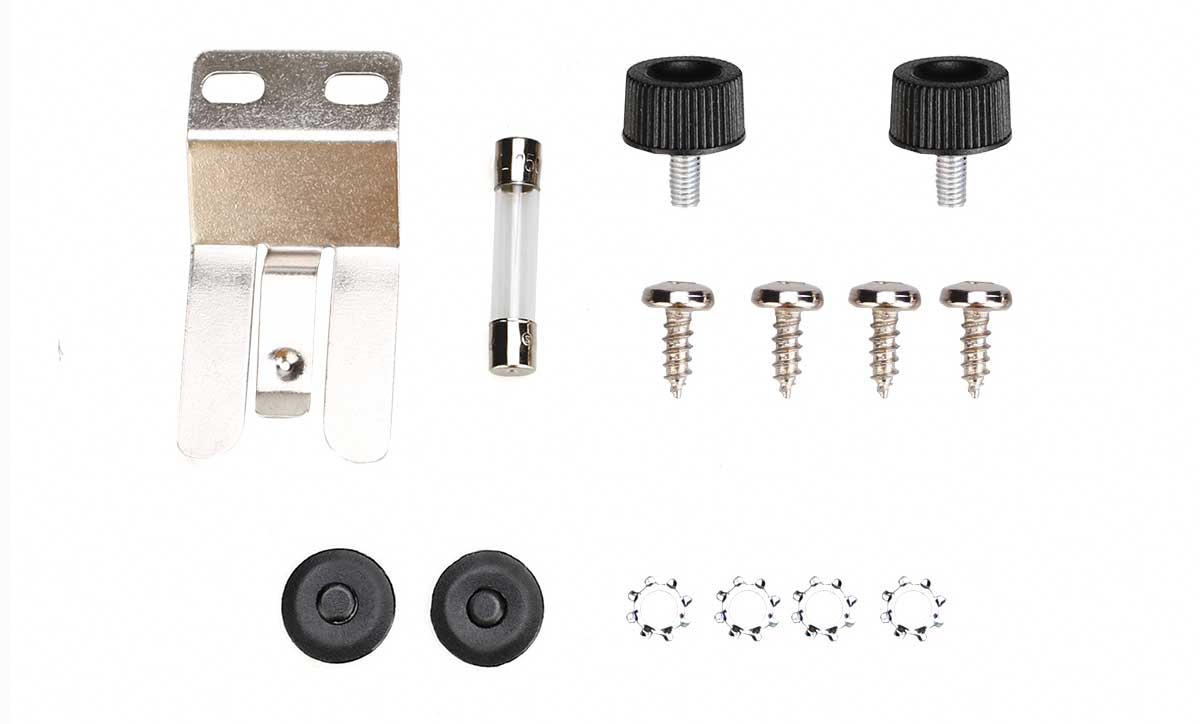

- Comes with Easy-to-Install Bracket
- Support VFO Mode
NOTE: Programming software: please click "support" to download
GETTING CLOSER! ONLY $50.00 AWAY FROM FREE SHIPPING!
Order Handling Time within 3 Working days(Pre-sale products excluded).
- Secure Payments
- 30-Day Money-Back Guarantee
- Hassle-Free Warranty
- Lifetime Customer Support
Bulk order Inquiry
Personalize your device
OverView
Retevis RT98 Mini Transceiver Powerful two way radio mobile Radio Car Radio
Mini Mobile radio.
The RT98 mobile transceiver is available in mini format and measures 10 x 10.6 x 2.4 cm. It is very easy to carry and does not take up any more space when it is stored in your car or truck.
Spec
Specification:
GENERAL | ||
Frequency range | VHF 136-174MHz | |
Number of Channels | 199 channels | |
Channel Spacing | 25KHz(Wide Band) 12.5KHz(Narrow Band) | |
Phase-locked Step | 2.5K,5K,6.25K,10K,12.5K,20K,25K,30K,50K | |
Operating Voltage | 13.8V DC ±15% | |
Squelch | Carrier/CTCSS/DCS | |
Frequency Stability | ±2.5ppm | |
Size | 100*106*24mm | |
Weight | 434g | |
RECEIVER | ||
Wide Band | Narrow Band | |
Sensitivity (12dB SINAD) | ≤0.25μV | ≤0.35μV |
Adjacent ChannelSelectivity | ≥60dB | ≥60dB |
Intermodulation | ≥60dB | ≥60dB |
Spurious response | ≥60dB | ≥60dB |
Audio Response | +1~-3dB(0.3~3KHz) | +1~-3dB(0.3~3KHz) |
Hum & Noise | ≥45dB | ≥40dB |
Audio Distortion | ≤5% | |
Audio Power Output | >2W@16R | |
TRANSMITTER | ||
Wide Band | Narrow Band | |
Power Output | 15W / 10W / 5W | |
Modulation | 16KφF3E | 11KφF3E |
Adjacent Channel Power | ≥70dB | ≥60dB |
Hum & Noise | ≥40dB | ≥36dB |
Spurious Emission | ≥60dB | ≥60dB |
Audio Response | +1~-3dB(0.3~3KHz) | +1~-3dB(0.3~3KHz) |
Audio Distortion | ≤5% |
Feature
Mini Mobile Radio UHF/VHF Transceiver 15W Two Way Radio Car Radio
1, The single Band Mobile Transceiver
RT98 is the single band mobile radio, VHF: 136-174MHz
2, LCD screen.
Retevis RT98 has the LCD display, which makes it easier for you to check the information
3, More comfortable user experience
Comes with the mic, make the RT98 easier to use. You can program the mic buttons to activate the functions like scan, Squelch......

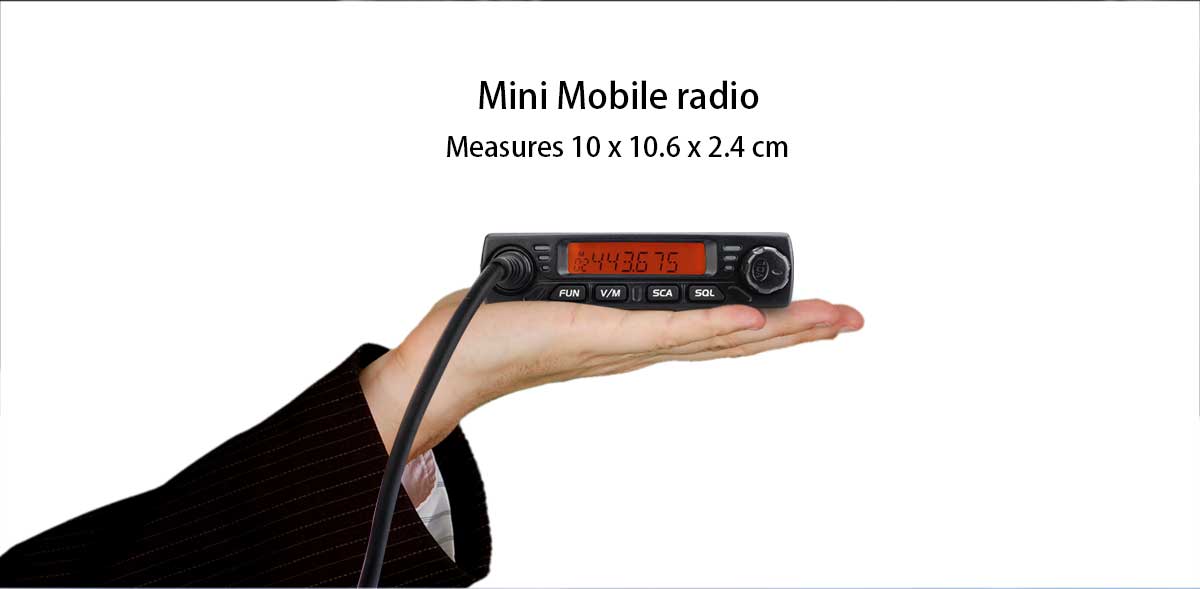

4, Mini Mobile radio.
The RT98 mobile transceiver is available in mini format and measures 10 x 10.6 x 2.4 cm. It is very easy to carry and does not take up any more space when it is stored in your car or truck.
5, Stable and durable operation.
Equipped with a professional fan on the fuselage bottom, which ensures heat dissipation that the temperature of the radio is not too high when connected.
6, Support VFO Mode
The new version of RT98 adds a VFO mode function, which can adjust the transmitting and receiving frequencies. You can edit frequencies and set VFO modes via software.
Please note: The default frequency of VFO is 144.0125Mhz or 435.0125Mhz. VFO is invalid in Freenet and PMR446 mode bands.
Product Reviews
-
CharlesRetevis RT98Reviewed on Aug 01,2023I've purchased four of the RT98 2m rigs so far. We're using them as dedicated APRS radios. They have good receivers with good front end filters. The power is adequate and the squelch is fast enough for packet. We use a sound keyer circuit for PTT. The lack of VFO isn't an issue for my purposes and the small size is great for vehicle applications. I haven't gotten CHIRP to work but the Retevis software works fine. Planning to buy more.
Support
Firmware/Software
- RT98VHF_Setup_1.01
This software is applicable to the first version before May 2019. The SN code starts with a number less than 1905.
- RT98VHF_Setup_1.02
This software is applicable to the second version after May 2019. The SN code starts with a number greater than 1905.
- RT98VHF_Setup_1.03
This software is applicable to the third version after October 2023. The SN code starts with the number 2310.
- WIN11-DRIVERINSTALLER
The WIN 11 driver is compatible with WIN 10, WIN 8 and WIN 7 operating systems.
