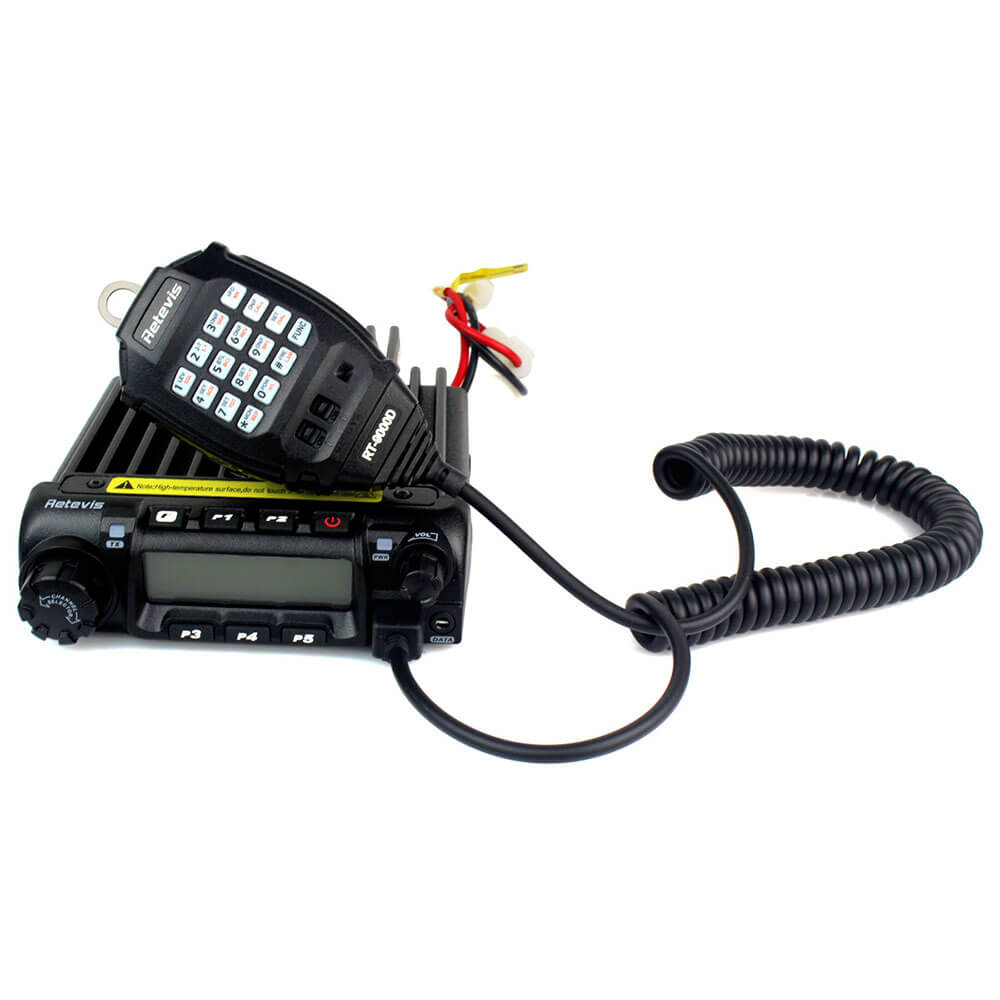

RT9000D 220-260mhz High power Mobile Car Ham Radio Transceiver
- Single Band 220-260mhz
- 200 memory channels
- 50 CTCSS 1024 DCS codes
- Supports CHIRP programming
- NOTE: Programming software: please click "support" to download
Bulk order Inquiry
Personalize your device
OverView
RT9000D Two Way Radio Mobile Car Ham Radio Transceiver
200 Channels and CTCSS/DCS functions.
Retevis RT9000D Single band Mobile Radio can save up to 200 channels, and including 50 CTCSS 1024 DCS codes; give you more choice. Let you enjoy 200 channels, smooth communicate with those around you. Keep in touch with others on the road
5, DTMF function.
Easy to operate and use
Designs with 5 setting button and function button, make the RT9000D easy to use and customize the functions, 1.77(W)x1.85(H)x7.48 inch, compact and small design make it easy to carry and install in your car.
Spec
| All of our items are Brand New | |
| Basic Descriptions | |
| Model | RT9000D |
| launch Frequency range | 220-260Mhz |
| Memory Channel | 200 |
| Working temperature | -20~+60℃ |
| Rated Voltage | 13.8V DC±15% |
| Output power | VHF(50W) |
| High/Low TX power selectable | VHF(50W/25W/10W) |
| Color | Black |
| Dimension(L×W×H) | 145(W)x47(H)x190(D)mm |
| Weight | 966g (Main machine) |
| Dual band or Single band | Single band |
| Dual or Single frequency | Single frequency |
| CTCSS/DCS function | 50 CTCSS / 1024 DCS |
| Channel spacing | 25k (Wide Band)/ 20k (Middle Band)/12.5k (Narrow Band) |
| Channel step | 5/6.25/10/12.5/15/20/25/30/50kHz |
| Scrambler function | 8 Group’s Scrambler |
| Wide/Narrow Band | Yes |
| P1-P5 with programmable functions | Yes |
| Voice pressure /expansion function | Yes |
| Repeater offset shift | Yes |
| Contact book | Yes |
| ANI ID | Yes |
| DTMF/2 tone/5 tone coder | Yes |
| Remote kill/ stun/ activate/ revive | Yes |
| Keypad lock function | Yes |
| 0-9 SQL grade setting | Yes |
| 1750MHz tone | Yes |
| Reverse frequency | Yes |
| Auto Power off | Yes |
| VOX function | Yes |
| Busy lockout function | Yes |
| Scanning function | Yes |
| COMP function | Yes |
| Monitor function | Yes |
| CTCSS/DCS setting and scanning | Yes |
| TOT function | Yes |
| Battery voltage display | Yes |
| Channel name display/editing | Yes |
| Emergency alarm | Yes |
| Keypad lock function | Yes |
| Power saving function | Yes |
| LCD Backlight | Yes |
| Chinese and English voice prompt | Yes |
| PC software programmable | Yes |
| Specification | |
| Frequency stability | ±2.5ppm |
| Adjacent channel selectivity( w/n) | 60dB@12.5kHz /70dB@25kHz |
| Modulation ( w/n ) | 11kΦF3E / 16kΦF3E |
| Spurious radiation | < -60db |
| Sensitivity | 0.25µV/0.35µV |
| Intermediate frequency | 38.85/46.05MHz |
| Modulation distortion | <5% |
| FM noise | >=40dB@25KHz />=45KHz @12.5KHz |
| Audio response | +1-+3dB |
| Audio Distortion | <5% |
| Inter modulation(w/n) | >=60dB />=65dB |
| Spurious rejection | >60db |
Feature
1, Retevis RT9000D Single Band High Power Mobile Radio Car Radio 220-260mhz
If you are looking for the high power single band 220-260mhz mobile radio, Retevis RT9000D will be your good choice.
2, Offers the Scan function
Retevis RT9000D Car mobile radios with various scan functions
3, Easy to operate and use
Designs with 5 setting button and function button, make the RT9000D easy to use and customize the functions, 1.77(W)x1.85(H)x7.48 inch, compact and small design make it easy to carry and intall in your car.
4, 200 Channels and CTCSS/DCS functions.
Retevis RT9000D Single band Mobile Radio can save up to 200 channels, and including 50 CTCSS 1024 DCS codes; give you more choice. Let you to Enjoy 200 channels smooth communicate with those around you. Keep in touch with others on the road
5, DTMF function.
Retevis RT9000D with the DTMF functions,remote kill stun activate and revive
6, Backlit LCD Display
Comes with the LCD display with Blue color, protect your eyes, and you can easily to know the current channel and other information from the display.
