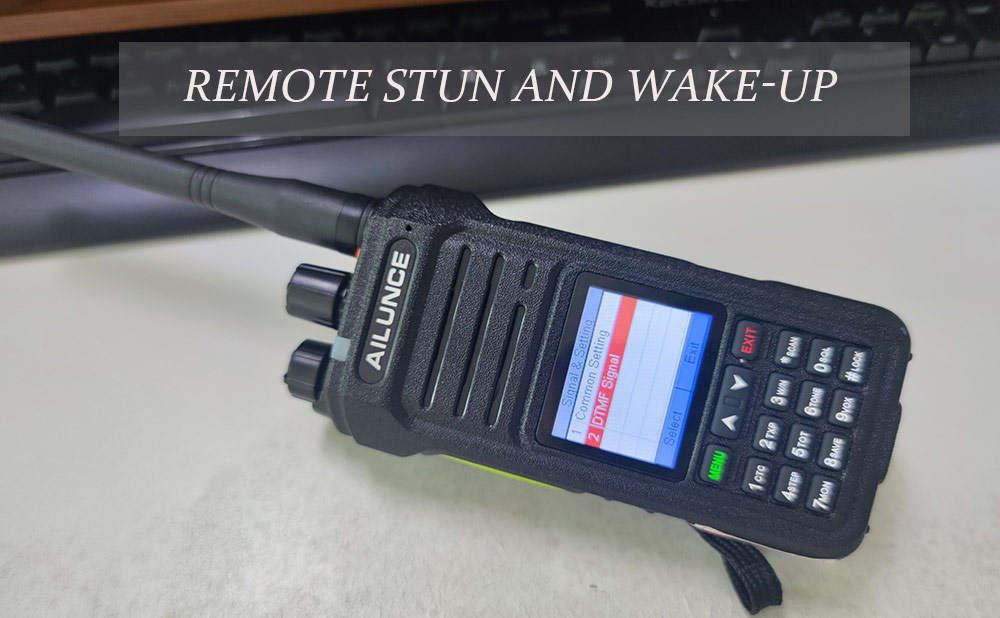

HA1G remote stun and wake-up function

The previous article described the related operations and settings of DTMF. Today we will talk about another DTMF unction - the HA1G remote stun and wake-up function.

Remote stun and wake-up function

Remote stun: Remote stun the receiver by sending a DTMF code that is the same as the receiver's stun ID;

Wake-up: Remote wake-up of the stunned receiver is achieved by sending a DTMF code that is the same as the receiver wake-up ID;

Stun Type: Stun type, select the stun state, "Stun TX": After being stunned, the radio only disables the transmitting function, "Stun RX/TX": After being stunned, the radio disables the transmitting and receiving functions

Stun ID: the remote stun identification ID of this machine;

Revive ID: The wake-up identification ID of this radio.

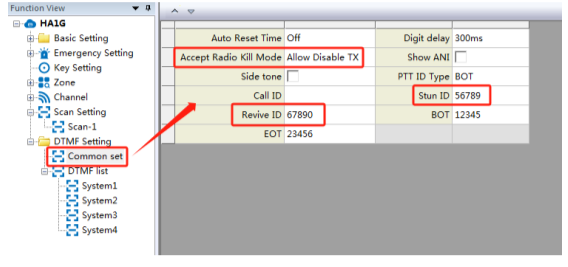

① Set the Stun Type through the frequency writing software: "DTMF Setting"->"Common set"->"Accept Radio Kill Mode";

②Set Stun ID through frequency writing software: "DTMF Setting"->"Common set"->"Stun ID";

③Set Revive ID through frequency writing software: "DTMF Setting"->"Common set"->"Revive ID";

※※※Note:

The use of remote stun and wake-up functions requires turning on DTMF codec enablement

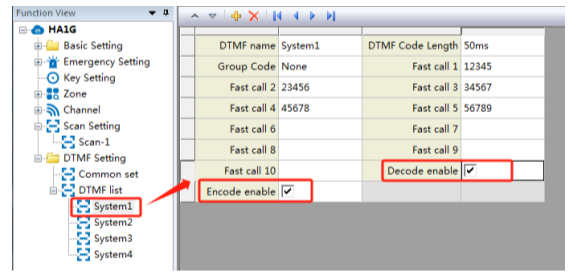

① Set through programming software: "DTMF Setting"->"DTMF list"->Select the list that needs to be set->"Decode enable"/Encode enable;

② Set through the walkie-talkie menu: "MENU"->"Signaling"->"DTMF Signal"->Select the list you want to use->"Encode & Decode".

More related functions can be seen in previous articles. The following content will continue to be updated.
