How to connect Retevis NR30 and RT29D walkie talkies?

Today I will tell you how to make communication between RT29D and NR30. Do you have the same problem? This article will help you.

Because NR30 is a GMRS Radio and RT29D is a digital walkie-talkie. We need to do some operations on the RT29D to make the radio communicate to each other.

Preparation

1. An Retevis RT29D, a computer, a programming cable and programming software.

2. Record the channel frequency and CTCSS/DCS information of Retevis NR30.

Notice;

NR30/RT29D programming cable; (NR30 and RT29D programming cables are compatible.)

The programming software contains the Codeplug required to modify the analog mode (you need to import it into the programming software)

Detailed steps

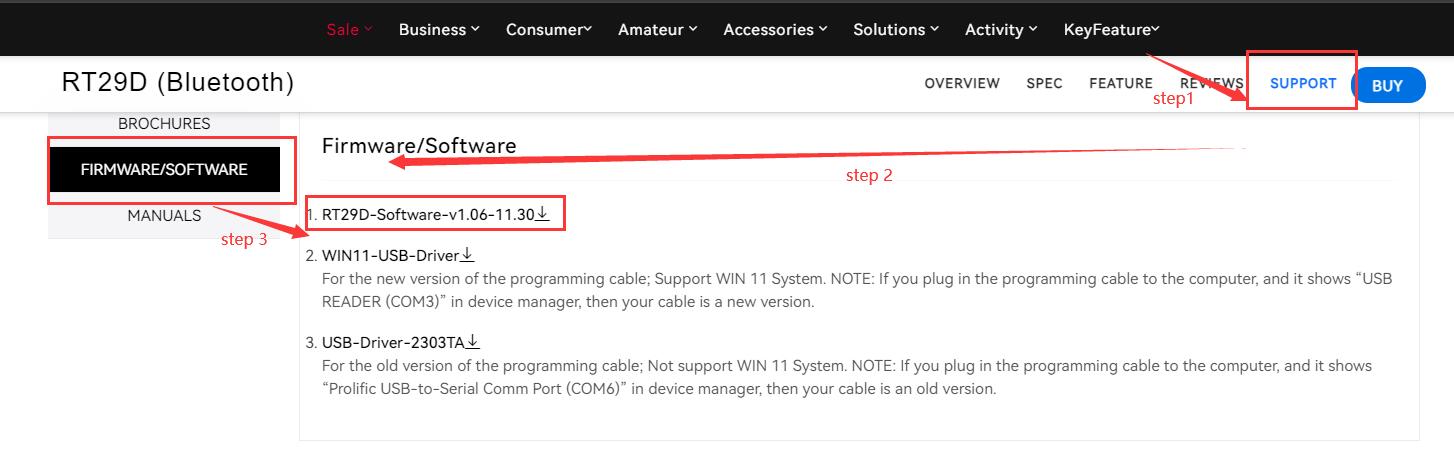

1. Open the official website ( https://www.retevis.com/ ); search for RT29D and open the product, download our programming software, as shown in the figure below

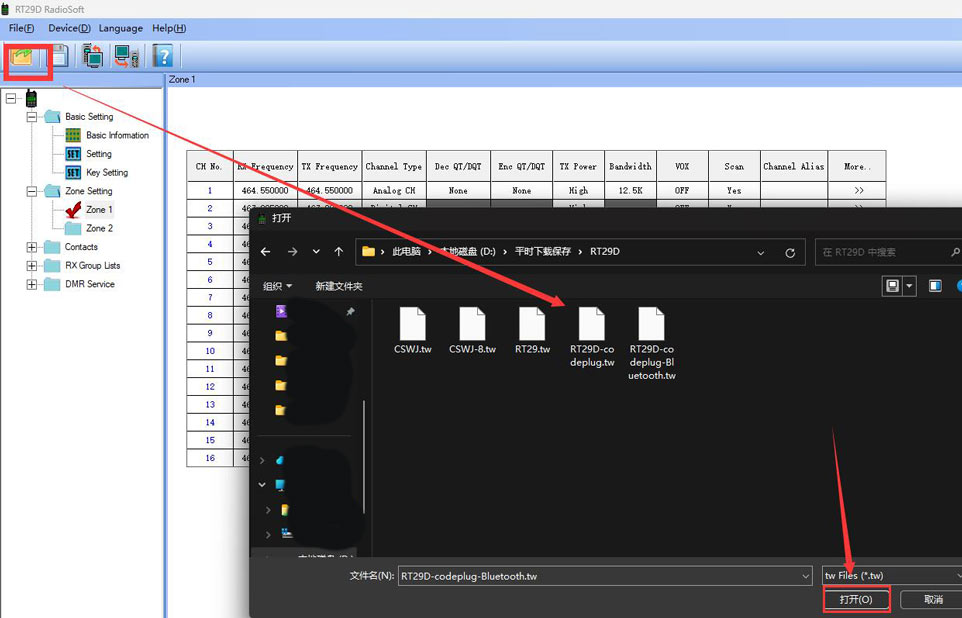

3. Import the required Codeplug, as shown in the figure below

4. Connect the computer and radio and read the radio data

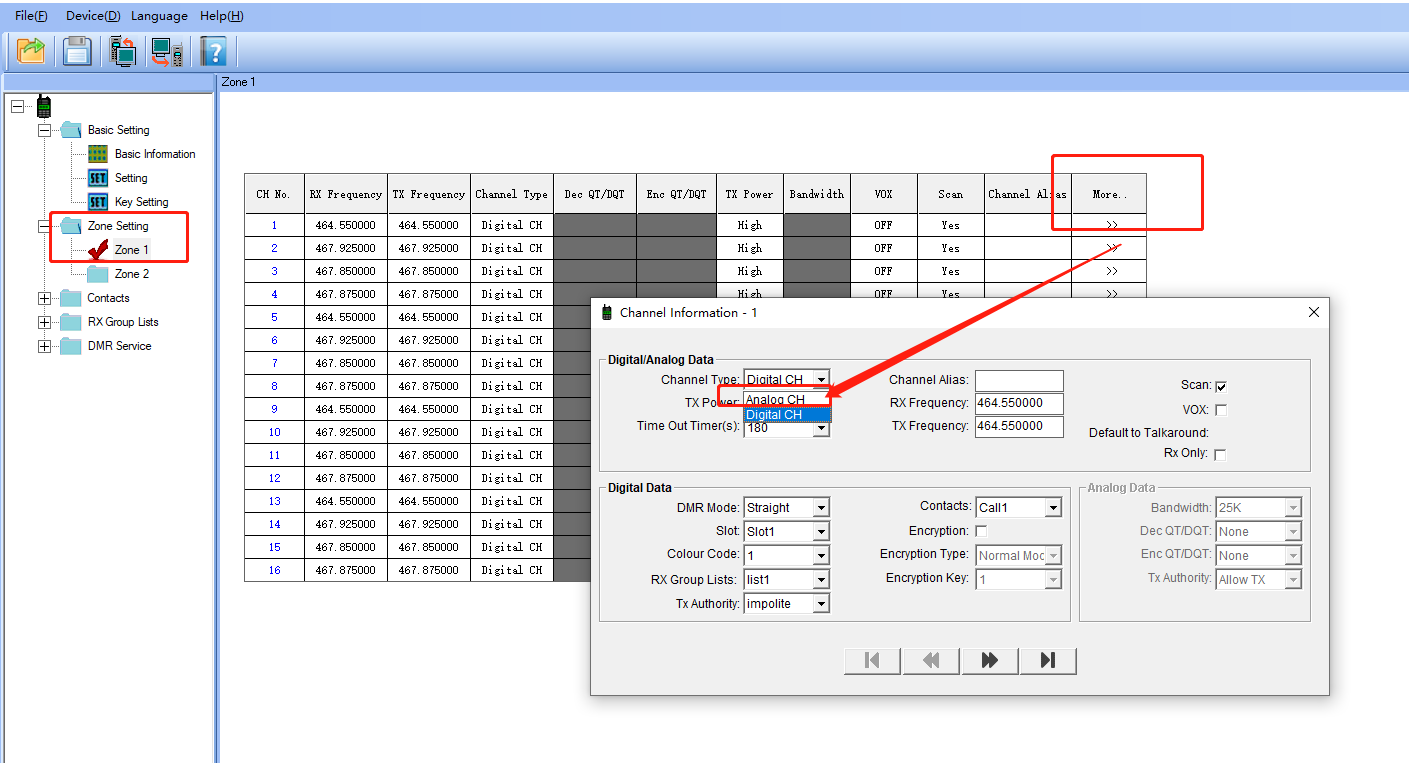

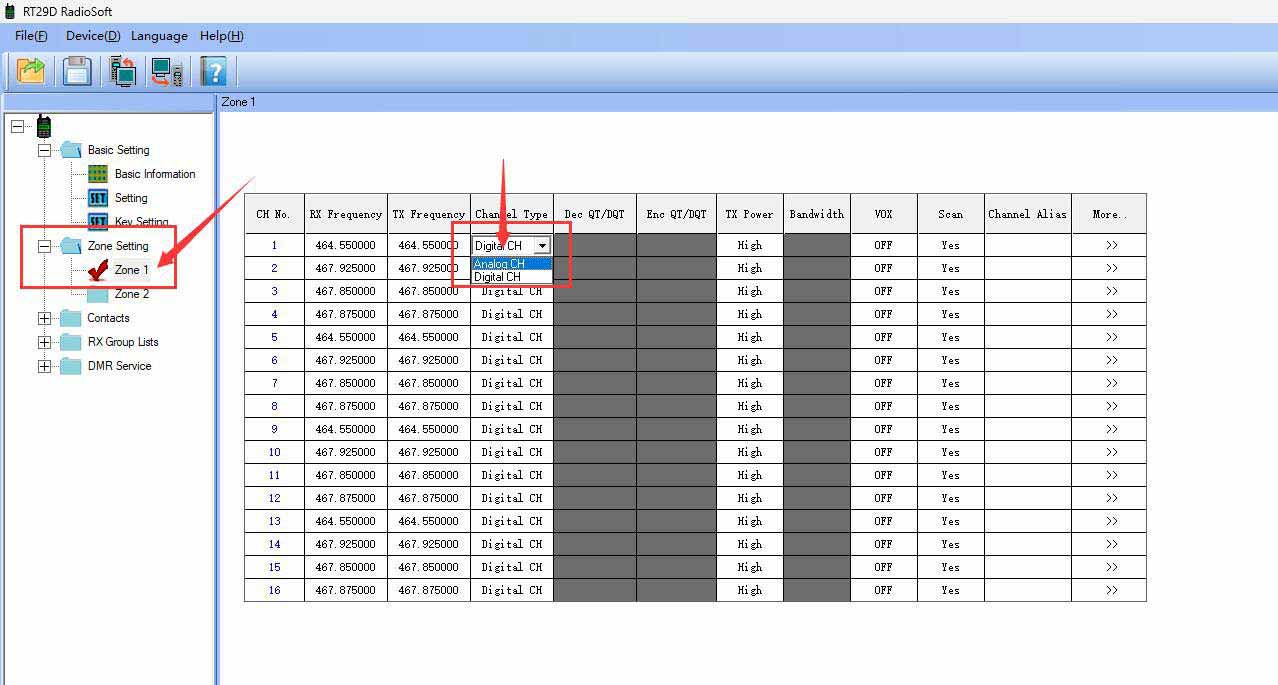

5. Change to simulation mode, there are 2 methods. As shown below

way 1

way 2;

6. Write the same frequency and CTCSS/DCS as NR30.

Note: NR30 data needs to be visible through programming software. So you need to record the information you need in advance.

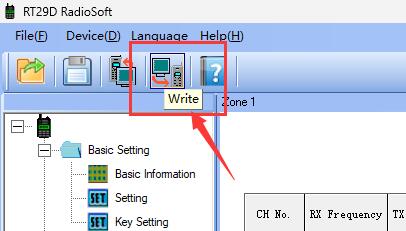

6. Click Write to save the modified information, and all settings are completed.

I hope this article can help you, go and try it.
