GPS mode:Locate your position and receive your partners' locations to keep a constant connection with members.
Bluetooth:Bluetooth 5.0 technology offers more stable connection and longer range,free and convenient to communicate.bluetooth headset is included.
3200 mAh battery:Has a long battery life of 35 hours ,It is a necessity for off-road and emergency rescue outdoor operations.
High power=long distance: 10W dual band DMR radio will offer you long-range communication.
Digital and analog mode:DMR ham radio provides superior call quality and fast switching capabilities to communicate with digital or analog two way radios.
GETTING CLOSER! ONLY $50.00 AWAY FROM FREE SHIPPING!
Order Handling Time within 3 Working days(Pre-sale products excluded).
HD2 GPS Bluetooth long distance ham radio+IP55 waterproof microphone+program cable

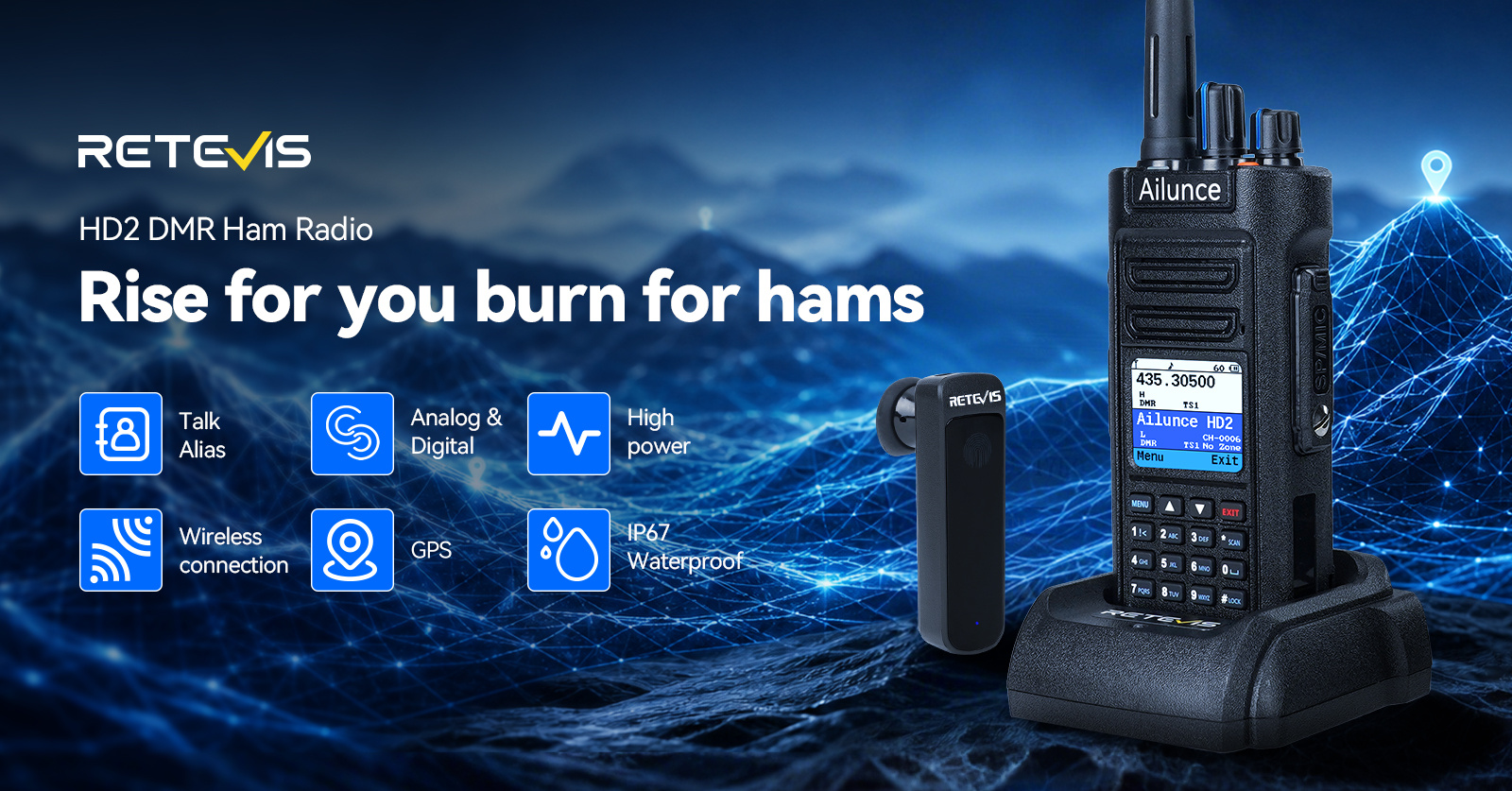

Retevis Ailunce HD2 DMR Radio is the new version of HD1 with GPS, Bluetooth, 3200mAh battery, digital two-way radio, 500K contacts NOAA emergency, long range digital analog ham radio. The set includes an IP55 waterproof microphone with a headphone hole on the top, so you can wear both the microphone and headphones at the same time.
The HD2 is a high-power, versatile, two-way radio that overcomes distance barriers.
The main function of this waterproof DMR radio HD2
Bluetooth walkie talkie
Ailunce HD2 comes with Bluetooth with 5.0 technology offers more stable connection and longer range; making communication more convenient and efficient supports connecting the wireless headsets to release your hands; no cable trouble; free and convenient to communicate within 10m.

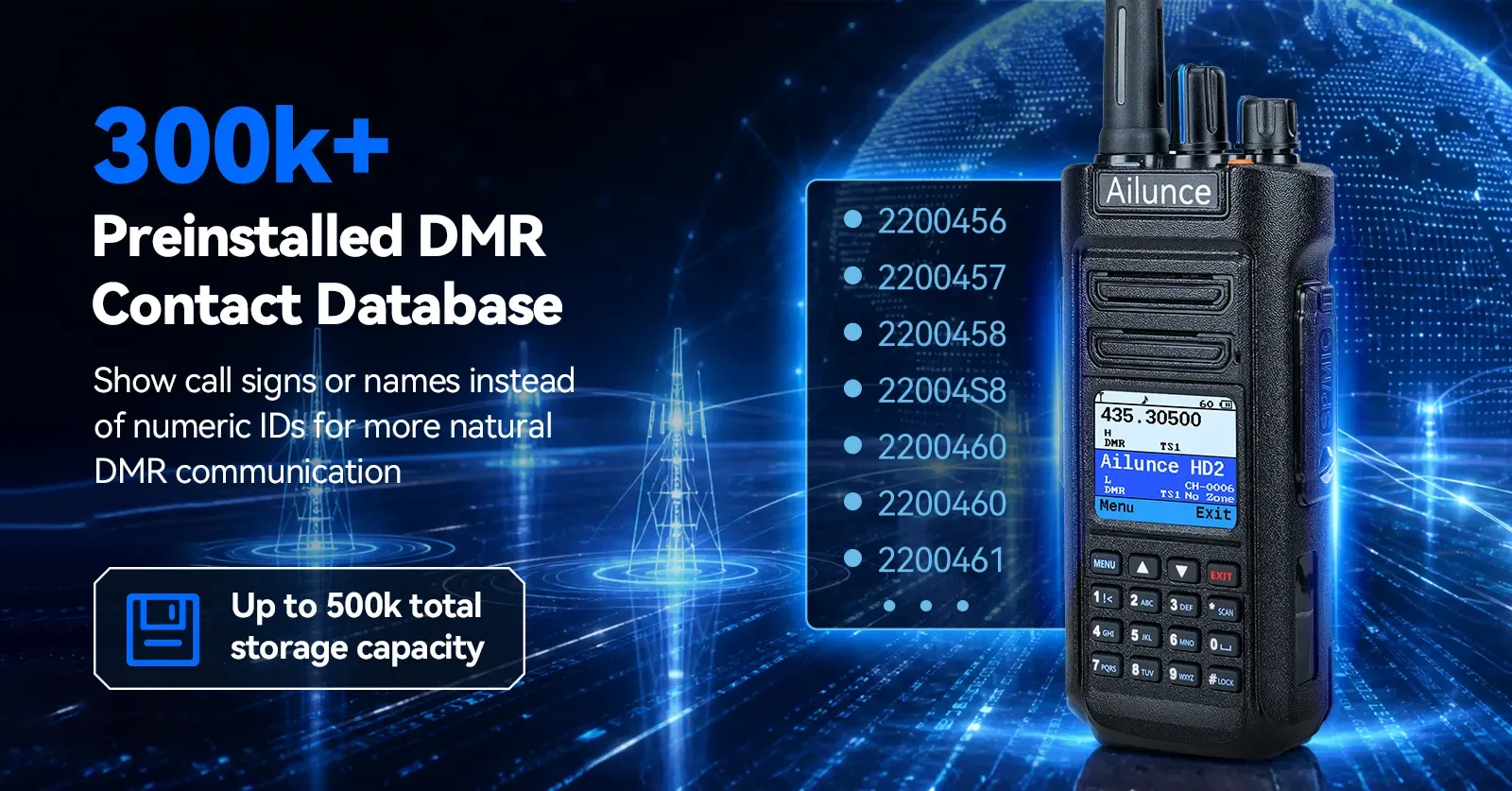

Large Contacts helps the Radio amateurs upload more contacts
Professional two-way radio supports importing up to 500,000 contacts; enables you to name contacts or group them for efficient communication. 3000-channel DMR radio means the radio is able to save multiple channels and contacts; ideal for large groups various needs.
You may upload all the DMR contacts with CSV files via programming software. Now Ailunce HD2 supports 500,000 contacts and 5,000 priority contacts.
Priority Contacts can be edited via HD2's Keypad.
The way to add Contacts on Ailunce HD2: Press-Menu-Find Contact, Edit the Contact ID, Type, Name, City, Province, and Country by its keypad.
Retevis Ailunce HD2 supports 32 Group IDs. Meet the IDs of a ham in different groups Identification。

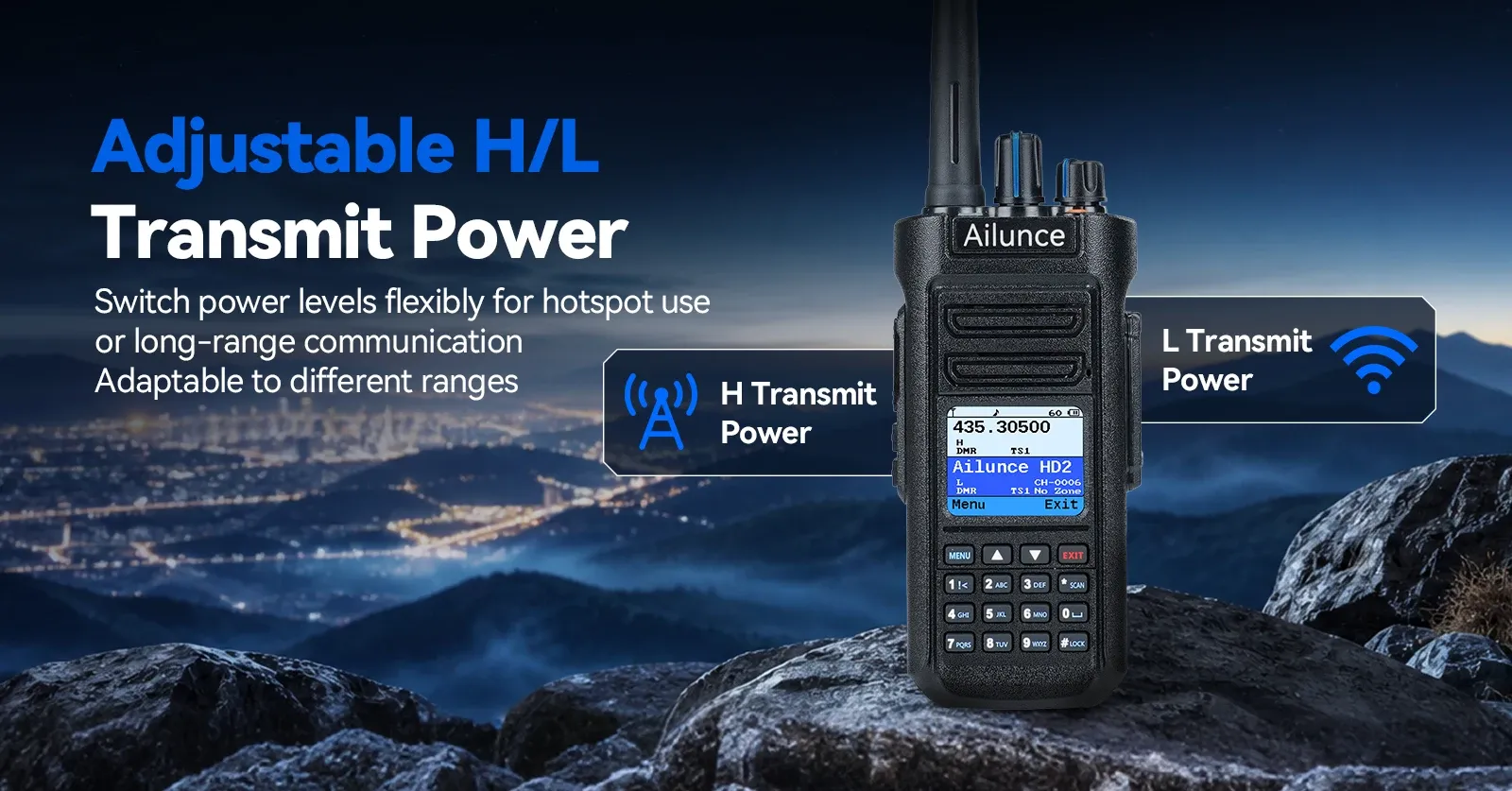

Ham radio long range
high power has a strong signal to transmit and extends the communication range. strong penetration is efficient to overcome the environment's disadvantages and increase the stability and reliability of communication.
Ailunce HD2 also comes with high power, which will offer you long-range communication.
You may also adjust the power by its keypad. The way to adjust the transmit power on Ailunce HD2.
Press the Menu, then choose Band A set or Band B set, Choose Power(set 6), choose Low/Middle/High (Up or Down), then Press the Menu to confirm.
Single/Group/All Call
Flexibly meet various communication needs in different conditions.DMR radio supports different calling modes on various occasions, including individual, group, and team communication, which meets flexible needs in a big team.
Night Mode
A 1.77-inch color display is available for day and night to check dual band frequencies due to adjustable brightness and backlight time. In addition, night mode is convenient to protect your eyes when operating DMR ham radio at night.

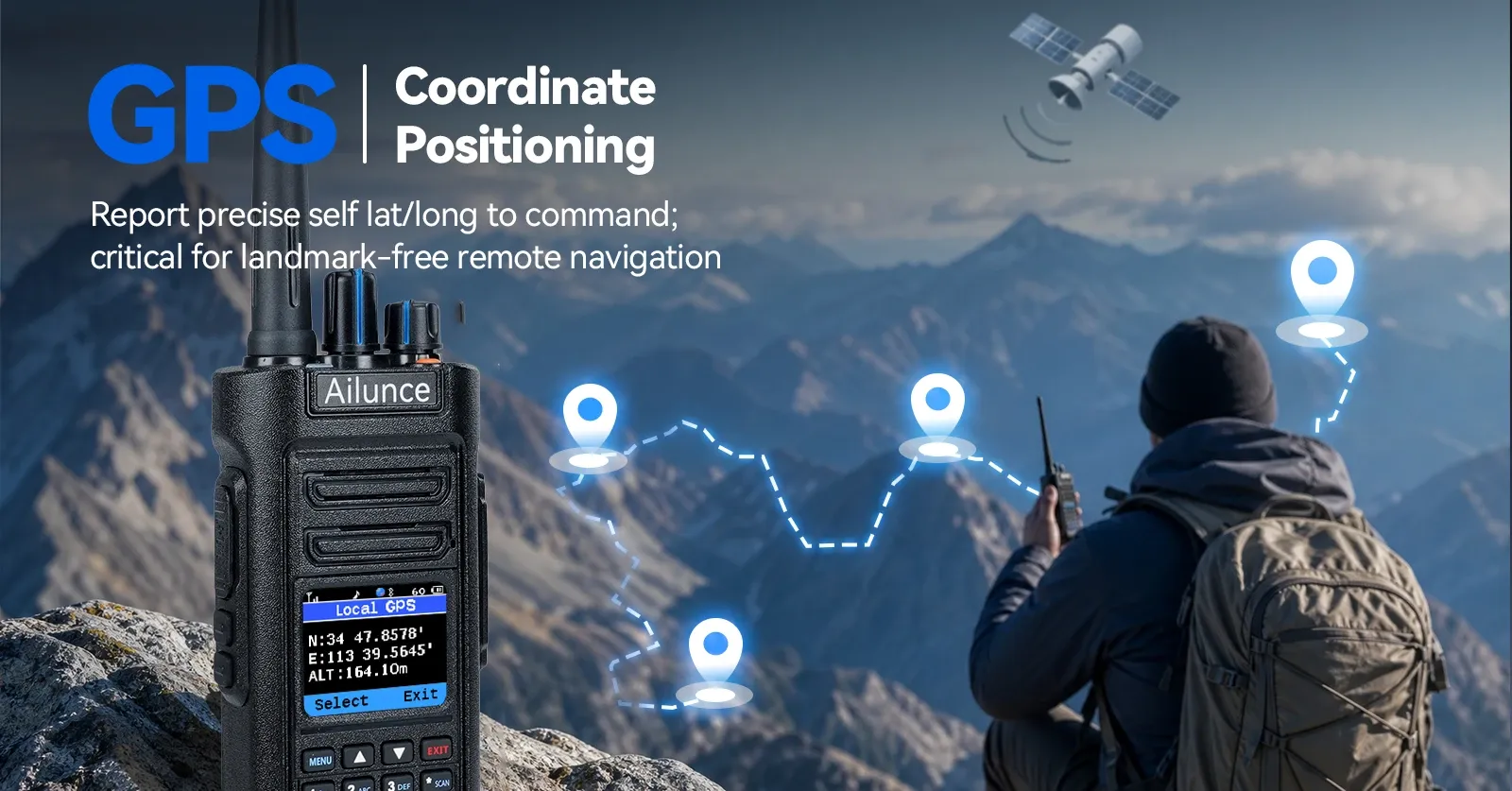

GPS Function (optional)
Locate your position and receive your partners' locations to keep a constant connection with members. When you choose the GPS Ailunce HD2, you may check your Local GPS location and receive the GPS location from your friends.
11 NOAA Channels
The handheld transceiver supports turning on NOAA through the side key and choosing the channels to get the latest weather information conveniently.

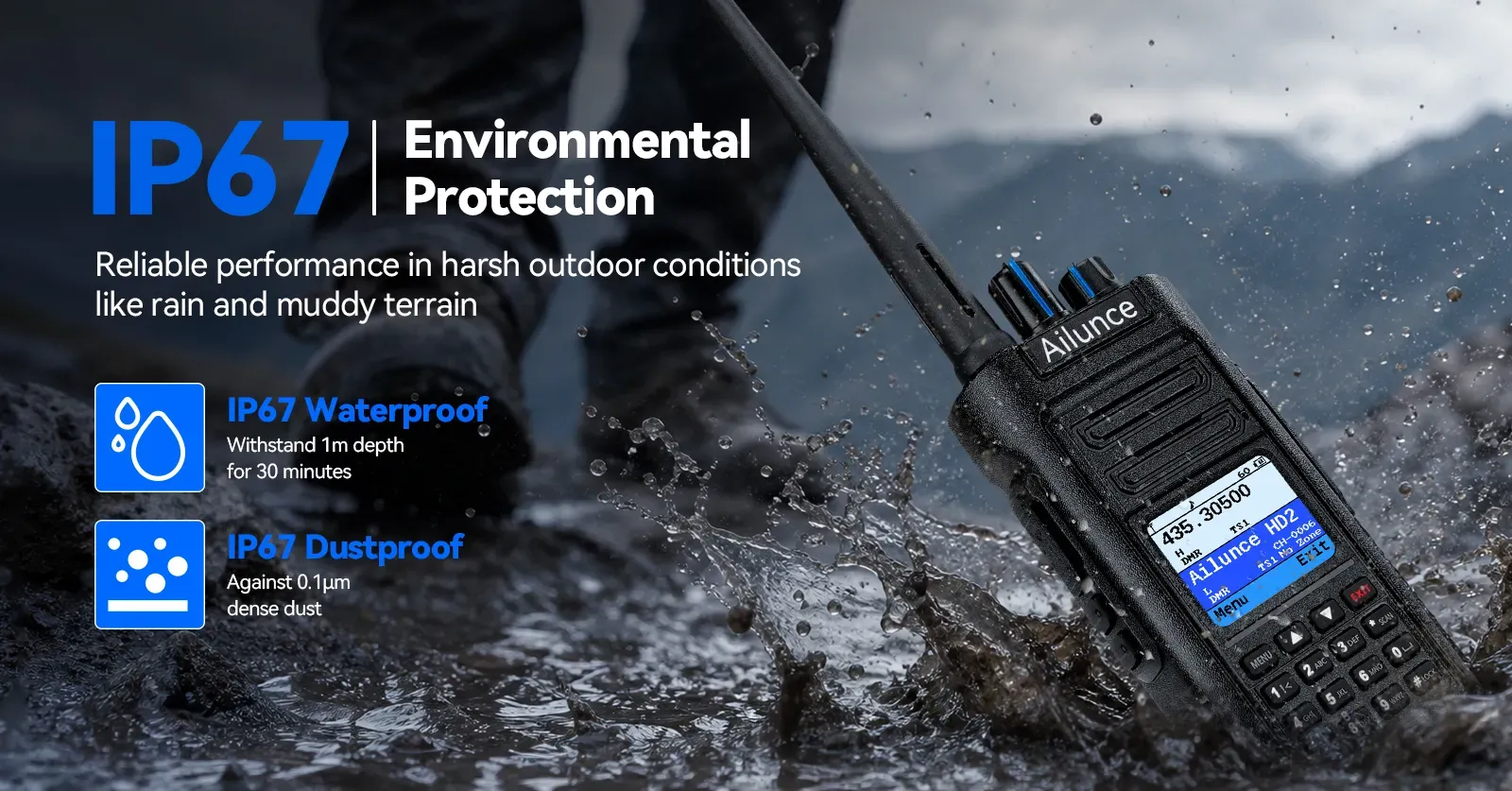

Waterproof Ham Radio
IP67 dust-proof and waterproof capabilities make ham radio reliable for use in harsh environments. No worries about the rainy weather when you do field test or join the outdoor ham fest.

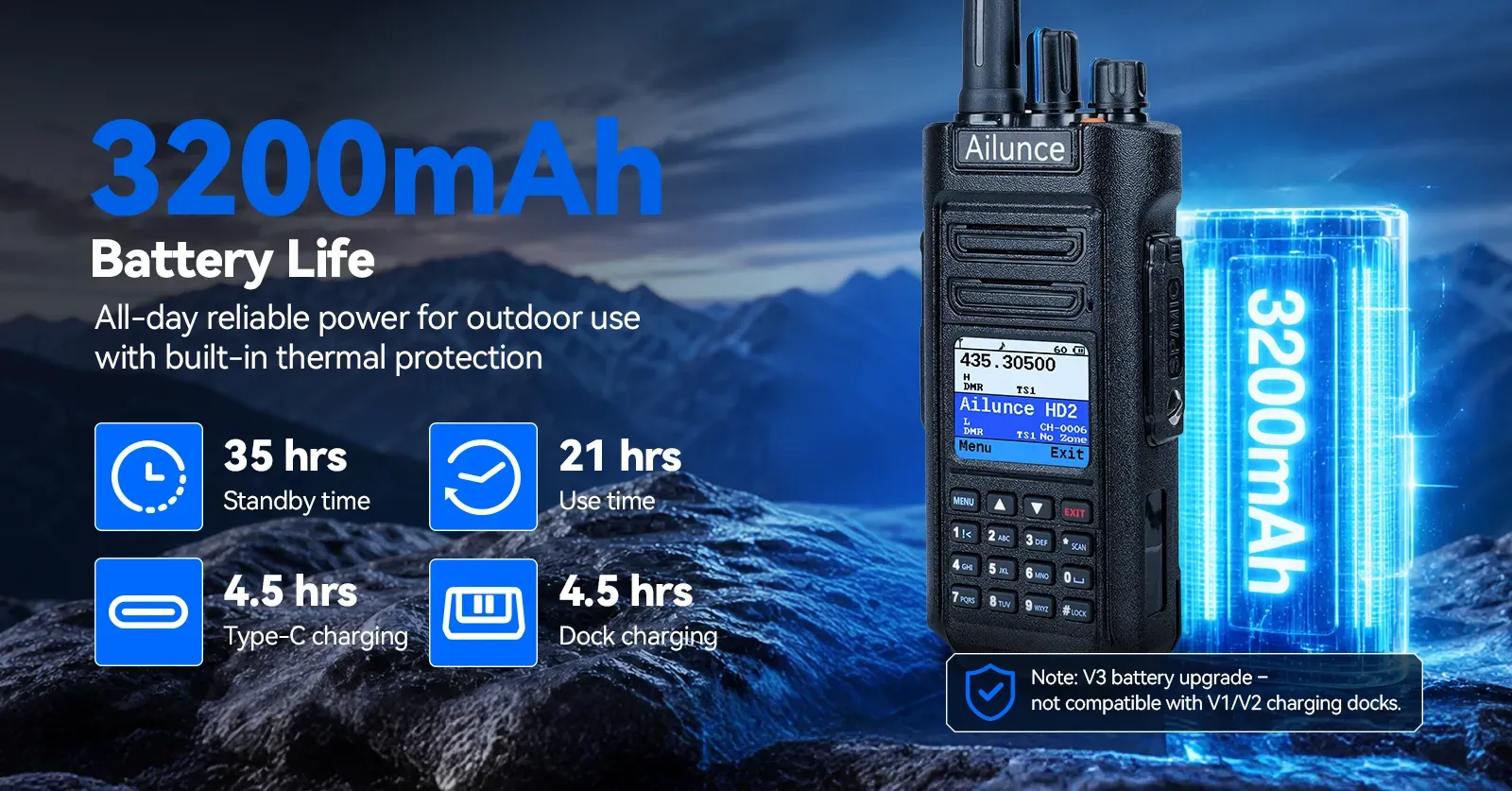

Built-with 3200mAh Battery makes HD2 ham radio long-standby.
High-capacity battery has a long battery life of 35 hours and can accompany users for long-term operations. It is a necessity for off-road and emergency rescue outdoor operations.

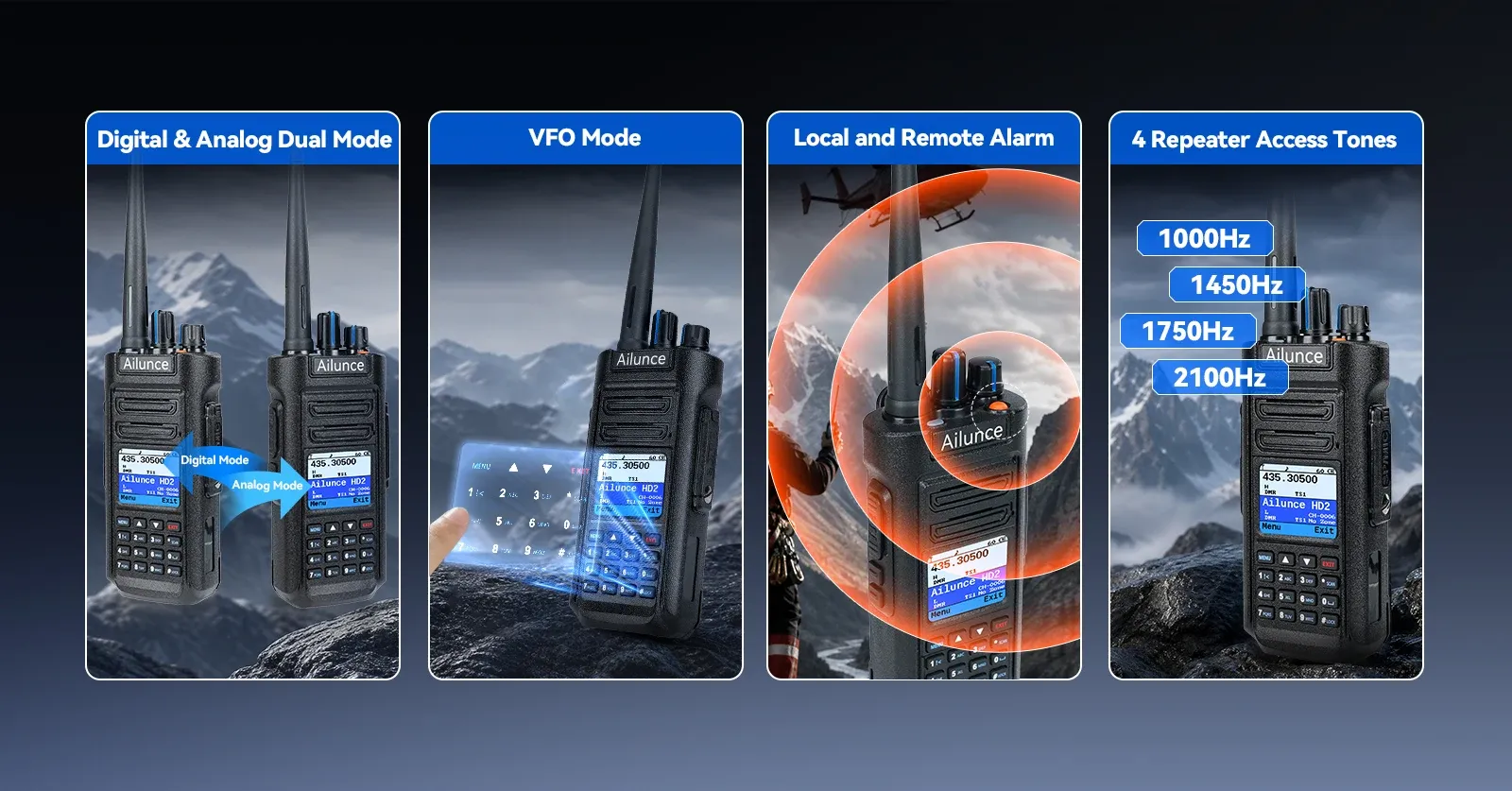

Emergency Alarm
Press the specified alarm key to turn on the local or remote alarm. Remote alarm will send the voice to your partners to ask for help, making your going out secure.
Squelch Function
Adopting 0-9 level squelch function to filter out background noise, even when you are in a noisy environment, a clear voice can be transmitted.

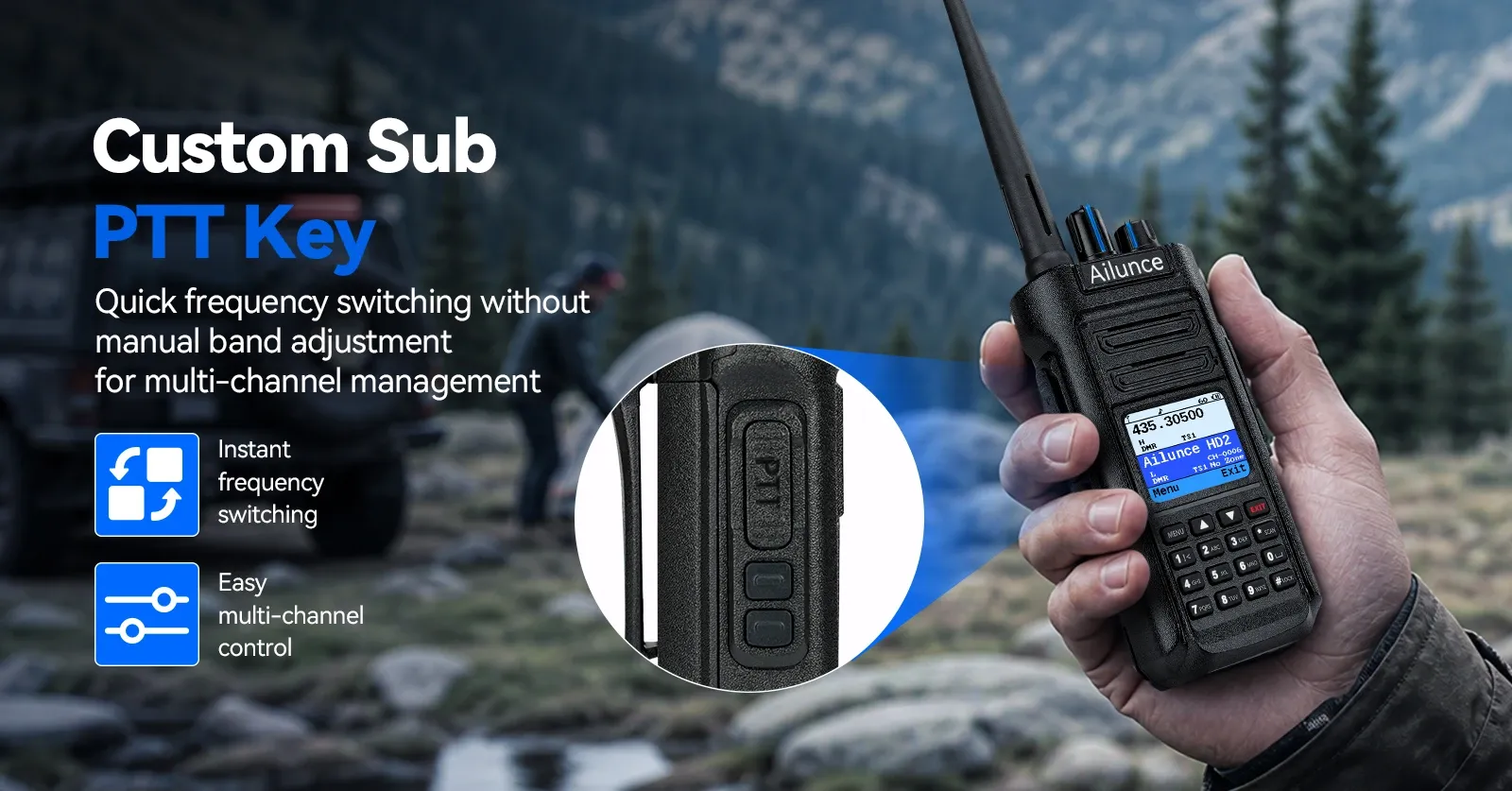

SUB-PTT Function
It is convenient for you to transmit dual band frequencies without pressing the */scan key to switch bands A or B.
Dual-PTT function, you may press the PTT button or Side-key Button to transmit on different bands.
Main Function
- Dual Band DMR Radio
- Analog and Digital Combined
- Compatible with Motorola Tier Ⅰ&Ⅱ
- 500000 Contacts + 5000 Priority Contacts
- IP67 Waterproof
- Scan:Time/Search/Carrier
- Encryption Function
- Lone Worker
- Single/Group/All call
- Remote kill/stun/activate
- 1.77 inch Color LCD Display
- 10 level brightness adjustable
- Contacts and color code Promiscuous Function
- Standard CTCSS/DCS
- Analog Monitor
- 3 kinds of Keyboard Lock: Keyboard, Keyboard+CH Knob, PTT+CH+Keyboard
- LED Indicator
- Password Lock
- Battery Save
- Voice Annunciation
- 1000/1450/1750/2100Hz Single tone
- 32 ID Setting
- Night Mode select-able
- Emergency Alarm function
- Dual PTT
Spc
General |
Frequency Range |
Receive frequency: VHF 136-174Mhz,UHF 400-520MHz; |
|
Channel Numbers |
3000 |
|
Channel Space |
25 kHz /12.5kHz |
|
Input Voltage |
Max 8.4V---Max 540mA |
|
Battery Capacity |
3200mAh |
|
Battery Charging Input |
5V 1A |
|
Frequency Stability |
±1.0ppm |
|
Operation Temperature |
-10℃ to +40℃; |
|
Antenna Impedance |
50Ω |
Transmit |
Transmit Frequency |
144-146Mhz, 430-440Mhz; |
|
RF TX Power |
High/Middle/Low/Ultra low power |
|
Transmit current |
Analog≤1.6A Digital≤0.9A |
|
Modulation Mode |
12.5KHz 11K0F3E (Analog) 12.5KHz(data only): 7K60FXD |
|
Modulation distortion |
<5% |
|
Vocoder |
AMBE+2TM |
|
Adjacent channel power |
60dBm 12.5KHz |
|
Audio Response |
+1~-3dB |
|
Digital Protocol |
ETSI-TS102 361-1,-2,-3 |
|
Modulation distortion |
<5% |
Receive |
Analog Sensibility |
0.35uV/-116dBm(20dB SINDA) |
|
Digital Sensibility |
0.30uV/-117dBm(BER 5%) |
|
Adjacent Channel Selectivity |
TIA603C:65dB ETSI: 60dB |
|
Spurious Response |
TIA603C: 75dB ETSI:70dB |
|
Audio Response |
+1~-3dB |
|
Rated Audio Distortion |
≤3% (Type) |
|
Audio Power |
≥500mW |
Package contains:
1X HD2 10w waterproof amateur radio
1X IP55 waterproof microphone
1X Bluetooth headset
1X HD2 program cable
General |
Frequency Range |
Receive frequency: VHF 136-174Mhz,UHF 400-520MHz; |
|
Channel Numbers |
3000 |
|
Channel Space |
25 kHz /12.5kHz |
|
Input Voltage |
Max 8.4V---Max 540mA |
|
Battery Capacity |
3200mAh |
|
Battery Charging Input |
5V 1A |
|
Frequency Stability |
±1.0ppm |
|
Operation Temperature |
-10℃ to +40℃; |
|
Antenna Impedance |
50Ω |
Transmit |
Transmit Frequency |
144-146Mhz, 430-440Mhz; |
|
RF TX Power |
High/Middle/Low/Ultra low power |
|
Transmit current |
Analog≤1.6A Digital≤0.9A |
|
Modulation Mode |
12.5KHz 11K0F3E (Analog) 12.5KHz(data only): 7K60FXD |
|
Modulation distortion |
<5% |
|
Vocoder |
AMBE+2TM |
|
Adjacent channel power |
60dBm 12.5KHz |
|
Audio Response |
+1~-3dB |
|
Digital Protocol |
ETSI-TS102 361-1,-2,-3 |
|
Modulation distortion |
<5% |
Receive |
Analog Sensibility |
0.35uV/-116dBm(20dB SINDA) |
|
Digital Sensibility |
0.30uV/-117dBm(BER 5%) |
|
Adjacent Channel Selectivity |
TIA603C:65dB ETSI: 60dB |
|
Spurious Response |
TIA603C: 75dB ETSI:70dB |
|
Audio Response |
+1~-3dB |
|
Rated Audio Distortion |
≤3% (Type) |
|
Audio Power |
≥500mW |
Main Function
- Dual Band DMR Radio
- Analog and Digital Combined
- Compatible with Motorola Tier Ⅰ&Ⅱ
- 500000 Contacts + 5000 Priority Contacts
- IP67 Waterproof
- Scan:Time/Search/Carrier
- Encryption Function
- Lone Worker
- Single/Group/All call
- Remote kill/stun/activate
- 1.77 inch Color LCD Display
- 10 level brightness adjustable
- Contacts and color code Promiscuous Function
- Standard CTCSS/DCS
- Analog Monitor
- 3 kinds of Keyboard Lock: Keyboard, Keyboard+CH Knob, PTT+CH+Keyboard
- LED Indicator
- Password Lock
- Battery Save
- Voice Annunciation
- 1000/1450/1750/2100Hz Single tone
- 32 ID Setting
- Night Mode select-able
- Emergency Alarm function
- Dual PTT
FQA about Ailunce HD2 Ham Radio
F: Are the accessories for HD1 and HD2 universal?
A: Yes, the accessories for HD1 and HD2 are universal.
F: Is there AES-256 encryption?
A: The HD2 DMR Radio has AES-256 encryption.
F: What functions can be defined by the side keys?
A: Long press or short press of the two side buttons can realize: scan, FM radio, wake up, relay, button call 1-6, VOX, Kill (remote killing), Zone Plus, Zone Minus, DMR slot, mixed. Manual dialing, CH mode, reverse, Bluetooth, 0.5W power, FM call, voltage, NOAA, analog monitor, TX digital deviation
F: What features are included in the updated firmware?
A: AilunceHD2 Firmware Update Changelog:
1. Font color adjustment
2.Add receive all private call function
3. Add "key beep, encryption" side key functions.
4. Fixed the problem when sending a message from HD2 to HD1 display successfully, the HD1 does not receive any message.
CPS Update Changelog
1. Add receive all private call and receive all color code options.
2.Add 0.5W power level
F: What’s new about the hybrid function?
A: Before the update, there was group call contact mixing and color code mixing (the color code can only be operated on the machine). After the update, individual call mixing and software can operate the color code mixing.
