HD1GPS+IP67 Speaker Mic+Programming Cable+Long Antenna+Battery
- HD1 DMR radio: 10W/5W/1W, three gears of power adjustable;3000 channels, 200,000 contacts + 1000 priority contacts; IP67 waterproof;3200mAh battery;supports: single call/group call/all call,remote kill/stun/activate
- Analog digital combination: analog or digital mode can be smoothly switched according to actual needs; DMR and analog dual frequency; long press the exit key to switch in frequency mode
- Dual Band Ham radio: front panel operation, no need to connect to a computer;400-480MHz (UHF model) and 136-174MHz VHF (VHF model);1.77-inch color LCD display is easy to read; VFO mode can achieve fast frequency operation; support cross-band relay connection
- Digital radio with GPS APRS: GPS receiver works with APRS to push location beacon messages to the APRS network in real time; can receive and send location information; suitable for tracking group members' outdoor activities, playing an important role in outdoor rescue teams
- Multi-scenario use: various outdoor activities: mountain bike races, cross-country races, etc.; various rescue organizations: snow mountain rescue, alpine rescue;
Retevis Ailunce HD1 IP67 Waterproof FPP Dual Band Digital Ham Radio with GPS
Retevis Ailunce HD1 dual band digital ham radio supports both digital mode and analog mode and is compatible with other brand DMR radios. You can turn on the promiscuous mode to receive all signals, or you can set a separate CTCSS/DCS code to receive separate signals, making calls more accurate. This kit contains all the accessories you need, making it the best ham radio for beginners.
Features:
1. FULL FPP, which can be turned into all functions using the intercom panel without PC.
2. Up to 3000 channels, 100,000 contacts, and 1000 priority contacts for extremely complex organizational communications.
3. DCDM is Dual Capacity Direct Mode. Provides additional spectral efficiency by supporting up to two simultaneous Direct Radio-to-Radio Mode subscriber calls within a 12,5kHz allocation of spectrum without a repeater.
4. Remote kill/stun/activate, allowing you to remotely manage the intercom.
5. IP67 dustproof and waterproof. Fearless of dust and rainstorms.
6. Supports the use of a repeater.
7. GPS gives you a clear idea of your location, even in the wild. Use it to find your way or to help others find you.
8. Update with Type-C port and charger

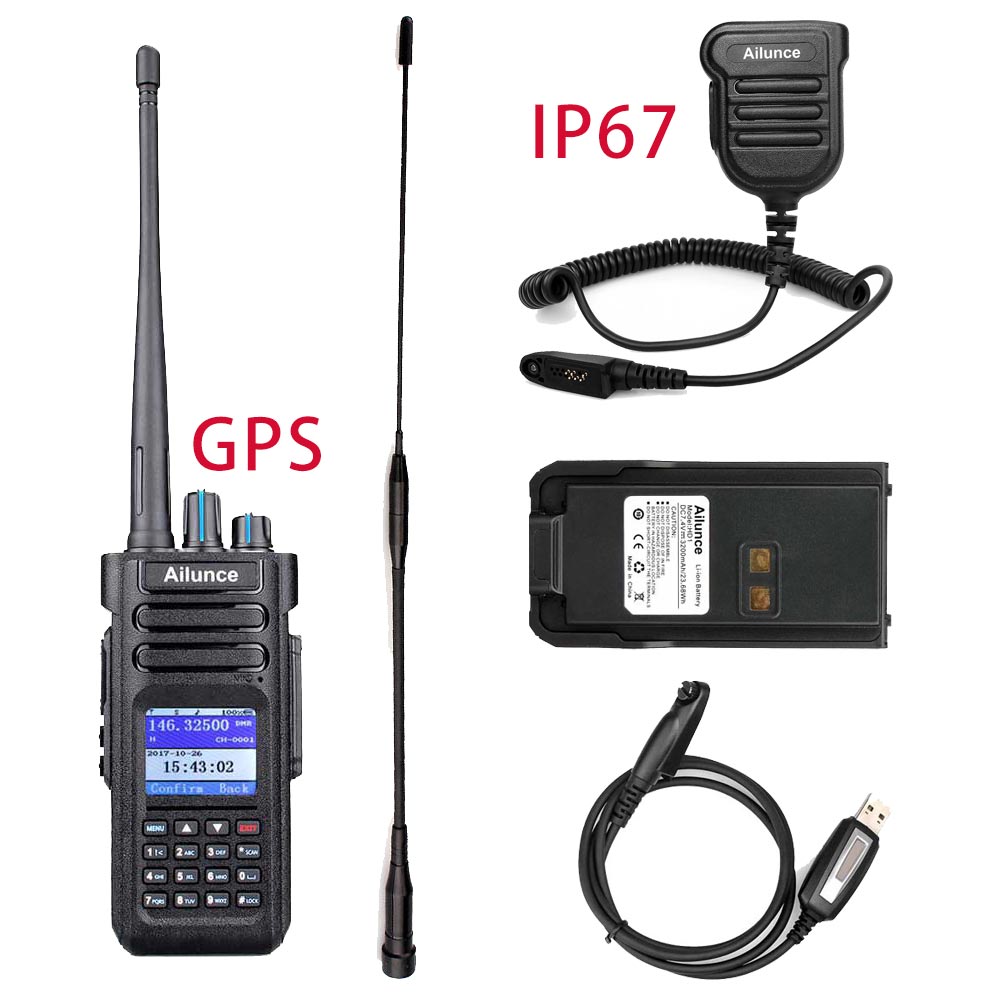

Package Includes:
- 1 x HD1 GPS DMR Radio
- 1 x Long Antenna
- 1 x IP67 Waterproof Speaker Mic
- 2 x Type-C Charge Battery
- 1 x Programming Cable
- 1 x Type-C Desktop Charger
- 1 x Type-C Charging Cable
| General specifications | |
| Frequency | 136-174&400-480MHz&76-107.95MHz(Receive only ) |
| Channels | 3000 |
| Operating Temperature | -30℃~+60℃ |
| Operating Voltage | 7.4V DC |
| Dimension | 150 x 64x 40mm |
| Weight | 360g(with battery） |
| Battery Type | Li-ion |
| Battery Capacity | 3200mAh |
| Antenna Impedance | 50Ω |
| Transmitter | |
| Transmit current | Analog≤1.6A Digital≤0.9A |
| Frequency Stability | ±1.0ppm |
| FM modulation mode | 12.5KHz@11K0F3E 25KHz@16K0F3E |
| 4FSK digital mode | 12.5KHz(data only):7K60FXD12.5KHz(data and voice):7K60FXW |
| Modulation distortion | ＜5% |
| Vocoder | AMBE+2TM |
| Adjacent channel power | 60dBm@12.5KHz 65dBm@25KHz |
| Audio Response | +1~-3dB |
| Digital Protocol | ETSI-TS102 361-1,-2,-3 |
| Receiver | |
| Analog Sensitivity | 0.35uV/-116dBm(20dB SINAD)0.22uV/-120dBm(Type) |
| Digital Sensitivity | 0.30uV/-117dBm(BER 5%)0.70uV/-110dBm(BER 1%) |
| Adjacent Channel Selectivity | TIA603C:65dB ETSI:60dB |
| Spurious Response | TIA603C:75dB ETSI:70dB |
| Audio Response | +1~-3dB |
| Rated Audio Distortion | ≤3%(Type) |
| Audio Power | ≥500mW |
Dual Band DMR Radio
Analog and Digital Combined
Compatible with Motorola Tier Ⅰ&Ⅱ
Comply with Digital Protocol ETSI TS 102 361-1,-2,-3
Use Time-Division Multiple-Access(TDMA) Digital Function
Frequency Band:136-174 & 400-480MHz& 76-107.95MHz(Receive only )
100,000 Contacts + 1000 Priority Contacts
Up to 3000 channels
Dual Time Slot for Repeater
Dual Time Slot for Point to Point
Firmware Upgradeable
IP67 Waterproof
Scan:Time/Search/Carrier
Encryption Function (Is not compatible with RT3,RT8,RT82.RT90)
Lone Worker
Single/Group/All call
Remote kill/stun/activate
Color LCD Display
Transmit/Transceive interruption
Promiscuous Function
GPS
CTCSS/DCS
Analog Monitor
VOX
TOT
Talkaround
Squelch
Keypad Lock
LED Indicator
Password Lock
Battery Save
Voice Annunciation
1000/1450/1750/2100Hz Single tone
ID Setting
