Retevsi Ailunce HD1 dual band digital ham radio uses Digital Mobile Radio (DMR) Tier 2 Standard protocol. It is compatible with the popular MOTO TRBO series Tier I and II using standard encryption, as well as other makes and models of DMR supported radios. It is also compatible with any existing analog two-way radio operating on the supported UHF and VHF frequencies for easy migration to digital technology. And almost all the operations can be done via radio keypad.
Features:
1. FULL FPP, which can be turned into all functions using the intercom panel without PC.
2. Up to 3000 channels, 100,000 Contacts + 1000 Priority Contacts for extremely complex organizational communications.
3. DCDM is Dual Capacity Direct Mode. Provides additional spectral efficiency by supporting up to two simultaneous Direct Radio-to-Radio Mode subscriber calls within a 12,5kHz allocation of spectrum, without a repeater.
4. Remote kill/stun/activate, allowing you to remotely manage the intercom.
5. IP67 dustproof and waterproof. Fearless of dust and Rainstorm.
6. Supports the use of repeater.
7. GPS gives you a clear idea of your location, even in the wild. Use it to find your way or to help others find you.

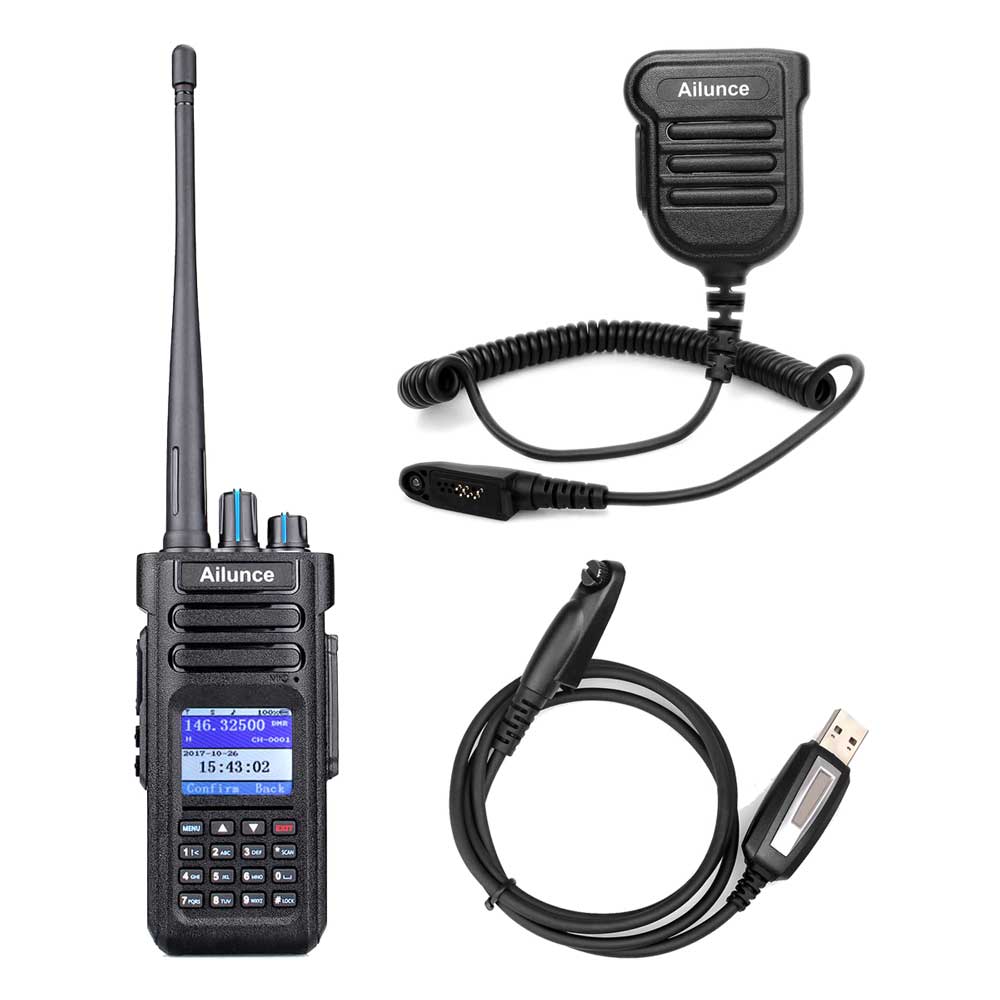

Package Includes:
- 1 x HD1 GPS DMR Radio
- 1 x Speaker Mic
- 1 x Type-C Charge Battery
- 1 x Programming Cable
- 1 x Type-C Desktop Charger
- 1 x Type-C Charging Cable
| General specifications | |
| Frequency | 136-174&400-480MHz&76-107.95MHz(Receive only ) |
| Channels | 3000 |
| Operating Temperature | -30℃~+60℃ |
| Operating Voltage | 7.4V DC |
| Dimension | 150 x 64x 40mm |
| Weight | 360g(with battery） |
| Battery Type | Li-ion |
| Battery Capacity | 3200mAh |
| Antenna Impedance | 50Ω |
| Transmitter | |
| Transmit current | Analog≤1.6A Digital≤0.9A |
| Frequency Stability | ±1.0ppm |
| FM modulation mode | 12.5KHz@11K0F3E 25KHz@16K0F3E |
| 4FSK digital mode | 12.5KHz(data only):7K60FXD12.5KHz(data and voice):7K60FXW |
| Modulation distortion | ＜5% |
| Vocoder | AMBE+2TM |
| Adjacent channel power | 60dBm@12.5KHz 65dBm@25KHz |
| Audio Response | +1~-3dB |
| Digital Protocol | ETSI-TS102 361-1,-2,-3 |
| Receiver | |
| Analog Sensitivity | 0.35uV/-116dBm(20dB SINAD)0.22uV/-120dBm(Type) |
| Digital Sensitivity | 0.30uV/-117dBm(BER 5%)0.70uV/-110dBm(BER 1%) |
| Adjacent Channel Selectivity | TIA603C:65dB ETSI:60dB |
| Spurious Response | TIA603C:75dB ETSI:70dB |
| Audio Response | +1~-3dB |
| Rated Audio Distortion | ≤3%(Type) |
| Audio Power | ≥500mW |
Dual Band DMR Radio
Analog and Digital Combined
Compatible with Motorola Tier Ⅰ&Ⅱ
Comply with Digital Protocol ETSI TS 102 361-1,-2,-3
Use Time-Division Multiple-Access(TDMA) Digital Function
Frequency Band:136-174 & 400-480MHz& 76-107.95MHz(Receive only )
100,000 Contacts + 1000 Priority Contacts
Up to 3000 channels
Dual Time Slot for Repeater
Dual Time Slot for Point to Point
Firmware Upgradeable
IP67 Waterproof
Scan:Time/Search/Carrier
Encryption Function (Is not compatible with RT3,RT8,RT82.RT90)
Lone Worker
Single/Group/All call
Remote kill/stun/activate
Color LCD Display
Transmit/Transceive interruption
Promiscuous Function
GPS
CTCSS/DCS
Analog Monitor
VOX
TOT
Talkaround
Squelch
Keypad Lock
LED Indicator
Password Lock
Battery Save
Voice Annunciation
1000/1450/1750/2100Hz Single tone
ID Setting
