- HD1 DMR radio: 3000 channels, 200,000 contacts + 1000 priority contacts, IP67 waterproof, 3200mAh battery, supports: single call/group call/all call; remote kill/stun/activate
- Analog digital combination: analog or digital mode can be smoothly switched according to actual needs; DMR and analog dual frequency; long press the exit key to switch in frequency mode
- Hige power and Long range: 10W/5W/1W, three gears of power adjustable, you can choose the appropriate power according to the communication distance, if the distance is too far and the signal is weak, you can choose high power
- Dual Band Ham radio: front panel operation, no need to connect to a computer; supports 400-480MHz (UHF model) and 136-174MHz VHF (VHF model);1.77-inch color LCD display is easy to read; VFO mode can achieve fast frequency operation; support cross-band relay connection
- Digital radio with GPS: GPS receiver works with APRS to push location beacon messages to the APRS network in real time; can receive and send location information; suitable for tracking group members' outdoor activities, playing an important role in outdoor rescue teams
GETTING CLOSER! ONLY $50.00 AWAY FROM FREE SHIPPING!
Order Handling Time within 3 Working days(Pre-sale products excluded).

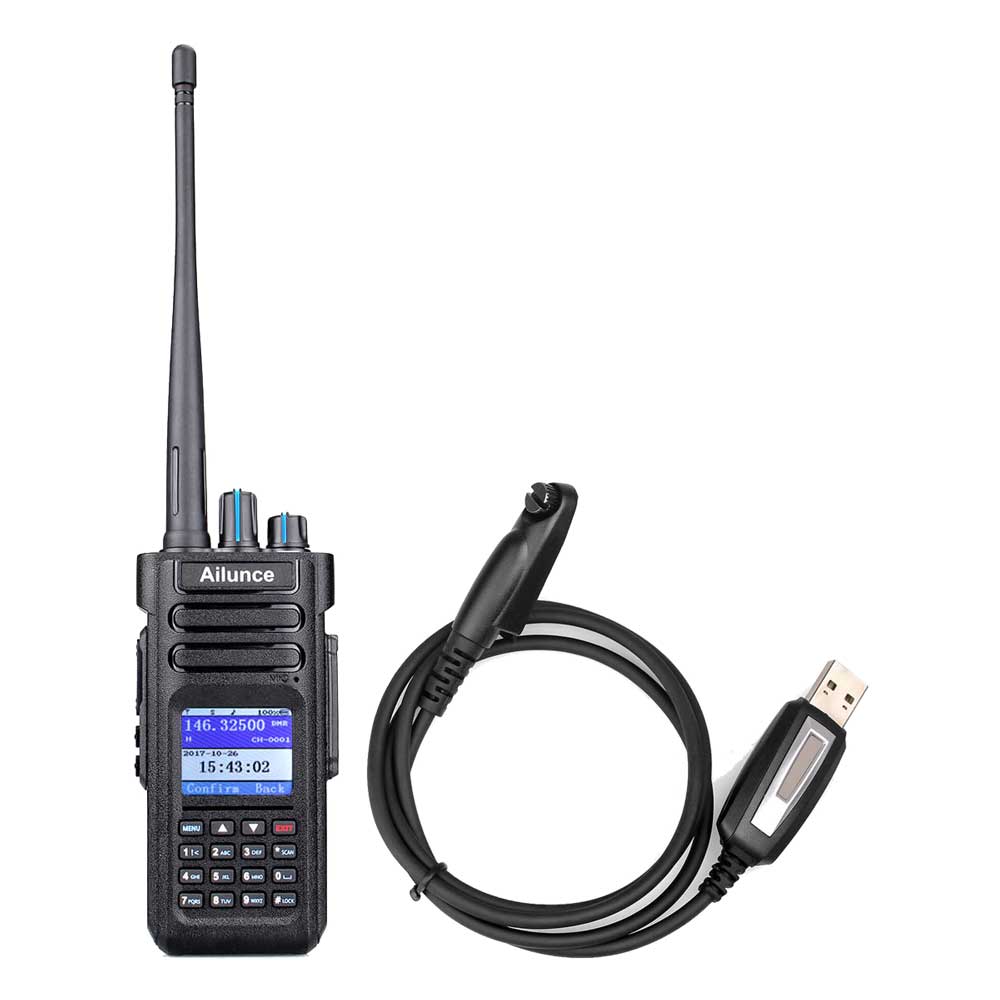

Retevis Ailunce HD1 IP67 FPP Dual Band Dual Time Slot DMR Ham Radio
The Retevis Ailunce HD1 IP67 Dual Band DMR Amateur Radio is ideal for amateur radio enthusiasts seeking a reliable and rugged device. It offers GPS positioning, dual band operation, and is rated IP67 for dust and water resistance. It is compatible with the popular MOTO TRBO series Tier I and II using standard encryption, as well as other makes and models of DMR-enabled radios, and the radio offers loud and clear sound, as well as a wide range of features for a wide range of amateur radio activities. Make the most of your DMR experience with this Retevis HD1 Amateur Radio.
Digital and Analog Modes
Supports both digital and analog modes, compatible with existing analog systems, users can gradually switch analog terminal settings according to budget and actual communication needs.
Built-in GPS
HD1 (GPS Version) has GPS positioning function, GPS function gives you latlong; altitude; bearing; and speed information SMS function support to text the information to another radio with the same DNA protocol. In the event of an emergency, GPS can be used to locate the team's location for emergency rescue.
IP67 Waterproof
HD1 can be immersed in 1 meter of the water for 30 minutes,waterproof and dustproof function, can be used in rainy and snowy weather, very suitable for outdoor skiing activities.
Large Channel and Contacts Capacity
Dual time slot for point to point supports two group calls in one channel under direct model; Up 3000 Channels and 200,000 Contacts.
3200 mAh Large Battery Capacity
Come with 3200mAh large battery, enable normal use 7-day Standby Time / Working time up12-16 hours.
HD1 Package
- 1 x AILUNCE HD1 DMR Radio
- 1 x 3200mAh Type-C Rechargeable Battery
- 1 x Type-C Desktop Charger
- 1 x Type-C Charging Cable
- 1 x Antenna
- 1 x Belt Clip
- 1 x Sling
- 1 x Adapter
- 1 x English Manual
Features:
1. FULL FPP, which can be turned into all functions using the intercom panel without PC.
2. Up to 3000 channels, 100,000 Contacts + 1000 Priority Contacts for extremely complex organizational communications.
3. DCDM is Dual Capacity Direct Mode. Provides additional spectral efficiency by supporting up to two simultaneous Direct Radio-to-Radio Mode subscriber calls within a 12,5kHz allocation of spectrum, without a repeater.
4. Remote kill/stun/activate, allowing you to remotely manage the intercom.
5. IP67 dustproof and waterproof. Fearless of dust and Rainstorm.
6. Supports the use of repeater.
7. GPS gives you a clear idea of your location, even in the wild. Use it to find your way or to help others find you.
Package Includes:
- 1 x HD1 GPS DMR Radio
- 1 x Type-C Charge Battery
- 1 x Programming Cable
- 1 x Type-C Desktop Charger
- 1 x Type-C Charging Cable
General specifications | |
Frequency | 136-174&400-480MHz&76-107.95MHz(Receive only ) |
Channels | 3000 |
Operating Temperature | -30℃~+60℃ |
Operating Voltage | 7.4V DC |
Dimension | 150 x 64x 40mm |
Weight | 360g(with battery) |
Battery Type | Li-ion |
Battery Capacity | 3200mAh |
Antenna Impedance | 50Ω |
Transmitter | |
Transmit current | Analog≤1.6A Digital≤0.9A |
Frequency Stability | ±1.0ppm |
FM modulation mode | 12.5KHz@11K0F3E 25KHz@16K0F3E |
4FSK digital mode | 12.5KHz(data only):7K60FXD12.5KHz(data and voice):7K60FXW |
Modulation distortion | <5% |
Vocoder | AMBE+2TM |
Adjacent channel power | 60dBm@12.5KHz 65dBm@25KHz |
Audio Response | +1~-3dB |
Digital Protocol | ETSI-TS102 361-1,-2,-3 |
Receiver | |
Analog Sensitivity | 0.35uV/-116dBm(20dB SINAD)0.22uV/-120dBm(Type) |
Digital Sensitivity | 0.30uV/-117dBm(BER 5%)0.70uV/-110dBm(BER 1%) |
Adjacent Channel Selectivity | TIA603C:65dB ETSI:60dB |
Spurious Response | TIA603C:75dB ETSI:70dB |
Audio Response | +1~-3dB |
Rated Audio Distortion | ≤3%(Type) |
Audio Power | ≥500mW |
Dual Band DMR Radio
Analog and Digital Combined
Compatible with Motorola Tier Ⅰ&Ⅱ
Comply with Digital Protocol ETSI TS 102 361-1,-2,-3
Use Time-Division Multiple-Access(TDMA) Digital Function
Frequency Band:136-174 & 400-480MHz& 76-107.95MHz(Receive only )
100,000 Contacts + 1000 Priority Contacts
Up to 3000 channels
Dual Time Slot for Repeater
Dual Time Slot for Point to Point
Firmware Upgradeable
IP67 Waterproof
Scan:Time/Search/Carrier
Encryption Function (Is not compatible with RT3,RT8,RT82.RT90)
Lone Worker
Single/Group/All call
Remote kill/stun/activate
Color LCD Display
Transmit/Transceive interruption
Promiscuous Function
GPS
CTCSS/DCS
Analog Monitor
VOX
TOT
Talkaround
Squelch
Keypad Lock
LED Indicator
Password Lock
Battery Save
Voice Annunciation
1000/1450/1750/2100Hz Single tone
ID Setting
