Retevis HD2-GPS+Bluetooth speaker+Program cable+Battery+Long antenna
- Ailunce HD2 GPS DMR Radio: A dual-band DMR radio that communicates with the world, with Bluetooth 5.0 headset,10W high power,IP67 waterproof,3200mAh battery,5000K contact capacity,3000 channels,supports data and voice communication, can realize SMS, GPS positioning and other functions, whether it is to communicate with fans around the world or for emergency use, HD2 is a trustworthy communication tool.
- Bluetooth wireless speaker microphone: provides hands-free operation for two-way radio, easily freeing your hands, with a large internal speaker, clear and crisp sound quality when transmitting and receiving;1000mAh battery, 30 days of standby time; simple and easy pairing process and one-time memory pairing, and supports mobile phone use (Android/IOS)
- SMA-F antenna: dual-band VHF/UHF long antenna, maximum power 20W, can effectively increase the communication distance
- Emergency communication kit: Retevis Ailunce HD2 with long antenna and Bluetooth microphone allows you to quickly contact nearby amateur radio enthusiasts in an emergency, form an emergency communication team, and become the first person to respond to the emergency
- Save $20 on your order
GETTING CLOSER! ONLY $50.00 AWAY FROM FREE SHIPPING!
Order Handling Time within 3 Working days(Pre-sale products excluded).
Retevis HD2-GPS+Bluetooth speaker+Program cable+Battery+Long antenna
The Ailunce HD2 DMR radio set is equipped with an SMA-F long antenna, a Bluetooth wireless microphone, and an additional 3200mAh battery, which can meet all your needs and is very suitable for individual users. Whether it is outdoor adventure, off-road, or emergency use, the Ailunce HD2 set is a trustworthy communication tool
The main function of this waterproof DMR radio HD2

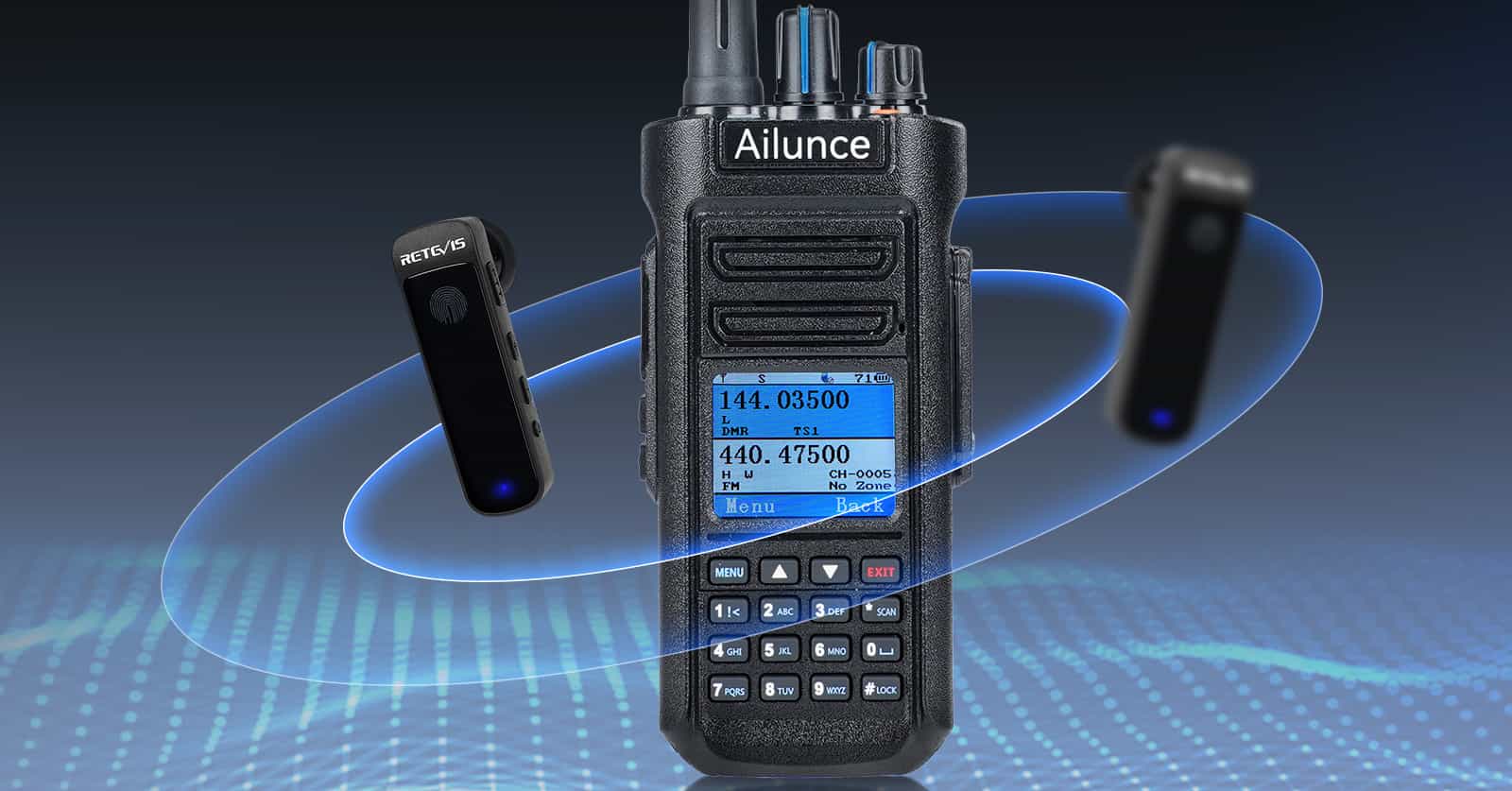

Bluetooth walkie talkie
Ailunce HD2 comes with Bluetooth with 5.0 technology offers more stable connection and longer range; making communication more convenient and efficient supports connecting the wireless headsets to release your hands; no cable trouble; free and convenient to communicate within 10m.

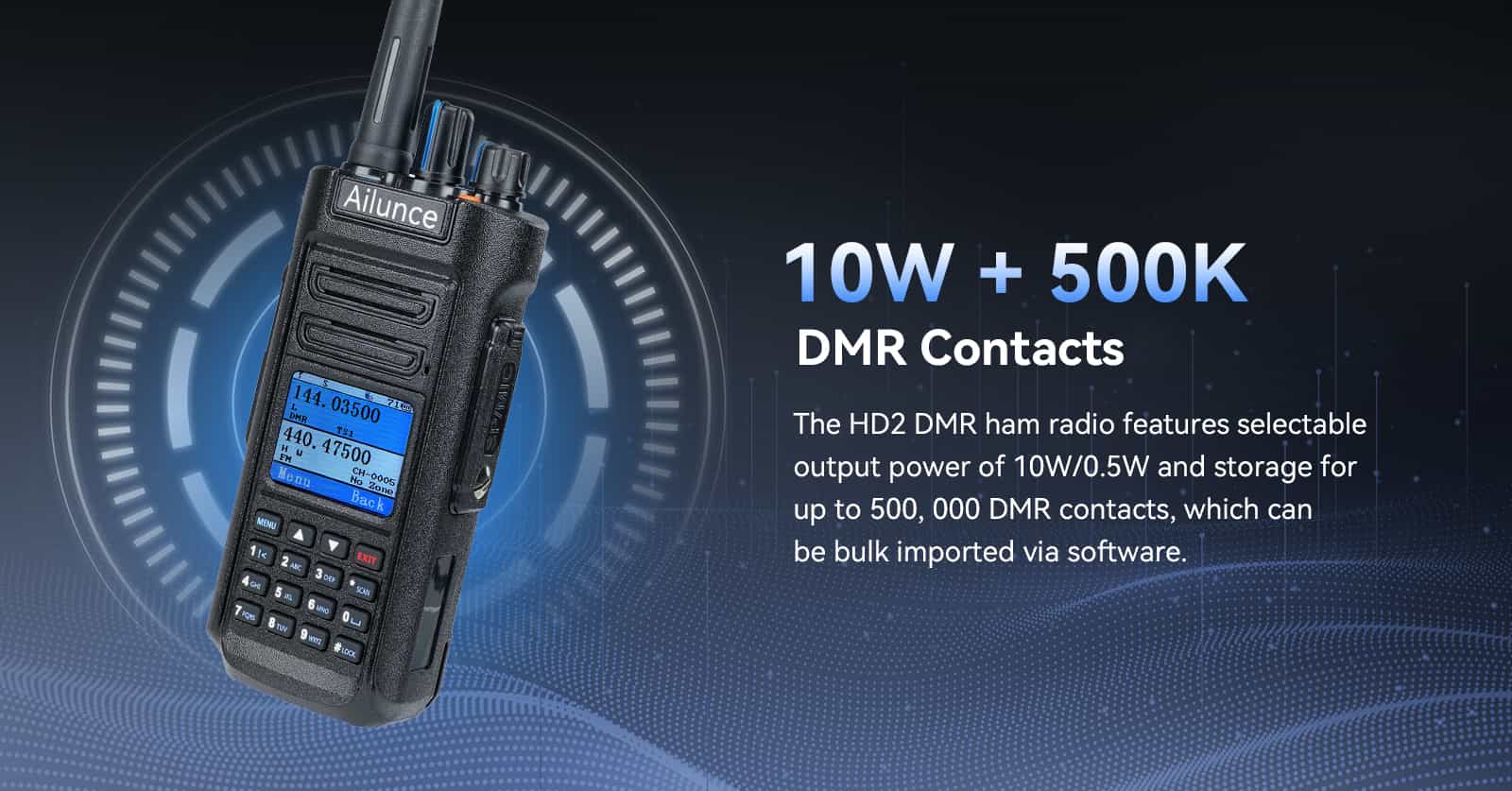

Large Contacts helps the Radio amateurs upload more contacts
Ailunce HD2 two-way radio supports importing up to 500K contacts, which allows you to communicate with amateur radio enthusiasts all over the world, and quickly contact nearby amateur radio enthusiasts in an emergency, build an emergency communication group, and become the first person to respond to an emergency;
3000-channel DMR radio means the radio is able to save multiple channels and contacts; ideal for large groups various needs.
You may upload all the DMR contacts with CSV files via programming software. Now Ailunce HD2 supports 500,000 contacts and 5,000 priority contacts.
Priority Contacts can be edited via HD2's Keypad.
The way to add Contacts on Ailunce HD2: Press-Menu-Find Contact, Edit the Contact ID, Type, Name, City, Province, and Country by its keypad.
Retevis Ailunce HD2 supports 32 Group IDs. Meet the IDs of a ham in different groups Identification。

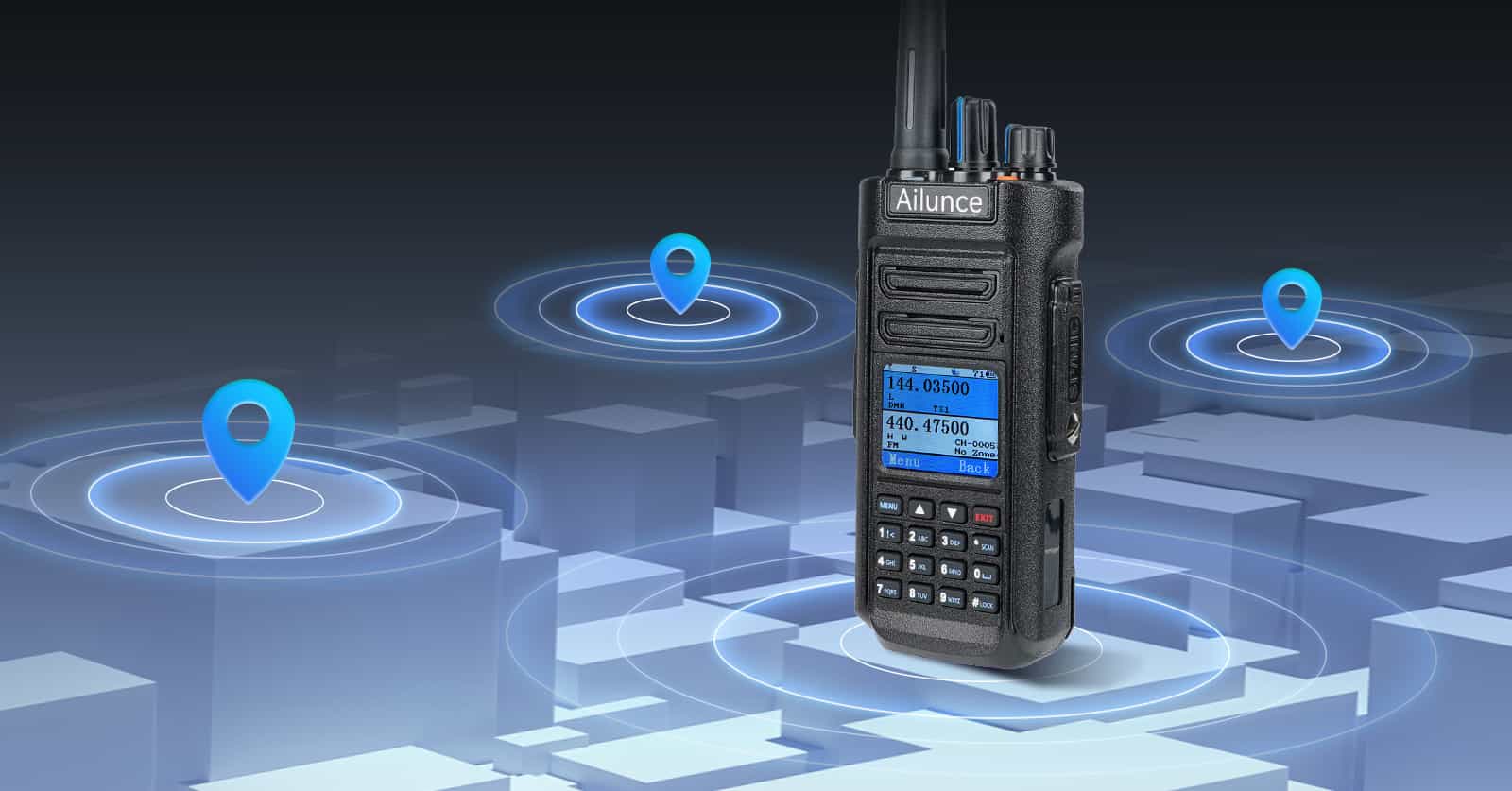

GPS Function
Locate your position and receive your partners' locations to keep a constant connection with members. When you choose the GPS Ailunce HD2, you may check your Local GPS location and receive the GPS location from your friends.

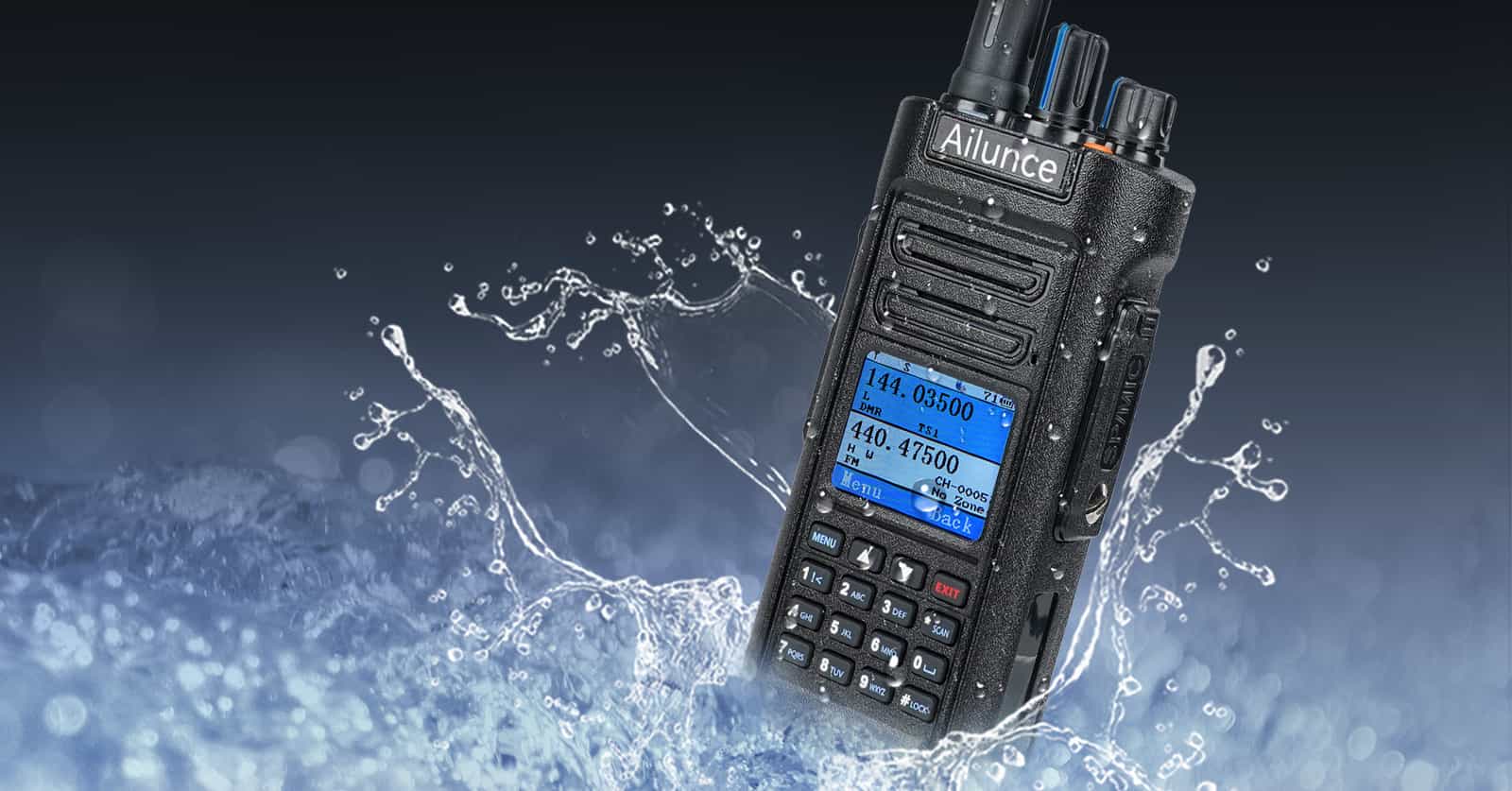

IP67 Waterproof
HD2 DMR ham radio is strong to against muddy water and dust for long-time use without damage.

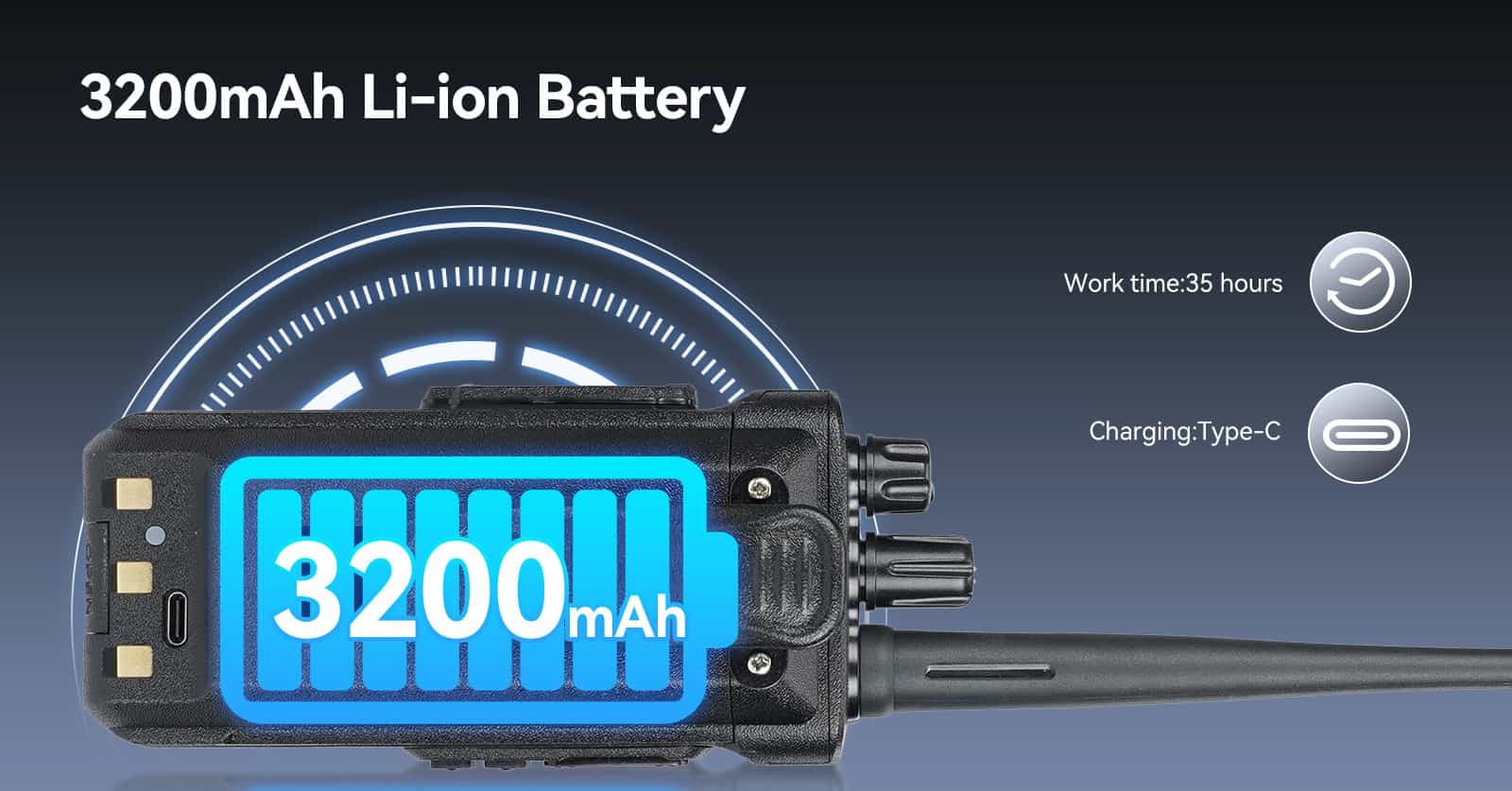

3200mAh Battery
Long battery life is the insurance for outdoor activities. HD2 DMR radio with a 3200mAh battery and up to 35 hours of battery life is efficient for a whole day without frequent charging. Additionally, Type-C charging makes it convenient to extend the work time through the power bank and vehicle outdoors.
Ham radio long range
HD2 has two adjustable power levels of 10W/0.5W. The 10W high power has strong signal transmission capability and can expand the communication range. The 0.5W ultra-low power adds more playability, suitable for HAM to explore

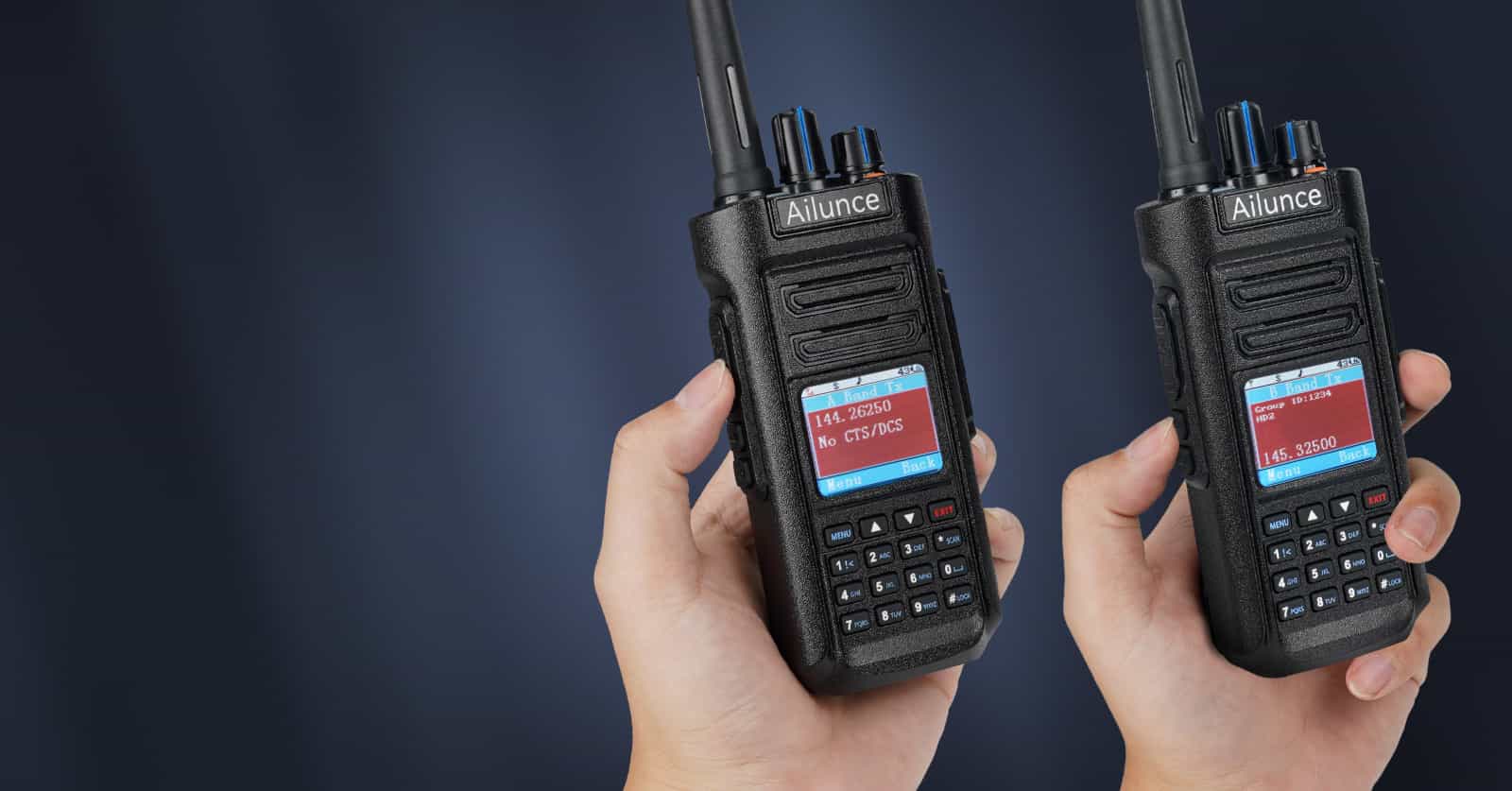

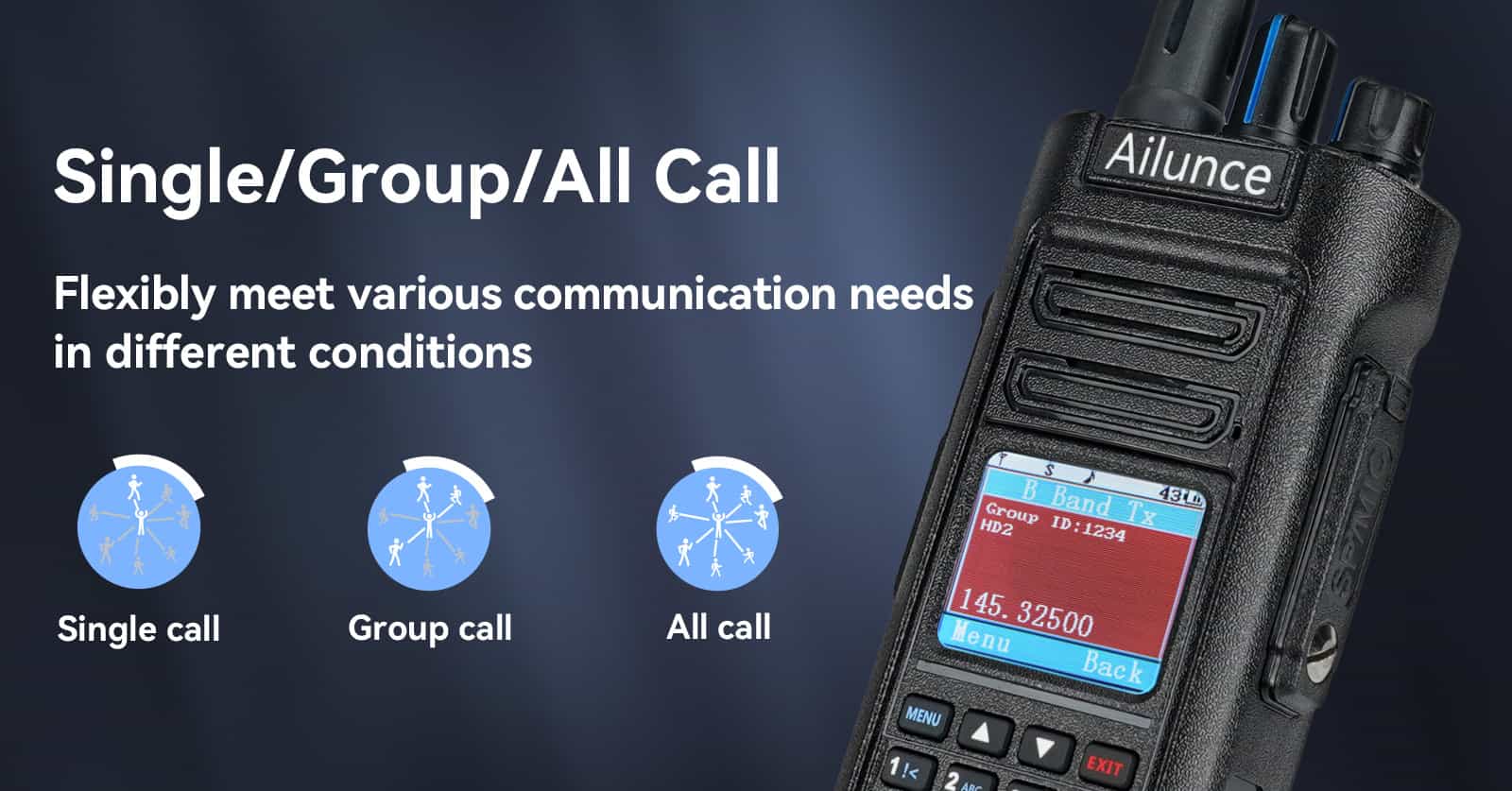

Single/Group/All Call
Flexibly meet various communication needs in different conditions.DMR radio supports different calling modes on various occasions, including individual, group, and team communication, which meets flexible needs in a big team.

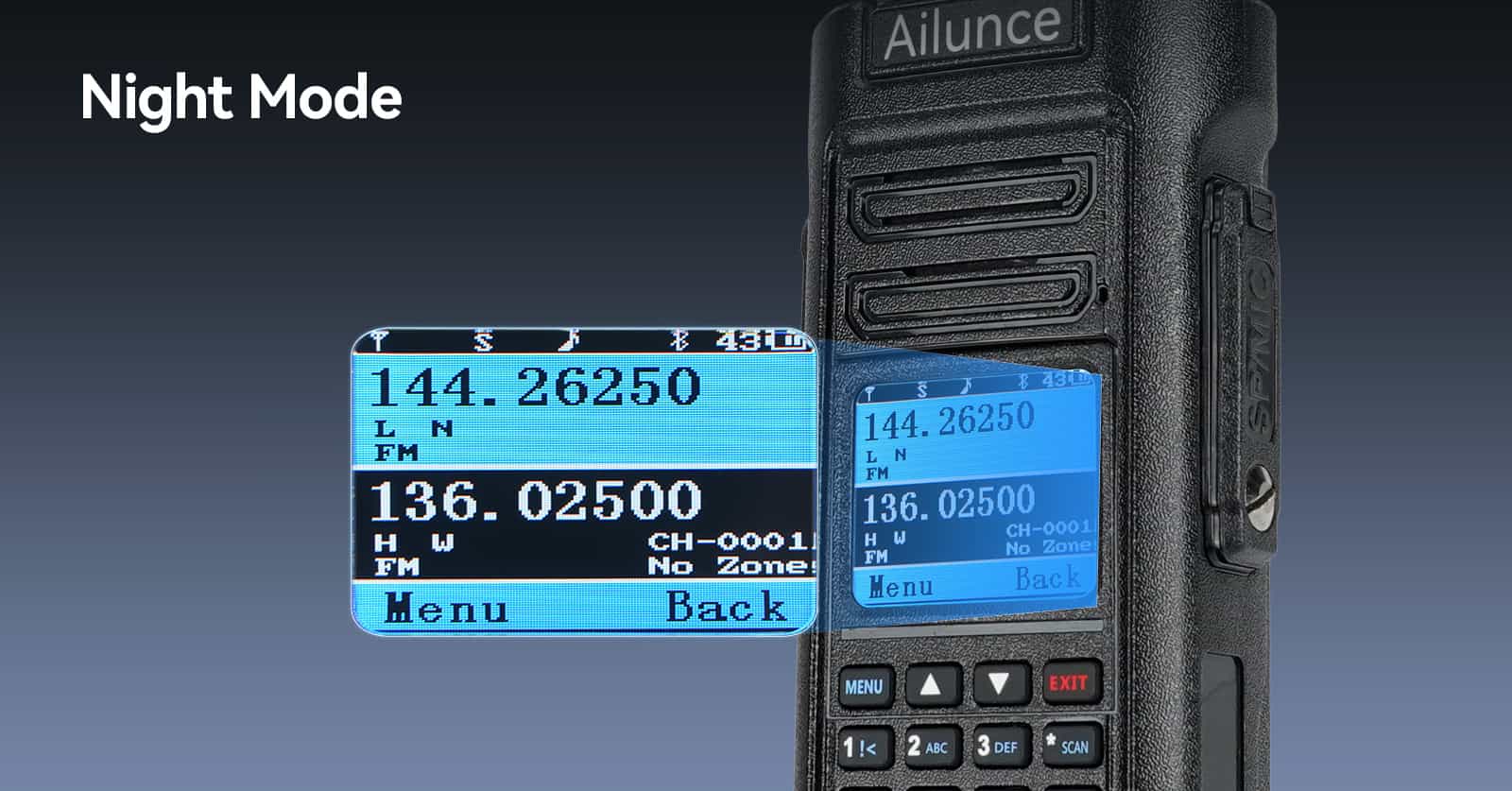

Night Mode
Ailunce HD2 DMR radio supports day and night two display modes. 1.77-inch color display is available for day and night to check dual band frequencies due to adjustable brightness and backlight time.Night mode reduces the bright light damage to the eyes, increasing the read comfort.

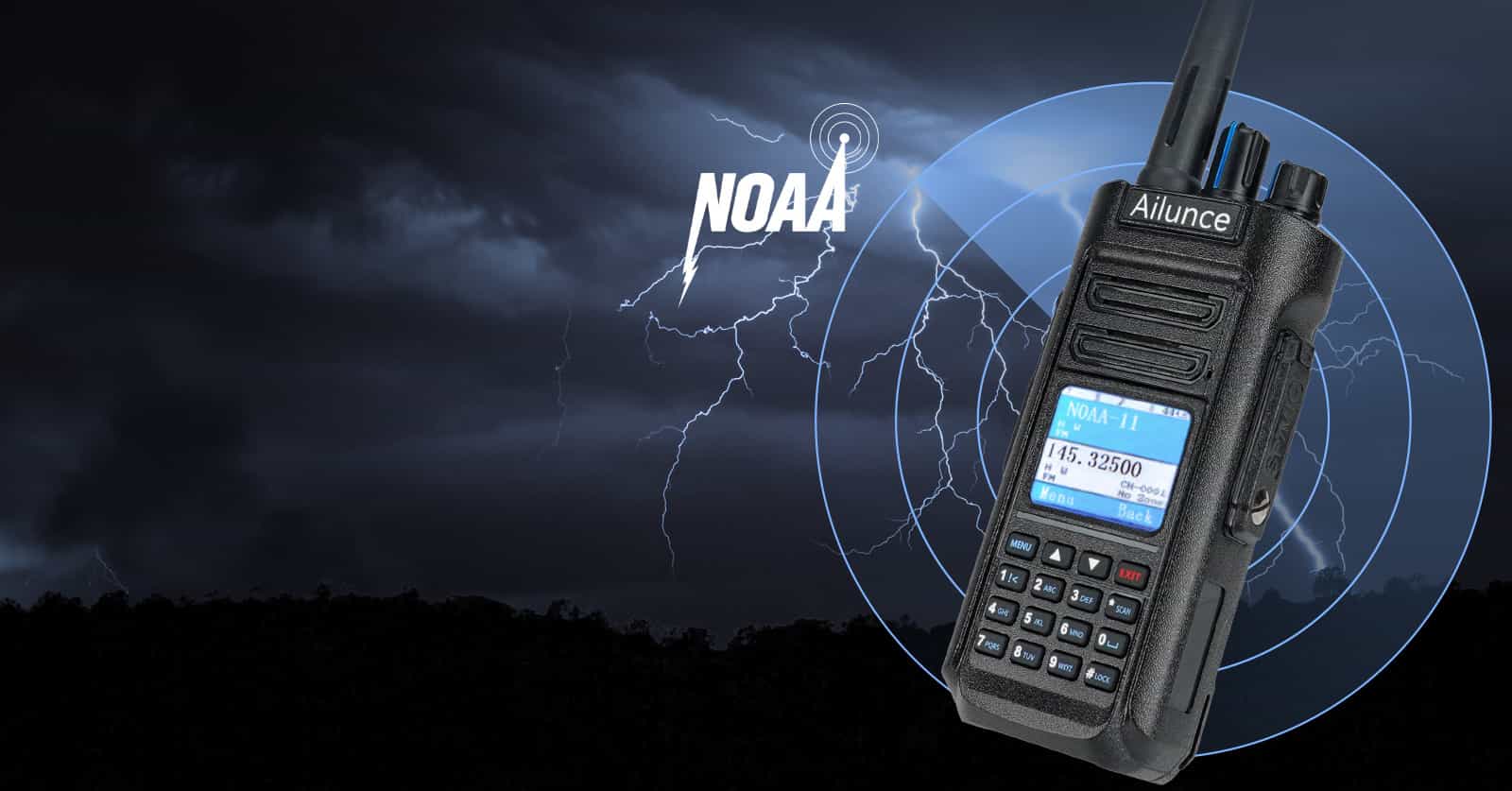

NOAA Channels
The handheld transceiver supports turning on NOAA through the side key and choosing the channels to get the latest weather information conveniently.

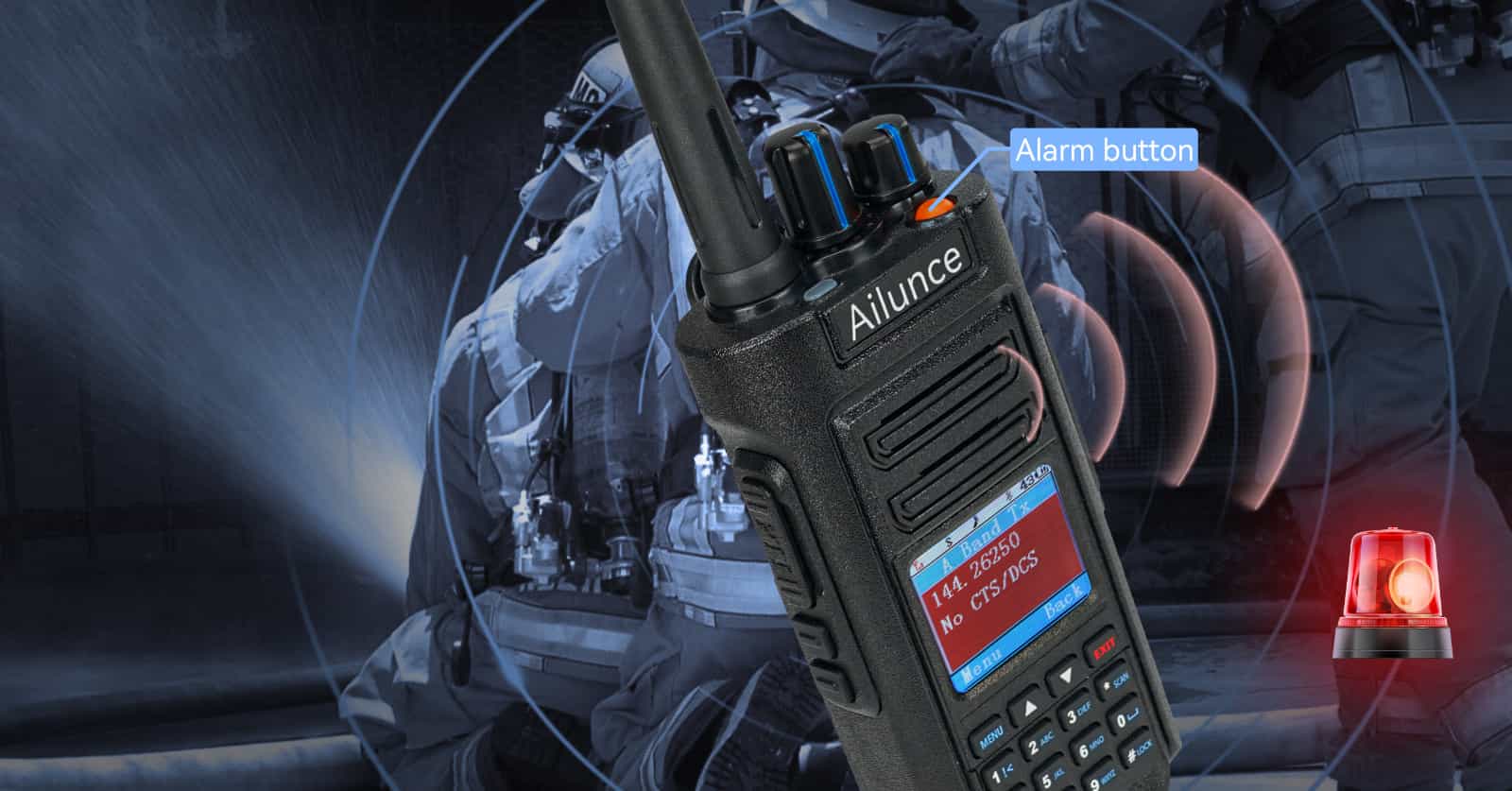

Emergency Alarm
Press the specified alarm key to turn on the local or remote alarm. Remote alarm will send the voice to your partners to ask for help, making your going out secure.

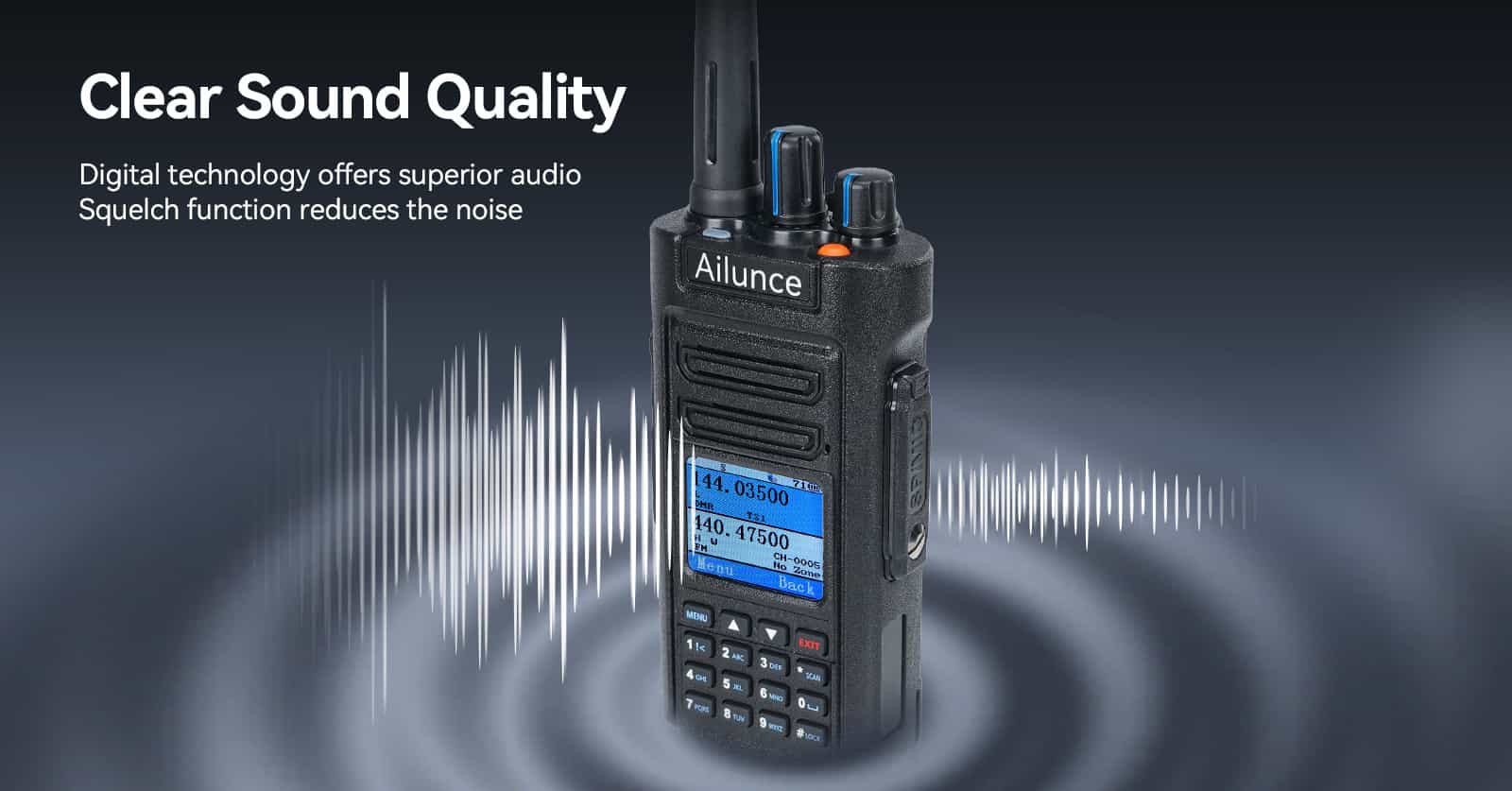

Clear Sound Quality
HD2 DMR ham radio adopts digital technology, providing superior audio than analog two-way radios. In addition, the 0-9 optional squelch function effectively filters out the background wind or vehicle sound, enhancing communication clarity even when you are in a noisy environment, communicating with members without worries.
SUB-PTT Function
It is convenient for you to transmit dual band frequencies without pressing the */scan key to switch bands A or B.Dual-PTT function, you may press the PTT button or Side-key Button to transmit on different bands.
DMR VFO programming
HD2 is a DMR digital two way radio that can be programmed from the front panel. No computer is required. Programming can be completed on the front panel of the handheld device, which is convenient and fast, especially in emergency situations.

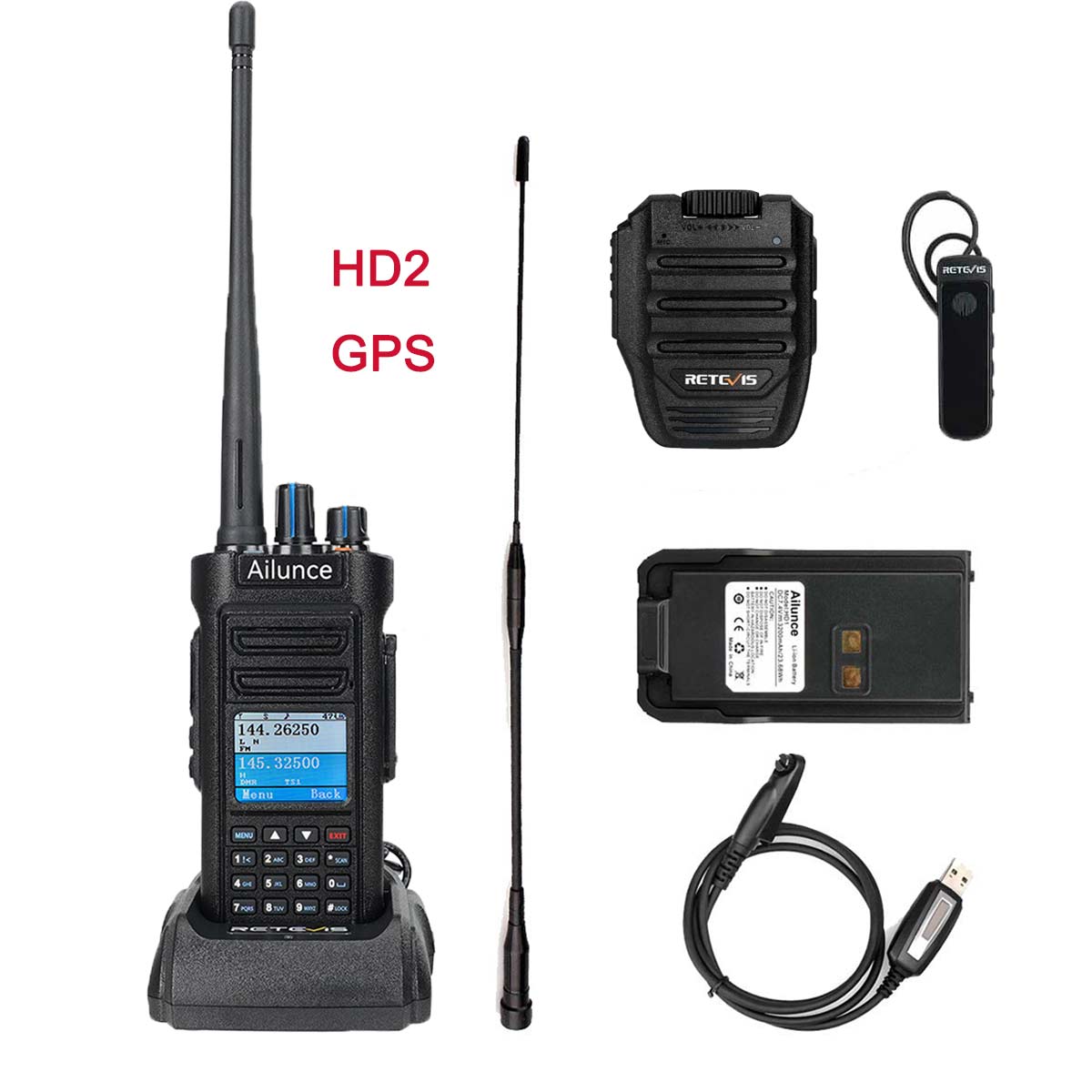

What's included in the package?
1 X HD2 long range ham Radio
1X Original 3200 mAh Battery
1X USB Type-C Charging Cable
1X Type-C Desktop Charger
1 x long antenna
1 X Wireless Microphone
1X program cable for HD2
1X User’s manual
1X Belt clip
1X Sling
1X Bluetooth earpiece
|
General |
Frequency Range |
Receive frequency: VHF 136-174Mhz，UHF 400-520MHz； |
|
|
Channel Numbers |
3000 |
|
|
Channel Space |
25 kHz /12.5kHz |
|
|
Input Voltage |
Max 8.4V---Max 540mA |
|
|
Battery Capacity |
3200mAh |
|
|
Battery Charging Input |
5V 1A |
|
|
Frequency Stability |
±1.0ppm |
|
|
Operation Temperature |
-10℃ to +40℃； |
|
|
Antenna Impedance |
50Ω |
|
Transmit |
Transmit Frequency |
USA： 144-148Mhz， 222-225Mhz/420-450Mhz； EU： 144-146Mhz, 430-440Mhz; |
|
|
RF TX Power |
High/Middle/Low/Ultra low power |
|
|
Transmit current |
Analog≤1.6A Digital≤0.9A |
|
|
Modulation Mode |
12.5KHz 11K0F3E (Analog) 12.5KHz(data only): 7K60FXD |
|
|
Modulation distortion |
＜5% |
|
|
Vocoder |
AMBE+2TM |
|
|
Adjacent channel power |
60dBm 12.5KHz |
|
|
Audio Response |
+1~-3dB |
|
|
Digital Protocol |
ETSI-TS102 361-1,-2,-3 |
|
|
Modulation distortion |
＜5% |
|
Receive |
Analog Sensibility |
0.35uV/-116dBm(20dB SINDA) |
|
|
Digital Sensibility |
0.30uV/-117dBm(BER 5%) |
|
|
Adjacent Channel Selectivity |
TIA603C:65dB ETSI: 60dB |
|
|
Spurious Response |
TIA603C: 75dB ETSI:70dB |
|
|
Audio Response |
+1~-3dB |
|
|
Rated Audio Distortion |
≤3% (Type) |
|
|
Audio Power |
≥500mW |
Bluetooth Wireless Remote Speaker Mic Specifications:
1.2 to 3 days’ working time(according to 5% transmission time, 5% reception time,
90% standby time);
2. 30 days of standby time;
3. Li-ion battery capacity: 1000mAh;
4. Bluetooth version: 5.3;
5. Push To Talk(PTT) on mic;
6. Dual pairing-phone & walkie talkie;
7. Bluetooth transmission range: ≤10 meter;
8. Wireless PTT optional(Please contact customer support);
9. Working voltage: 3.7V DC;
10. Charging time: 2-3 hours;
11. Weight:125g;
SMA-F Soft Antenna Description:
| Band | Dual band VHF/UHF |
| Antenna type | SMA-F Soft Antenna |
| Frequency | 136-174/400-4800MHz |
| Gain | 2.15 dBi (136-174MHz) 2.15dBi (400-470MHz) |
| Max power | 20 Watts |
| VSWR | < 2.15 (155MHz) < 3.0 (435MHz) |
| Impedance | 50ohm |
| Connector Type | SMA-F (Female) |
| Omni Polarization | Vertical |
| Radiation | Omni |
| Material | ABS Radome Material |
| Length | 360mm |
| Color | Black |
| Compatible Mode | Ailunce HD1 HD2 |
Ailunce HD2 Main Function
- Dual Band DMR Radio
- Analog and Digital Combined
- Compatible with Motorola Tier Ⅰ&Ⅱ
- 500000 Contacts + 5000 Priority Contacts
- IP67 Waterproof
- GPS
- Scan:Time/Search/Carrier
- Encryption Function
- Lone Worker
- Single/Group/All call
- Remote kill/stun/activate
- 1.77 inch Color LCD Display
- 10 level brightness adjustable
- Contacts and color code Promiscuous Function
- Standard CTCSS/DCS
- Analog Monitor
- 3 kinds of Keyboard Lock: Keyboard, Keyboard+CH Knob, PTT+CH+Keyboard
- LED Indicator
- Password Lock
- Battery Save
- Voice Annunciation
- 1000/1450/1750/2100Hz Single tone
- 32 ID Setting
- Night Mode select-able
- Emergency Alarm function
- Dual PTT
Bluetooth Wireless Remote Speaker Mic
Features:
1. Anti-mis-touch design volume/Power switch knob;
2. With 3.5mm listen only audio jack;
3. Built-in rechargeable and replaceable battery;
4. Type-C charging interface, USB charger included;
5. Replaceable clothing/belt clip that swivels 360°;
6. Capable to work with Zello App;
7. Adopt large volume speaker with a diameter of 40mm;
8. Support dual standby mode, can connect walkie-talkie and mobile phone at the
same time;
9. Easy/simple pairing process;
10. One-time memory pairing, the kit will remember the pairing even when all items
are powered off;
11. Lightweight and easy to use;
12. Capable of working with VOX function of two-way radio to release hands;
Compatibility:
Compatible with Retevis Buetooth two-way radio: RB37, RB637, RB89, RB689, HD2;
Mobile phone: Android/IOS;
