How to set up the repeater function of RA87?
How to set up the repeater function of RA87?
RA87 is a very powerful GMRS radio. One of its special features is that two RA87 radios can be used as a repeater. Today we will take a look at how to use only the repeater function of RA87.
The first stage; preparation work

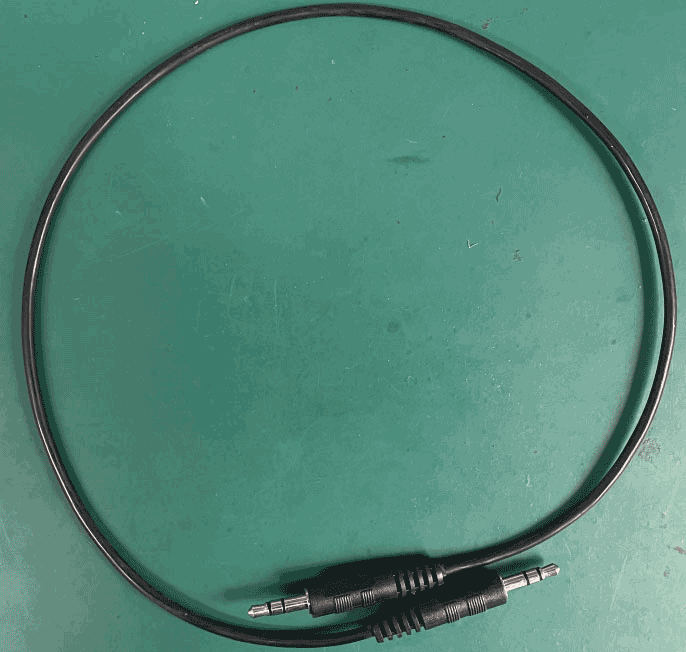

1 data cable, 2 RA87 radios.
The second stage; specific steps
Step 1: Connect two RA87s with data cables
Step 2: Set the two RA87s to the same relay channel. (Transmit 462-467.995 in VFO mode, receive unlimited) or use the existing relay channel.

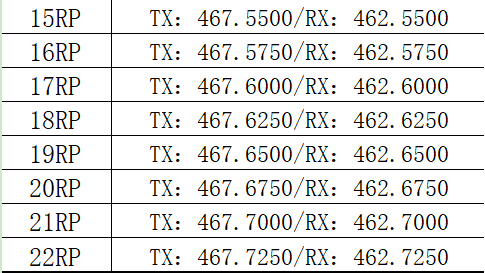

The figure below is the information of the repeater channel

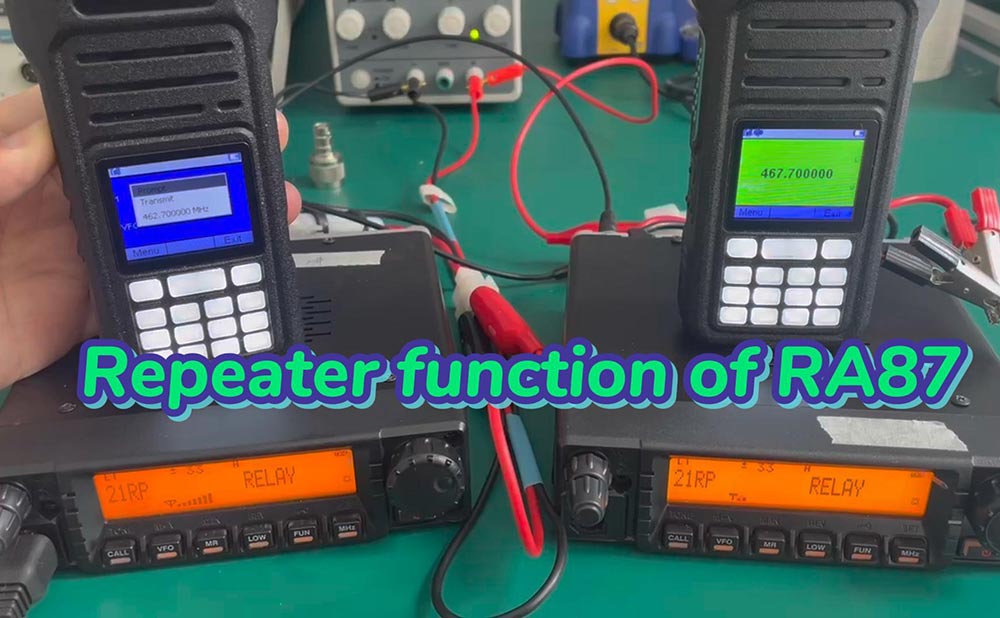

Step 3; As shown below, two RA87s form a simple repeater, such as 21RP channel
Phase 3: Verify relay function
1. Take two machines. Machine A is used as the transmitter and the transmitting and receiving frequencies are set to 462.7000. Machine B is used as the receiving end and the transmitting and receiving frequencies are set to 467.7000.
2. Then machine A transmits and receives the signal through RA87 and then automatically relays the signal to machine B.
For details, please refer to the operation video below
